DALI-2 DT6 Dimmable
Model code EN-DRV-DT6

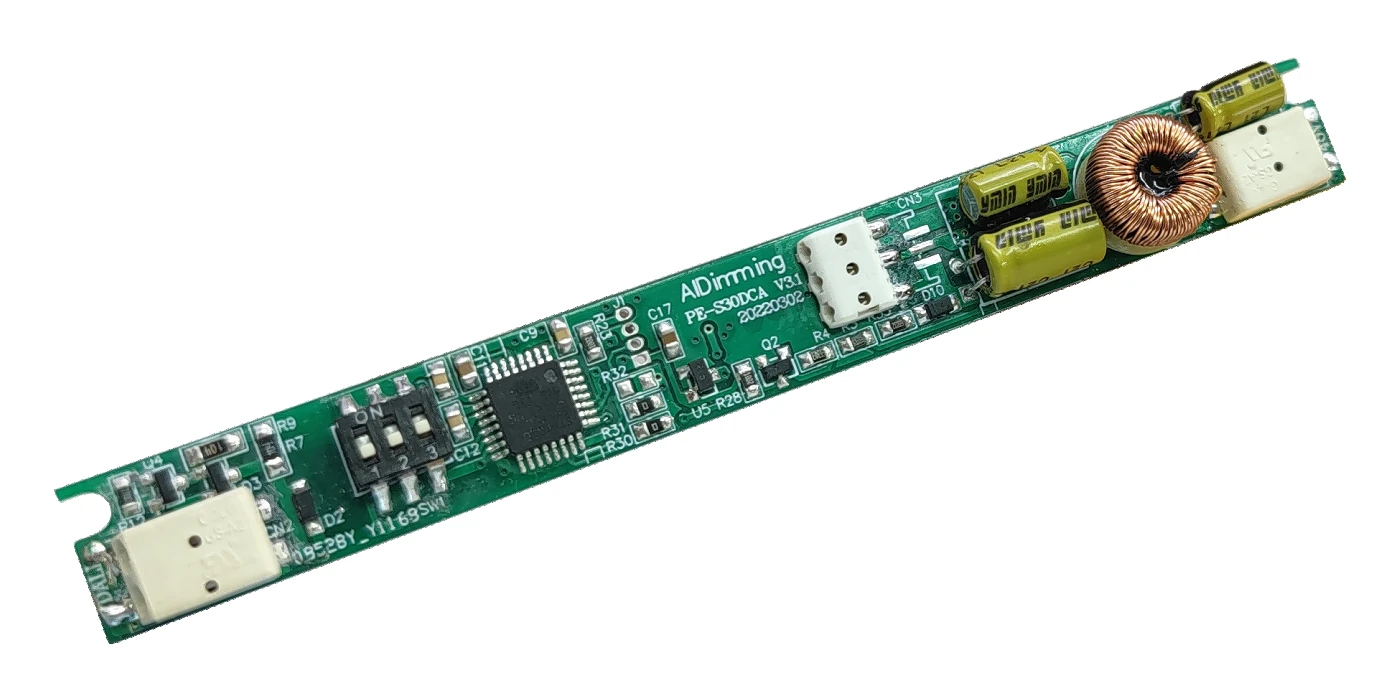

The DALI-2 driver for a CIANA 48V luminaire. It sits in the magnetic box on the back of the head, so nothing is added to the ceiling. Its input side takes both pairs straight off the track’s four contacts — 48V on one pair, DALI on the other — and its output side runs two leads to the LED board, LED+ and LED−. One short address dims the head from full to off. The output current is set to suit the head before the luminaire leaves the factory.
A head up to 24W carries one of these. Above that the luminaire is built with two, one per LED board, so a longer linear is still one fitting but appears on the automation system as two addresses — which the controller can group so that they behave as one.
- Protocol
- DALI-2 · DT6
- Control
- Level
- Addresses
- One per driver
- Track input
- 48V AC/DC ±5%
- LED output
- 9-42V DC
- Drive
- Constant current
- Output current
- 150-700mA
- Current steps
- 8 preset steps
- Leads to LED
- LED+ · LED−
- Dimming
- 0-100%
- Switching
- Above 3600Hz
- Power
- 6-24W
- Size
- 68 × 13.2 × 9mm
- Efficiency
- 95% at full load
- Standby
- Under 0.5W
- Ambient
- ta 45°C · tc 80°C
- Protection
- Overload · short · heat
- Fits
- CIANA 48V head
