CIANA Elance' 6mm — Track Accessories
Model code EN-CE-JOINTERS
Jointers, nodes and connectors for the CIANA Elance' 6mm track system.
The parts 11 parts
EN-CE-Jointer Module · Jointer Module

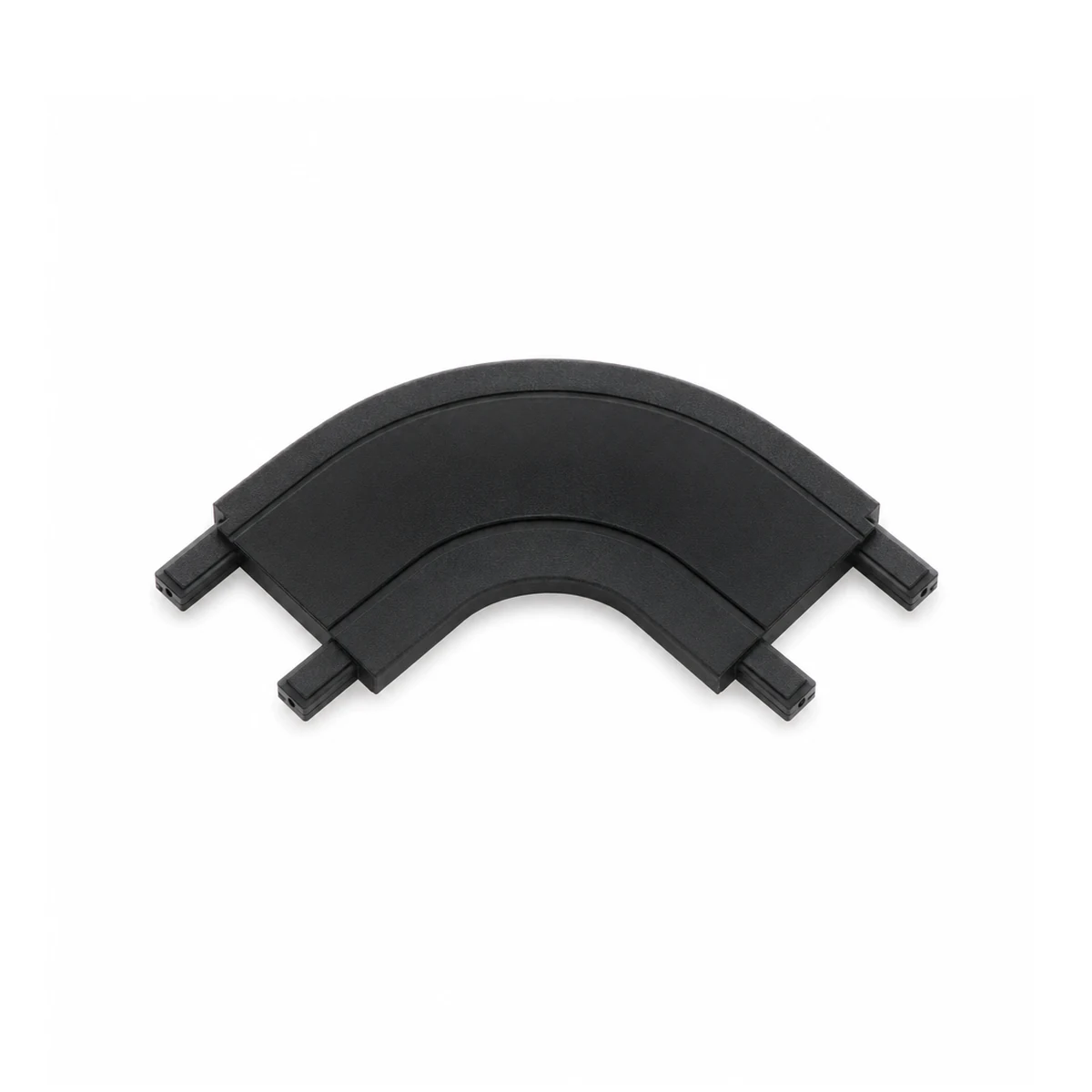

EN-CE-Curved Corner · Curved Corner

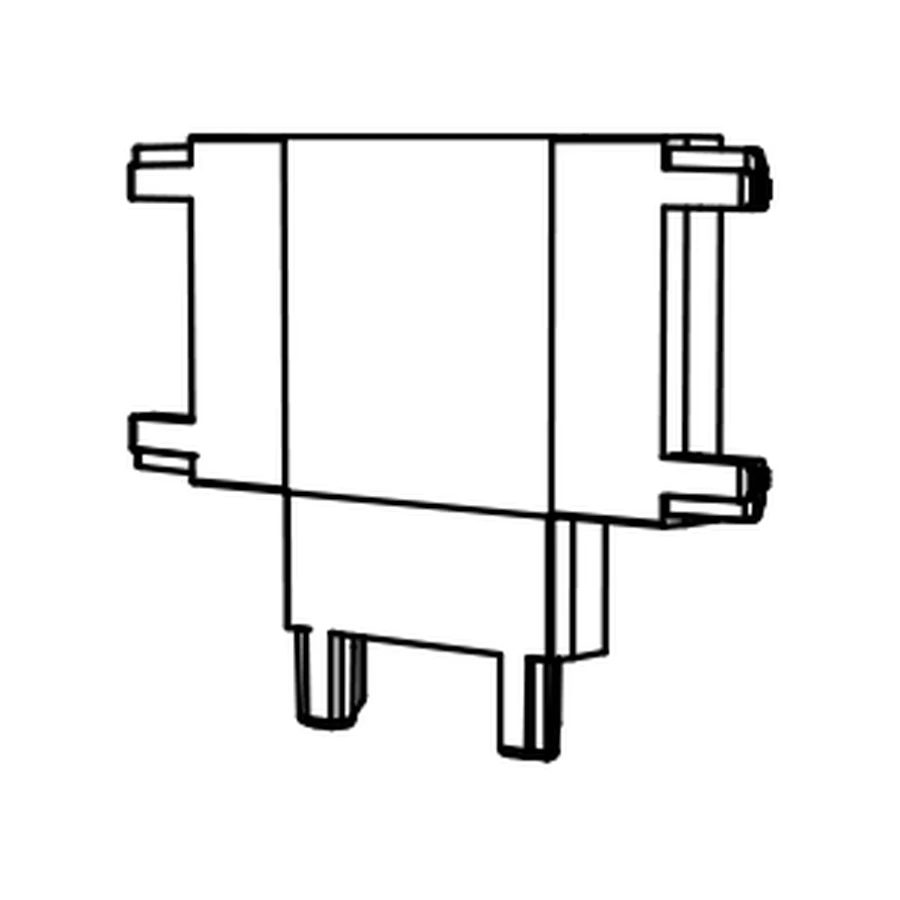

EN-CE-Tee Connector · Tee Connector

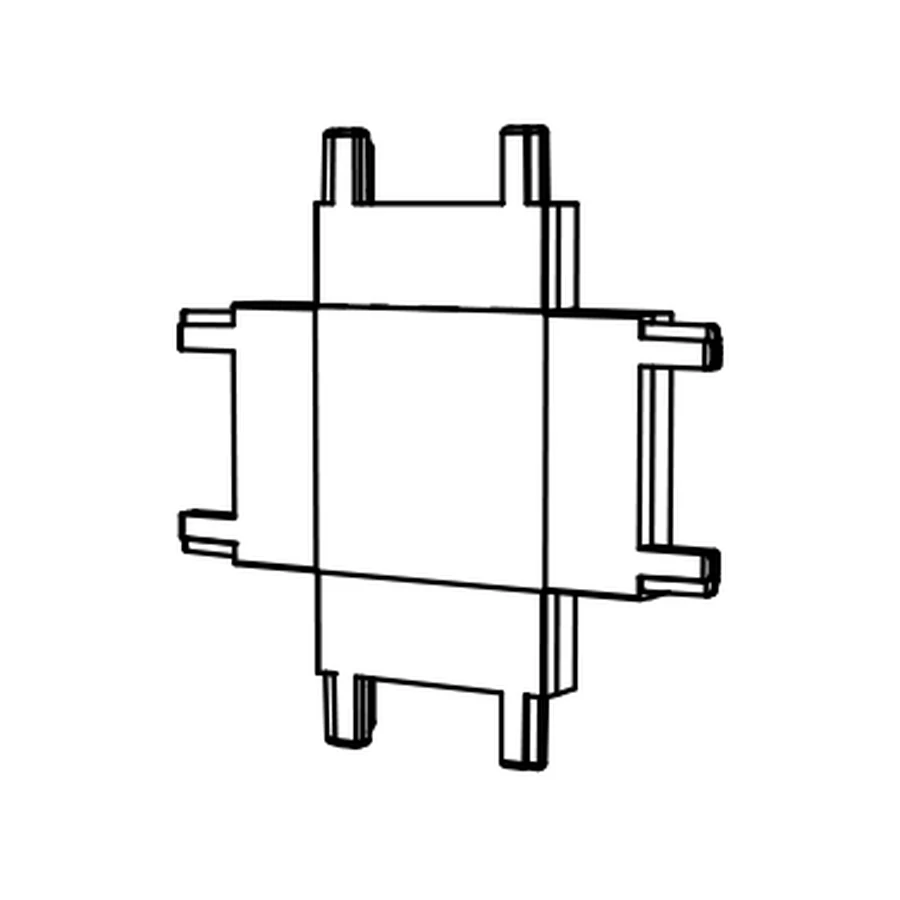

EN-CE-Cross Connector · Cross Connector

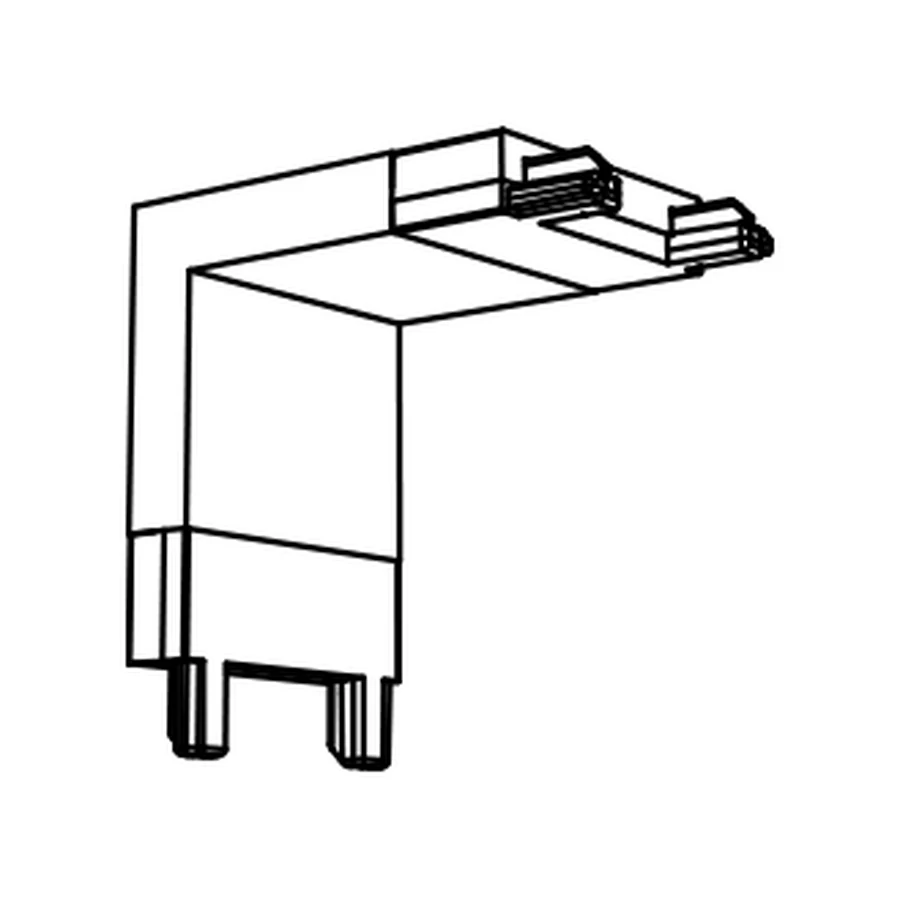

EN-CE-Vertical Corner · Vertical Corner

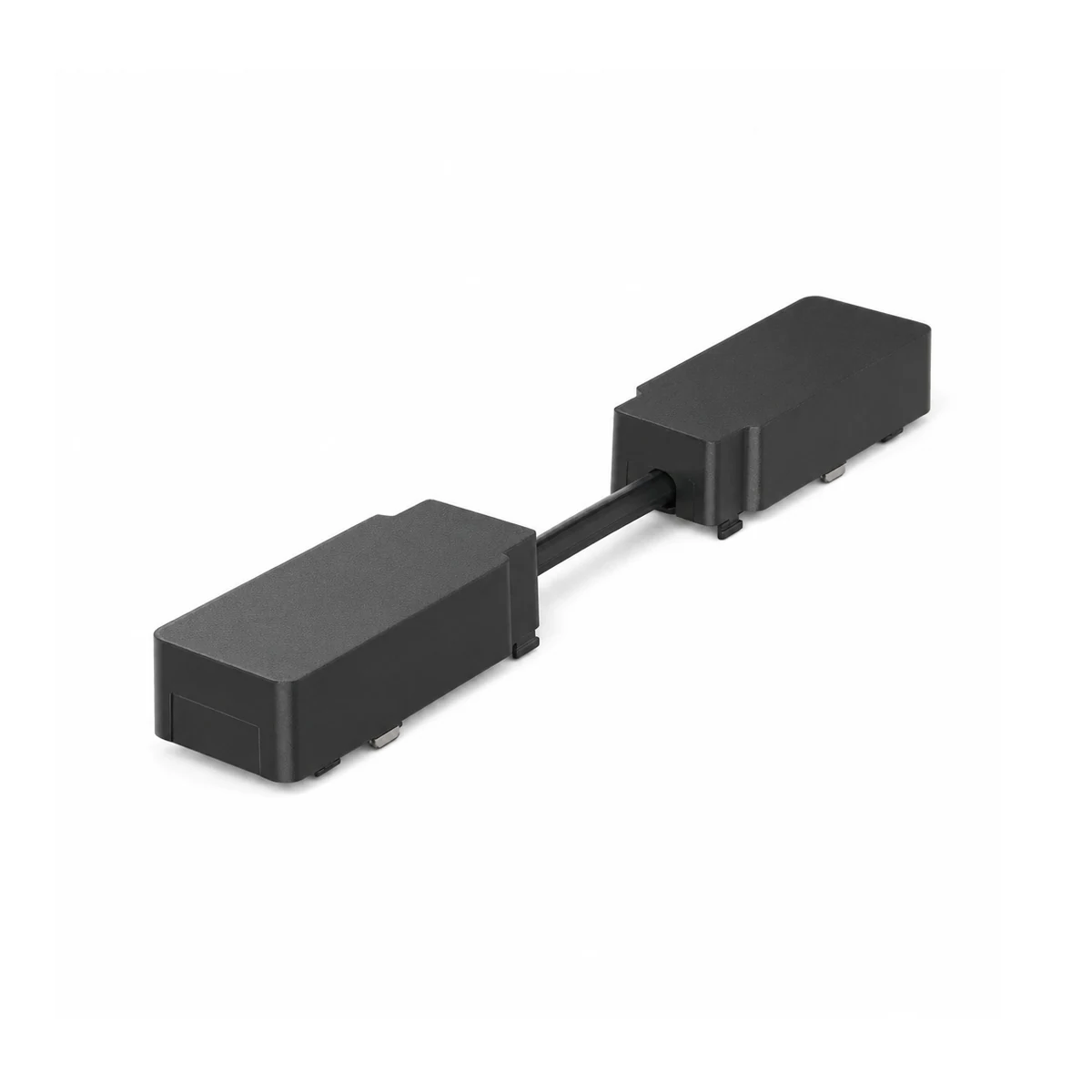

EN-CE-Straight Module · Straight Module
- Overall
- 147 mm
- Blocks
- 2 × 60 × 26 × 16 mm
- Bridge
- 27 mm
- Use
- Carries power across a straight join between two track runs

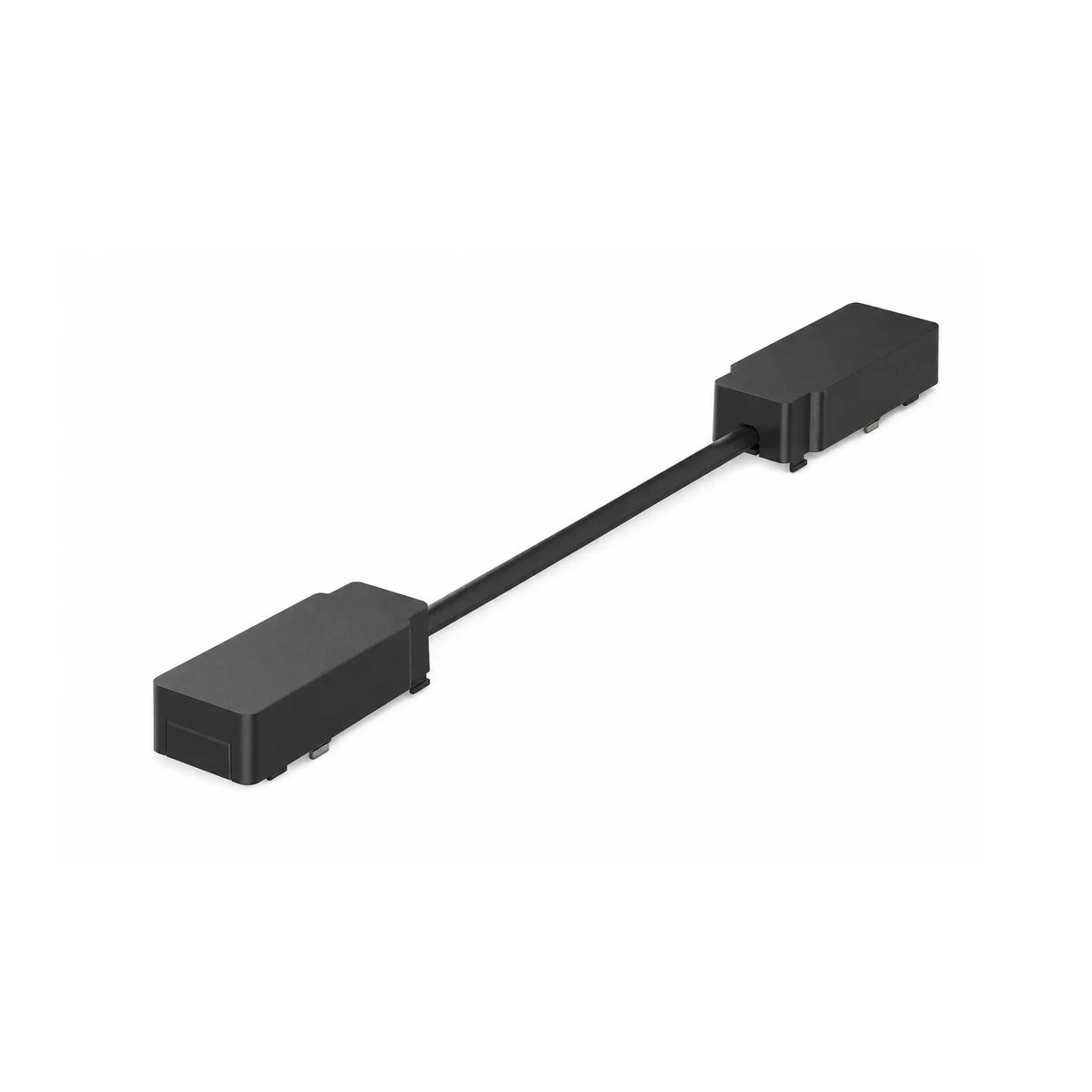

EN-CE-Corner Module · Corner Module
- Overall
- 285 mm
- Blocks
- 2 × 60 × 26 × 16 mm
- Lead
- 165 mm
- Use
- Carries power around a corner between two track runs at an angle

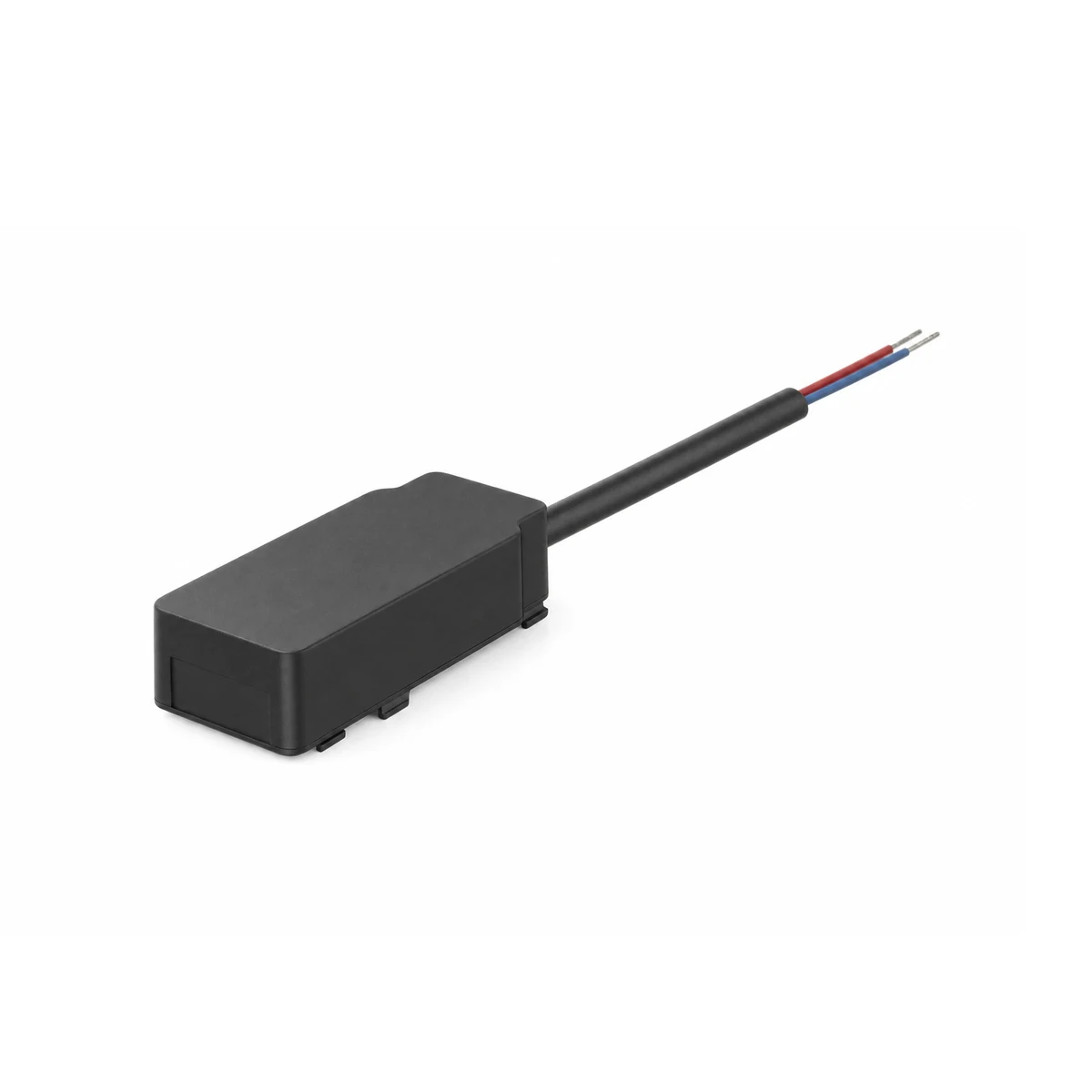

EN-CE-Input Module · Input Module
- Body
- 60 × 26 × 16 mm
- Lead
- 250 mm, two-core
- Use
- Feeds the track from an external 48 V supply (EN-CE48VPS or EN-SMPS04)

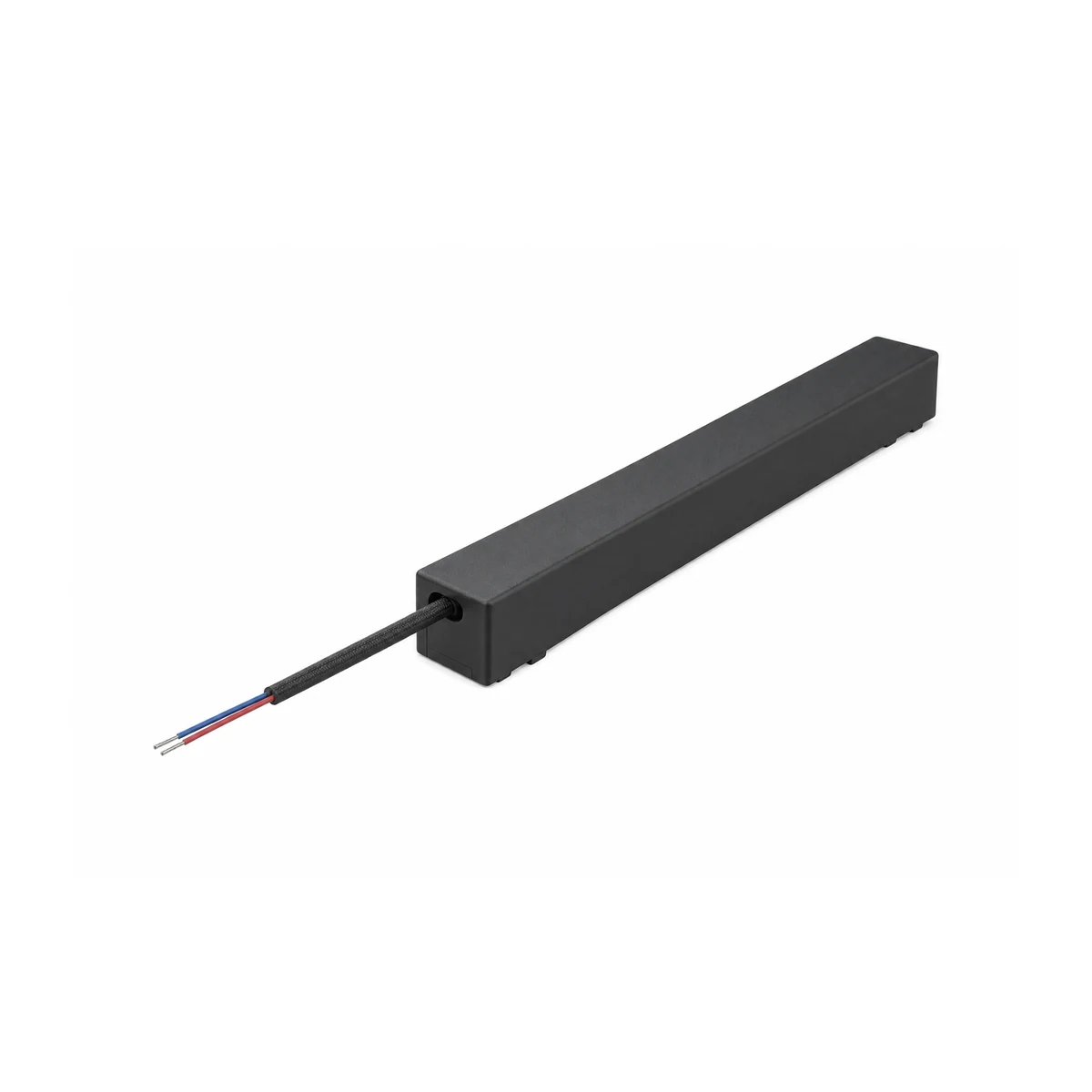

EN-CE48VPS · Power Supply
48 V
- 100 W
- 250 × 26 × 24 mm (210 mm body)
- 200 W
- 250 × 26 × 24 mm (230 mm body)
- Order codes
- EN-CE48VPS-100 / EN-CE48VPS-200
- Use
- The 48 V supply that feeds the track. Sits on the track itself, so no separate driver box is needed

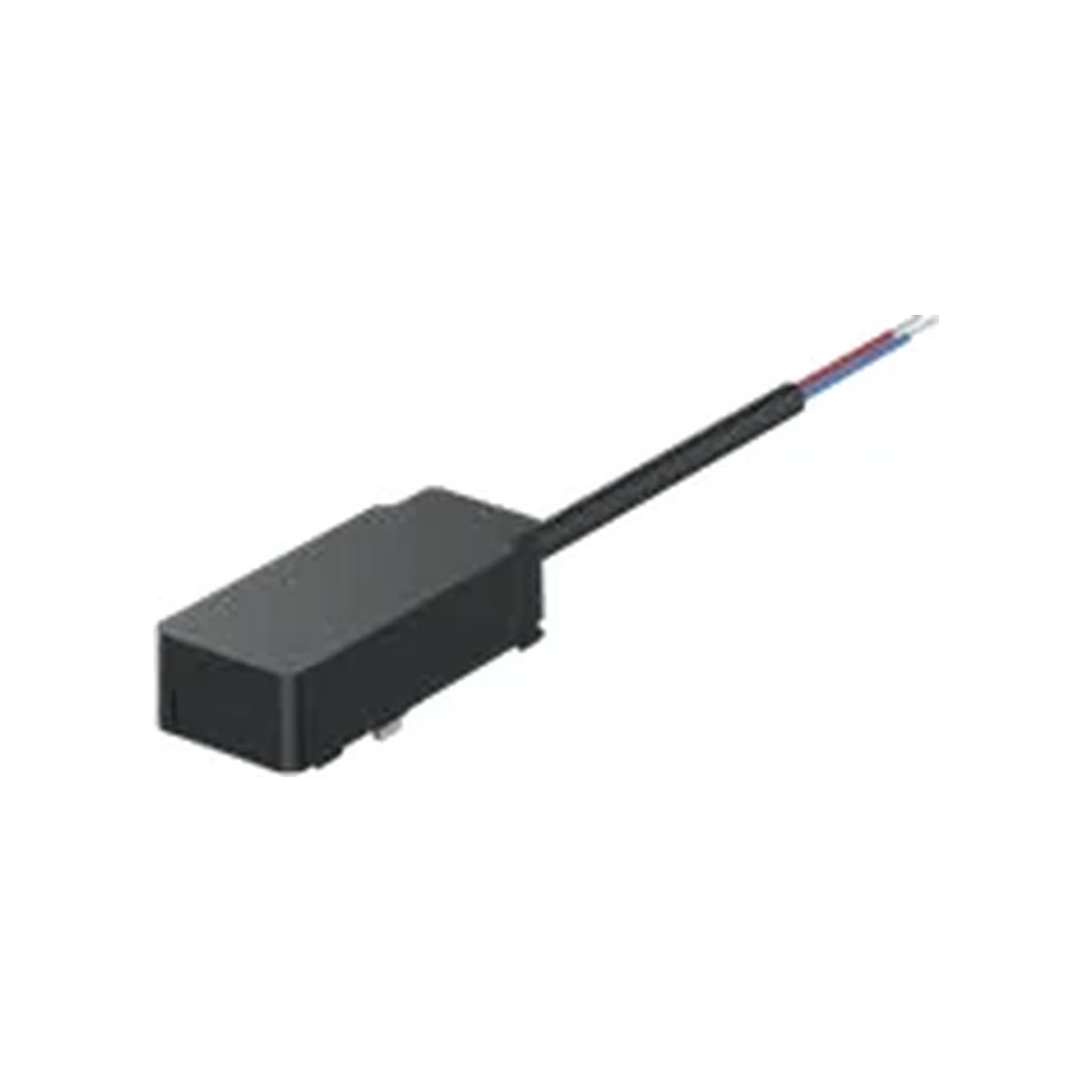

EN-CE-Wire Box · Wire Box
- Body
- 100 × 26 × 23 mm
- Use
- Houses the mains connection where the supply meets the track
