Micro Prismatic Profiles
Model code EN-PFL-MPS-R5032
Prismatic-diffuser channels for low-glare lines — 6 codes.
Each code shows its extrusion beside its own figures, with the dimensioned cross-section drawn to the right of them. Sorted by series, then ascending by size.
Micro Prismatic profiles take a prismatic rather than an opal diffuser, which breaks the LED image up without the loss a deep opal costs. Used where the fitting is in direct view and glare matters — desks, screens and low ceilings.
The range 6 codes

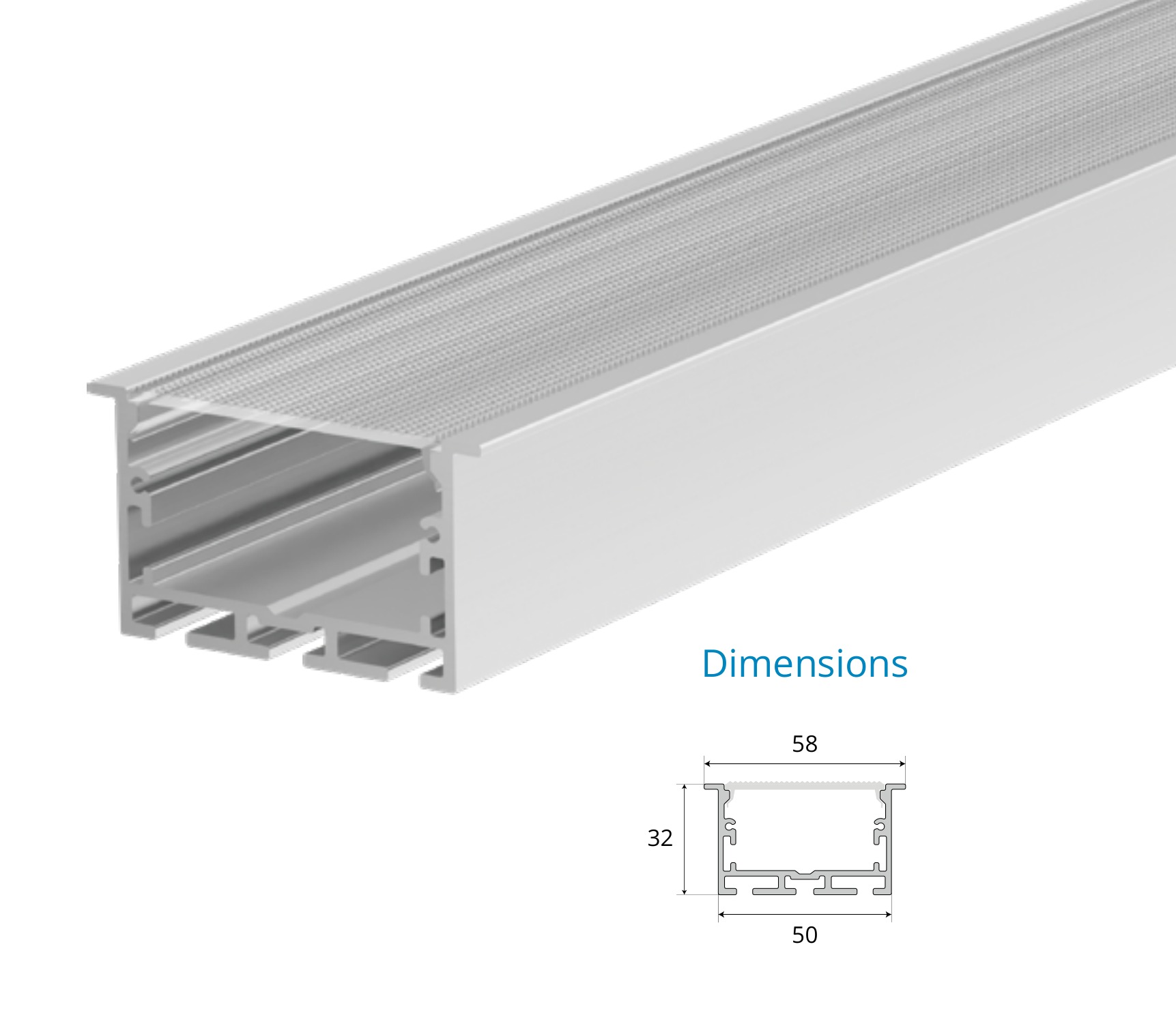

EN-PFL-MPS-R5032
- Cutout
- >50 mm
- Std. length
- 3600 mm
- Diffuser
- Prismatic
- LED strip
- 10 mm
- Beam angle
- 120°

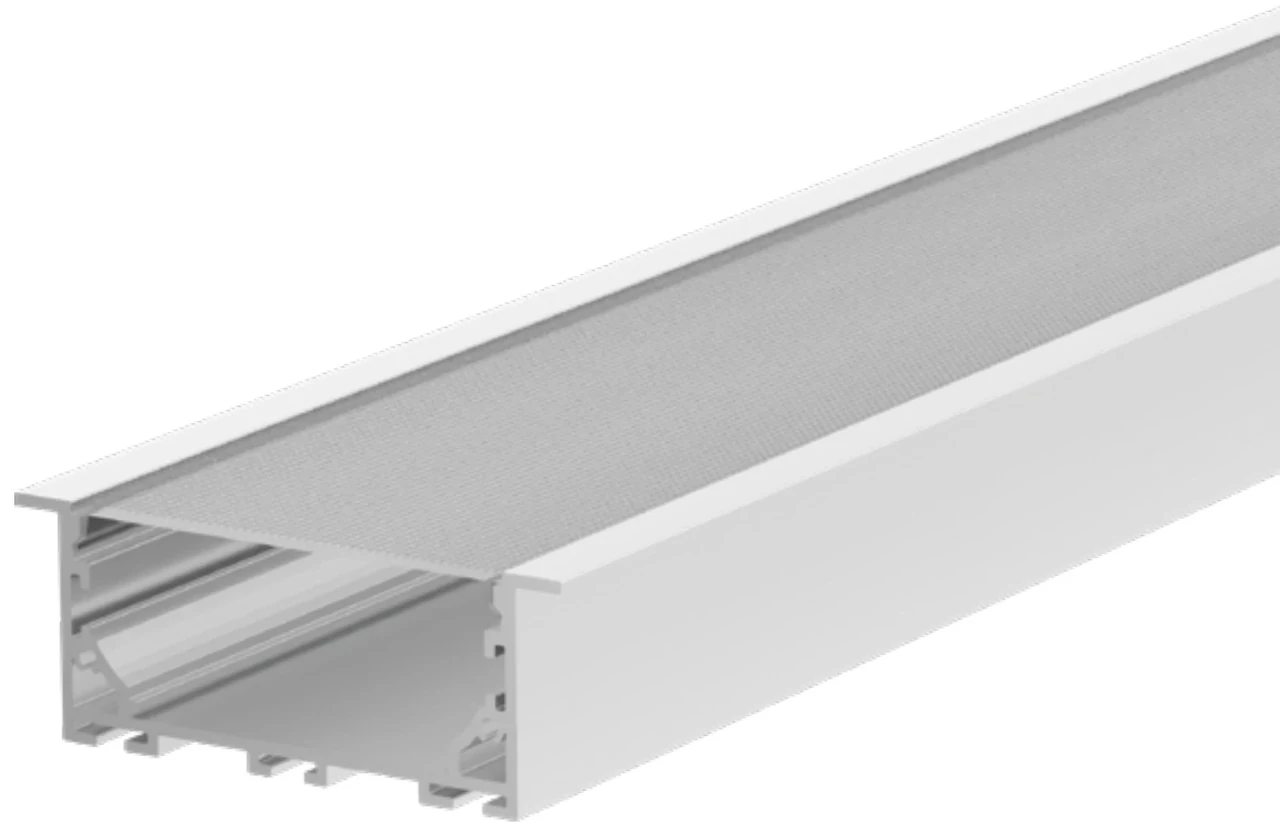

EN-PFL-MPS-R7635
- Cutout
- >76 mm
- Std. length
- 3600 mm
- Diffuser
- Prismatic
- LED strip
- 10 mm
- Beam angle
- 120°

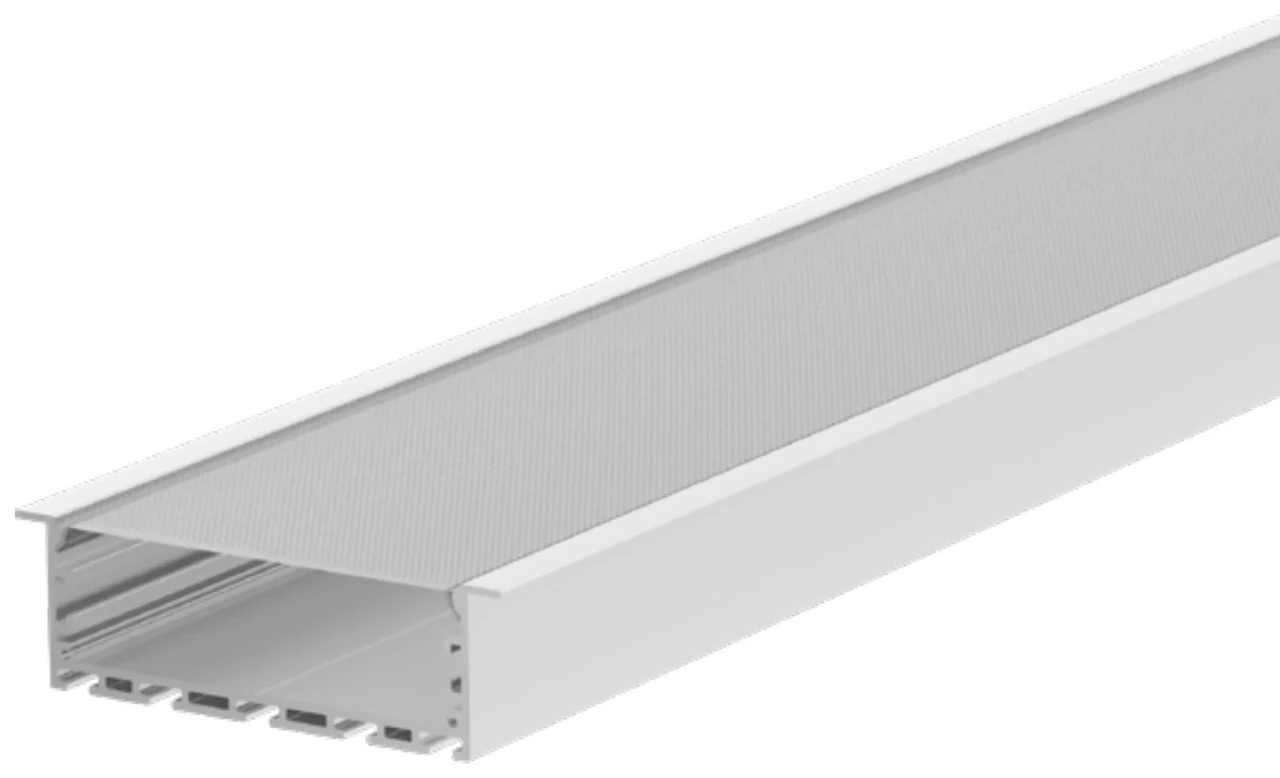

EN-PFL-MPS-R9835
- Cutout
- >98 mm
- Std. length
- 3600 mm
- Diffuser
- Prismatic
- LED strip
- 10 mm
- Beam angle
- 120°

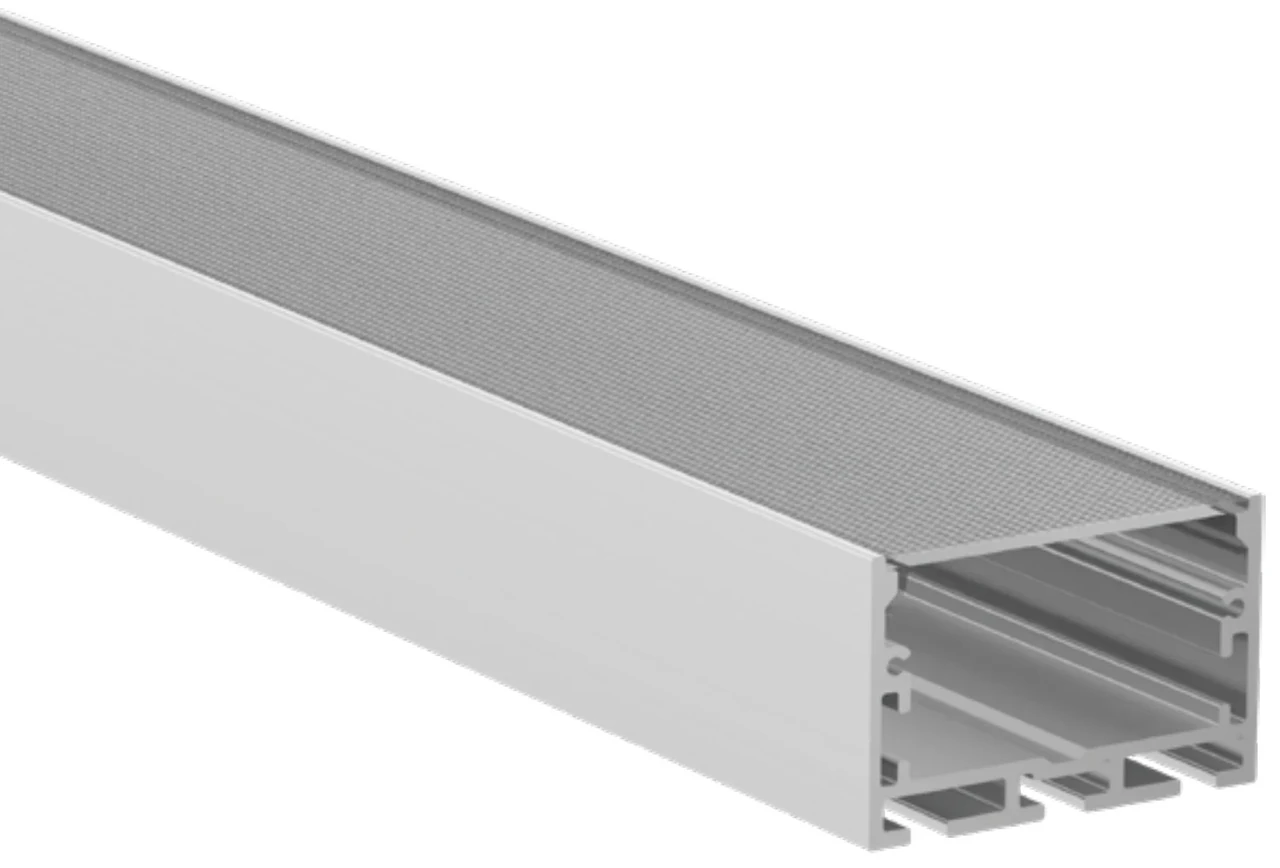

EN-PFL-MPS-S5032
- Std. length
- 3600 mm
- Diffuser
- Prismatic
- LED strip
- 10 mm
- Beam angle
- 120°

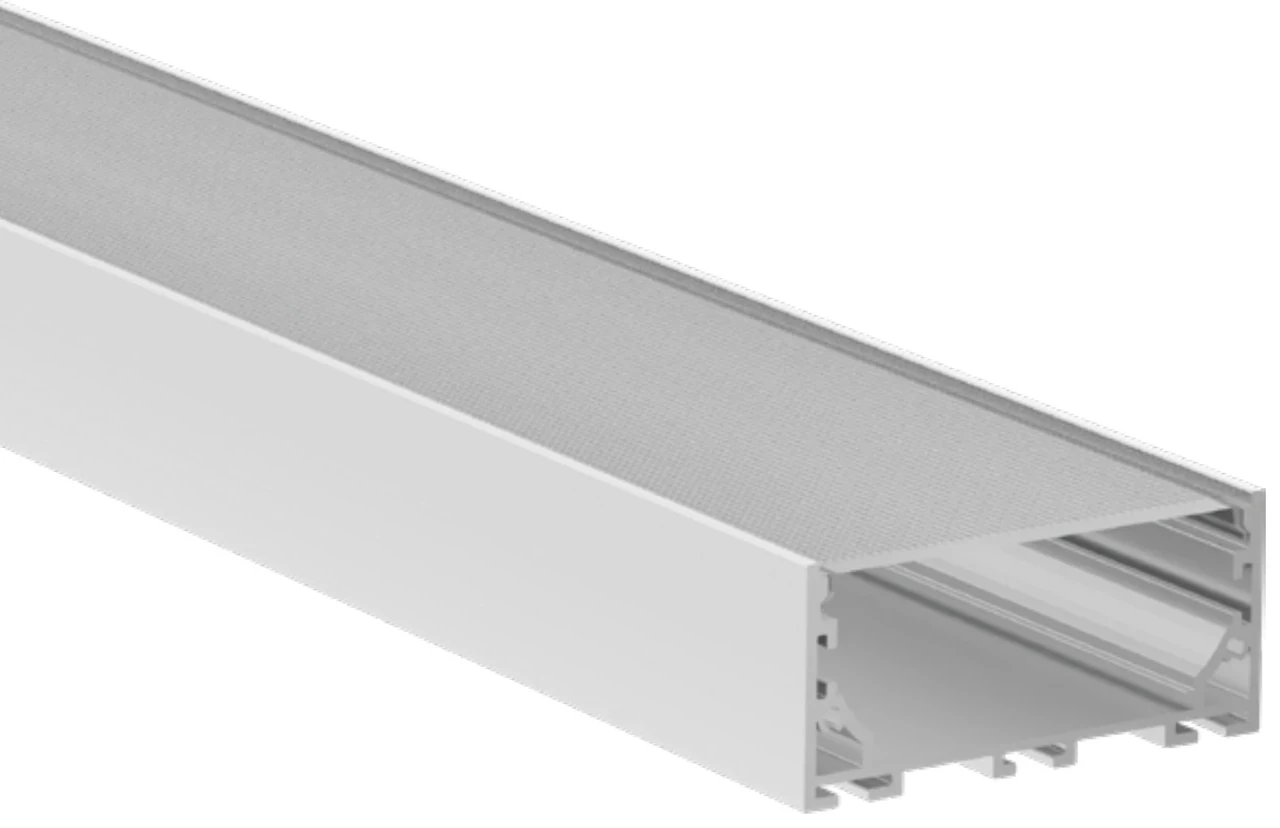

EN-PFL-MPS-S7635
- Std. length
- 3600 mm
- Diffuser
- Prismatic
- LED strip
- 10 mm
- Beam angle
- 120°

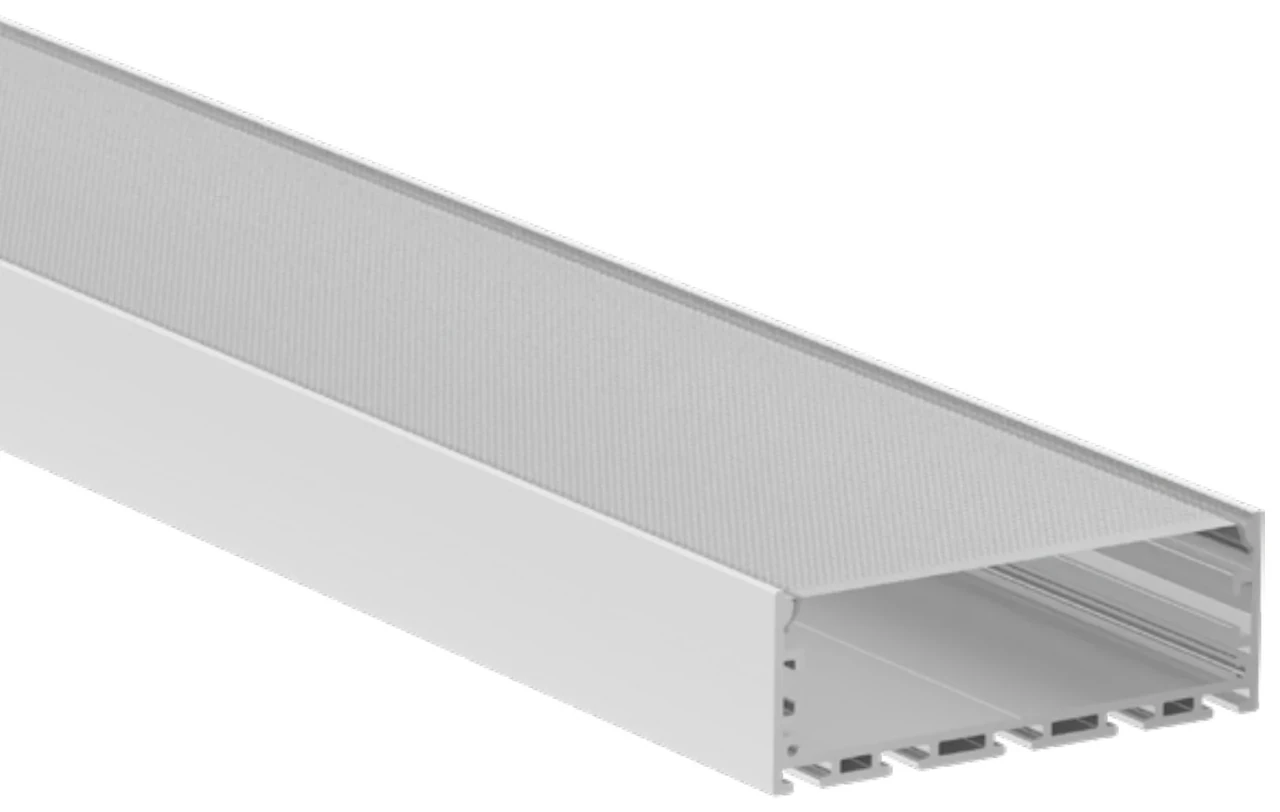

EN-PFL-MPS-S9835
- Std. length
- 3600 mm
- Diffuser
- Prismatic
- LED strip
- 10 mm
- Beam angle
- 120°
Applications
- Desk lighting
- Screen-facing areas
- Low ceilings
- Reading rooms

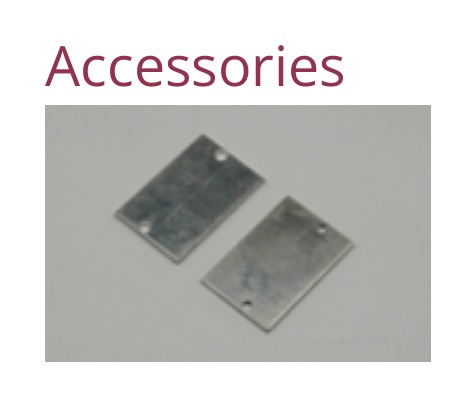

All profiles are AL6063 aluminium extrusion with a choice of diffuser; end caps and mounting clips are supplied as accessories. Cutout figures are the minimum opening in the substrate. Lengths can be cut to order — ask for a cutting list.
