HUB Profile System
Model code EN-PFL-HUB-S2526
A 25 mm channel that turns corners — surface or recessed.
The two profiles first, each beside its own figures and its dimensioned cross-section. The twelve connectors follow, each drawn in plan with the angles printed on its own drawing.
HUB is a 25 mm channel meant to be joined. EP-S2526 mounts on the surface; EP-R2526 recesses into a cutout and closes onto it with a 33 mm flange. Both share the same 25 × 26.1 mm body, take a 10 mm strip behind a black, clear or frosted diffuser, and run 3600 mm as standard. Twelve connectors carry a run through corners, tees, crosses and three-way branches at the fixed angles drawn on each part.
The range 2 profiles · 12 connectors

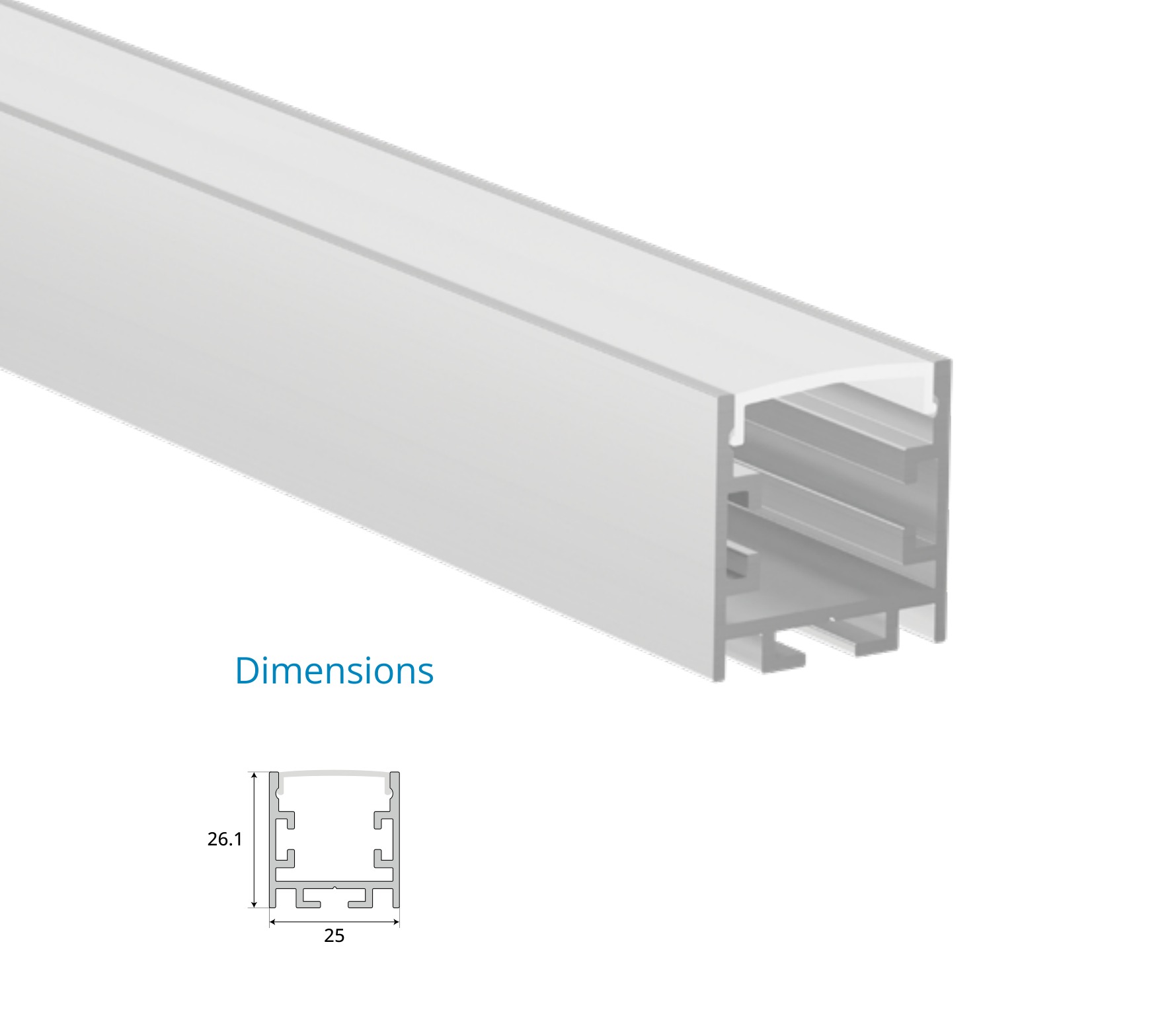

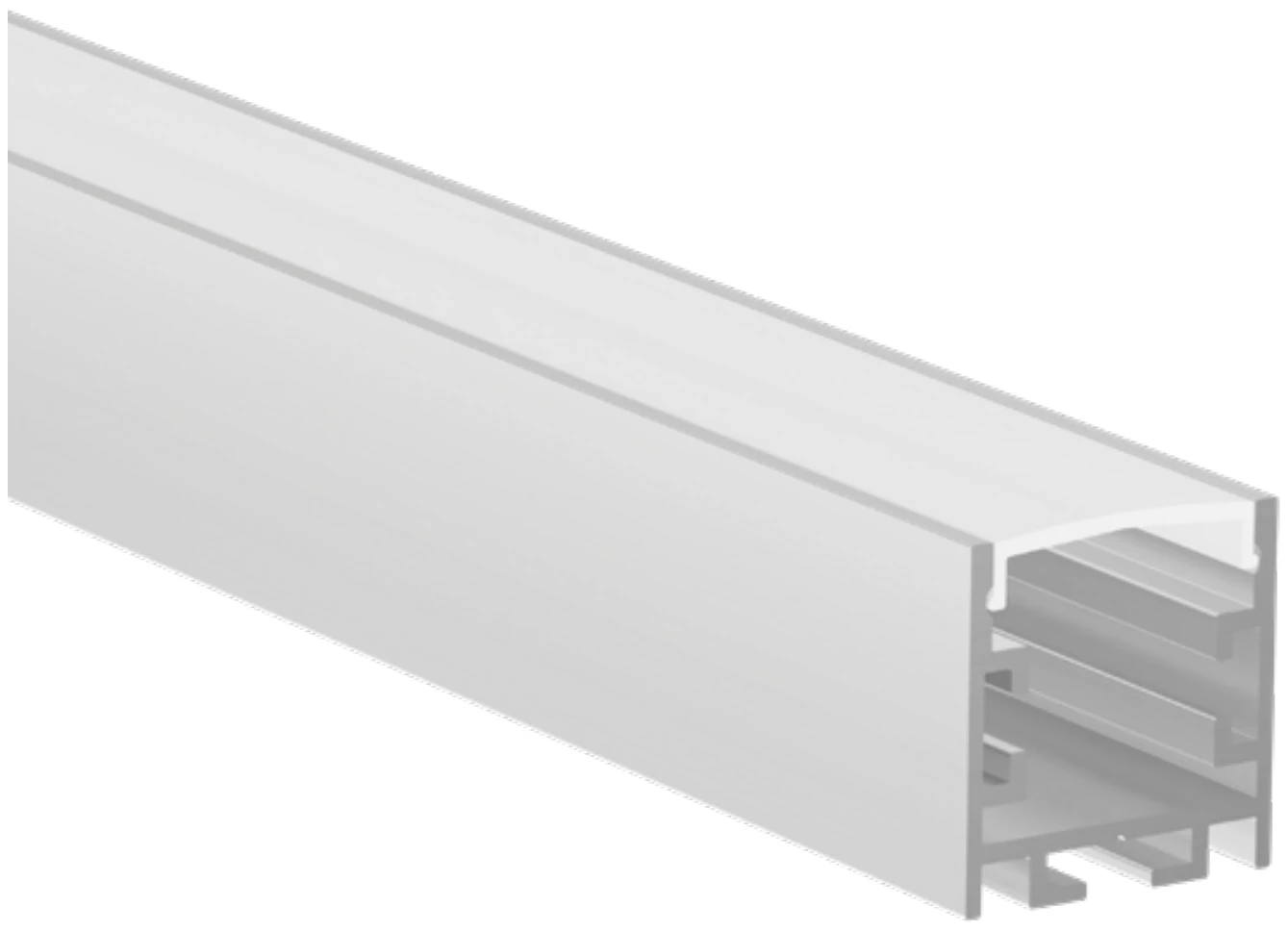

EN-PFL-HUB-S2526 · Surface mounted
Profile
- Mounting
- Surface
- Body
- 25 × 26.1 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED type
- 10 mm
- Beam angle
- 120°

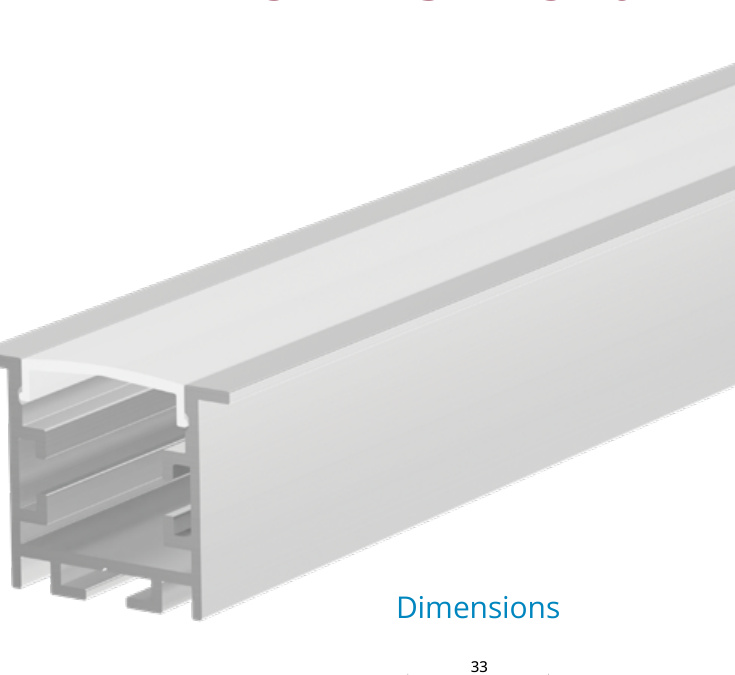

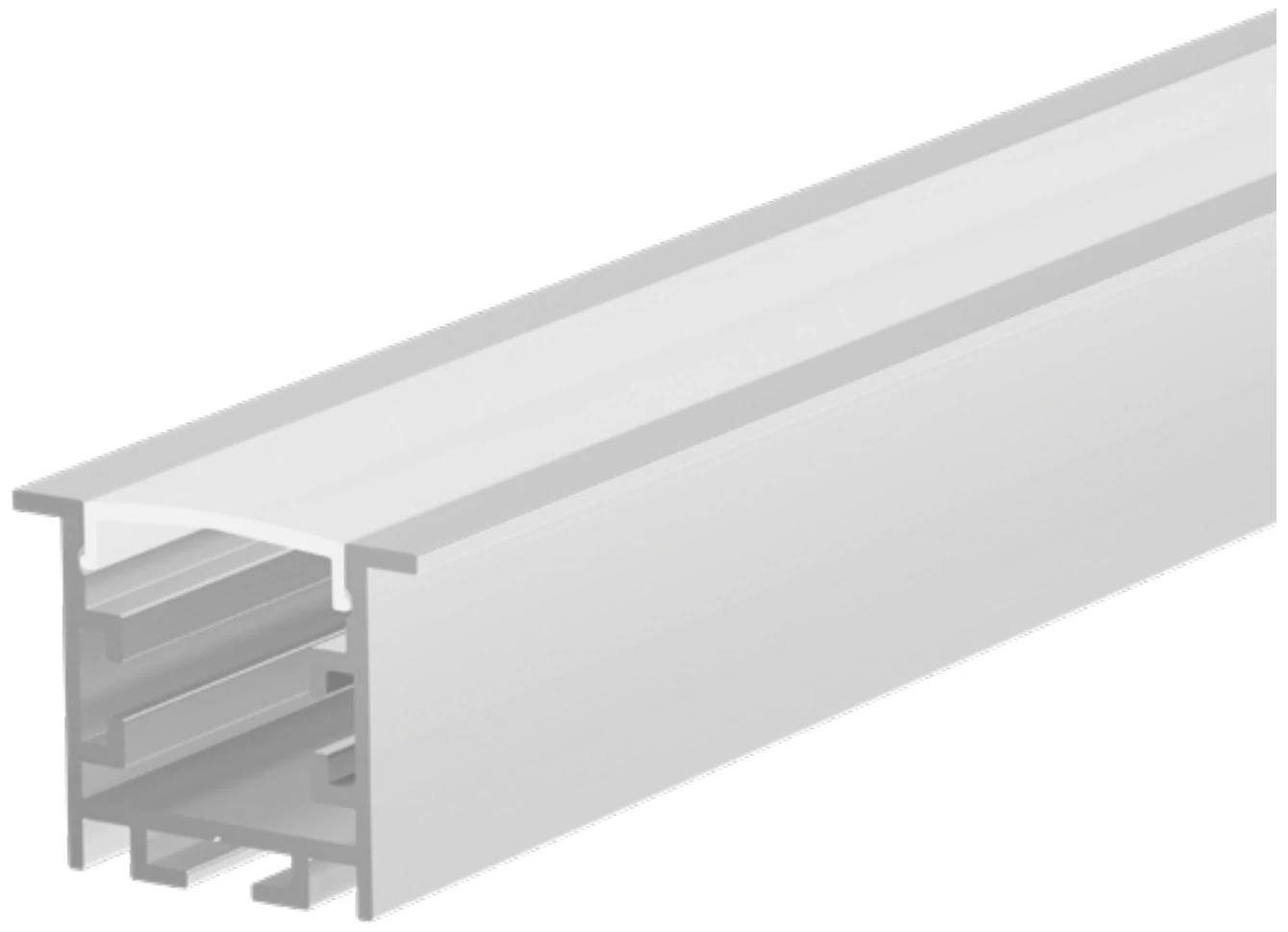

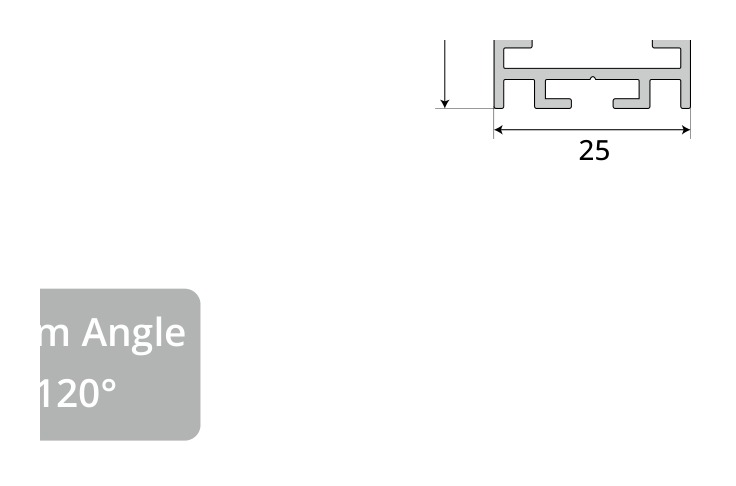

EN-PFL-HUB-R2526 · Recessed mounted
Profile
- Mounting
- Recessed
- Body
- 25 × 26.1 mm
- Flange
- 33 mm
- Cutout
- >25 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED type
- 10 mm
- Beam angle
- 120°

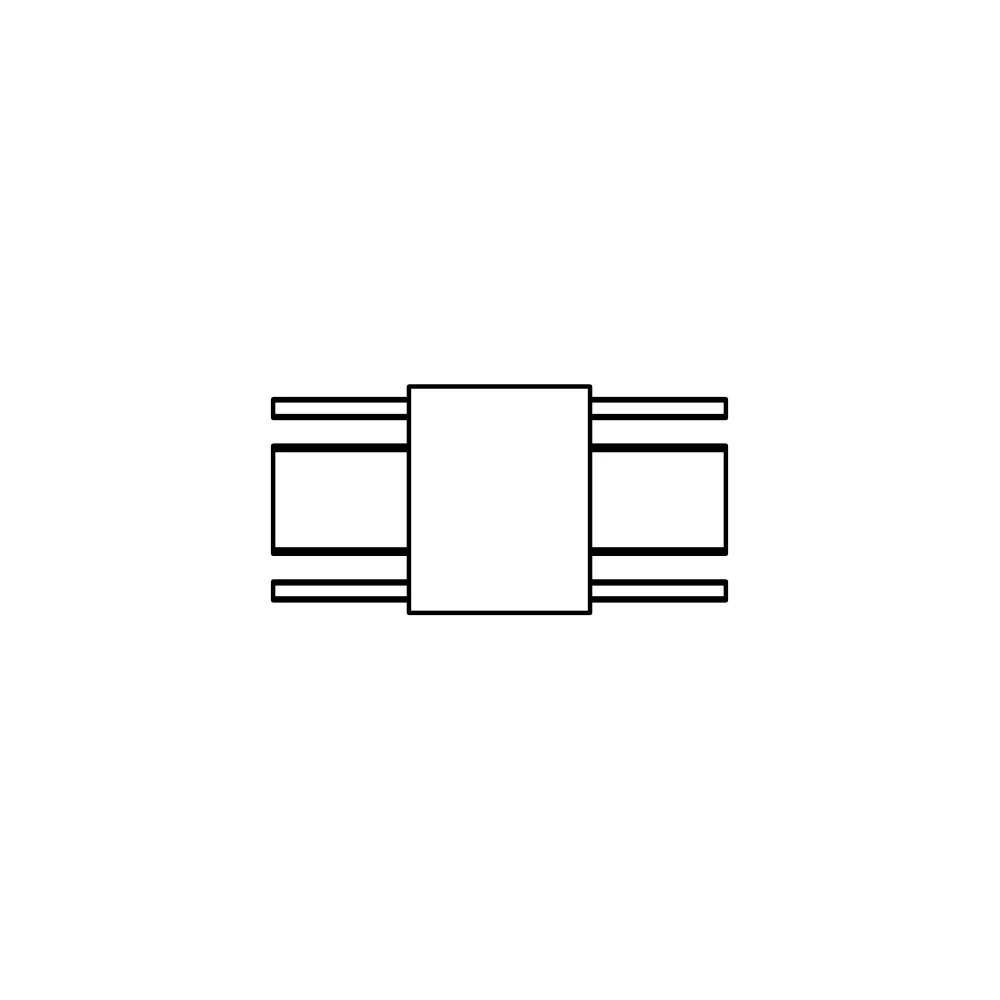

St · Straight joiner
Connector
- Ways
- 2
- Joins
- Two channel ends butted in line through a central sleeve.

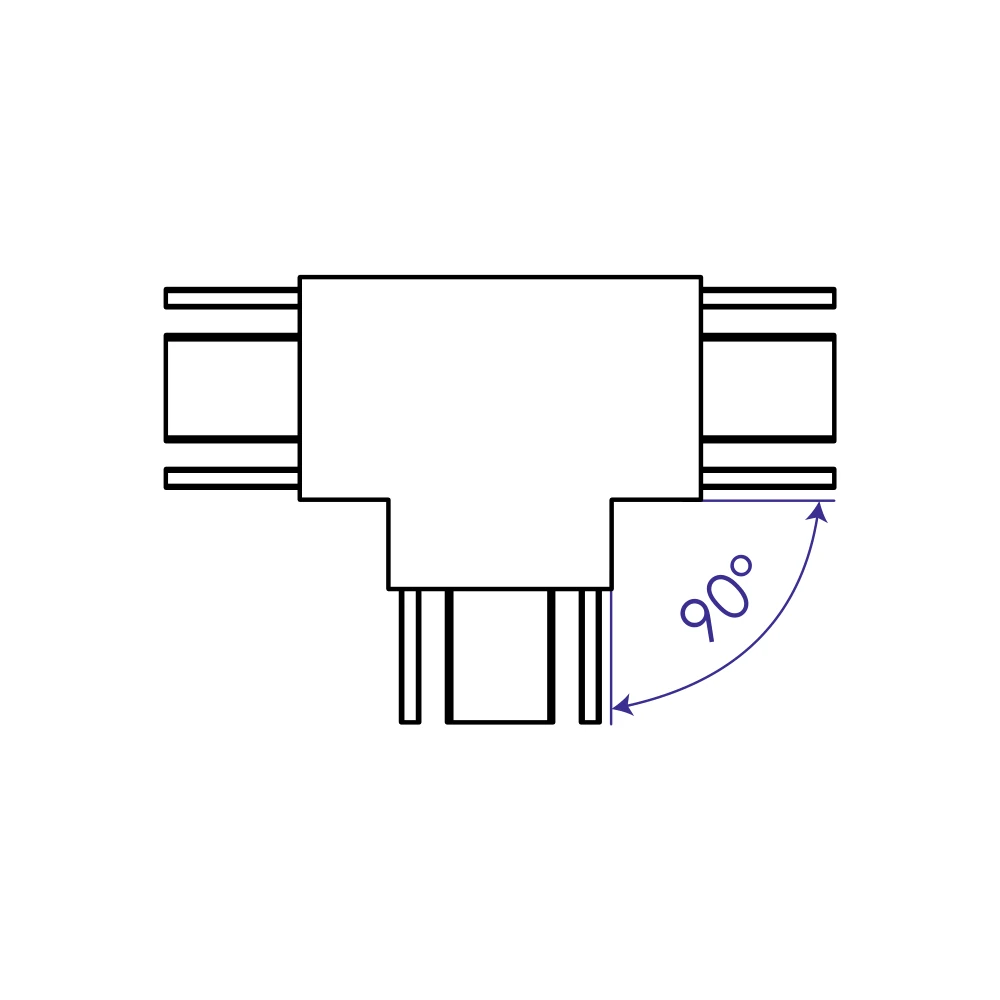

T · T junction
Connector
- Ways
- 3
- Angle
- 90°
- Joins
- A straight run with a third channel leaving it at 90°.

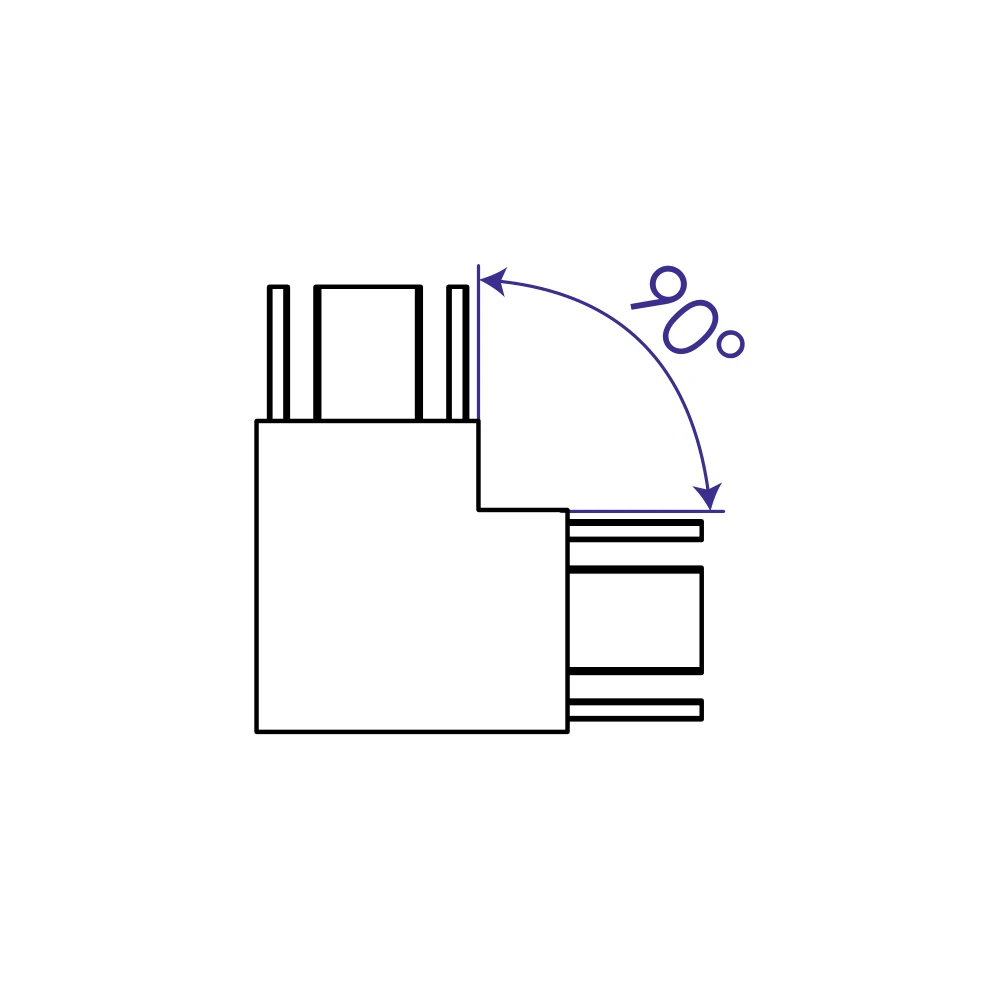

V90 · 90° corner
Connector
- Ways
- 2
- Angle
- 90°
- Joins
- Two channels turning a right-angle corner.

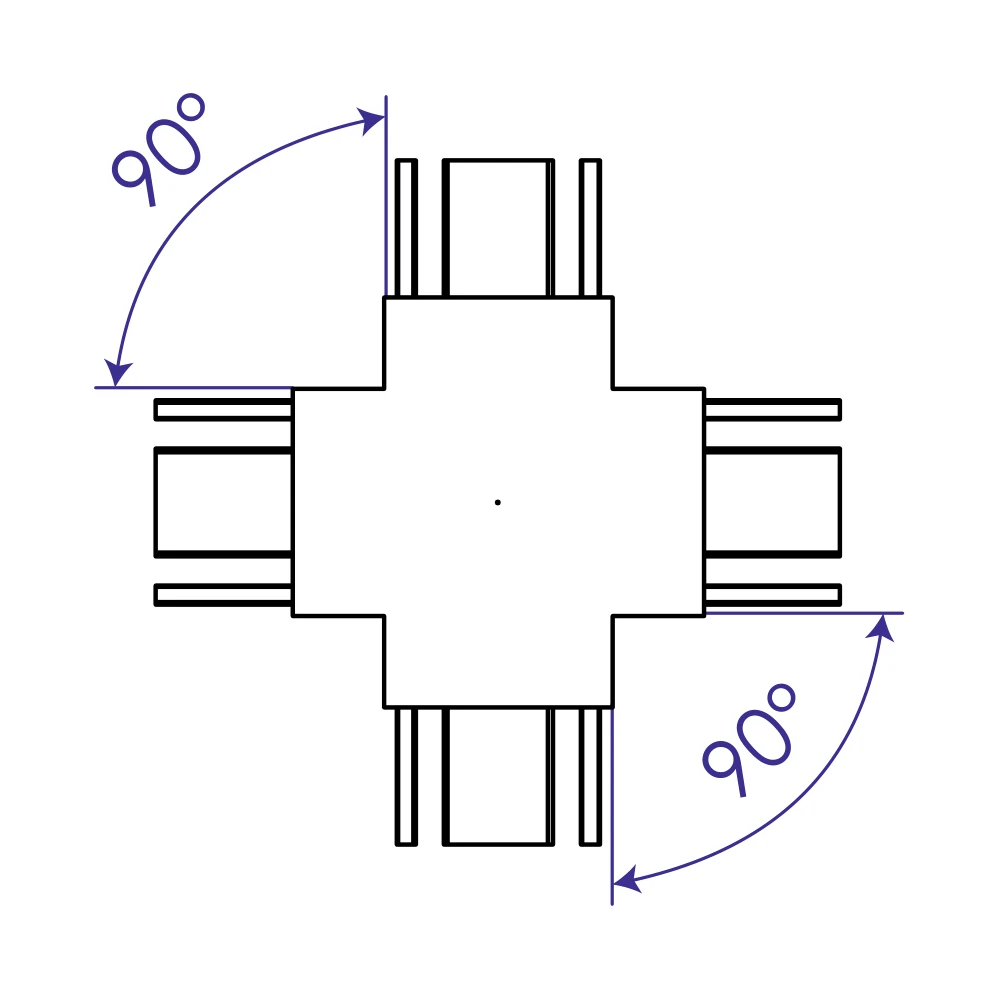

+ · Four-way cross
Connector
- Ways
- 4
- Angle
- 90°
- Joins
- Four channels crossing at right angles.

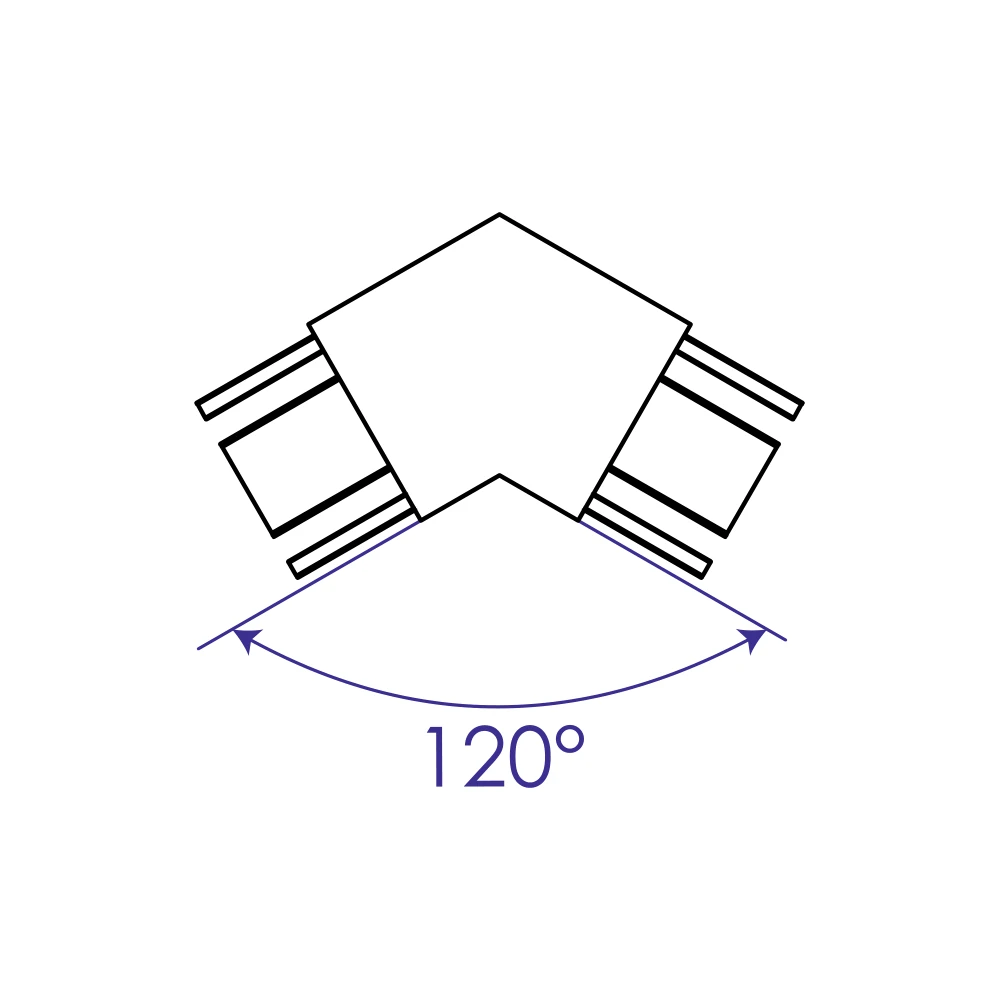

V120 · 120° corner
Connector
- Ways
- 2
- Angle
- 120°
- Joins
- Two channels turning a 120° corner.

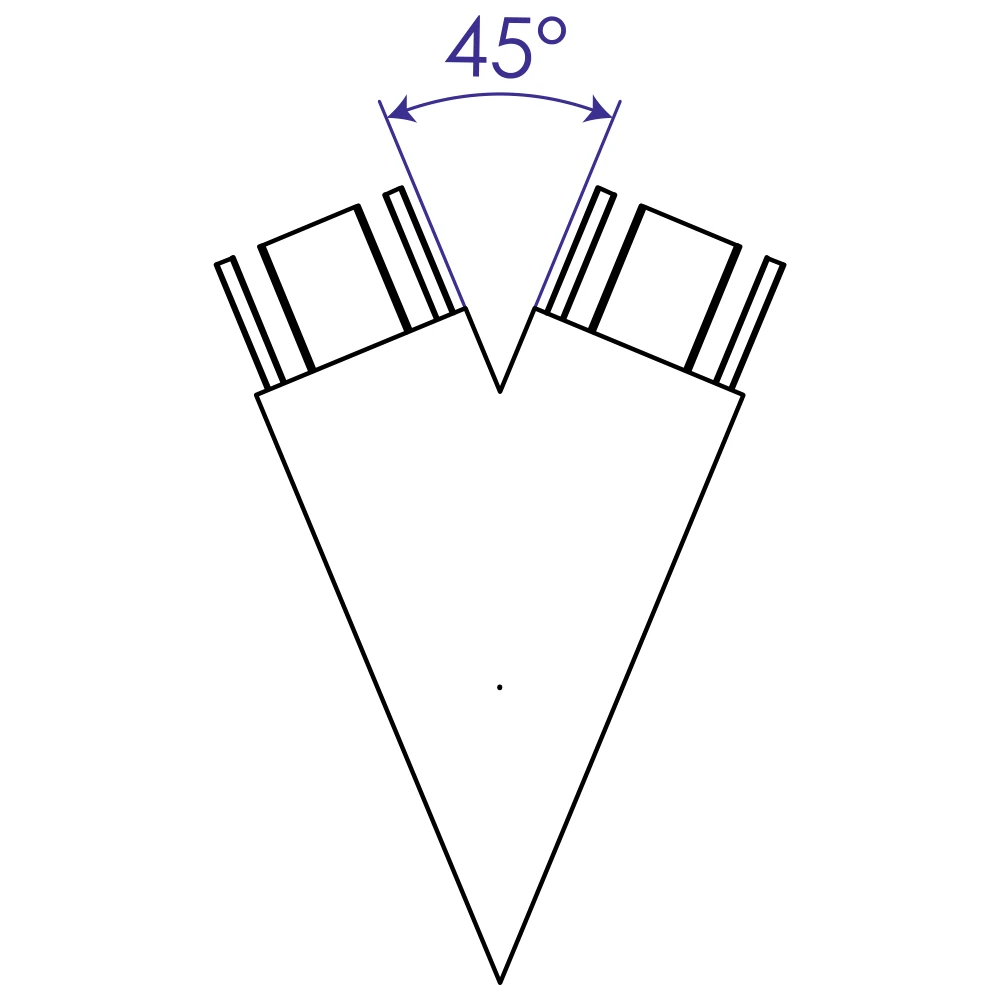

V45 · 45° corner
Connector
- Ways
- 2
- Angle
- 45°
- Joins
- Two channels meeting at 45°.

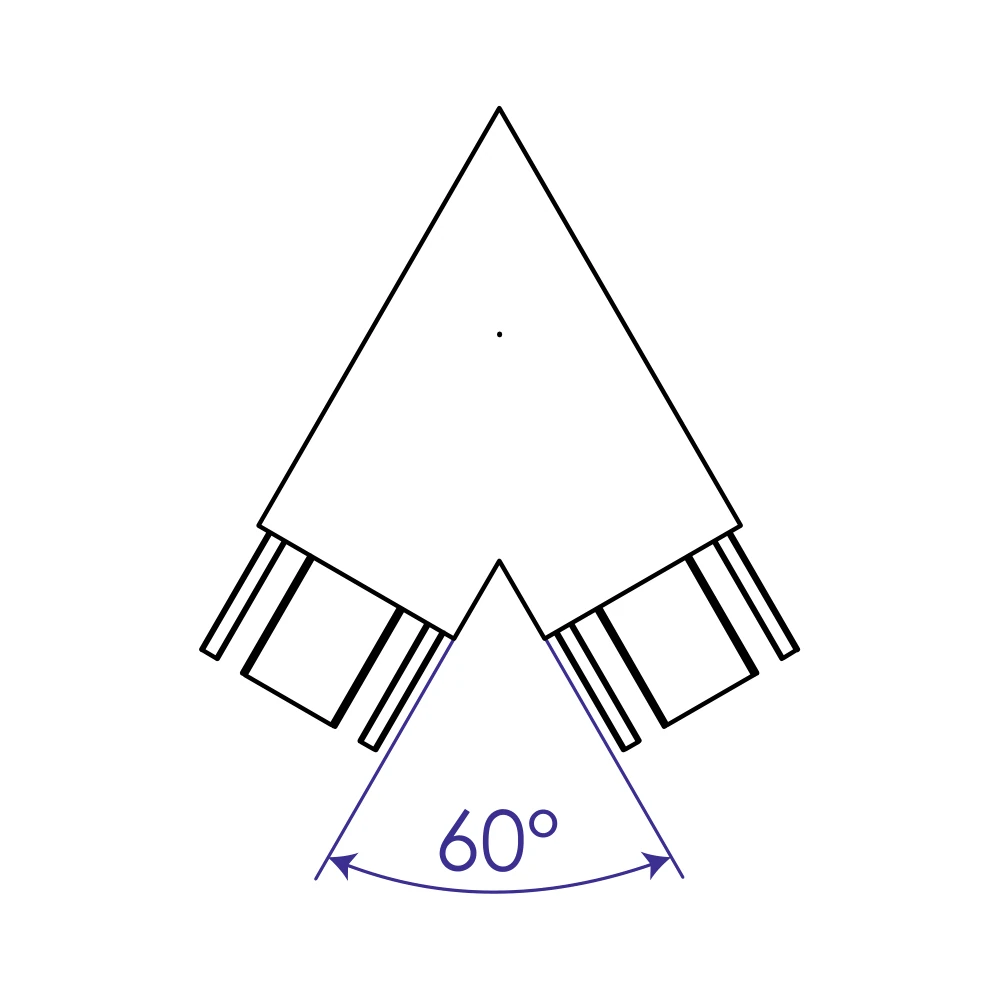

V60 · 60° corner
Connector
- Ways
- 2
- Angle
- 60°
- Joins
- Two channels meeting at 60°.

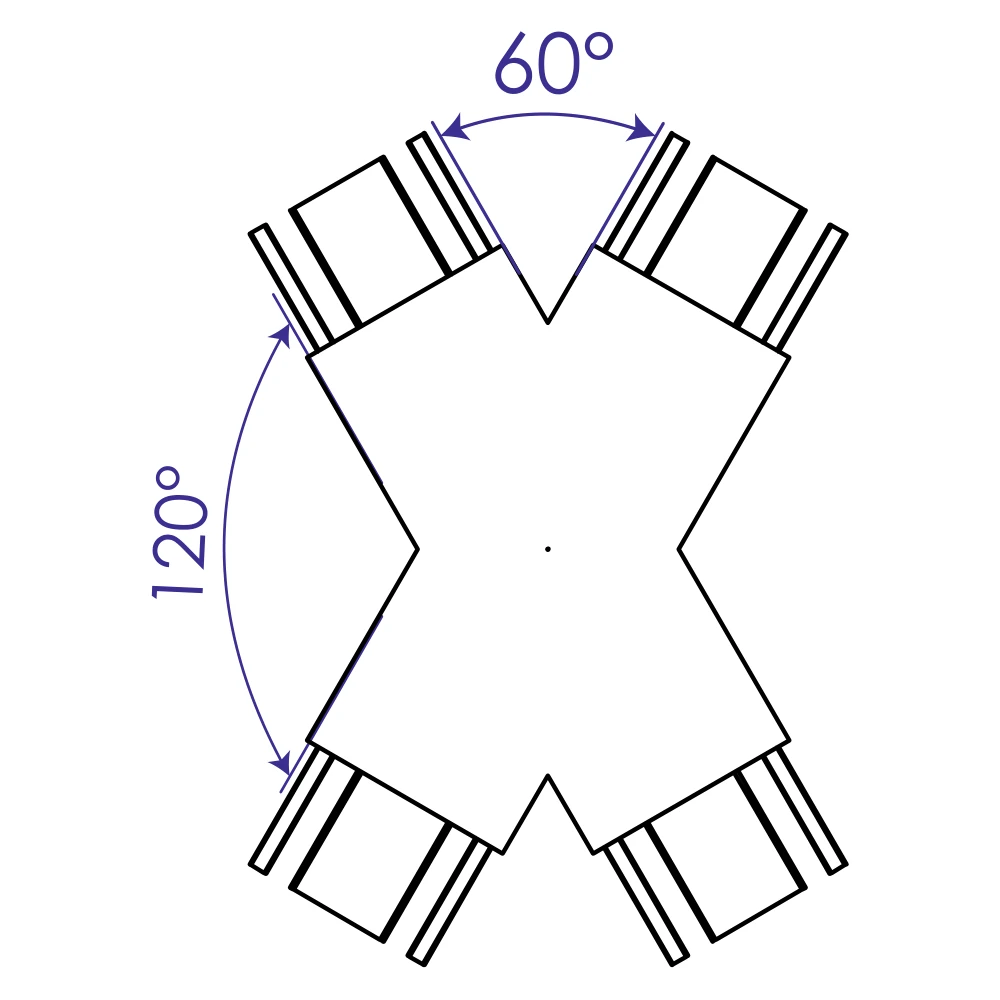

X · Four-way X crossing
Connector
- Ways
- 4
- Angle
- 60° and 120°
- Joins
- Four channels crossing: the drawing marks 60° between the two upper channels and 120° between the upper and lower channel on the same side.

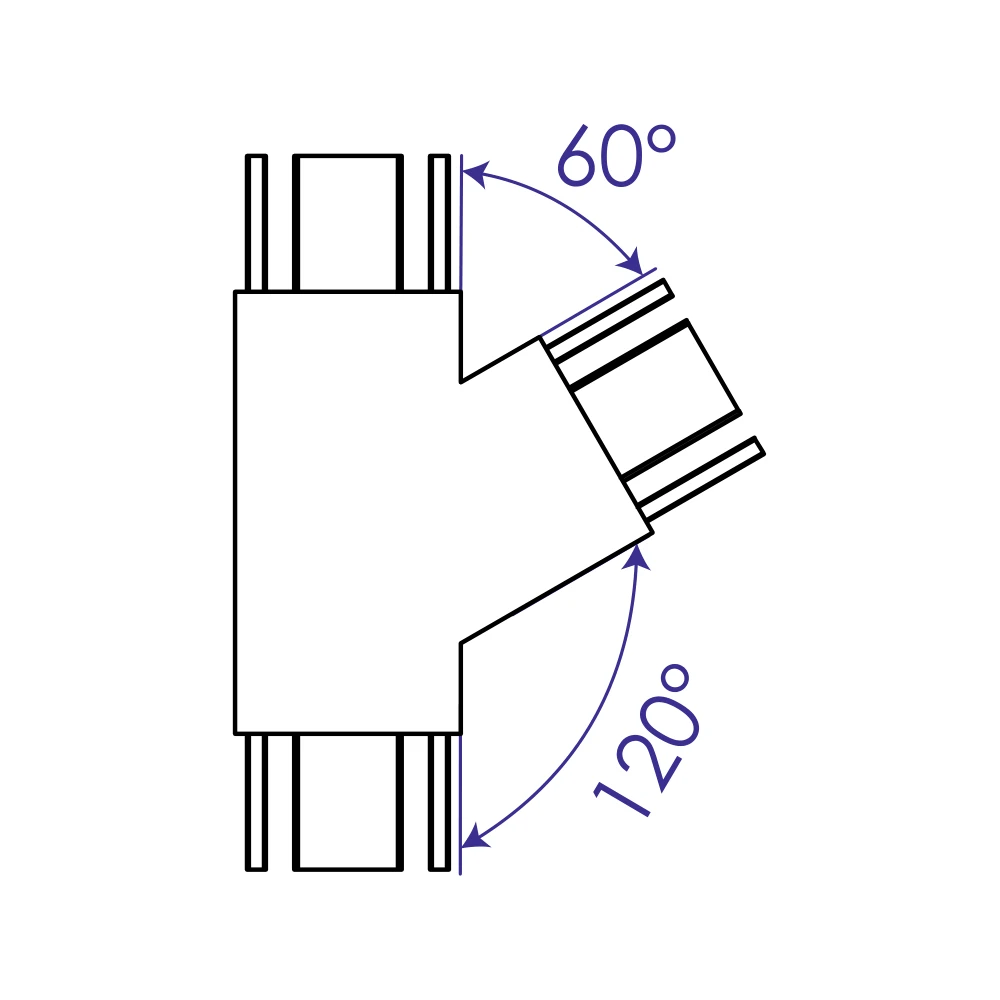

Y(L) · Y branch (L)
Connector
- Ways
- 3
- Angle
- 60° and 120°
- Joins
- A straight run with a third channel branching off it, 60° to the run on one side and 120° on the other. Mirror image of Y(R).

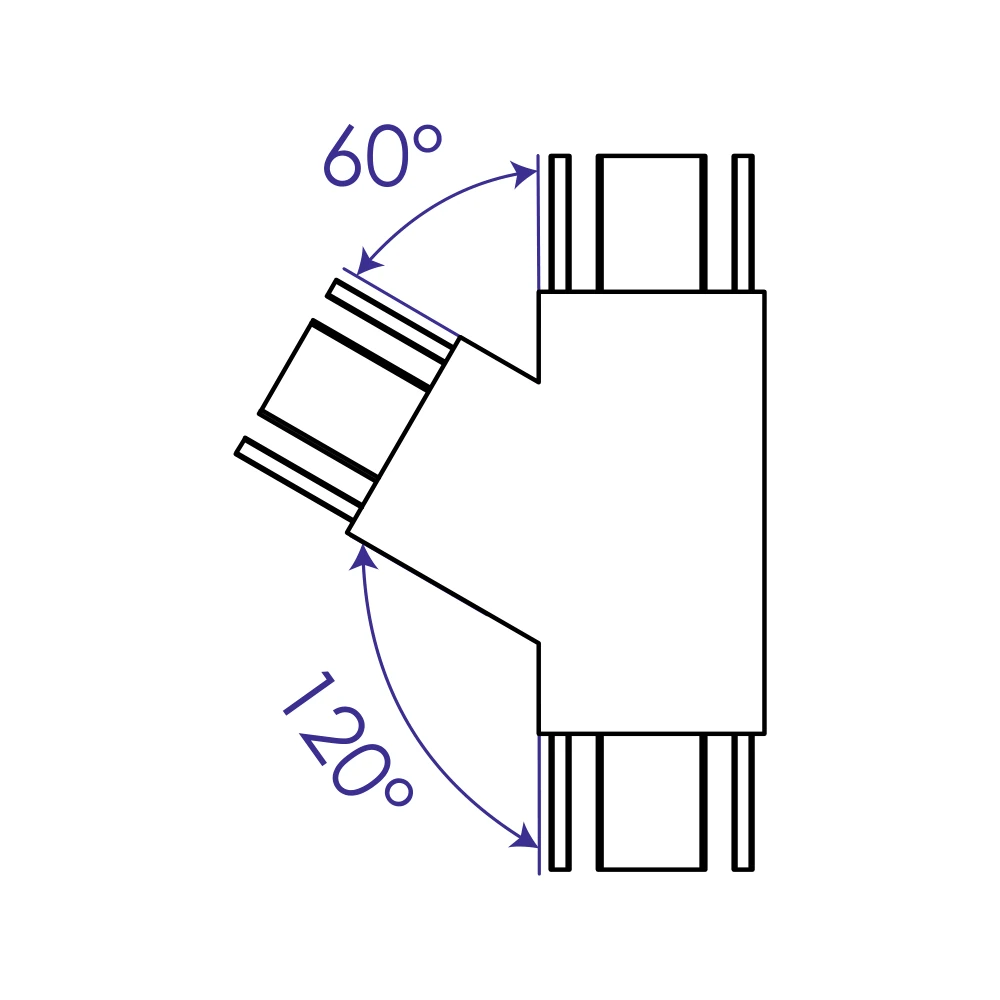

Y(R) · Y branch (R)
Connector
- Ways
- 3
- Angle
- 60° and 120°
- Joins
- The same three-way branch drawn to the opposite hand. Mirror image of Y(L).

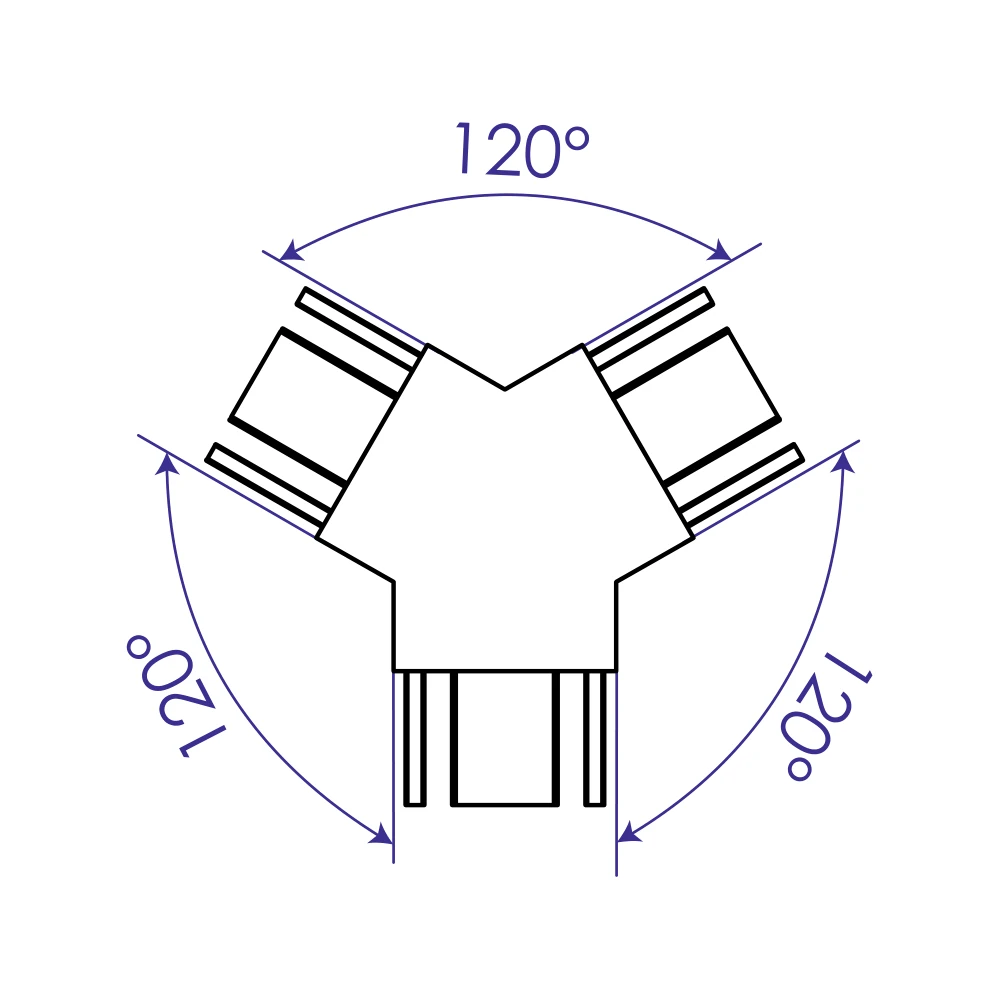

Y120 · Three-way, equal
Connector
- Ways
- 3
- Angle
- 120° × 3
- Joins
- Three channels meeting at 120° to one another.

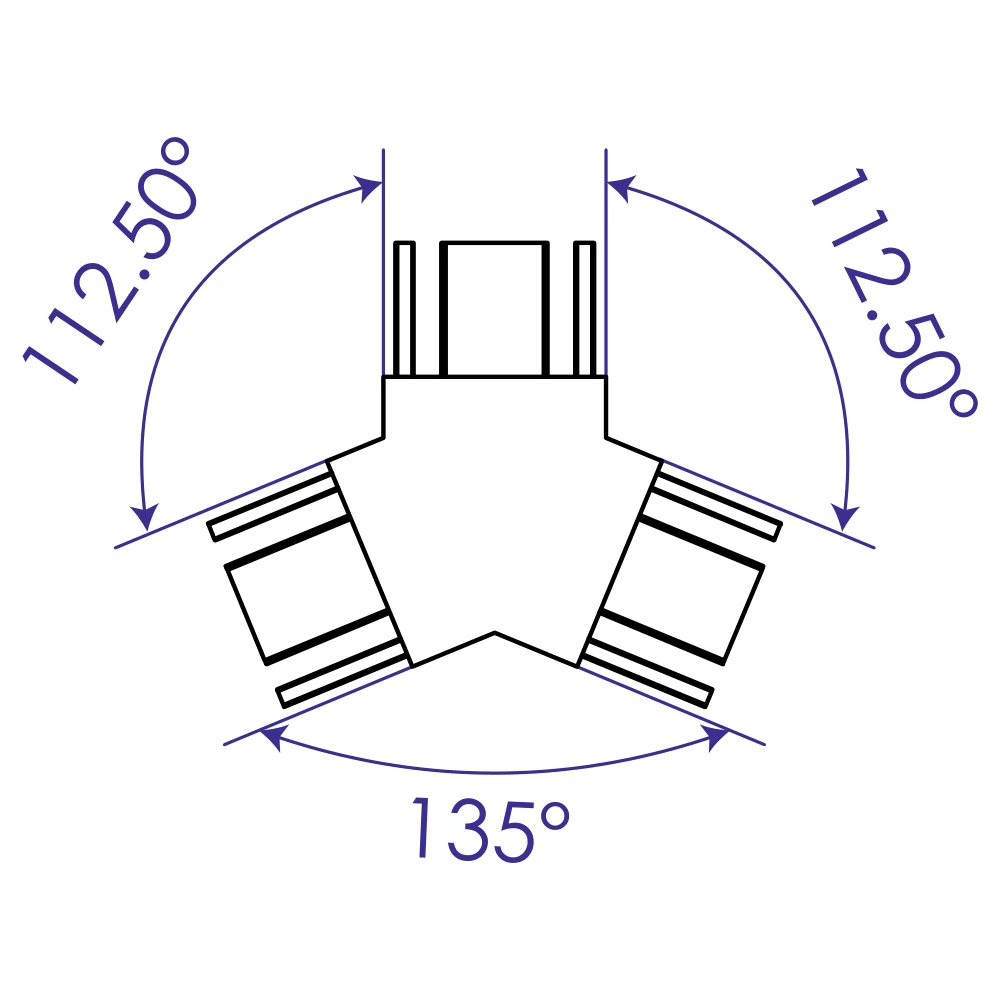

Y135 · Three-way, unequal
Connector
- Ways
- 3
- Angle
- 135° and 112.50° × 2
- Joins
- Three channels meeting: 135° between two of them, and 112.50° from each of those two to the third.
Applications
- Continuous runs
- Corners and branches
- Ceiling patterns
- Joinery
Both profiles are aluminium extrusion with a choice of diffuser; the cutout figure is the minimum opening in the substrate. The connectors are accessories, quoted on request — each one is listed with only the angles its drawing carries.
