Score-6 Profiles
Model code EN-PFL-S6S-R1418
The Score-6 section family — 6 codes.
Each code shows its extrusion beside its own figures, with the dimensioned cross-section drawn to the right of them. Sorted by series, then ascending by size.
Score-6 profiles are the scored-flange sections, supplied for runs that are cut and closed on site. Every code is AL6063 aluminium with a choice of diffuser and takes a 5, 8 or 10 mm LED strip.
The range 6 codes

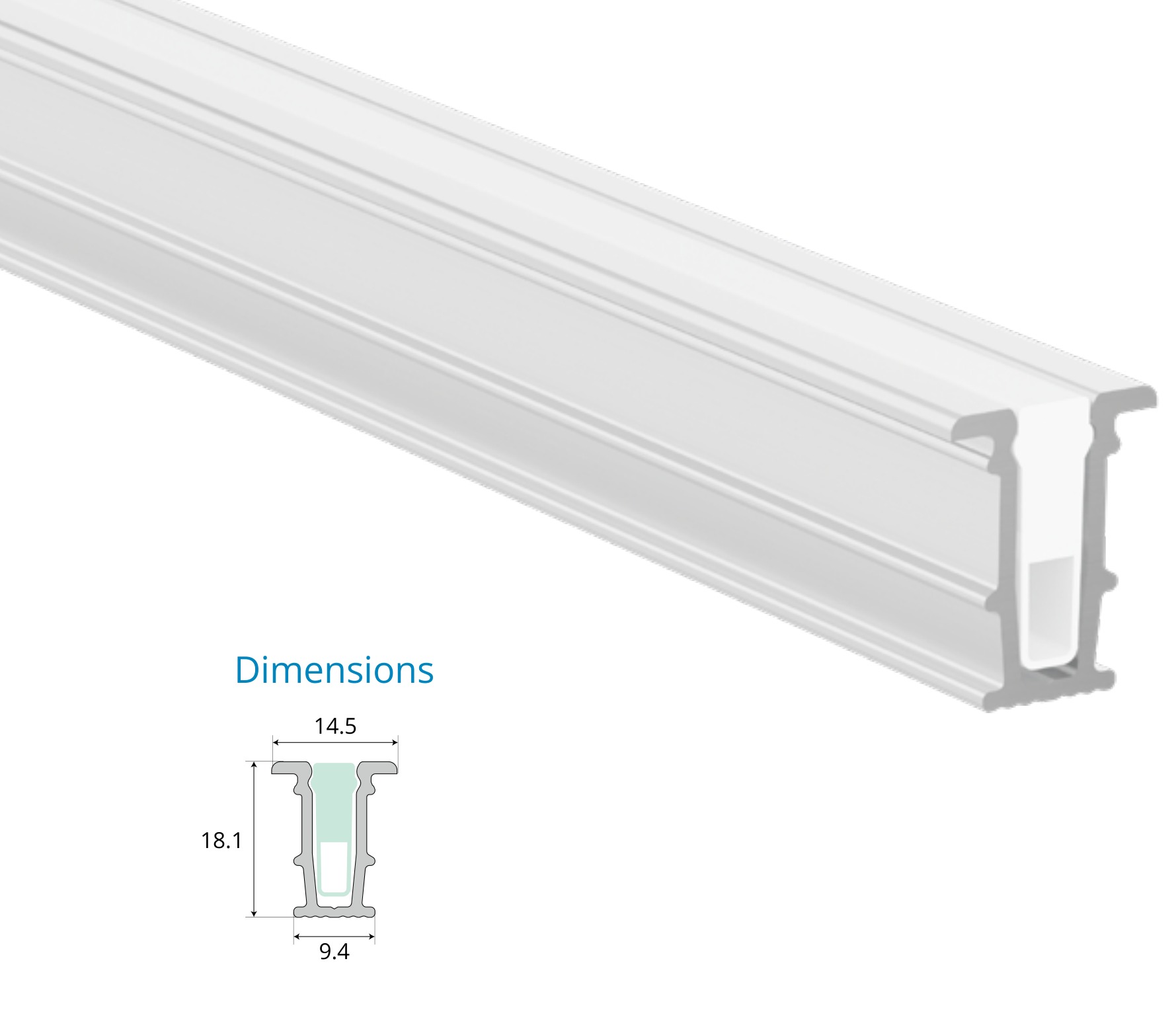

EN-PFL-S6S-R1418
- Cutout
- >09 mm
- Std. length
- 3600 mm
- Diffuser
- Silicone
- LED strip
- 05 mm
- Beam angle
- 120°

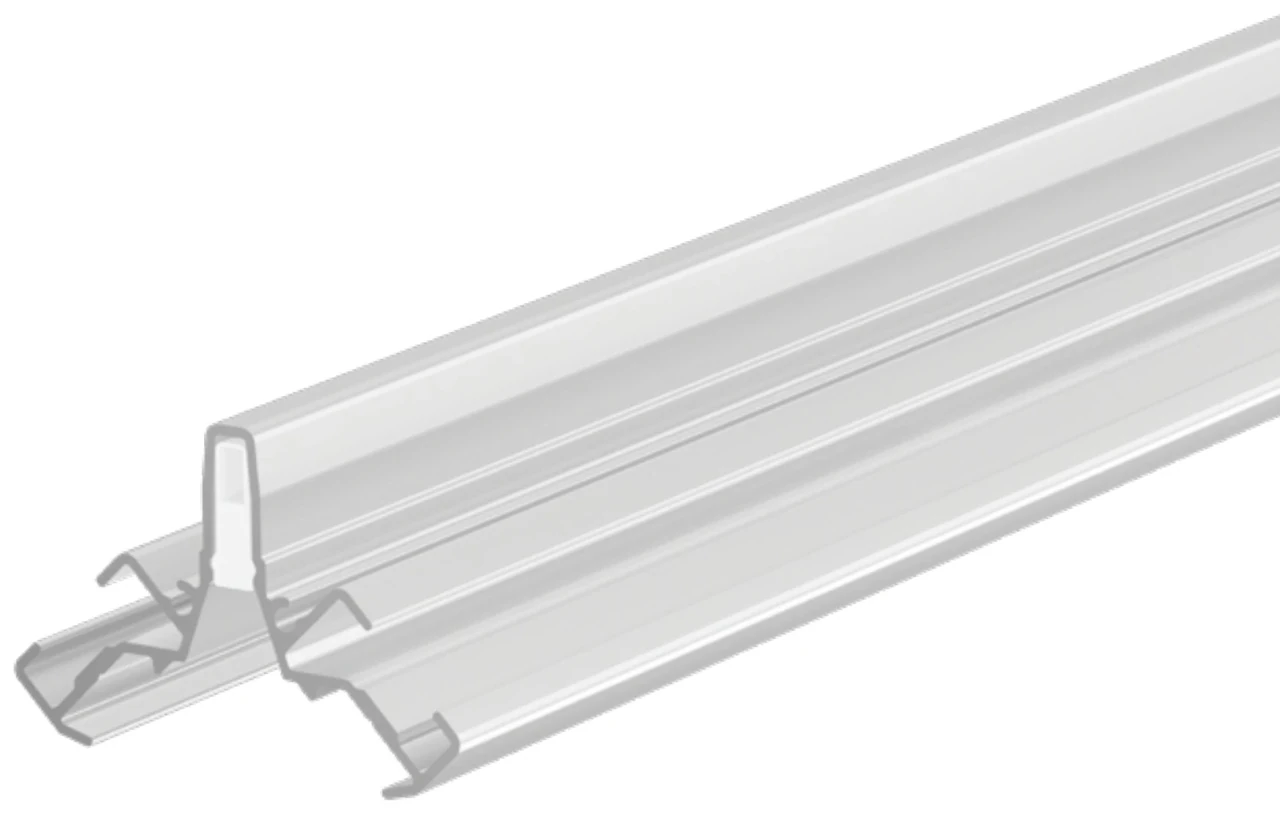

EN-PFL-S6S-R4545
- Std. length
- 3600 mm
- Diffuser
- Silicone
- LED strip
- 05 mm
- Beam angle
- 120°

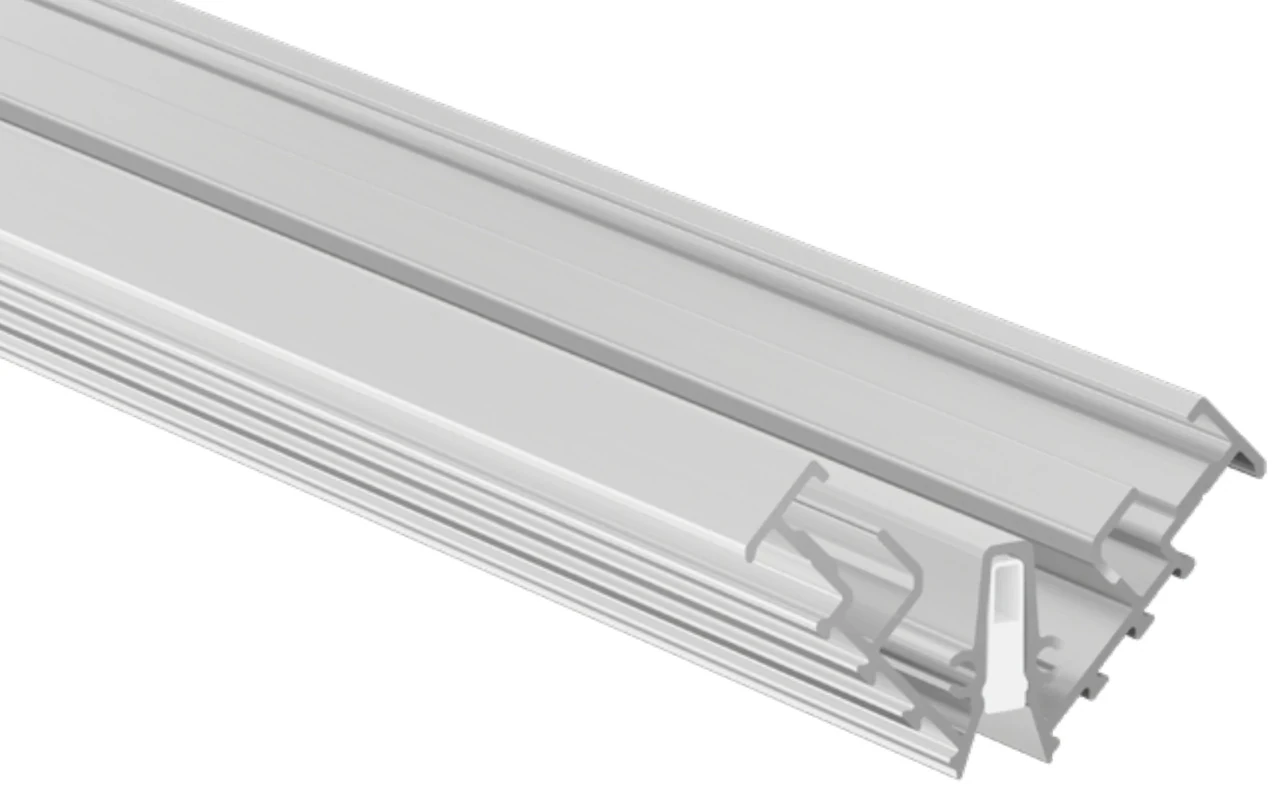

EN-PFL-S6S-R4747
- Std. length
- 3600 mm
- Diffuser
- Silicone
- LED strip
- 05 mm
- Beam angle
- 120°

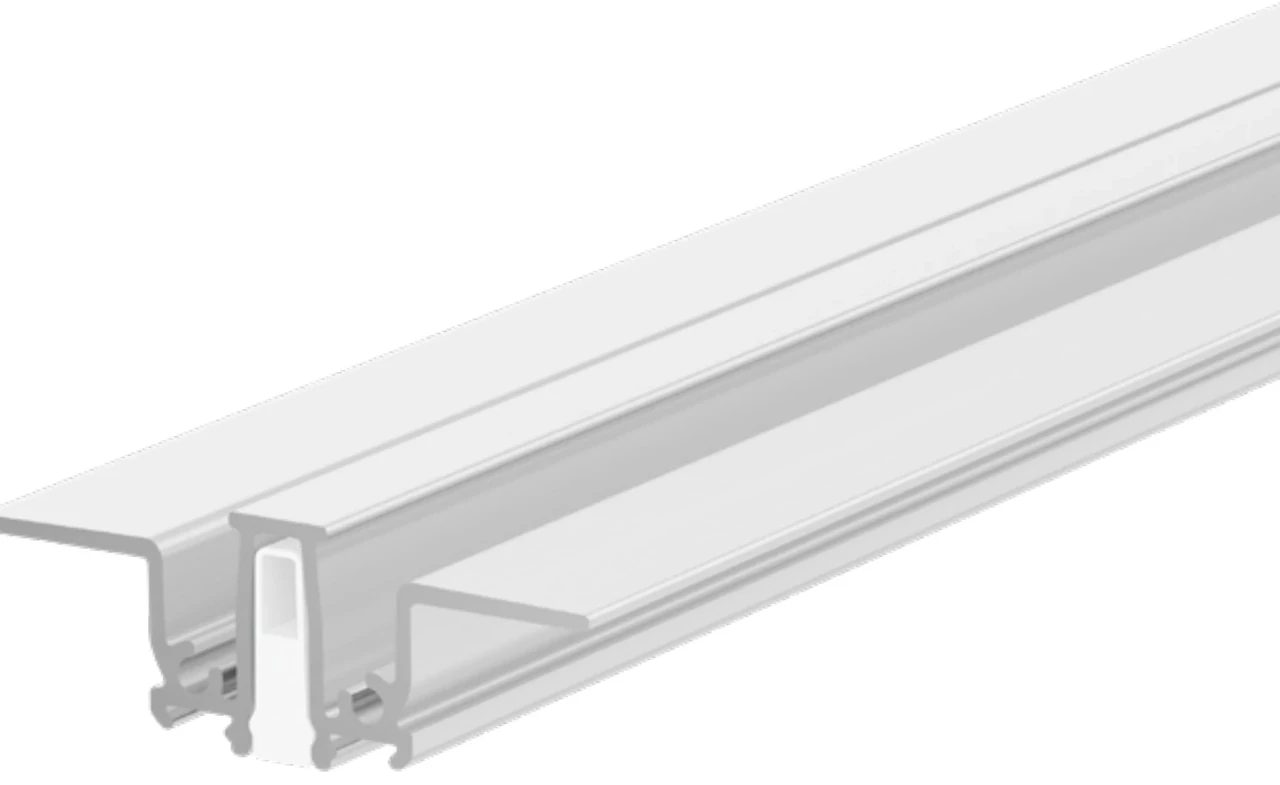

EN-PFL-S6S-R5218
- Cutout
- >22 mm
- Std. length
- 3600 mm
- Diffuser
- Silicone
- LED strip
- 05 mm
- Beam angle
- 120°

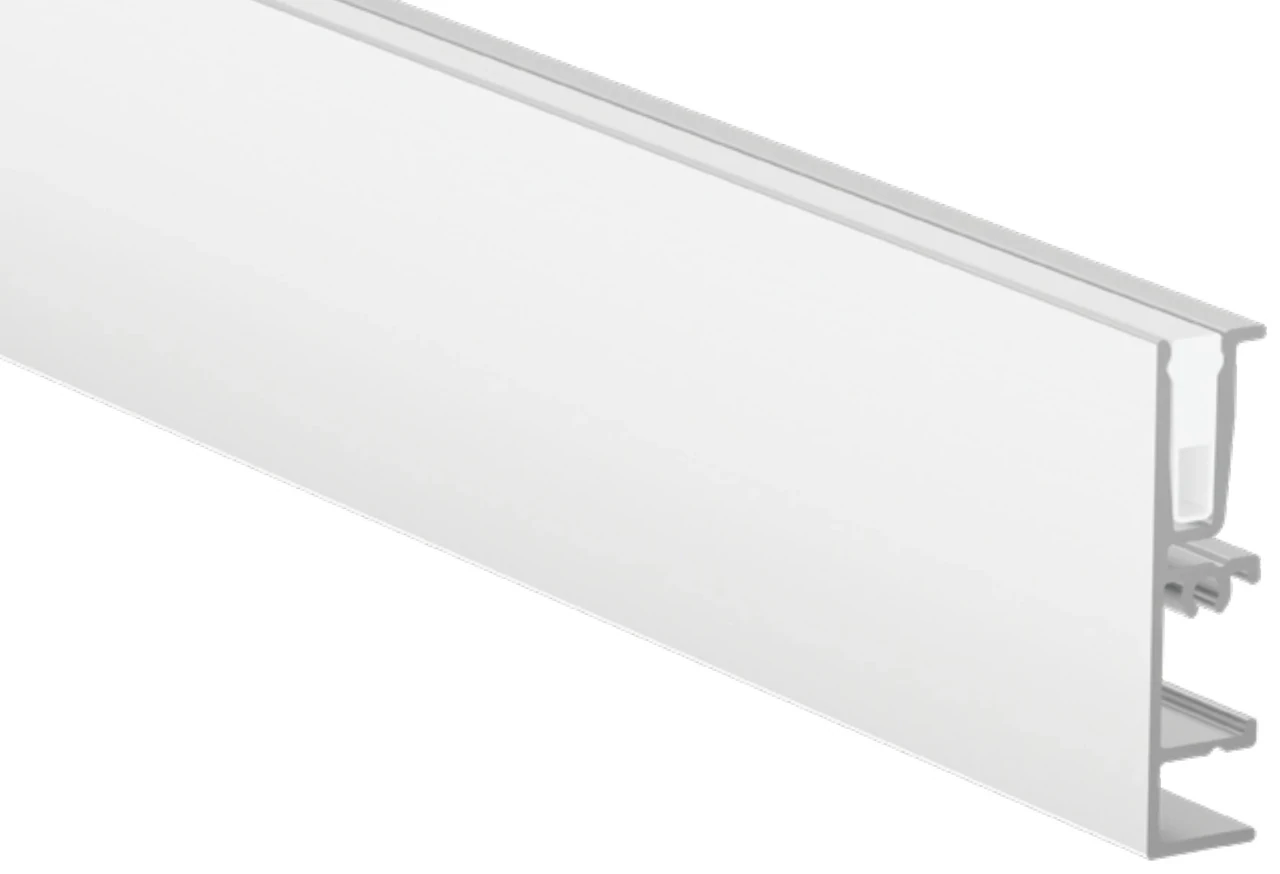

EN-PFL-S6S-S1145
- Std. length
- 3600 mm
- Diffuser
- Silicone
- LED strip
- 05 mm
- Beam angle
- 120°

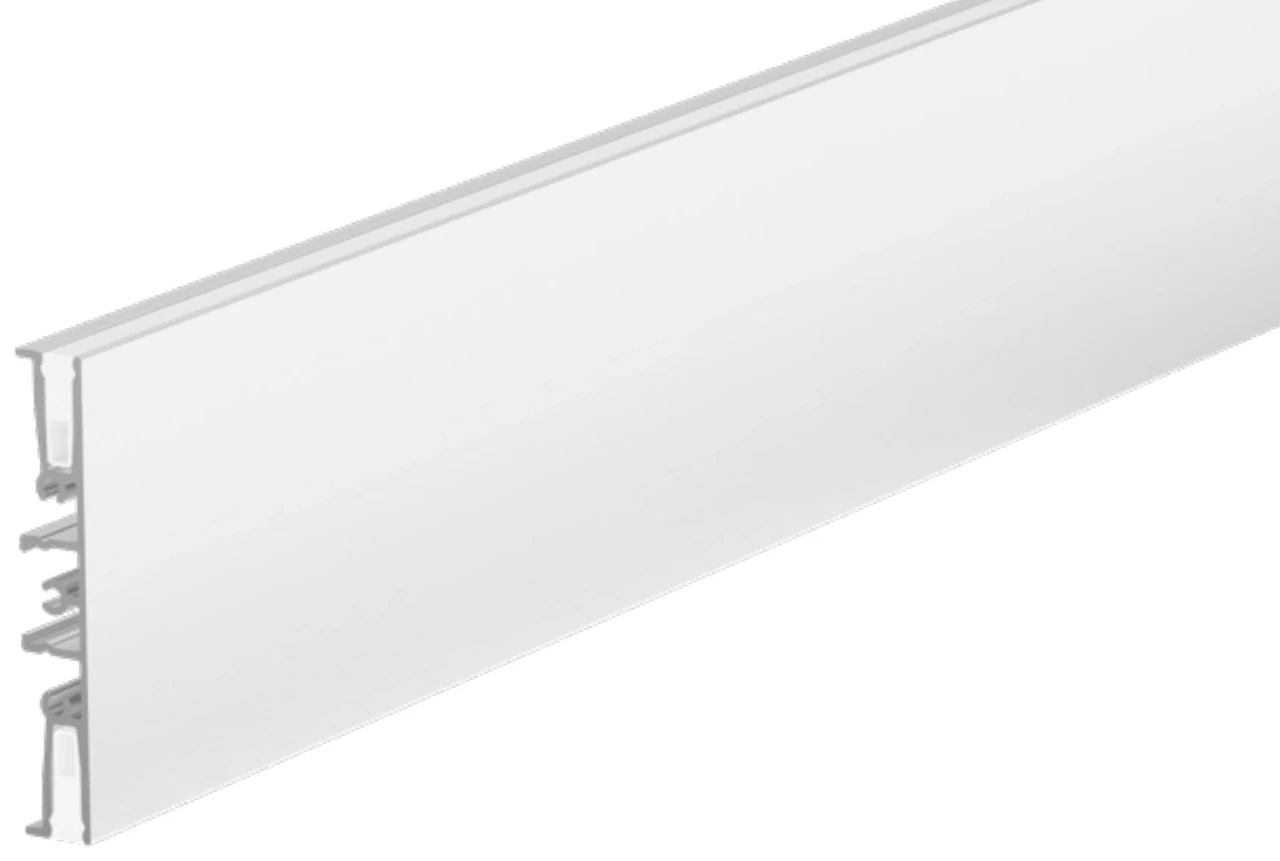

EN-PFL-S6S-S1170
- Std. length
- 3600 mm
- Diffuser
- Silicone
- LED strip
- 05 mm
- Beam angle
- 120°
Applications
- Site-cut runs
- Coves
- Ceiling lines
- Joinery
All profiles are AL6063 aluminium extrusion with a choice of diffuser; end caps and mounting clips are supplied as accessories. Cutout figures are the minimum opening in the substrate. Lengths can be cut to order — ask for a cutting list.
