Suspended & Pendent Profiles
Model code EN-PFL-SPS-S0101
Deeper sections built to hang on wire or stem — 13 codes.
Each code shows its extrusion beside its own figures, with the dimensioned cross-section drawn to the right of them. Sorted by series, then ascending by size. Use the filter to jump straight to a code.

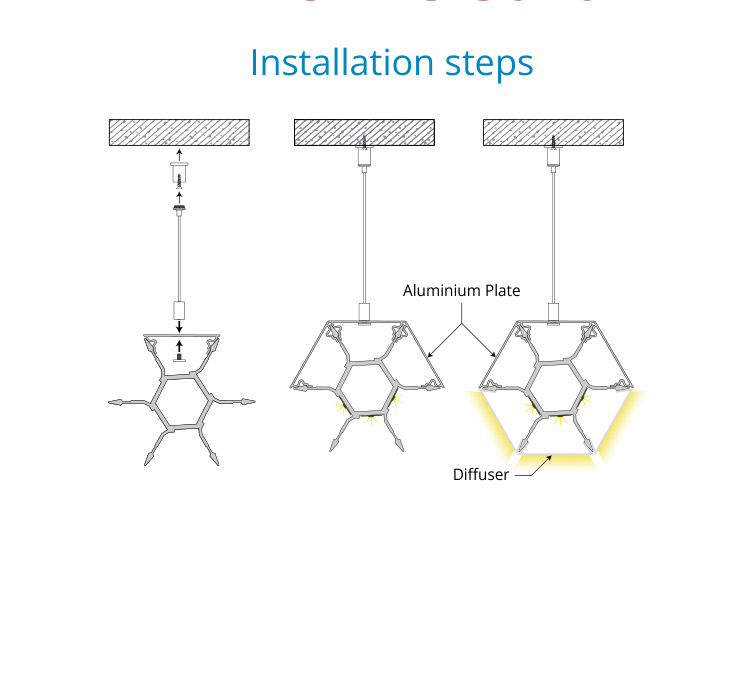

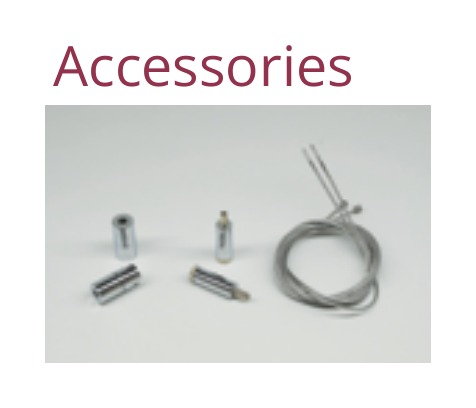

Suspended & Pendent profiles carry the extra depth and the fixing points a hanging run needs, with up-and-down options where the ceiling should be lit as well as the desk. Supplied with suspension accessories; every code is AL6063 aluminium.
The range 13 codes

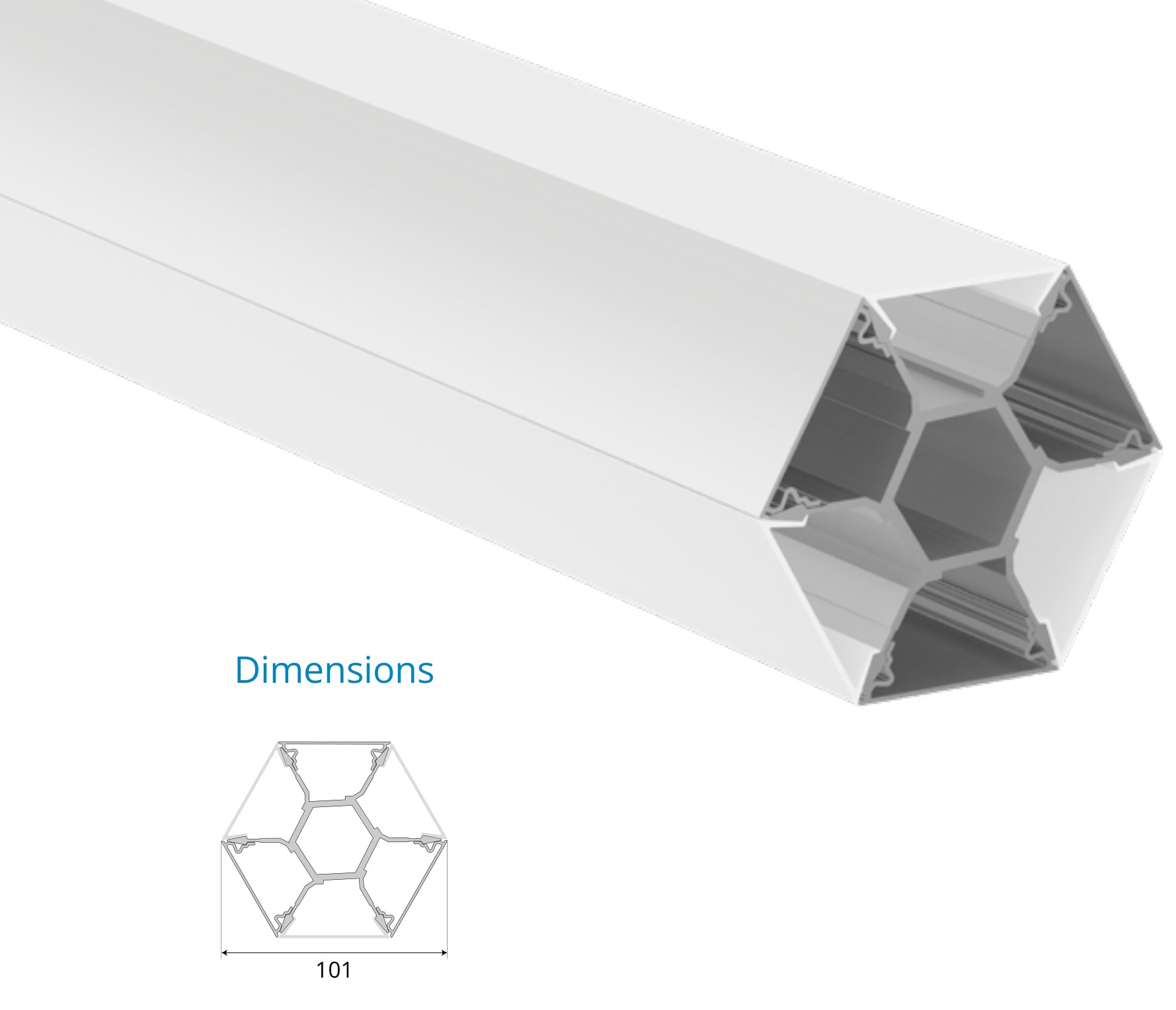

EN-PFL-SPS-S0101
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

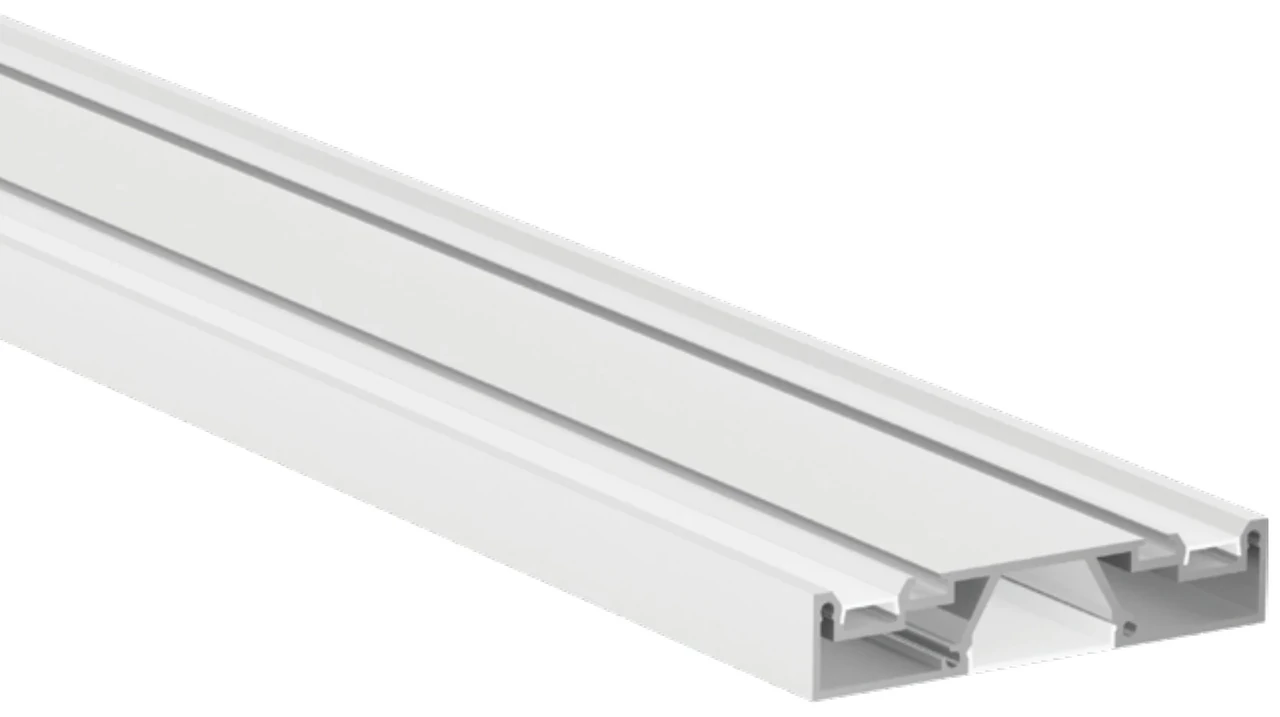

EN-PFL-SPS-S1002
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

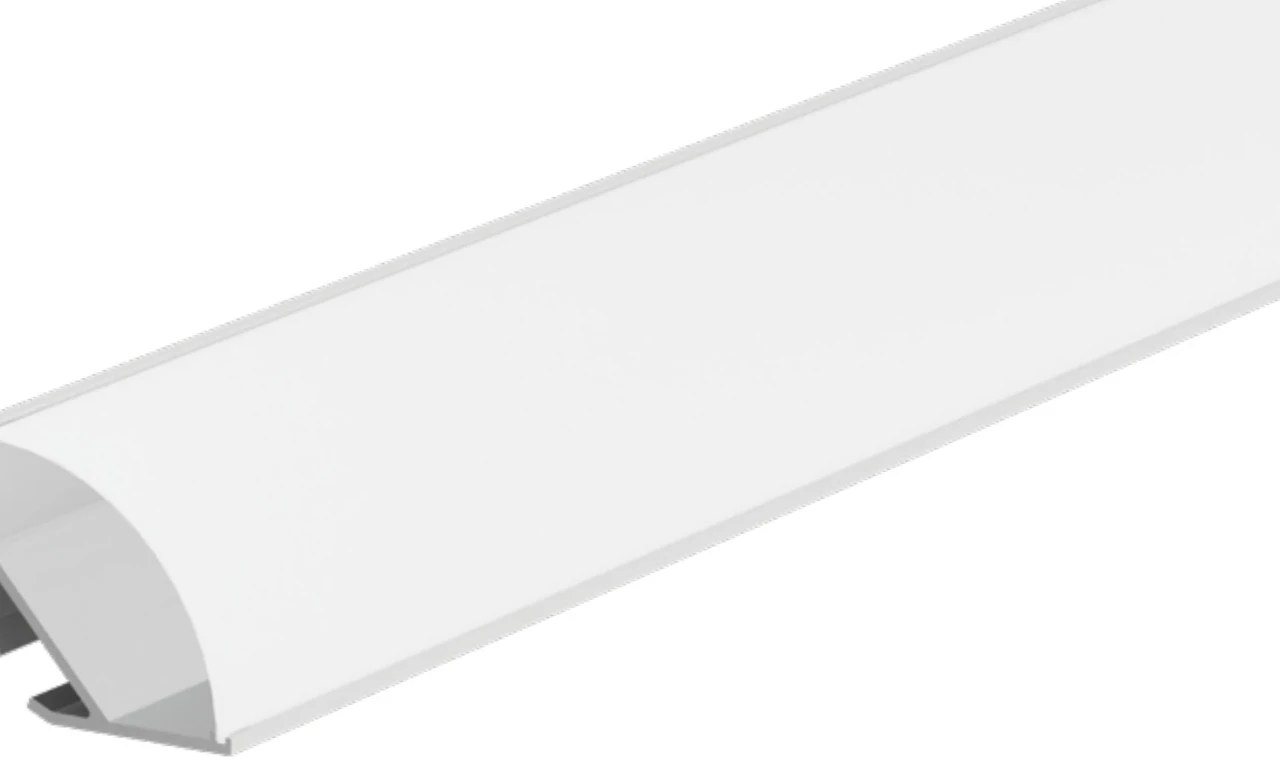

EN-PFL-SPS-S3030-140 · 45° corner · 30 × 30 mm
- Std. length
- 3000 mm
- Diffuser
- Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

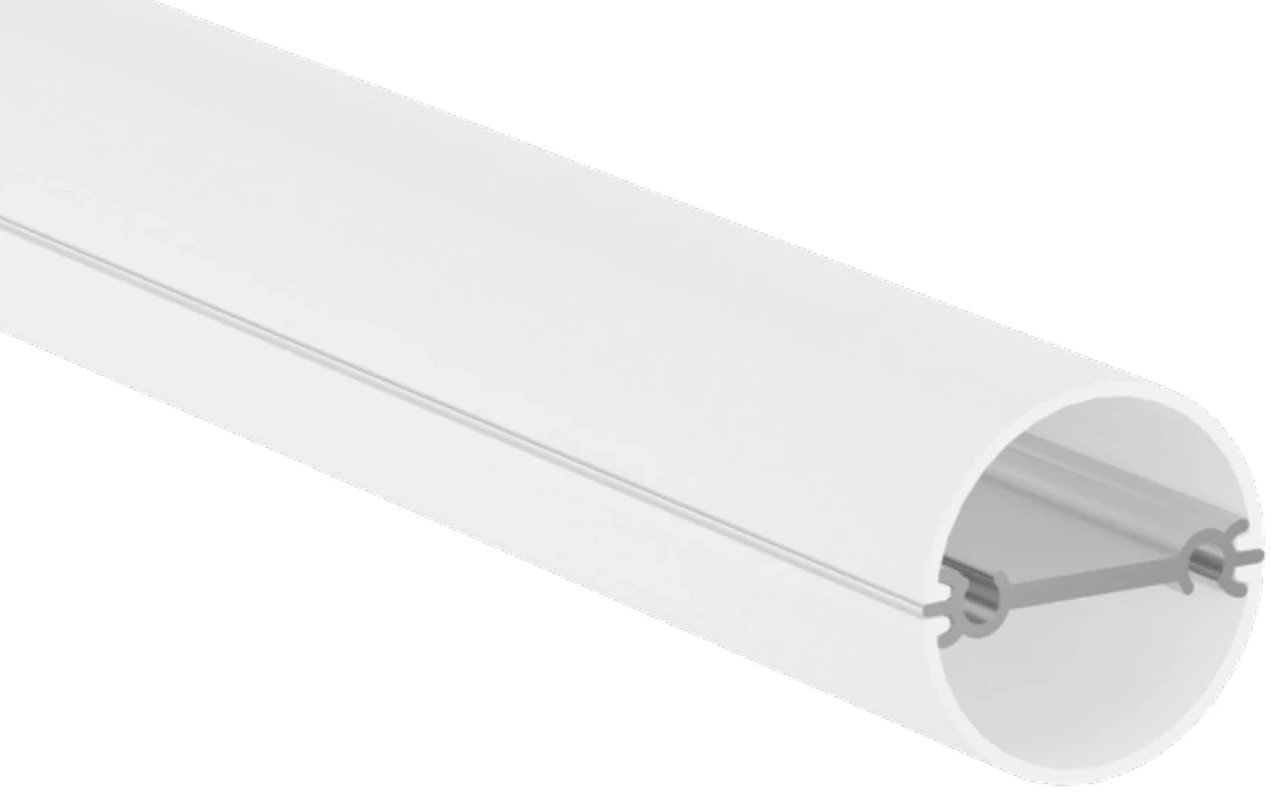

EN-PFL-SPS-S3030-141 · Round tube · Ø30 mm
- Std. length
- 3000 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

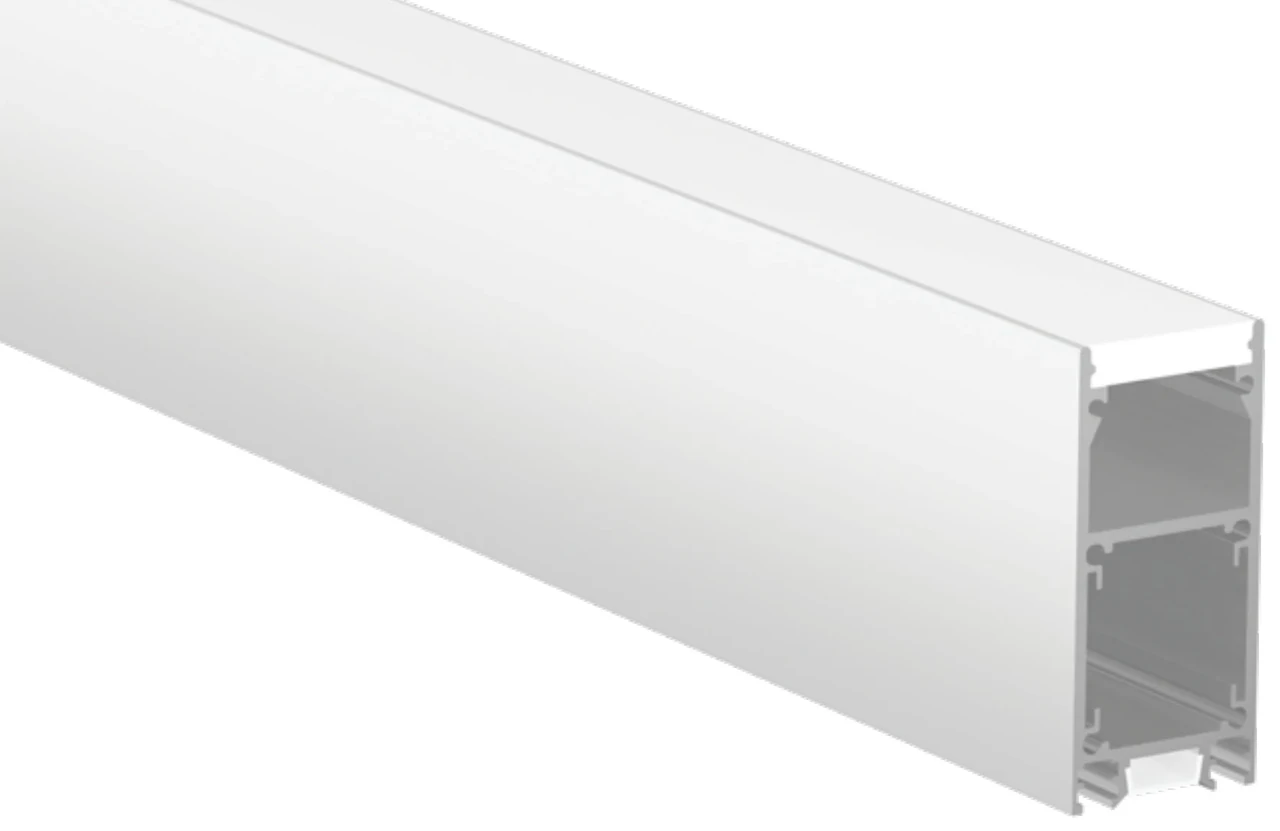

EN-PFL-SPS-S3065
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

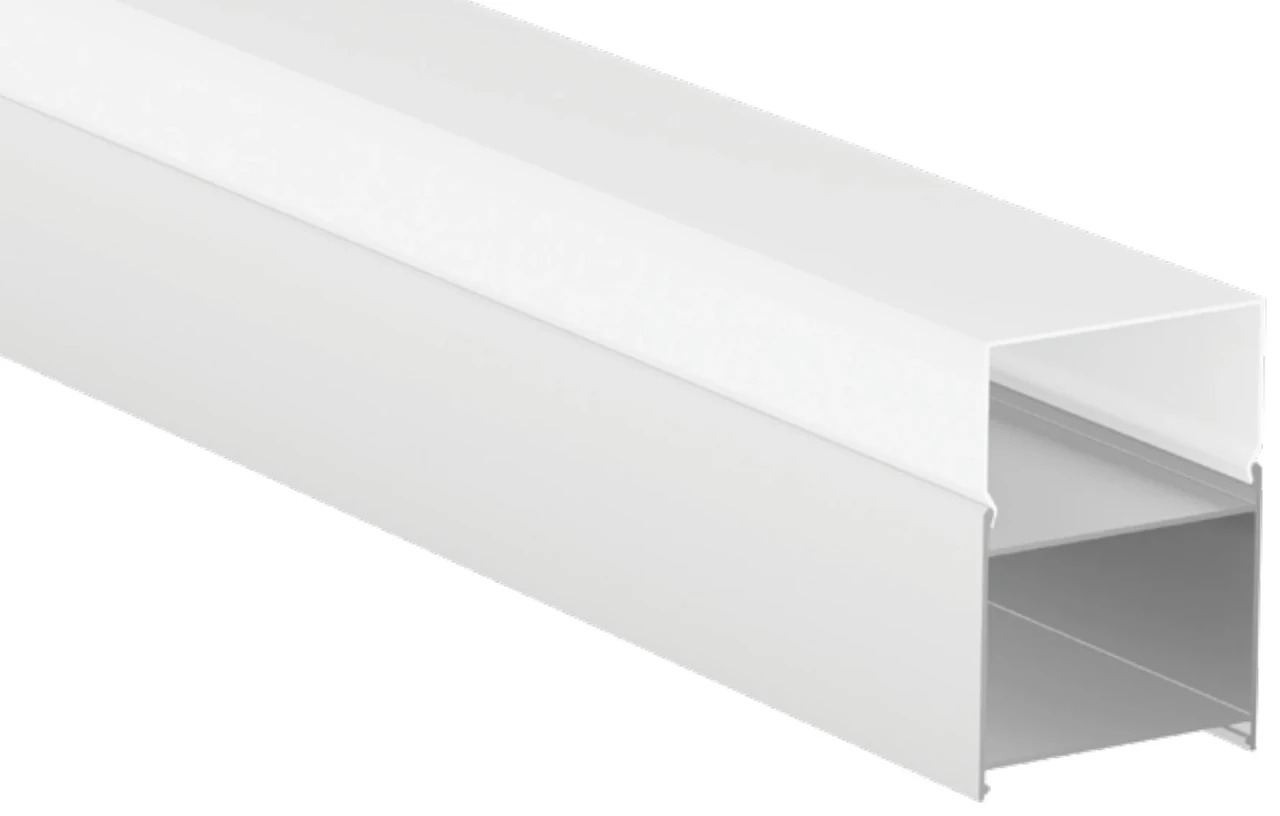

EN-PFL-SPS-S5045
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

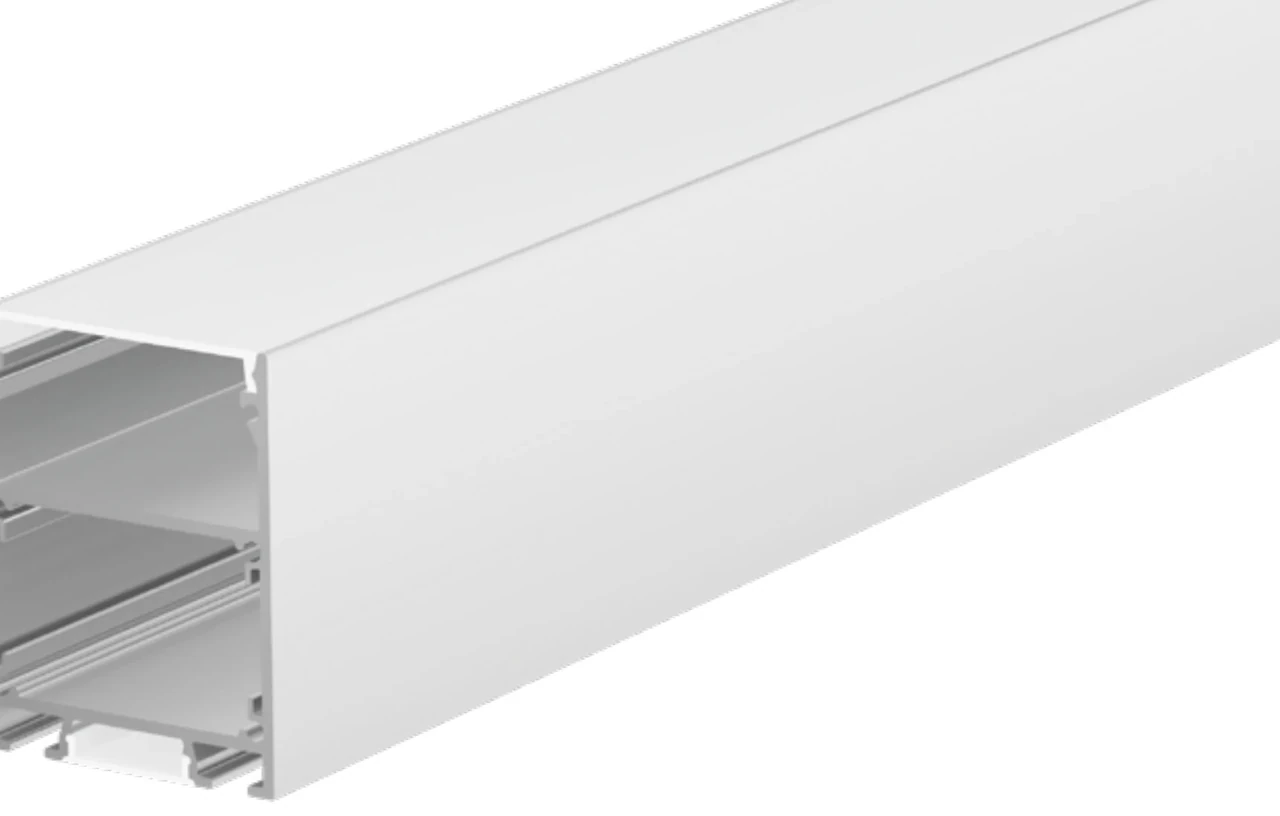

EN-PFL-SPS-S5065
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

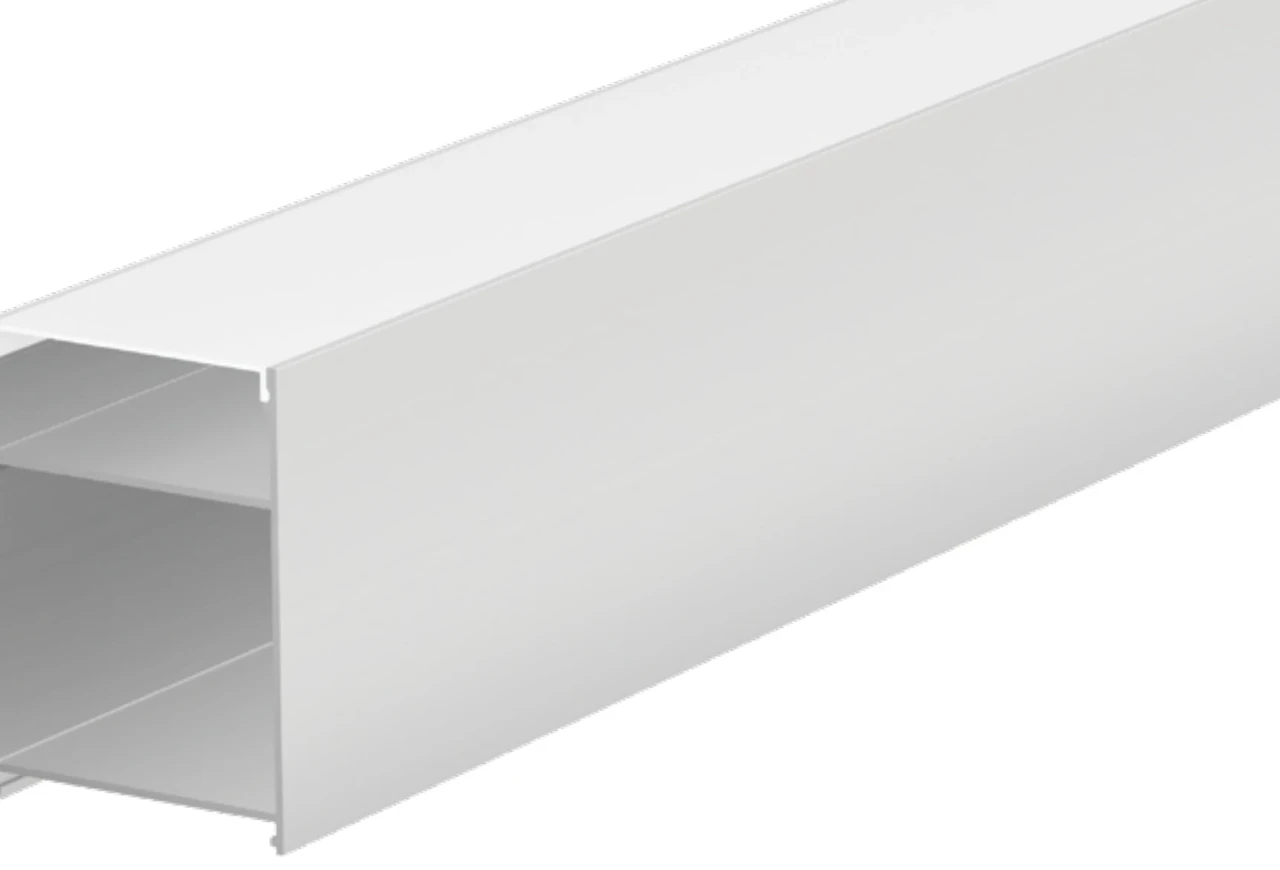

EN-PFL-SPS-S5070
- Std. length
- 3600 mm
- Diffuser
- Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

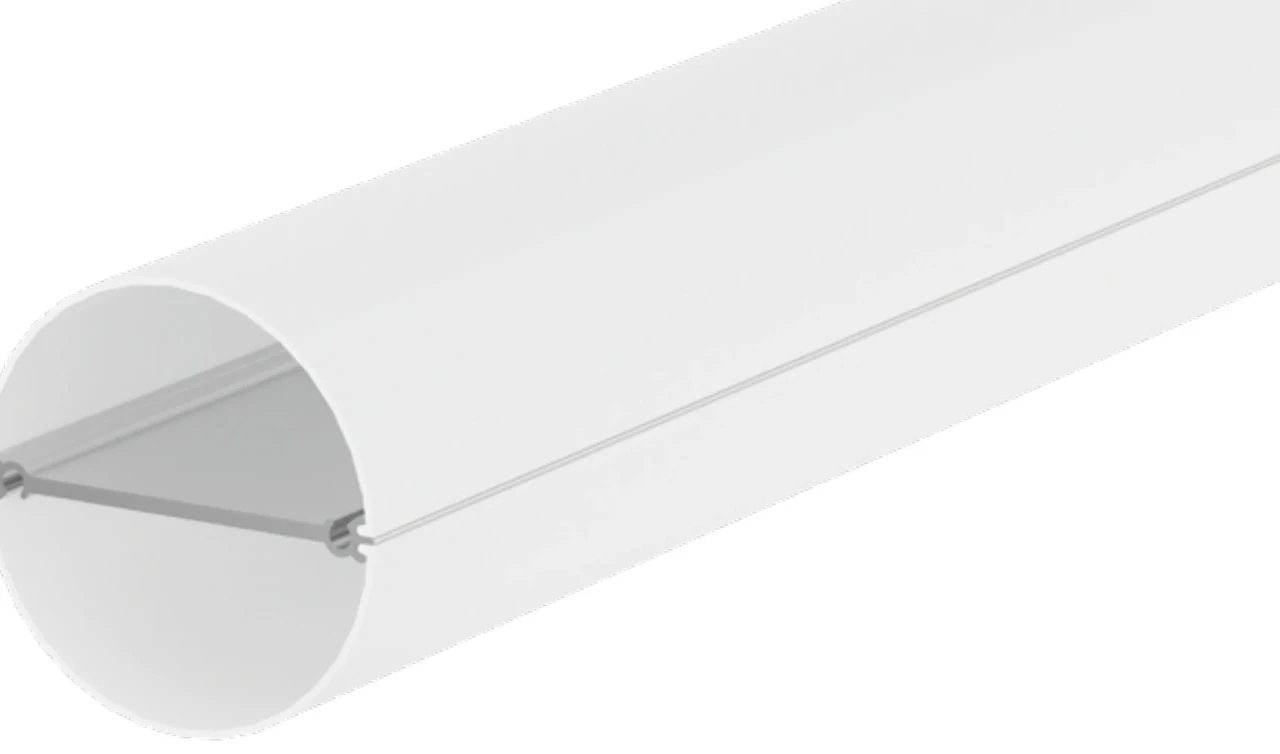

EN-PFL-SPS-S6060
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

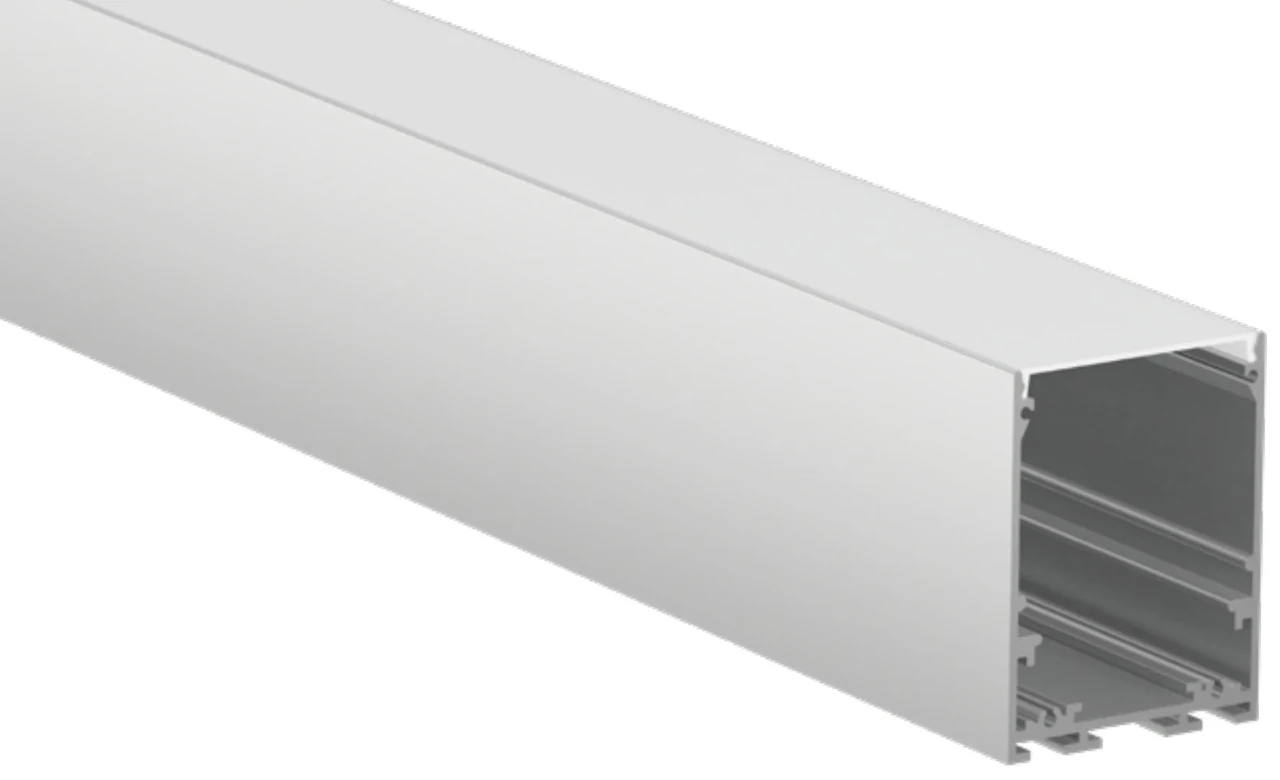

EN-PFL-SPS-S6080-024
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

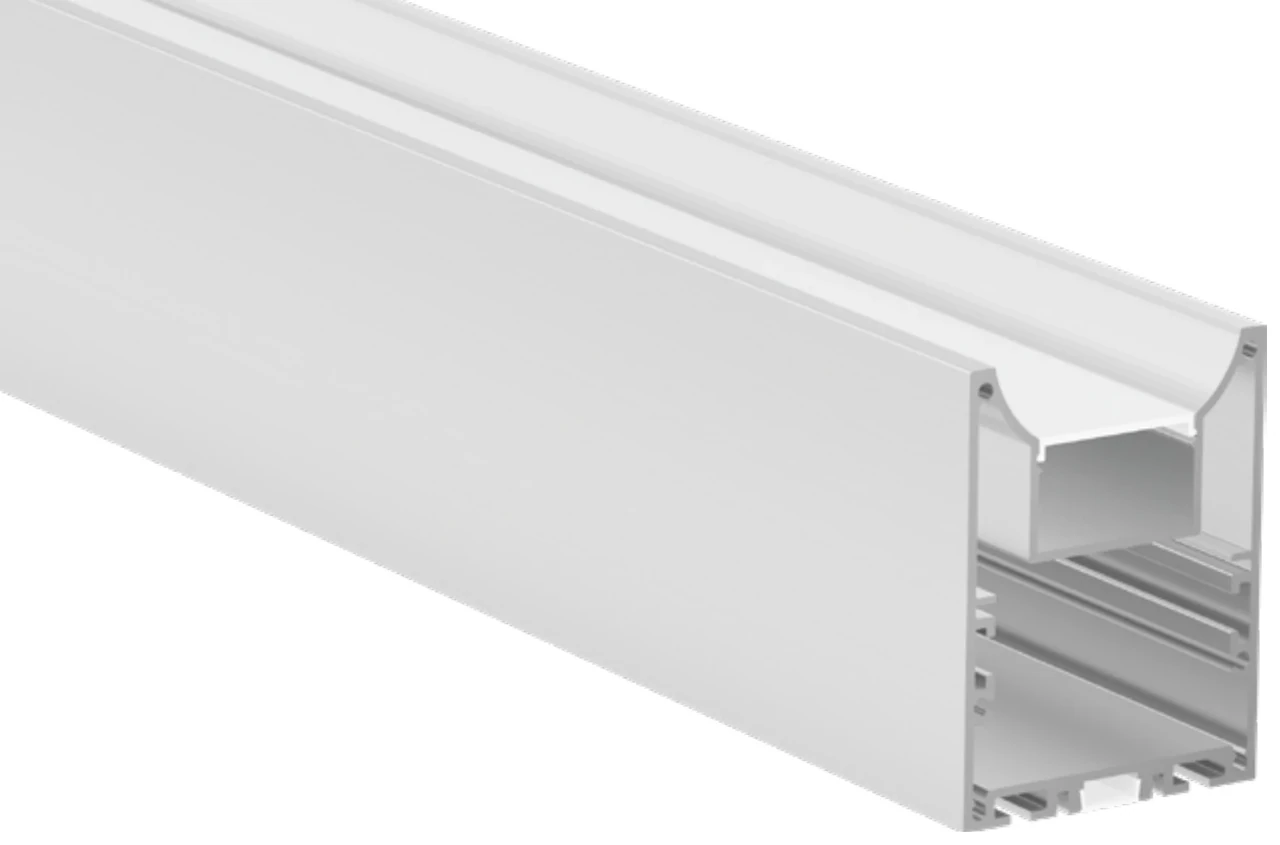

EN-PFL-SPS-S6080-139
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

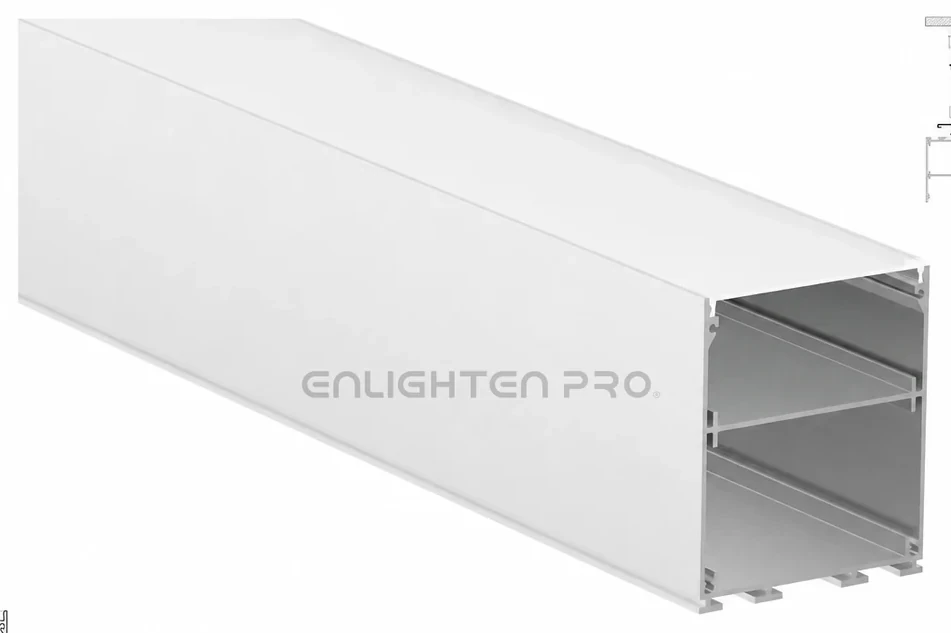

EN-PFL-SPS-S7590
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

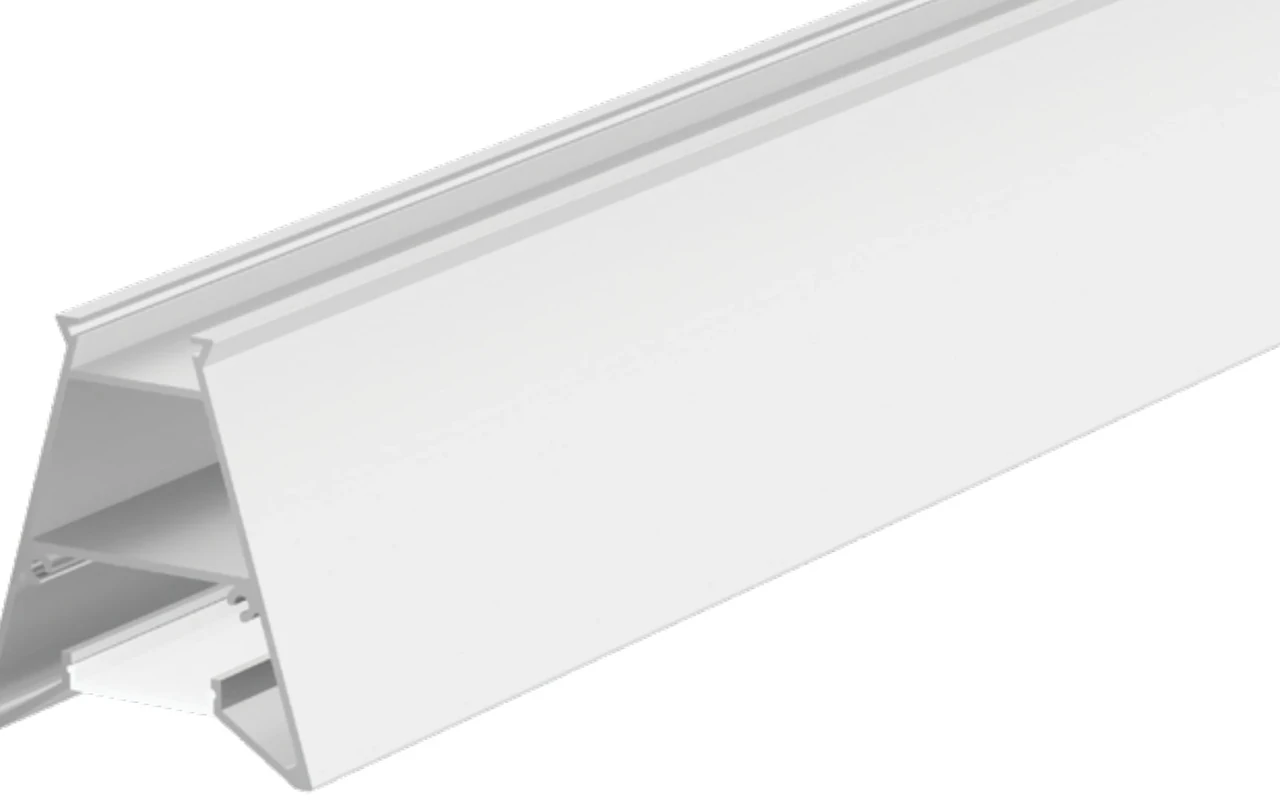

EN-PFL-SPS-S7683
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°
Applications
- Open-plan offices
- Meeting rooms
- Studios
- Retail
- Double-height spaces
All profiles are AL6063 aluminium extrusion with a choice of diffuser; end caps and mounting clips are supplied as accessories. Cutout figures are the minimum opening in the substrate. Lengths can be cut to order — ask for a cutting list.
