Curtain Washer & Wall Grazer Profiles
Model code EN-PFL-CWL-R2217
Sections aimed along a surface to graze fabric or masonry — 7 codes.
Each code shows its extrusion beside its own figures, with the dimensioned cross-section drawn to the right of them. Sorted by series, then ascending by size.
Curtain Washer and Wall Grazer profiles sit tight to the surface they light and throw along it rather than across the room, which is what brings out the fall of a curtain or the texture of stone and brick. The section is cut to keep the strip out of direct view.
The range 7 codes

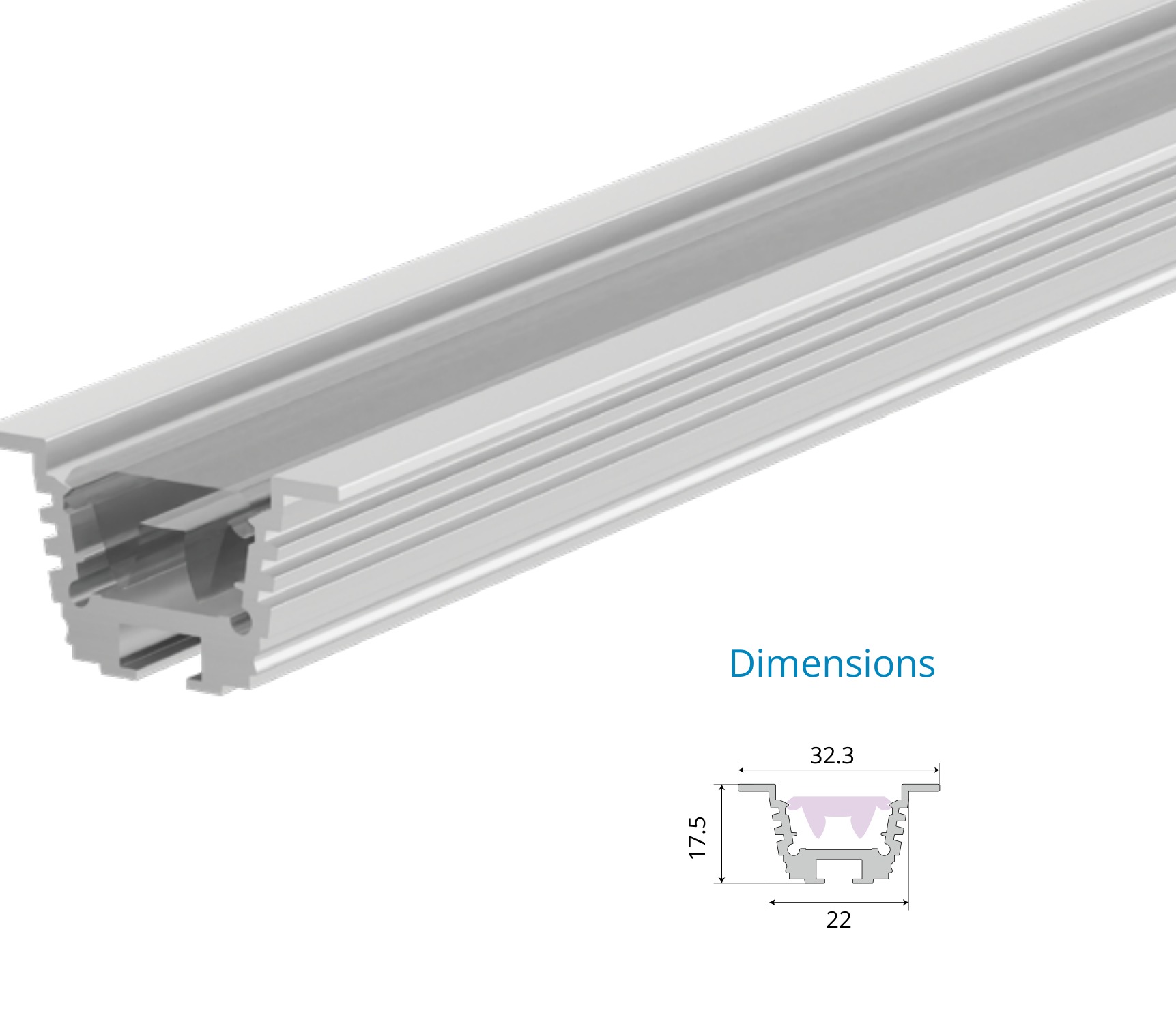

EN-PFL-CWL-R2217
- Cutout
- >22 mm
- Std. length
- 3000 mm
- Diffuser
- Lens
- LED strip
- 08 mm
- Beam angle
- 30°

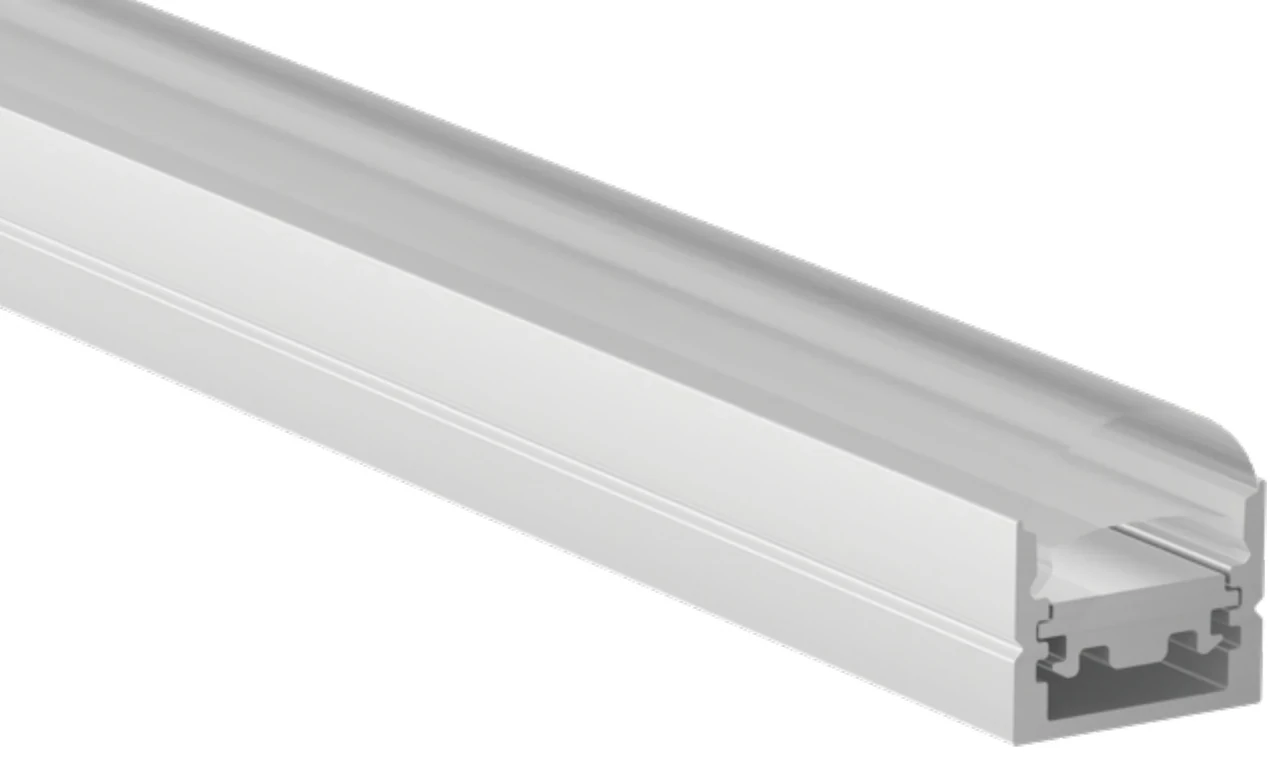

EN-PFL-CWL-S1618
- Std. length
- 3000 mm
- Diffuser
- Lens
- LED strip
- 08 mm
- Beam angle
- 10°, 30°, 60°, 90°

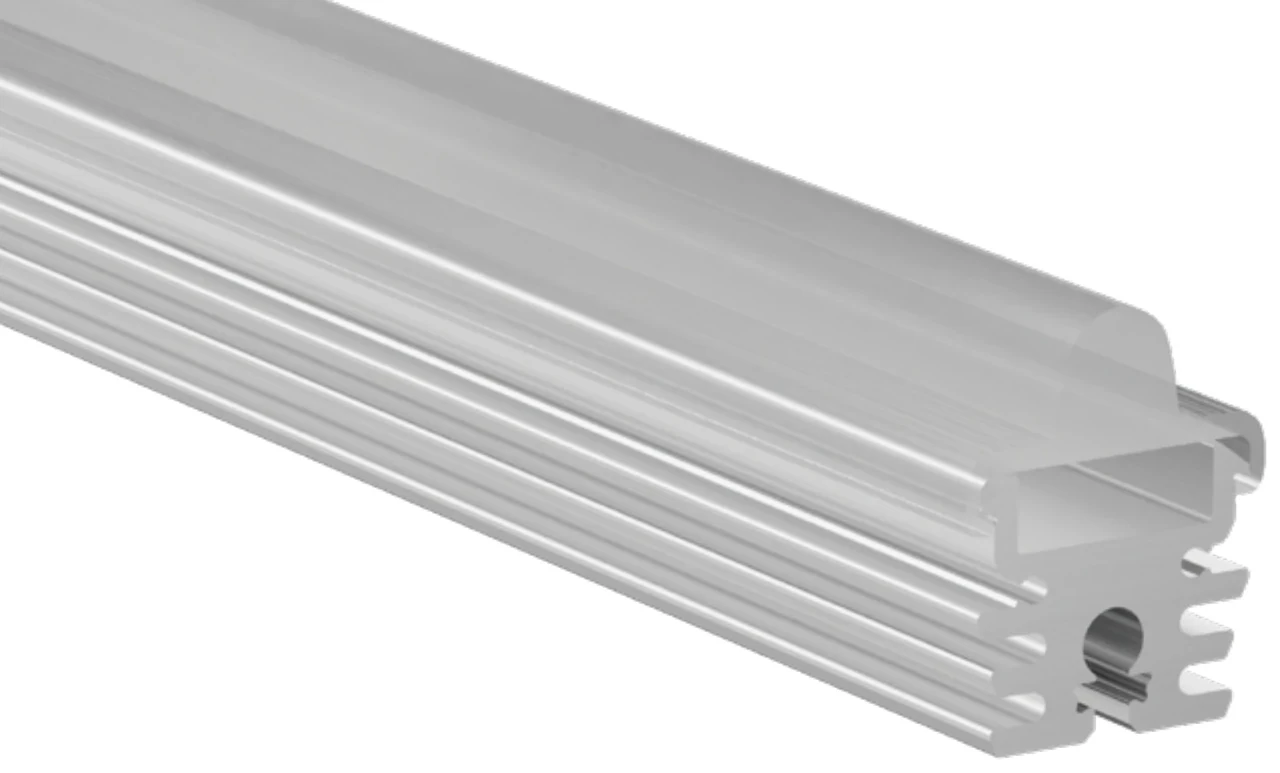

EN-PFL-CWL-S1815-126 · 15° lens
- Std. length
- 3000 mm
- Diffuser
- Lens
- LED strip
- 08 mm
- Beam angle
- 15°

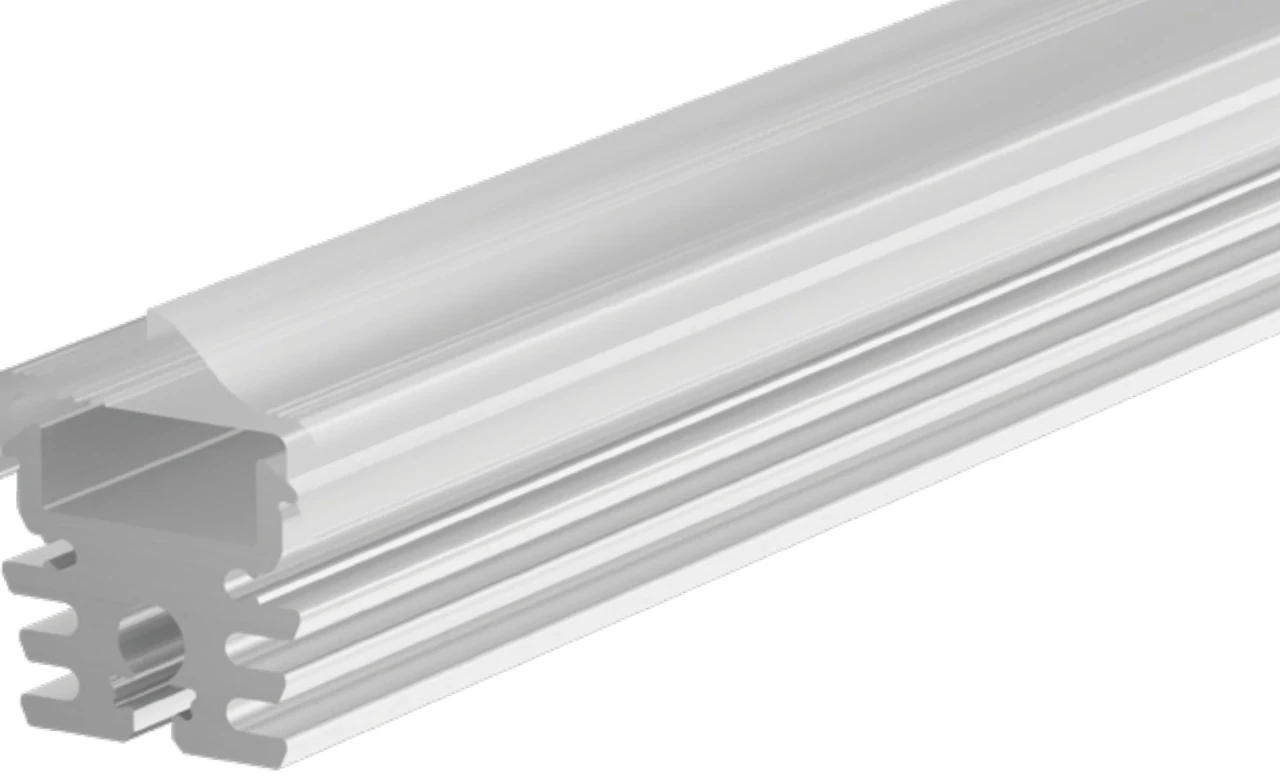

EN-PFL-CWL-S1815-208 · Asymmetric lens
- Std. length
- 3000 mm
- Diffuser
- Lens
- LED strip
- 08 mm
- Beam angle
- Asymmetric

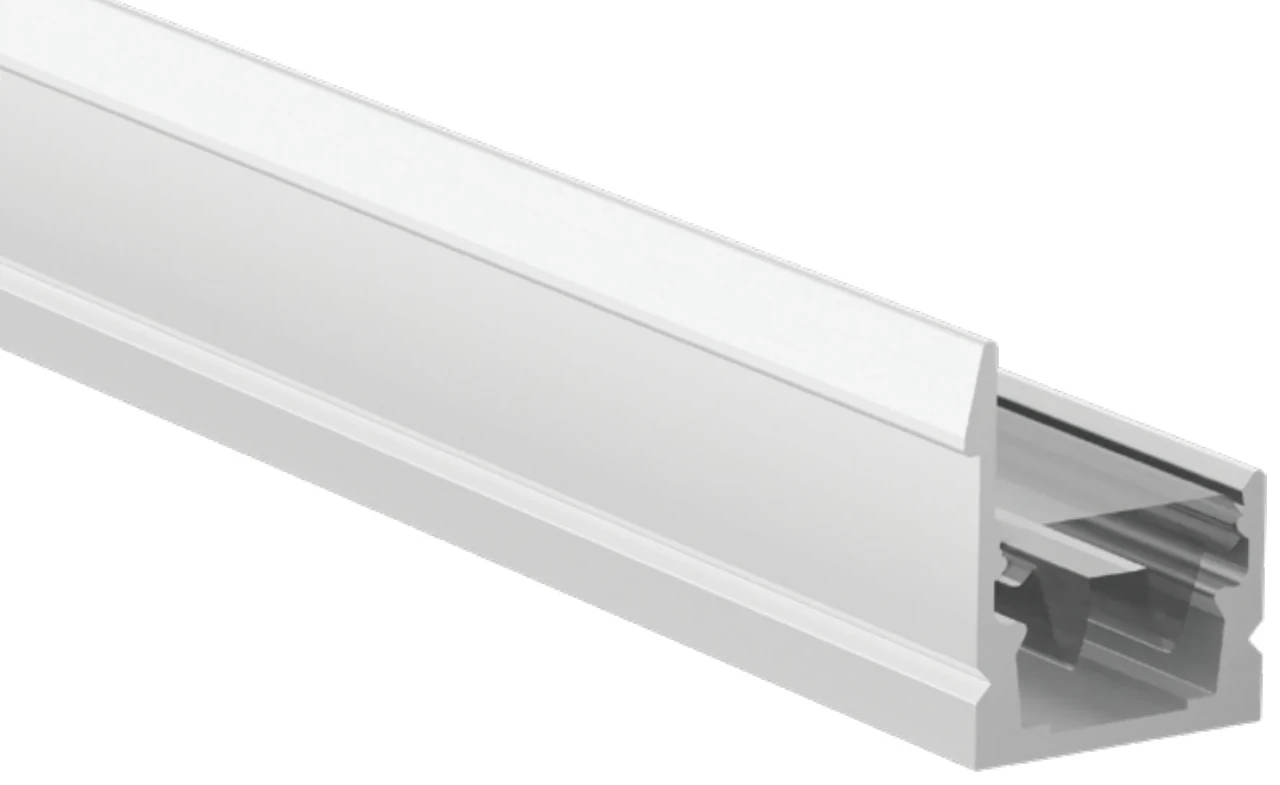

EN-PFL-CWL-S2125-127
- Std. length
- 3000 mm
- Diffuser
- Lens
- LED strip
- 08 mm
- Beam angle
- 30°

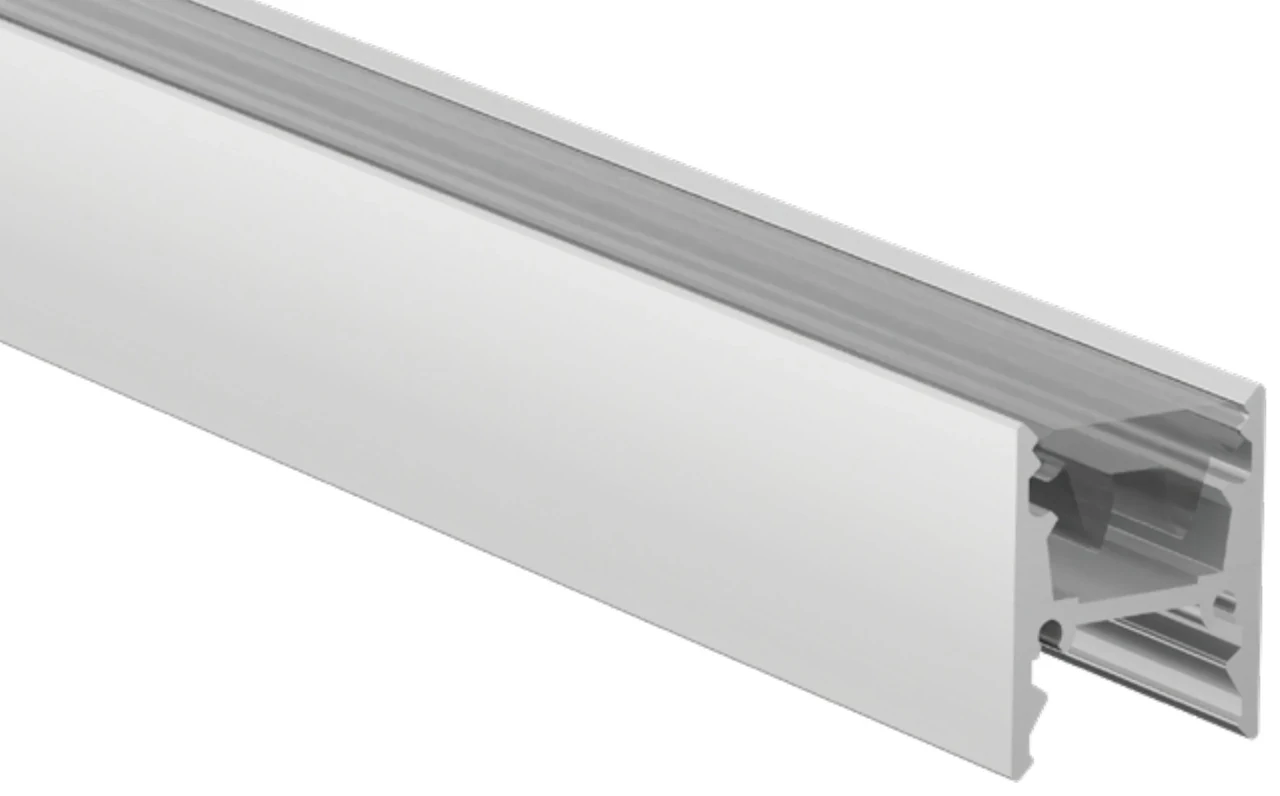

EN-PFL-CWL-S2125-129
- Std. length
- 3000 mm
- Diffuser
- Lens
- LED strip
- 08 mm
- Beam angle
- 30°

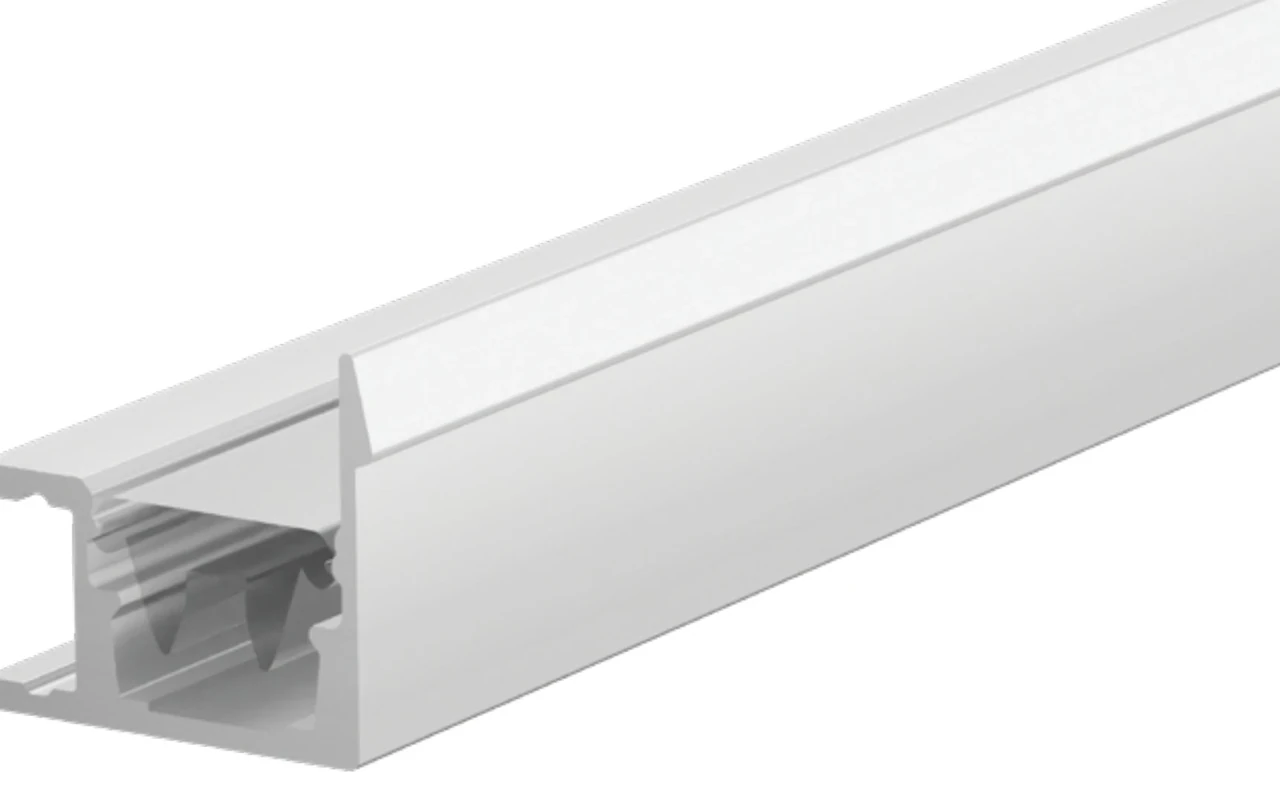

EN-PFL-CWL-S2825
- Std. length
- 3000 mm
- Diffuser
- Lens
- LED strip
- 08 mm
- Beam angle
- 30°
Applications
- Curtain pelmets
- Stone and brick
- Textured walls
- Feature surfaces

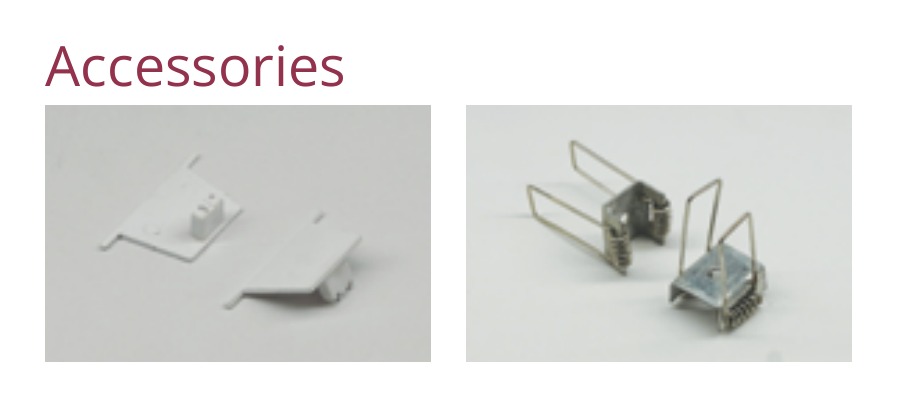

All profiles are AL6063 aluminium extrusion with a choice of diffuser; end caps and mounting clips are supplied as accessories. Cutout figures are the minimum opening in the substrate. Lengths can be cut to order — ask for a cutting list.
