PoP & Gypsum Profiles
Model code EN-PFL-PGS-R1214-096
Trimless channels that plaster into PoP and gypsum ceilings — 23 codes.
Each code shows its extrusion beside its own figures, with the dimensioned cross-section drawn to the right of them. Sorted by series, then ascending by size. Use the filter to jump straight to a code.

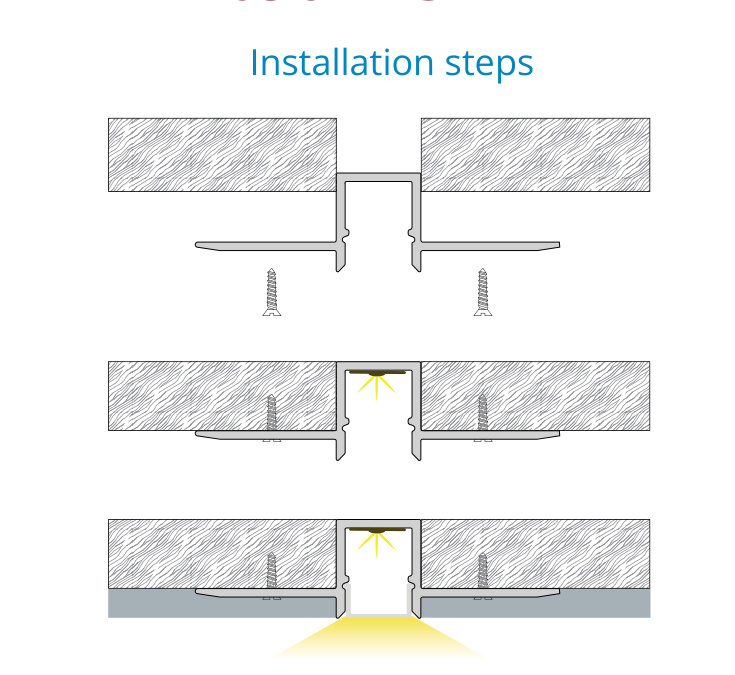

The PoP/Gypsum range carries a plaster-in flange so the finished ceiling closes onto the profile with no visible trim. They are set before skimming and finished flush, which is what makes a seamless recessed line possible in a false ceiling.
The range 23 codes
EN-PFL-PGS-R1214-096 · Flat flange · 52 mm
- Cutout
- >12 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

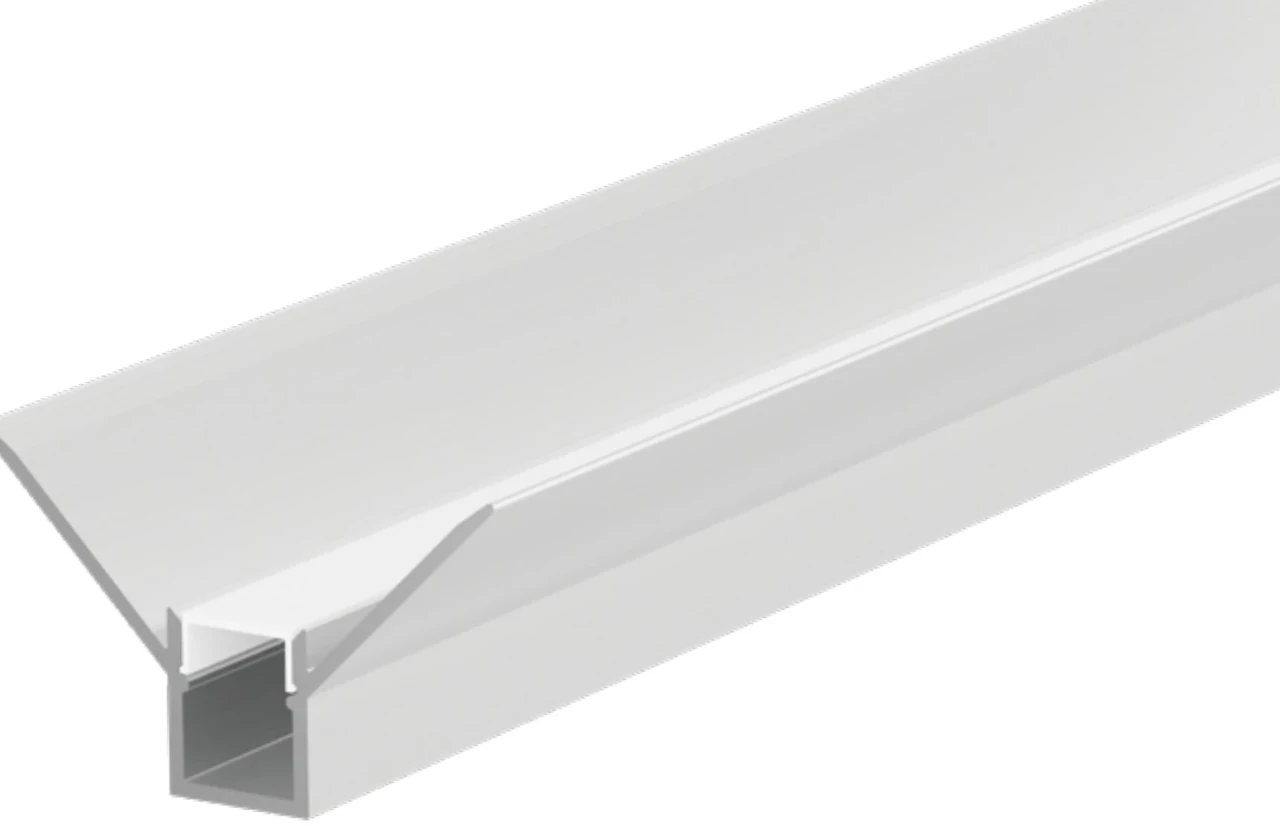

EN-PFL-PGS-R1214-097 · Internal corner · 44 mm
- Cutout
- >12 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

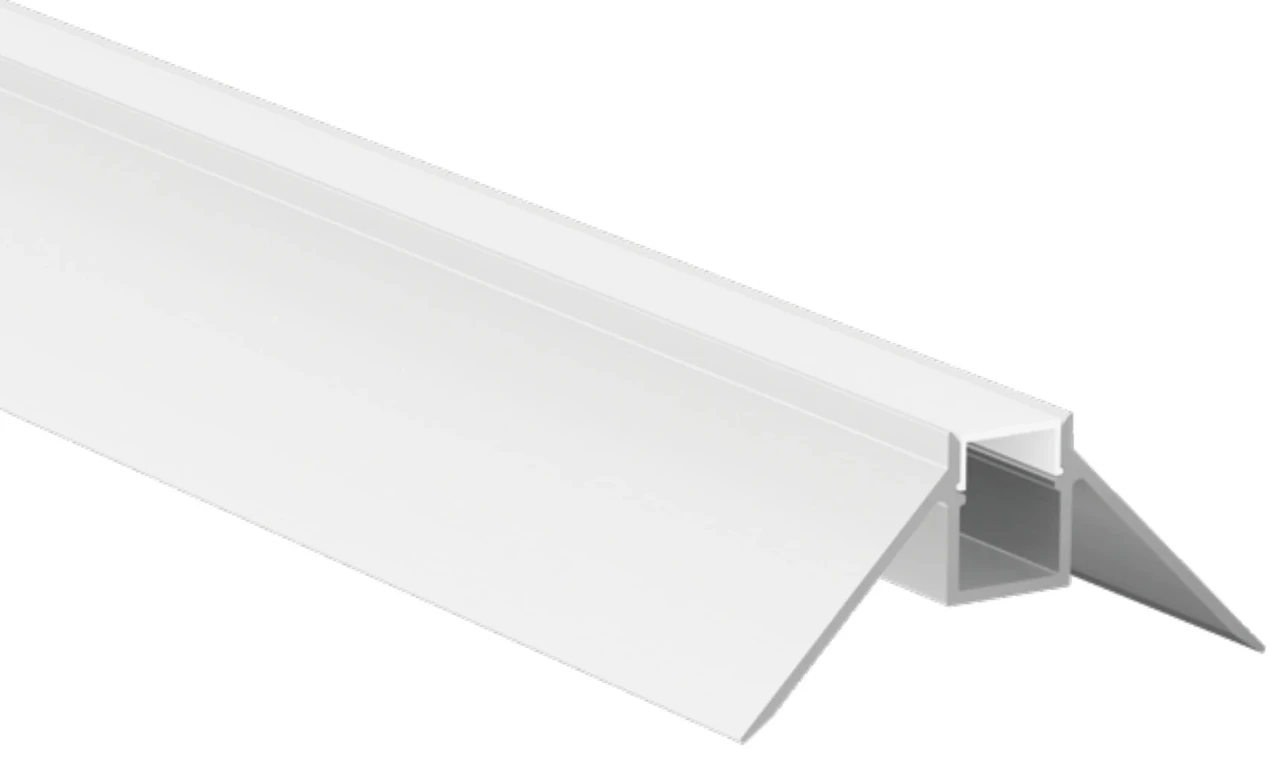

EN-PFL-PGS-R1214-098 · External corner · 49.5 mm
- Cutout
- >12 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

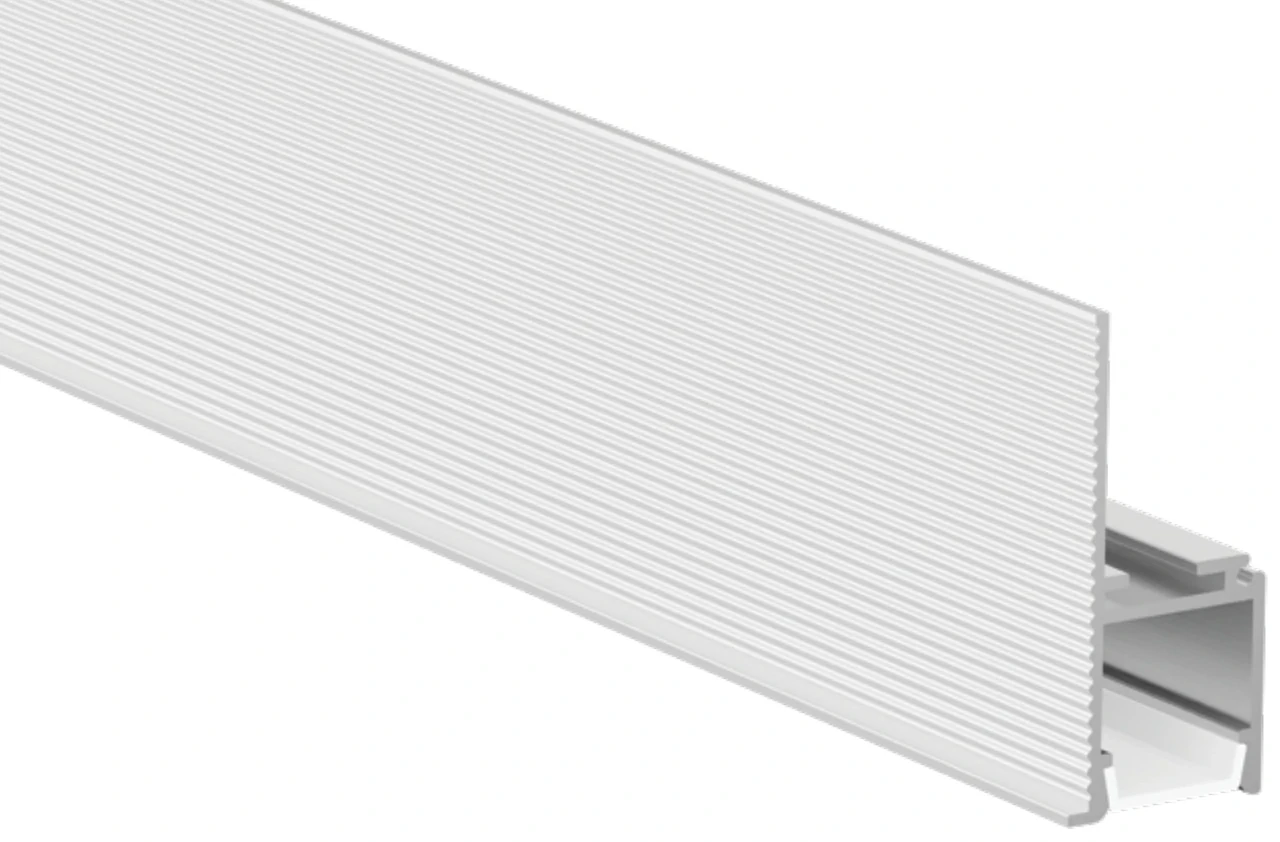

EN-PFL-PGS-R1738
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 10 mm
- Beam angle
- 120°

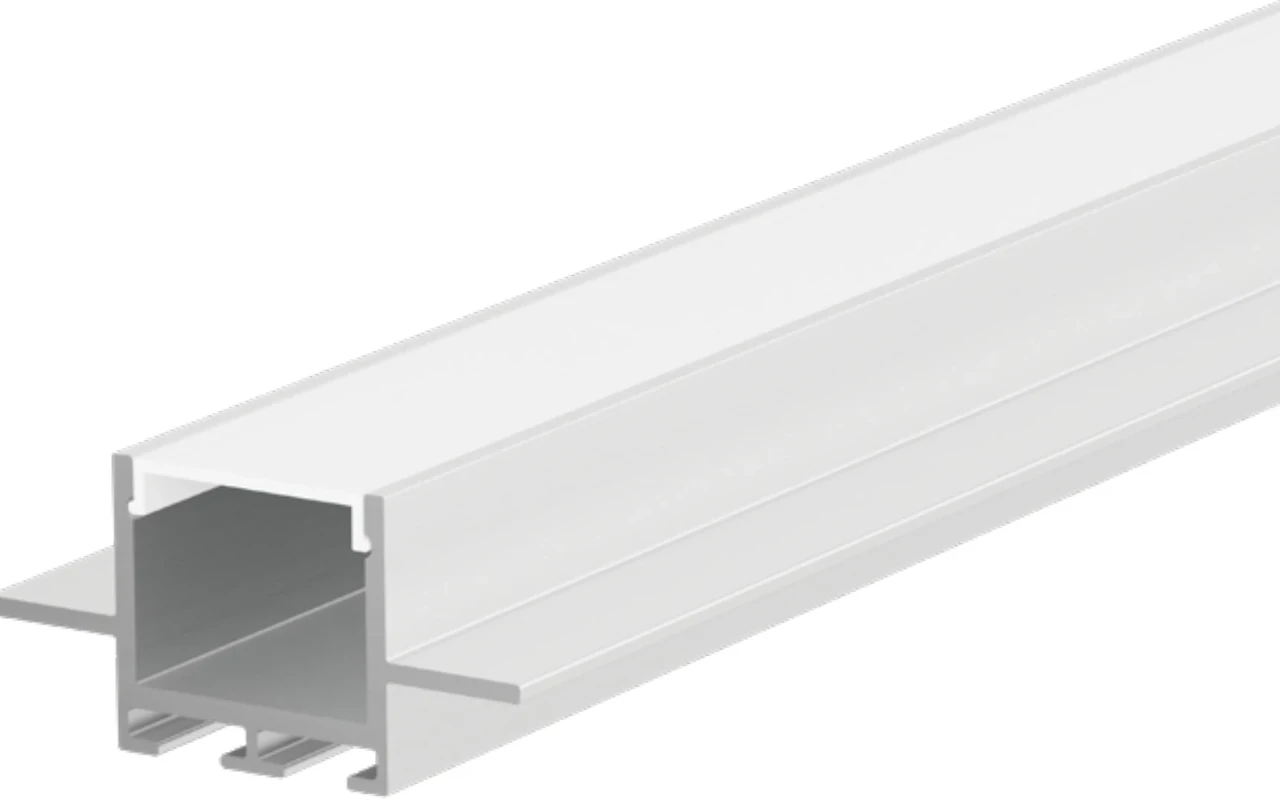

EN-PFL-PGS-R2525
- Cutout
- >25 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

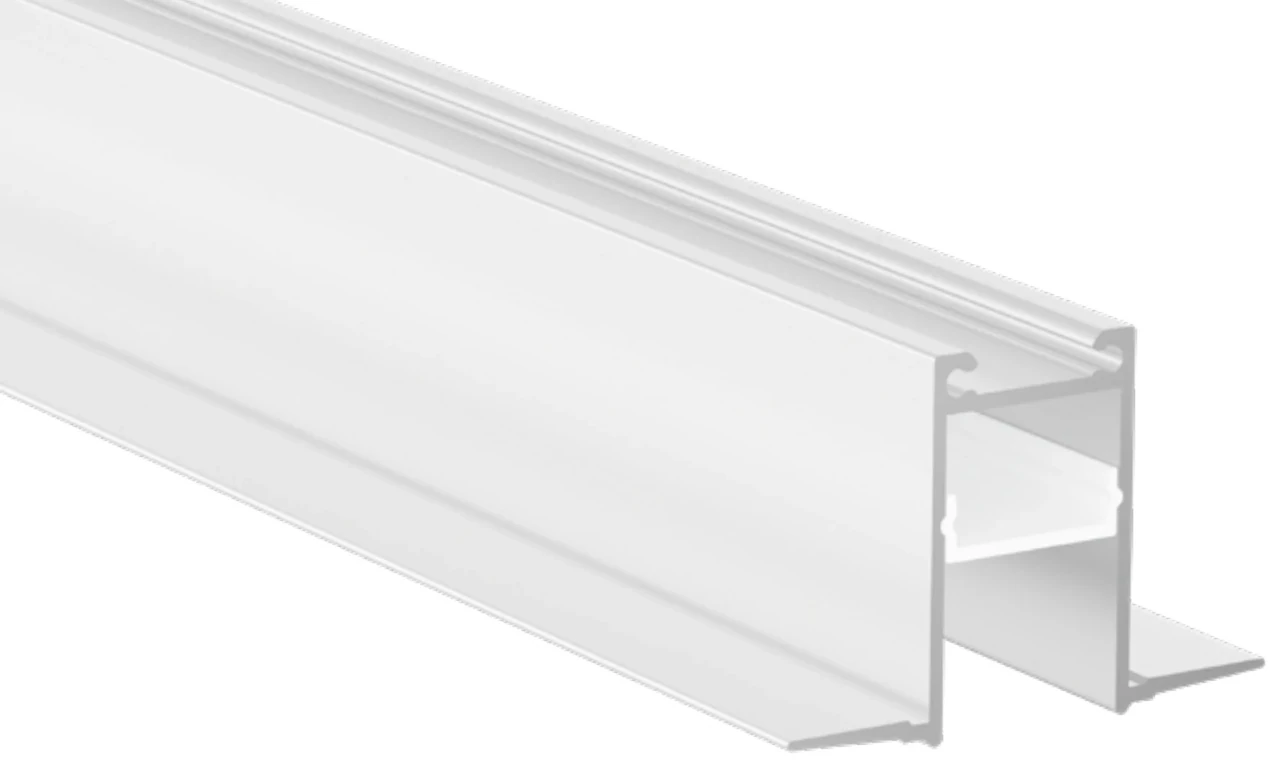

EN-PFL-PGS-R2541
- Cutout
- >25 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

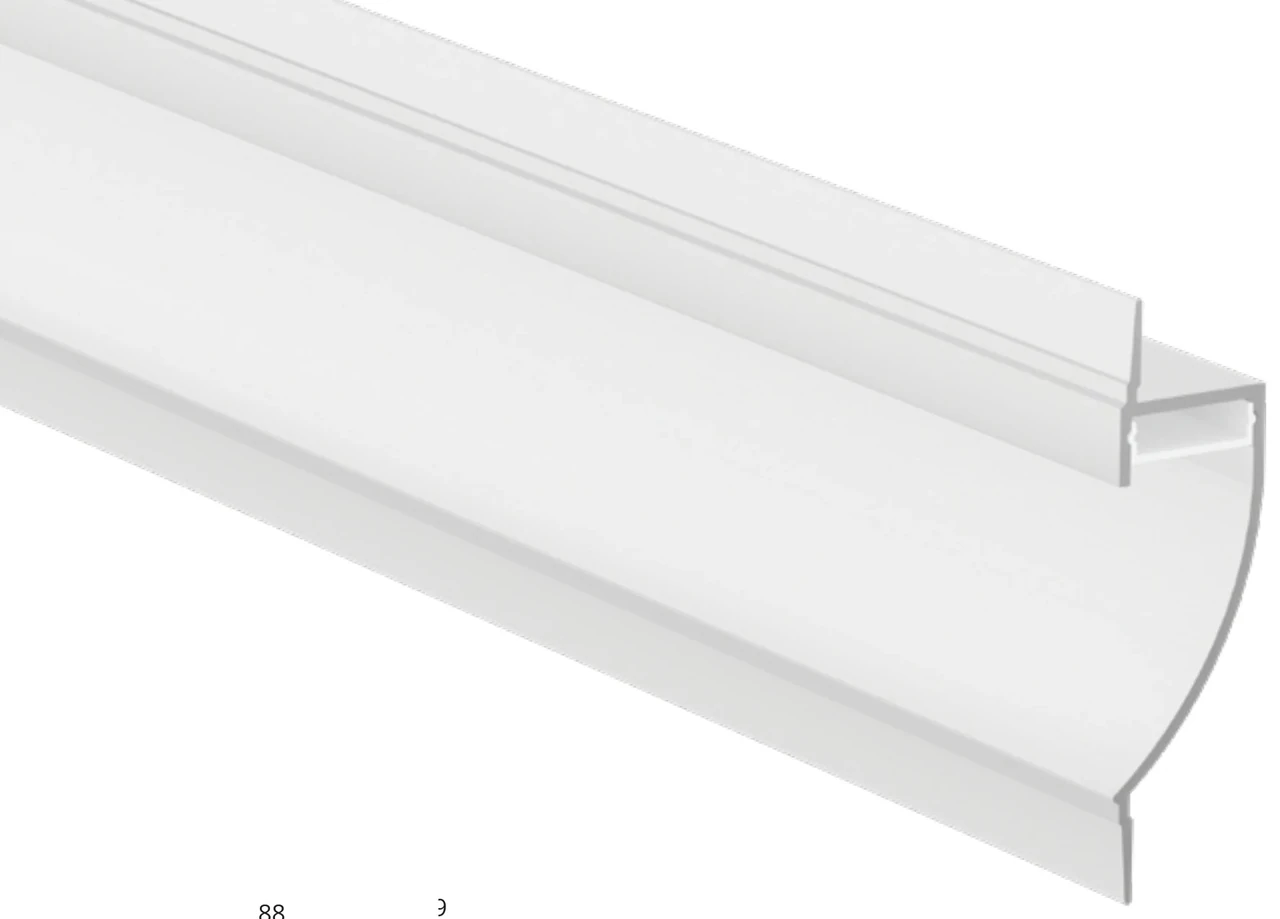

EN-PFL-PGS-R2588
- Cutout
- >59 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

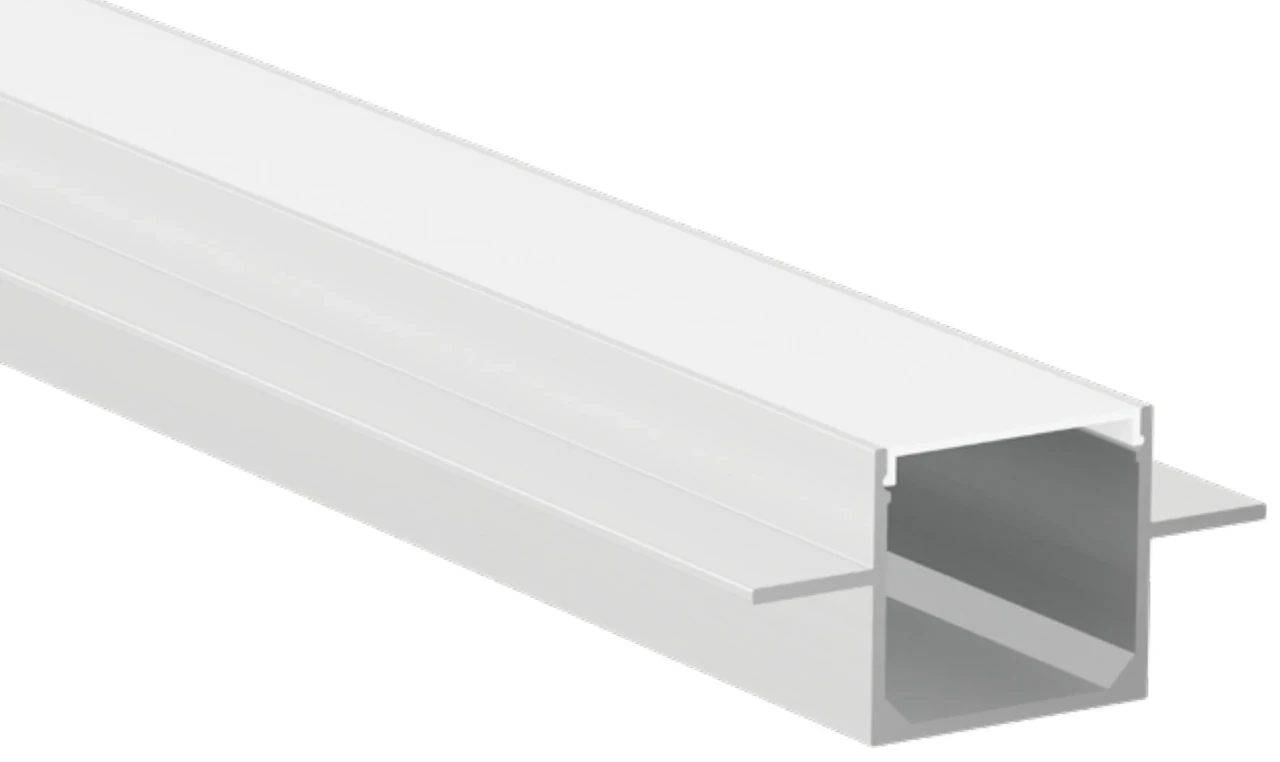

EN-PFL-PGS-R3535
- Cutout
- >35 mm
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

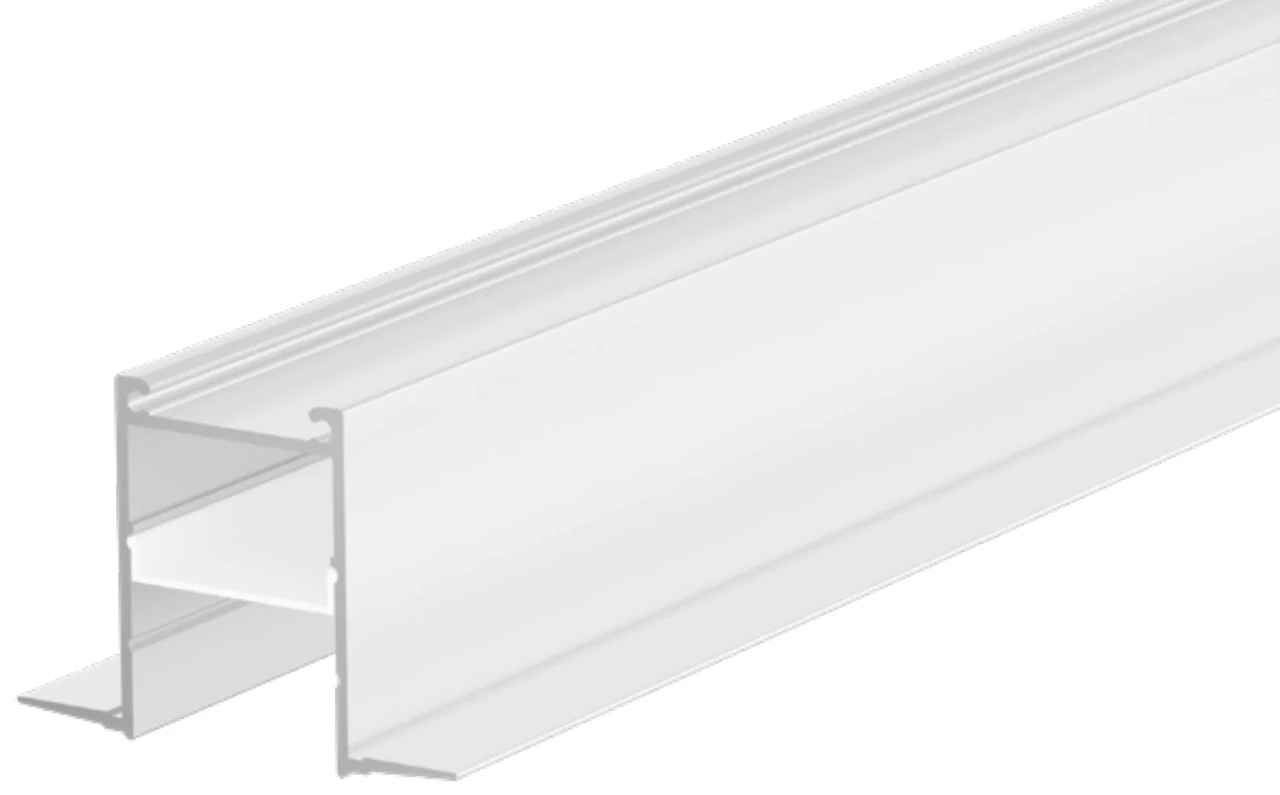

EN-PFL-PGS-R3550
- Cutout
- >35 mm
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

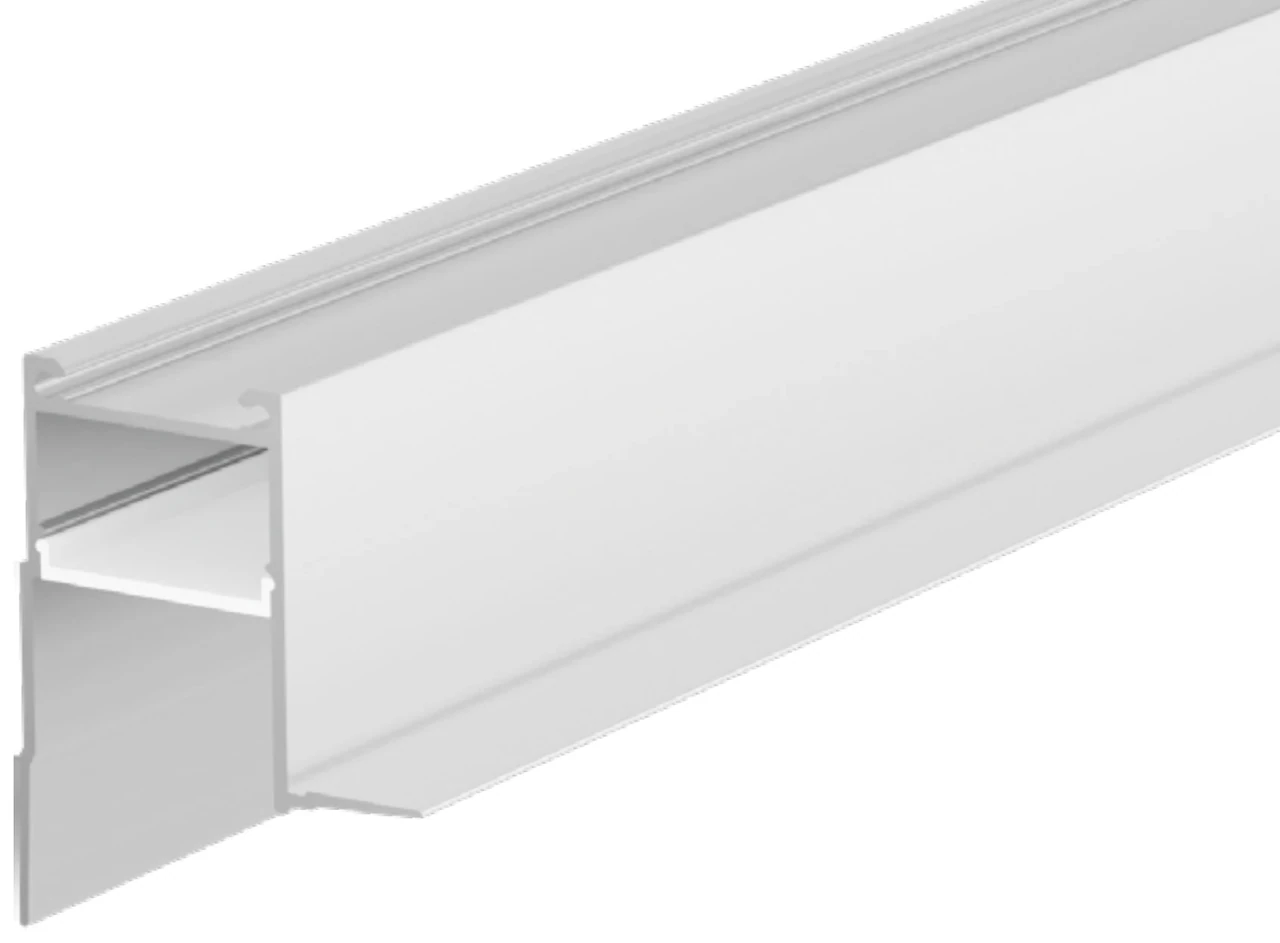

EN-PFL-PGS-R3568
- Cutout
- >35 mm
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

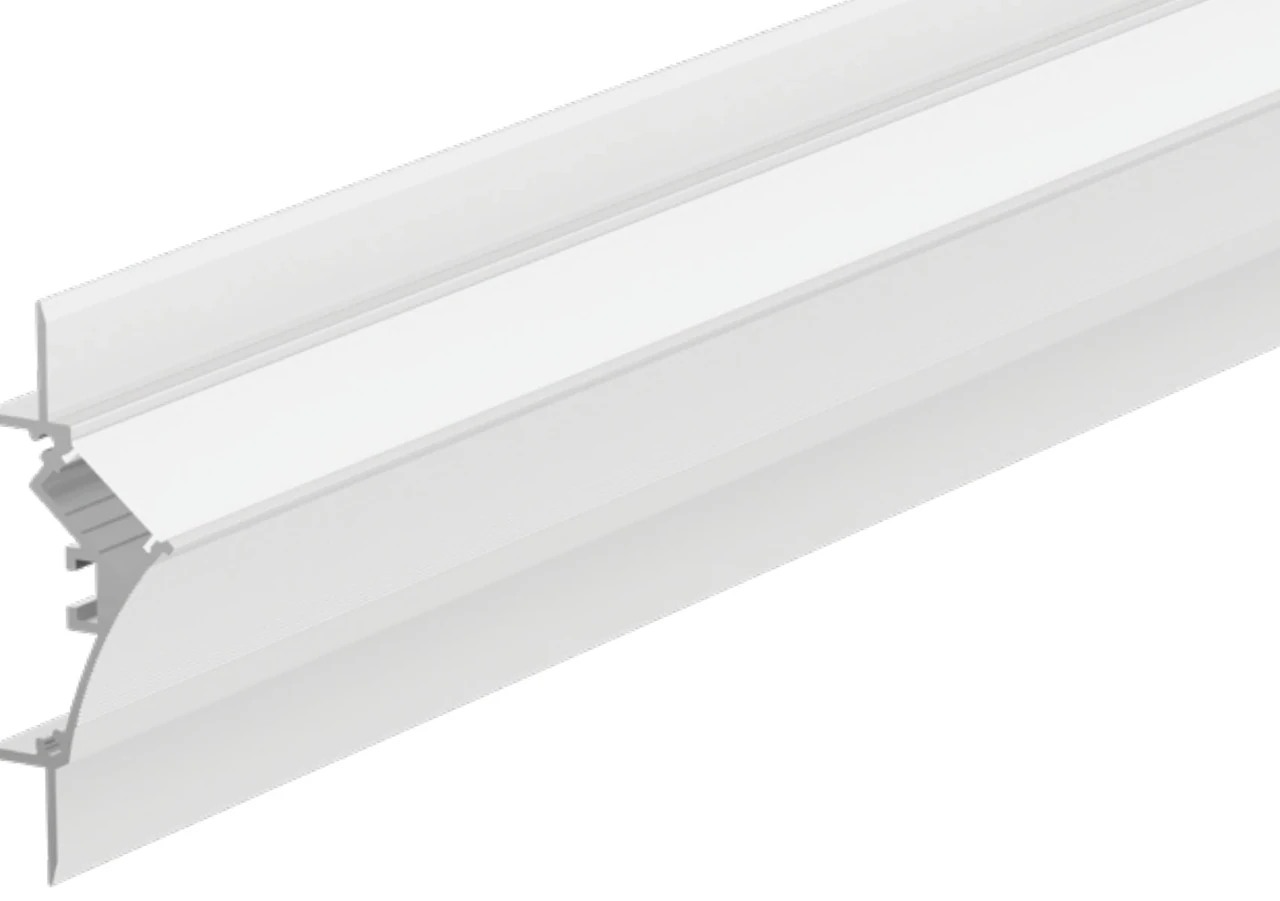

EN-PFL-PGS-R3696
- Cutout
- >57 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

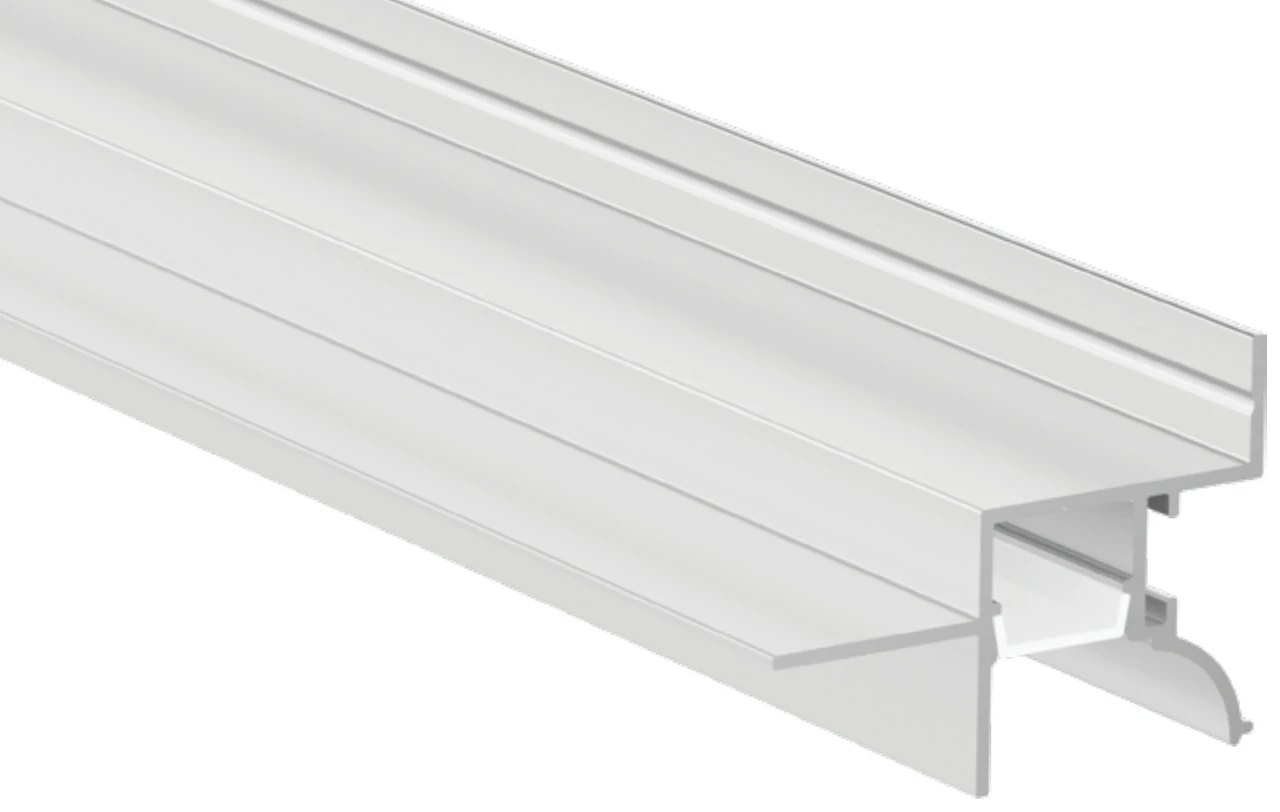

EN-PFL-PGS-R4533
- Cutout
- >26 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 10 mm
- Beam angle
- 120°

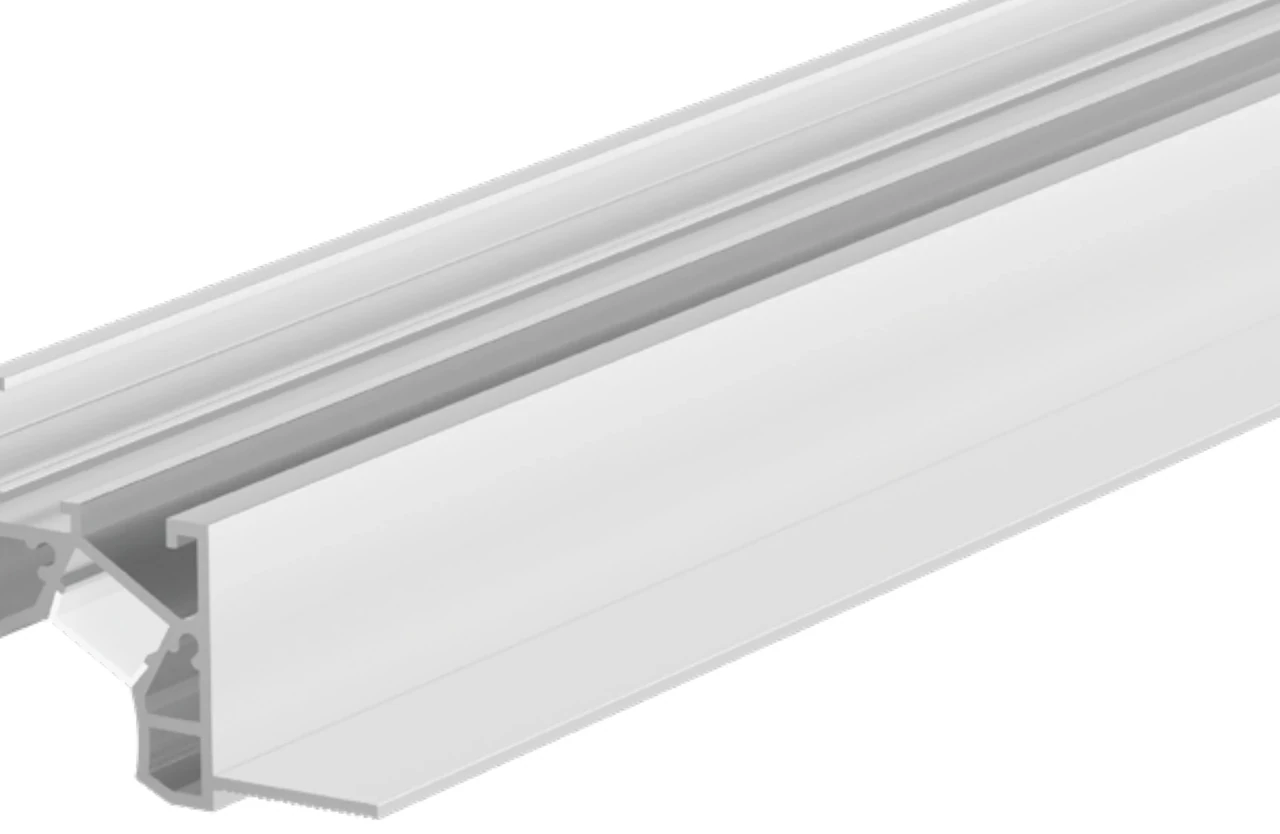

EN-PFL-PGS-R4842
- Cutout
- >27.5 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 10 mm
- Beam angle
- 120°

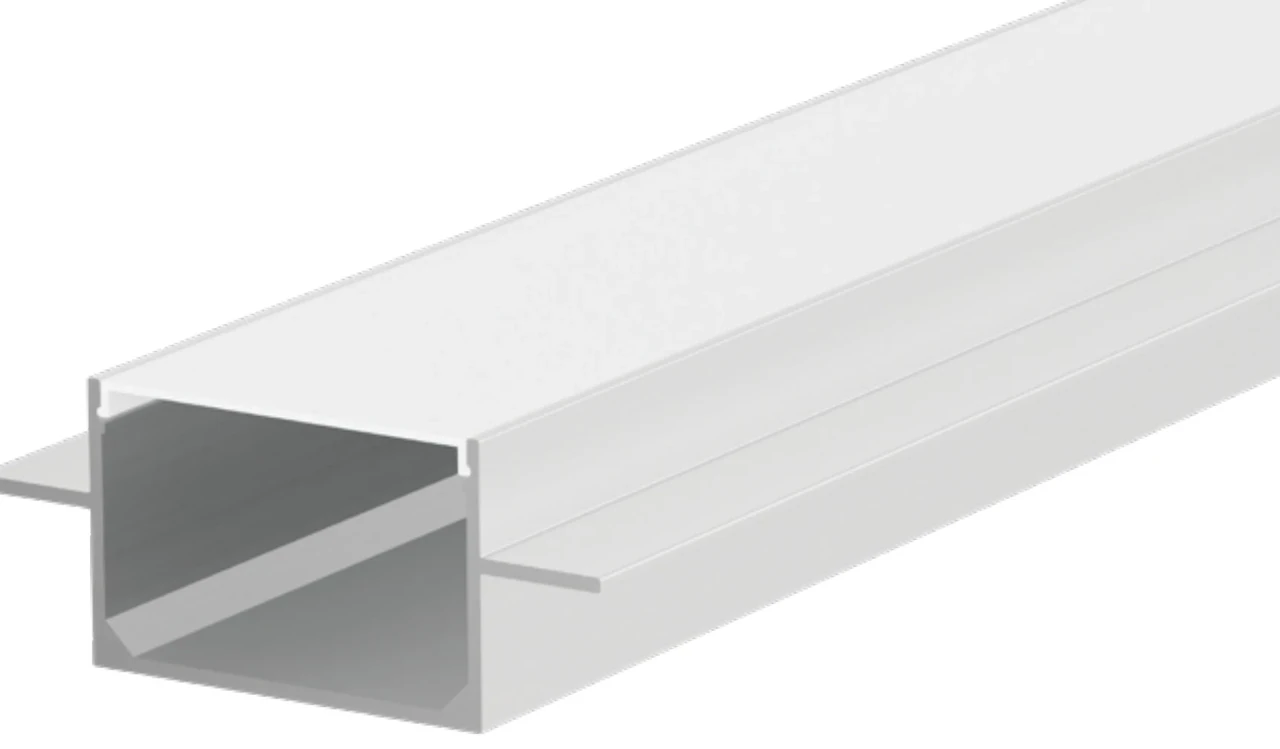

EN-PFL-PGS-R5035
- Cutout
- >50 mm
- Std. length
- 3600 mm
- Diffuser
- Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

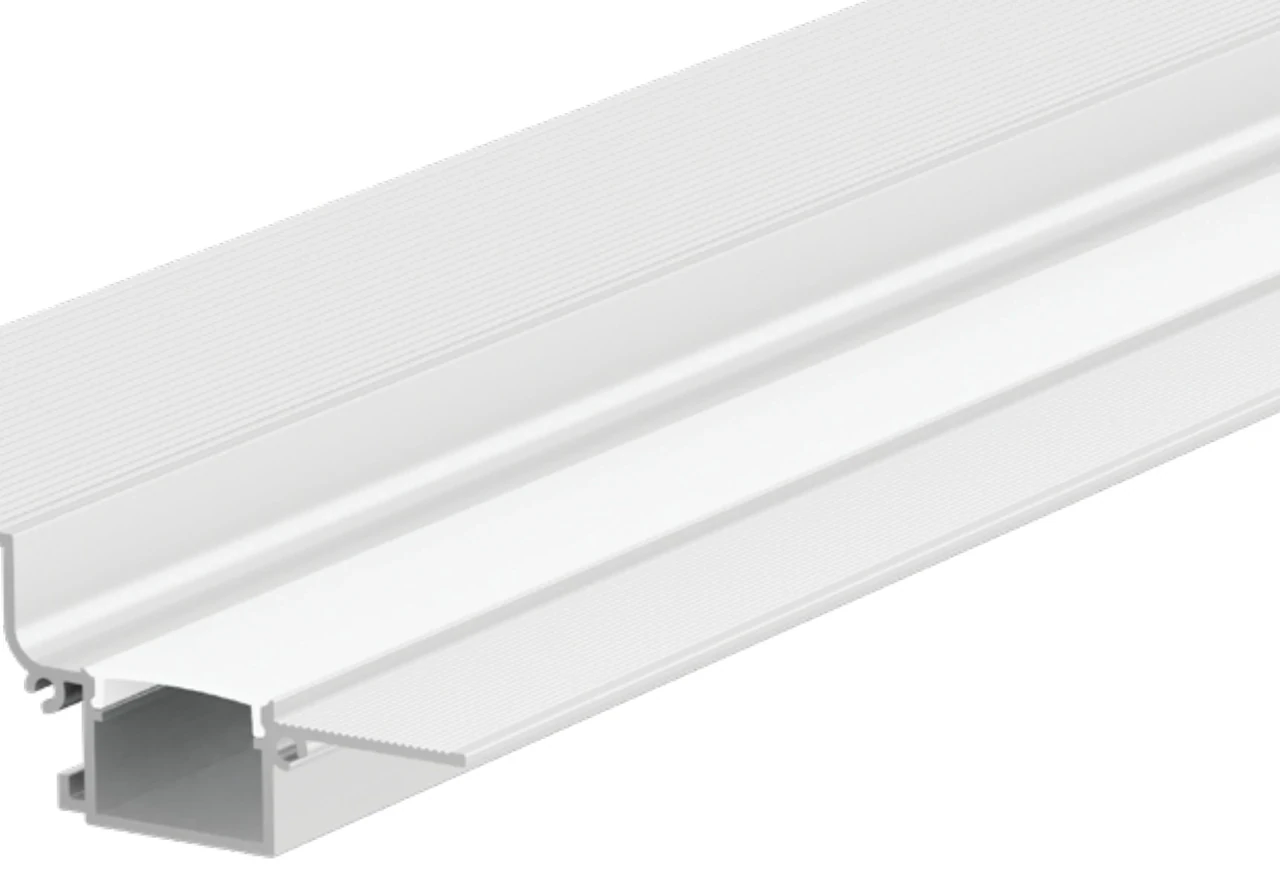

EN-PFL-PGS-R5850
- Cutout
- >35 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

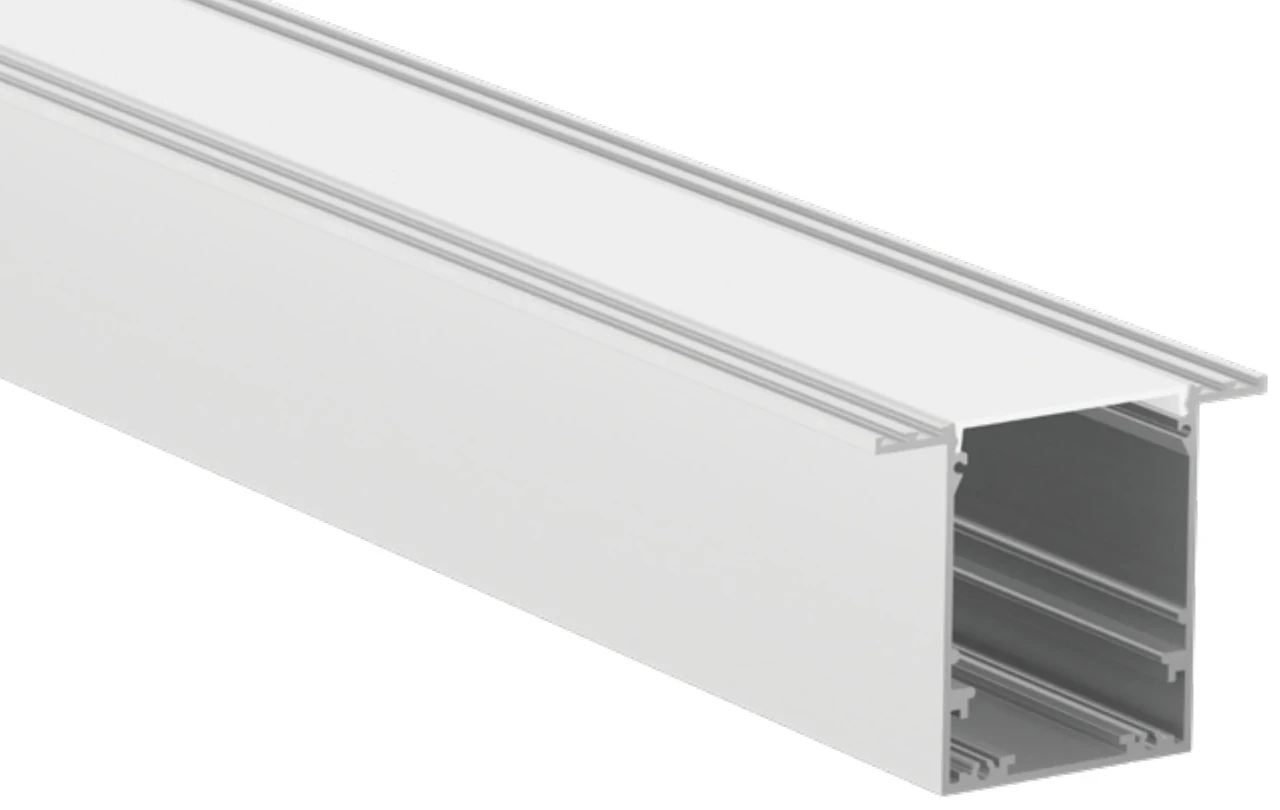

EN-PFL-PGS-R6076
- Cutout
- >60 mm
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

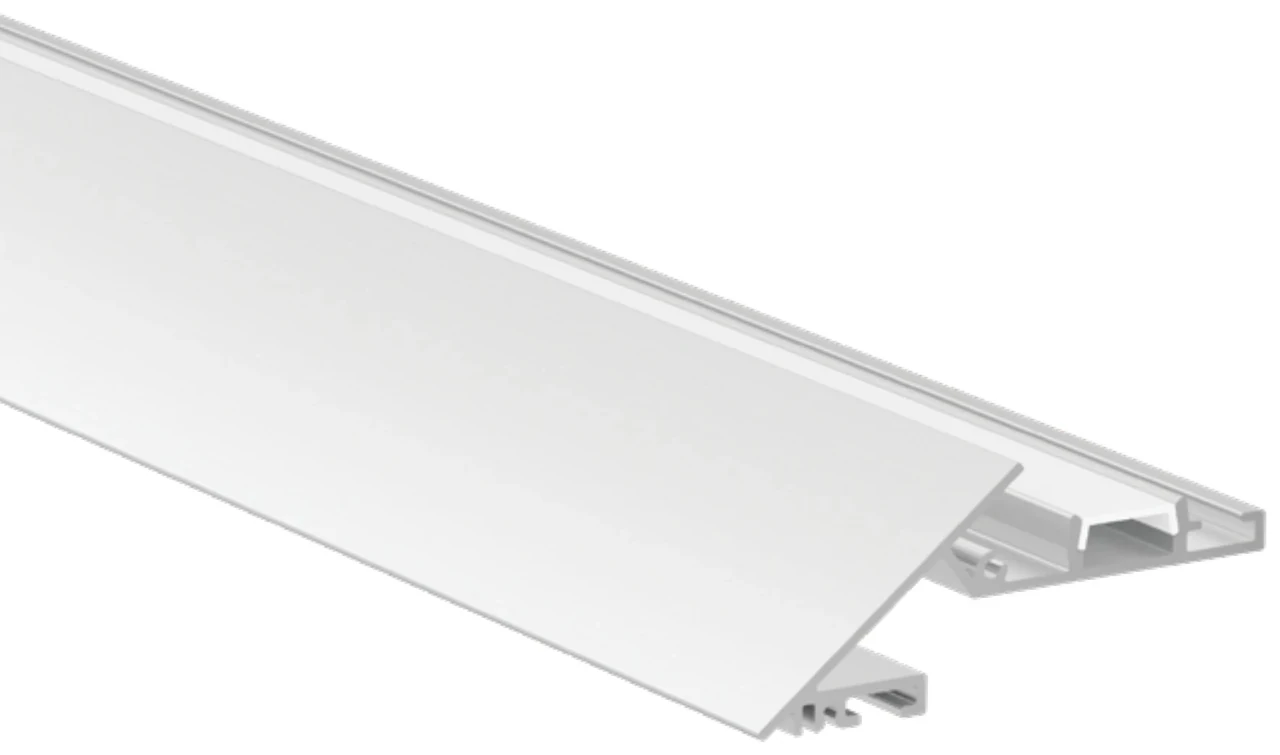

EN-PFL-PGS-R6325
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 10 mm
- Beam angle
- 120°

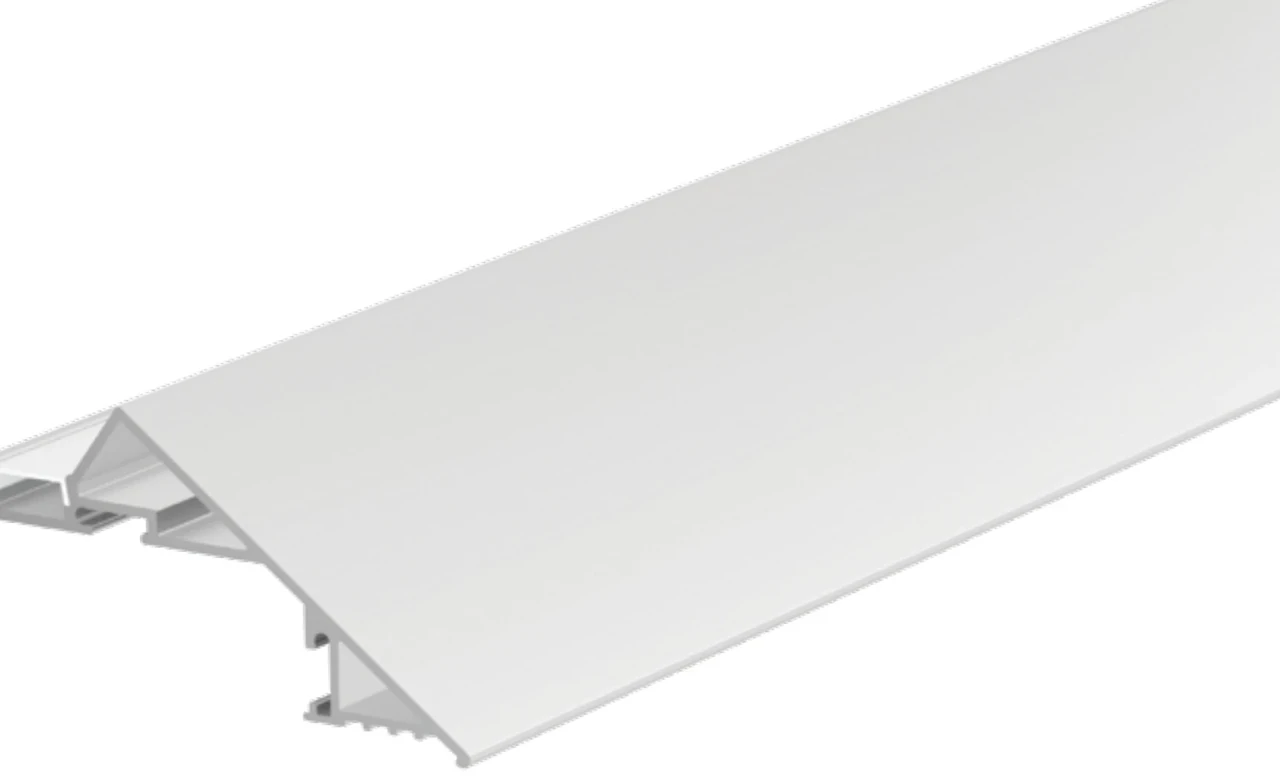

EN-PFL-PGS-R7238
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

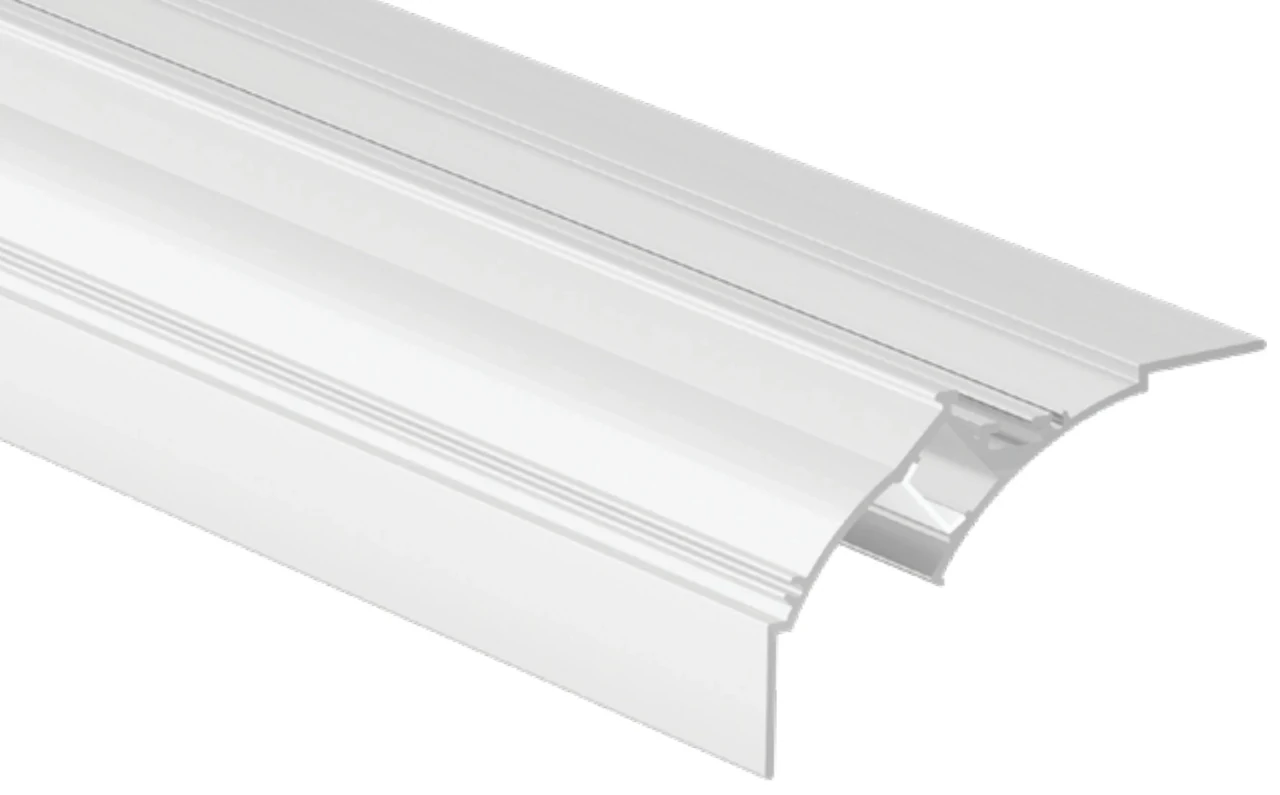

EN-PFL-PGS-R8050
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 10 mm
- Beam angle
- 120°

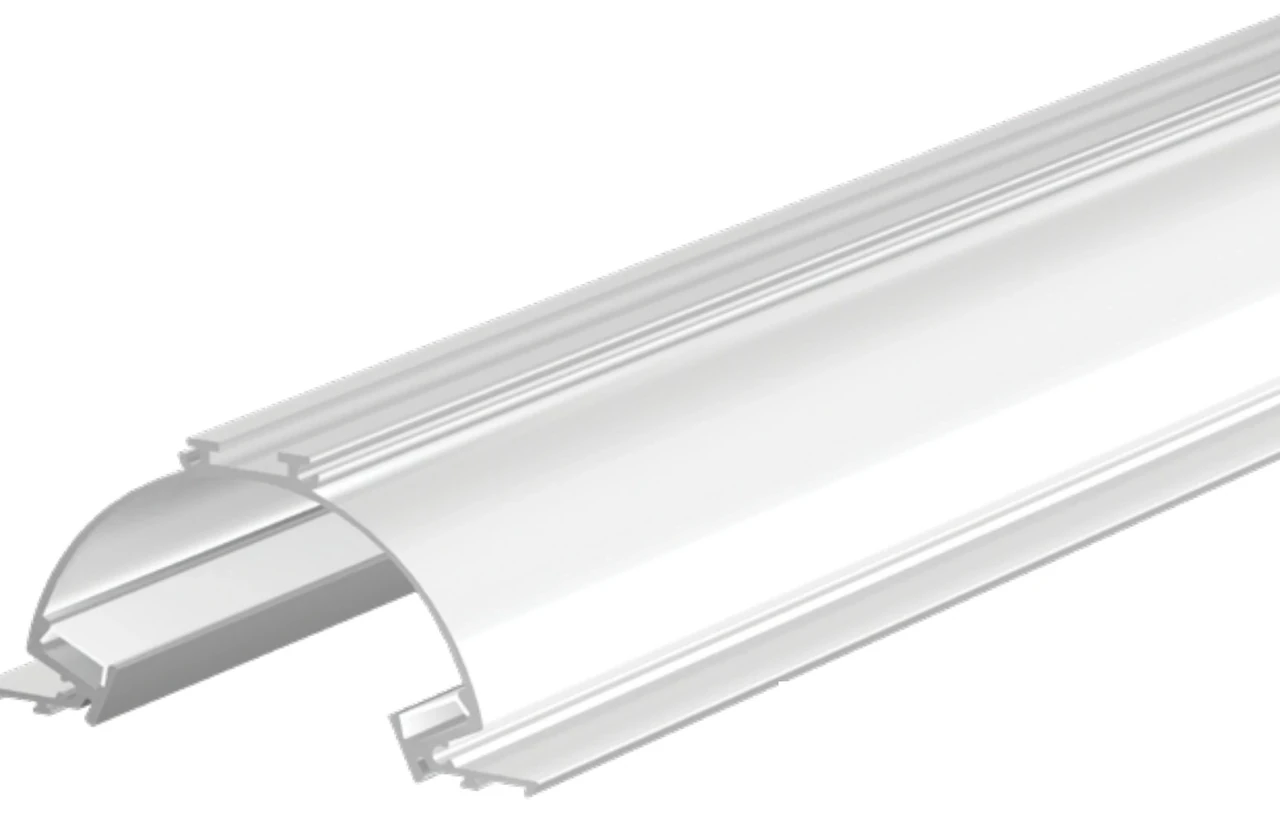

EN-PFL-PGS-R8248
- Cutout
- >82 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

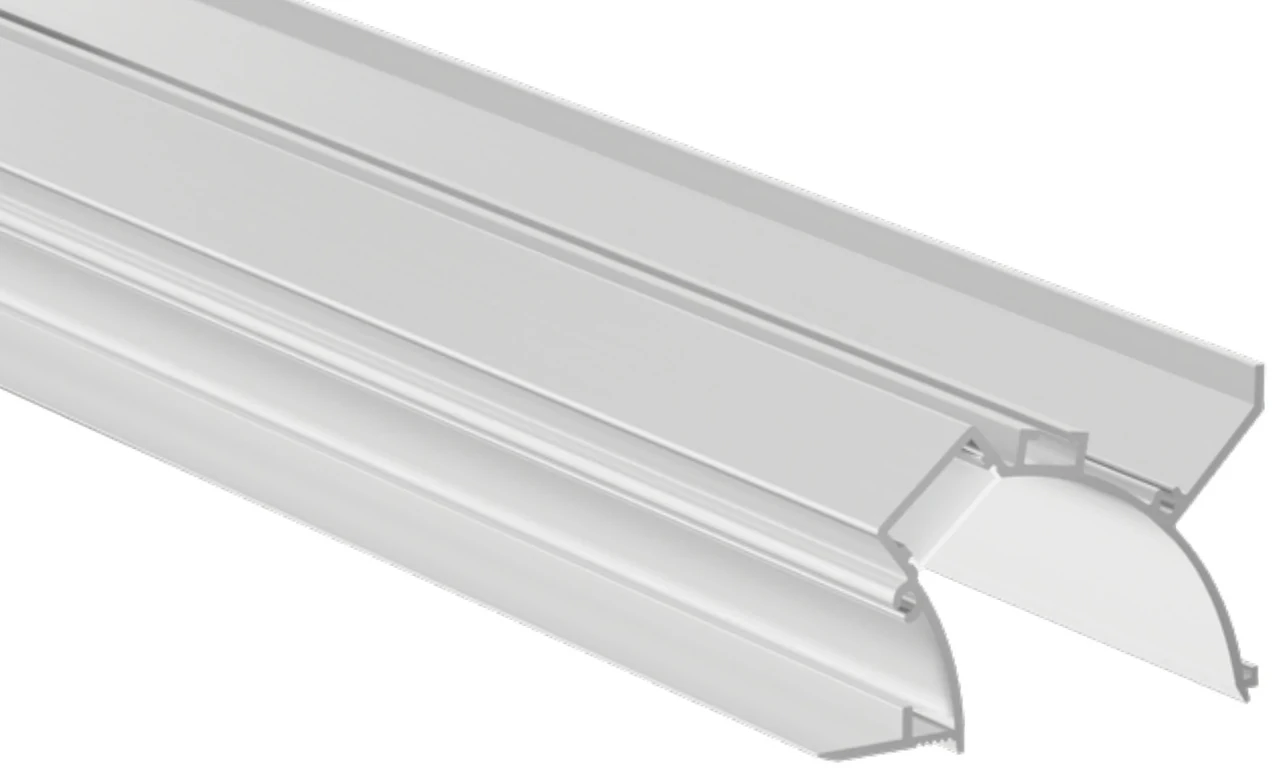

EN-PFL-PGS-R8657
- Cutout
- >75 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

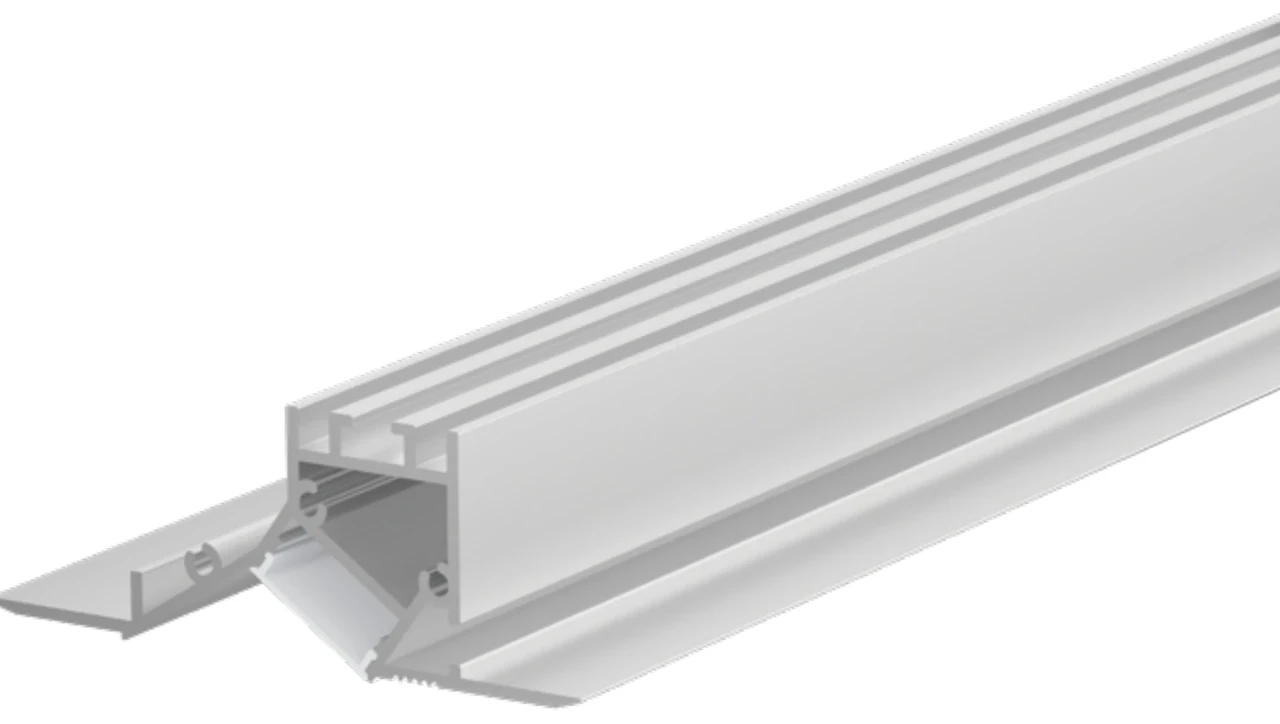

EN-PFL-PGS-R9436
- Cutout
- >52 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

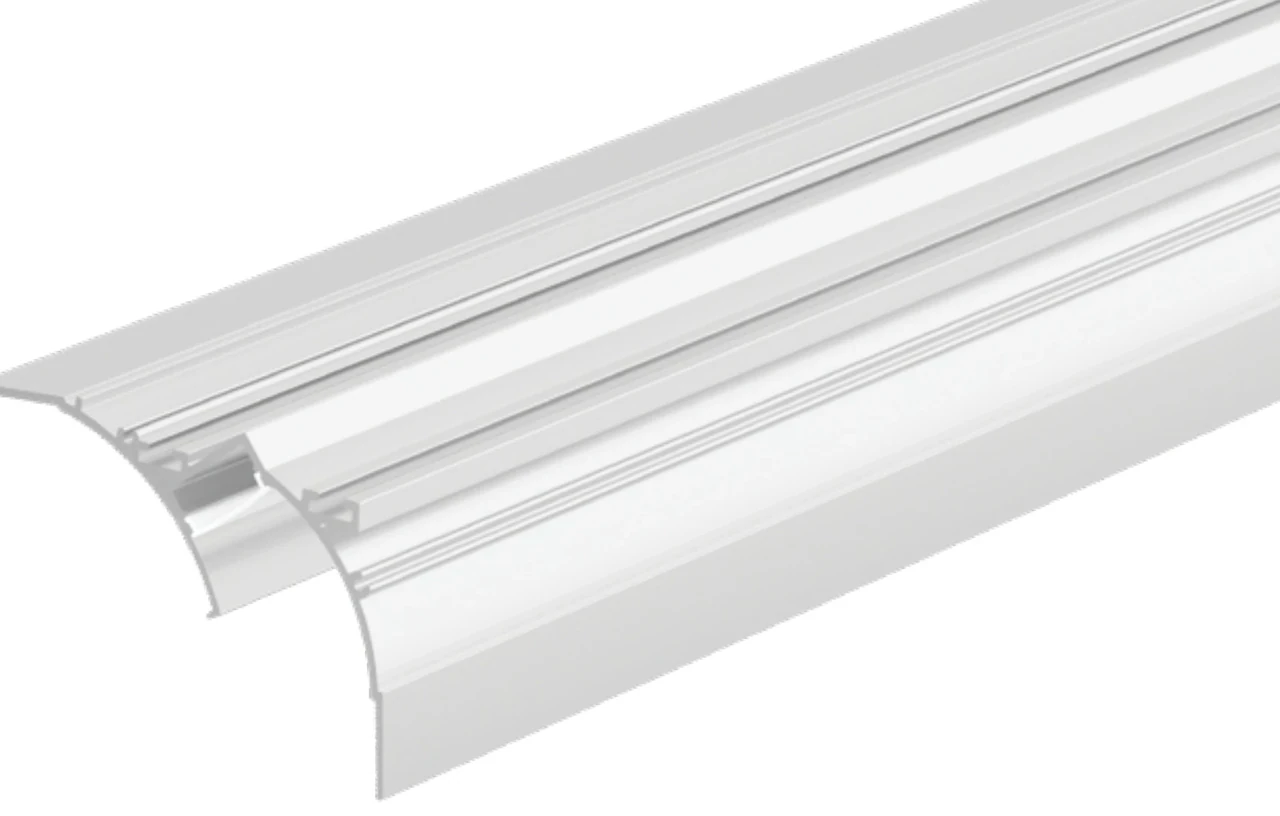

EN-PFL-PGS-R9752
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°
Applications
- False ceilings
- Plaster-in coves
- Trimless lines
- Shadow gaps
All profiles are AL6063 aluminium extrusion with a choice of diffuser; end caps and mounting clips are supplied as accessories. Cutout figures are the minimum opening in the substrate. Lengths can be cut to order — ask for a cutting list.
