Asymmetric, Cove & Corner Profiles
Model code EN-PFL-ACC-R1335
Angled and cove sections that throw light off a surface — 22 codes.
Each code shows its extrusion beside its own figures, with the dimensioned cross-section drawn to the right of them. Sorted by series, then ascending by size. Use the filter to jump straight to a code.
Asymmetric, Cove & Corner profiles aim their light rather than spreading it: the section is cut so the strip sits at an angle, washing a wall or ceiling from a corner or a cove instead of glaring back at the room. Every code is AL6063 aluminium with a choice of diffuser.
The range 22 codes

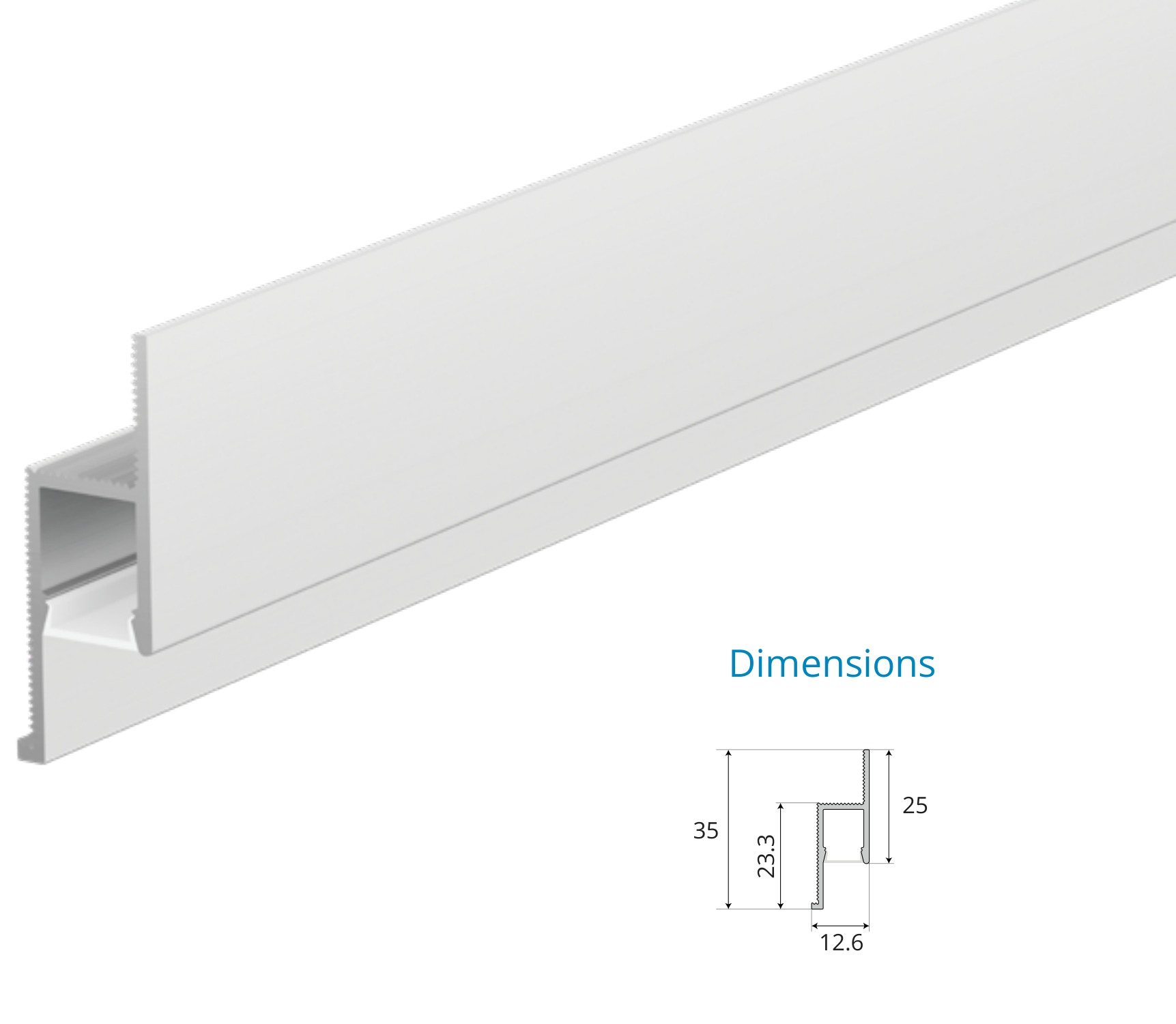

EN-PFL-ACC-R1335
- Cutout
- >11 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Frosted
- LED strip
- 05 mm
- Beam angle
- 120°

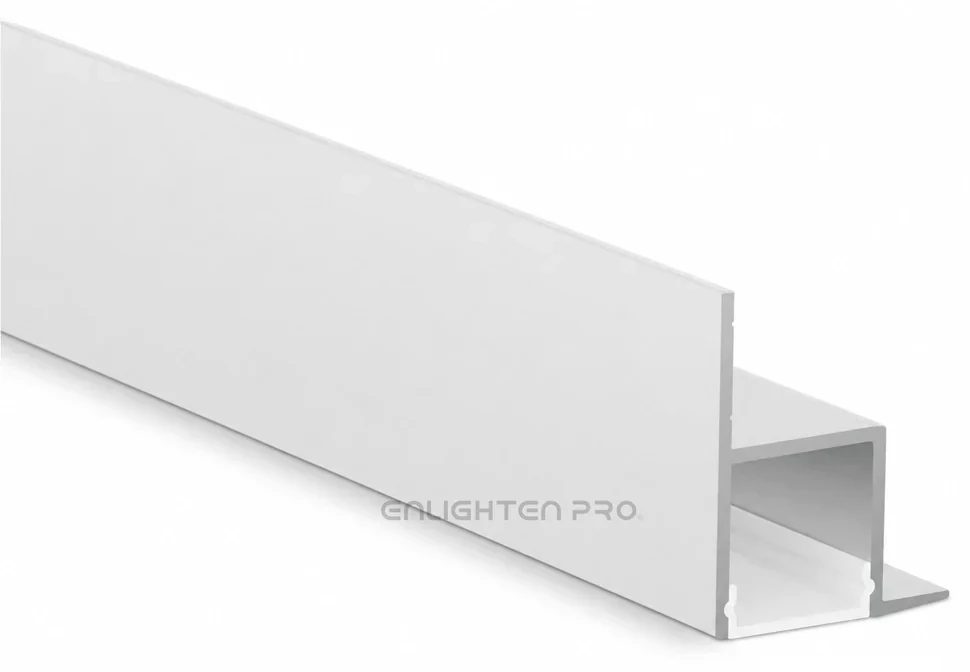

EN-PFL-ACC-R3545
- Cutout
- >25 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

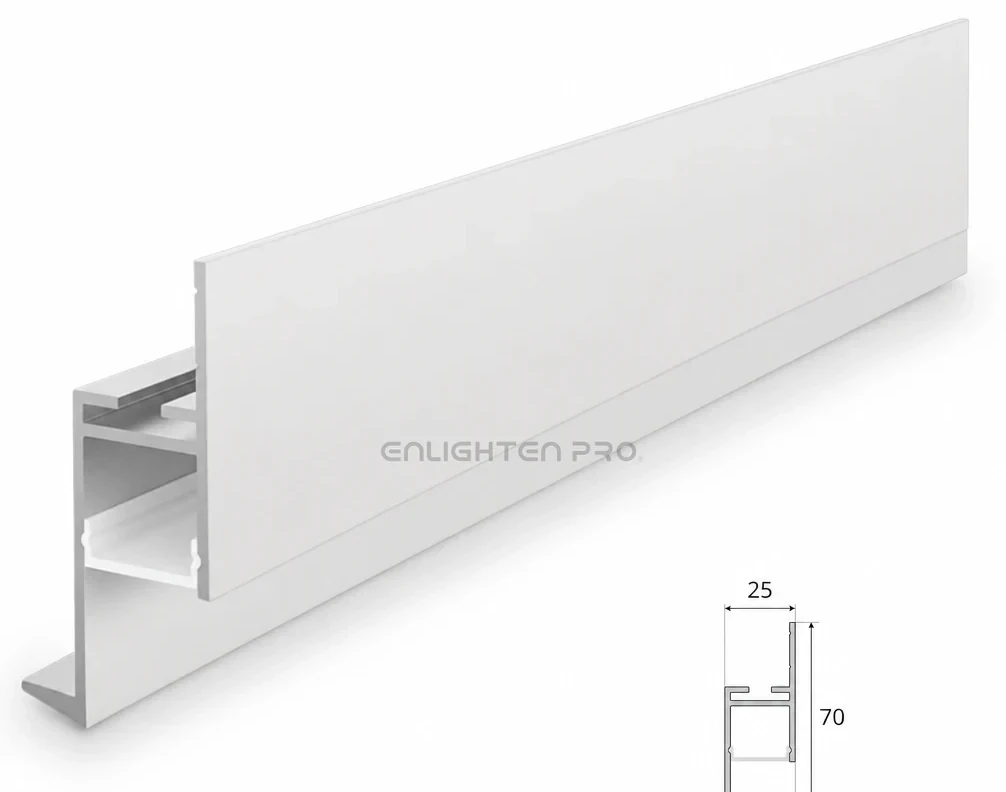

EN-PFL-ACC-R3572
- Cutout
- >25 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

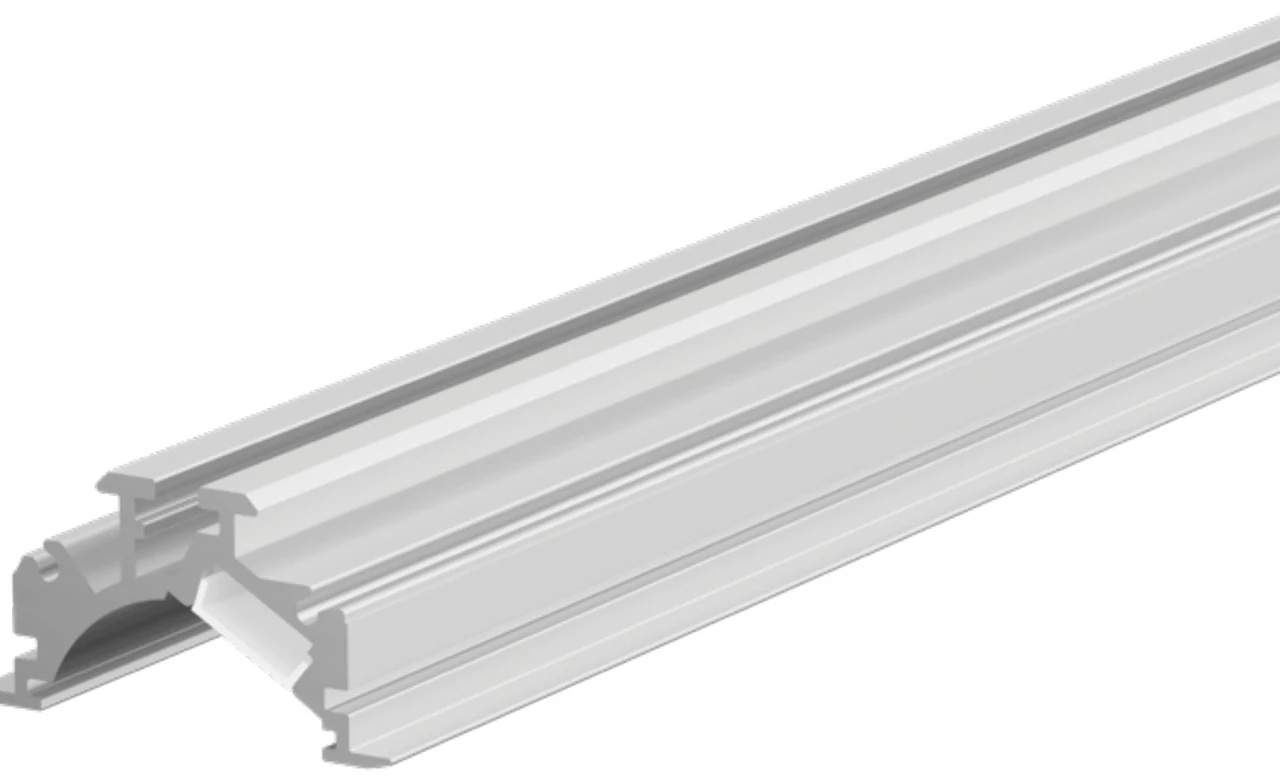

EN-PFL-ACC-R4322
- Cutout
- >35 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 05 mm
- Beam angle
- 120°

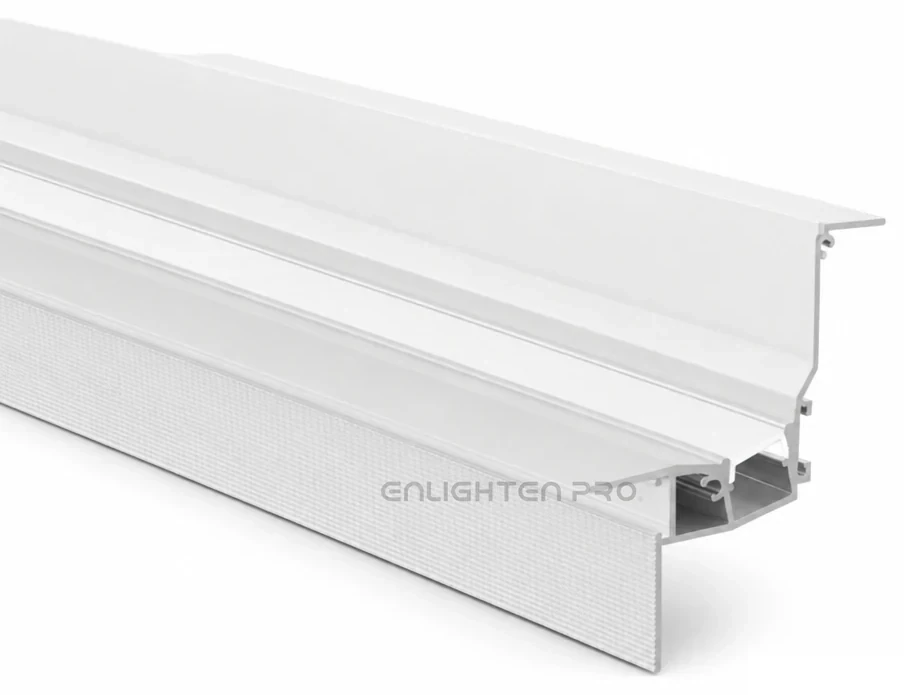

EN-PFL-ACC-R7663-218
- Cutout
- >45 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 10 mm
- Beam angle
- 120°

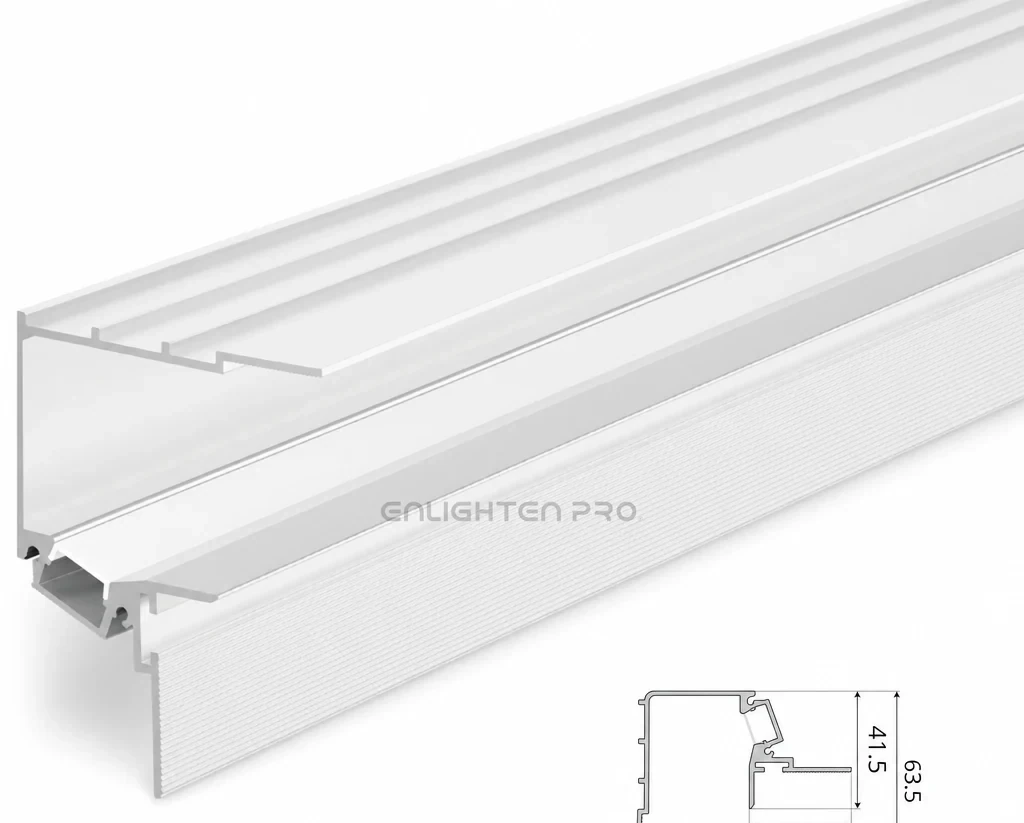

EN-PFL-ACC-R7663-219
- Cutout
- >42 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 10 mm
- Beam angle
- 120°

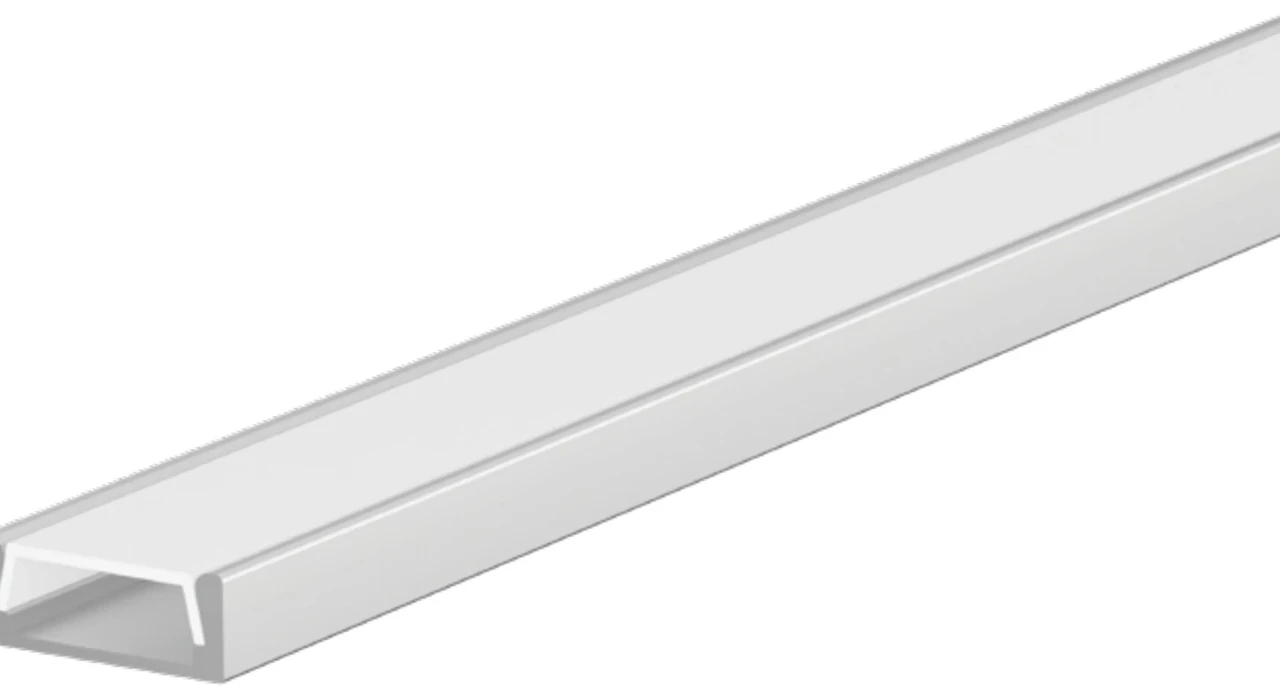

EN-PFL-ACC-S1606
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 10 mm
- Beam angle
- 120°

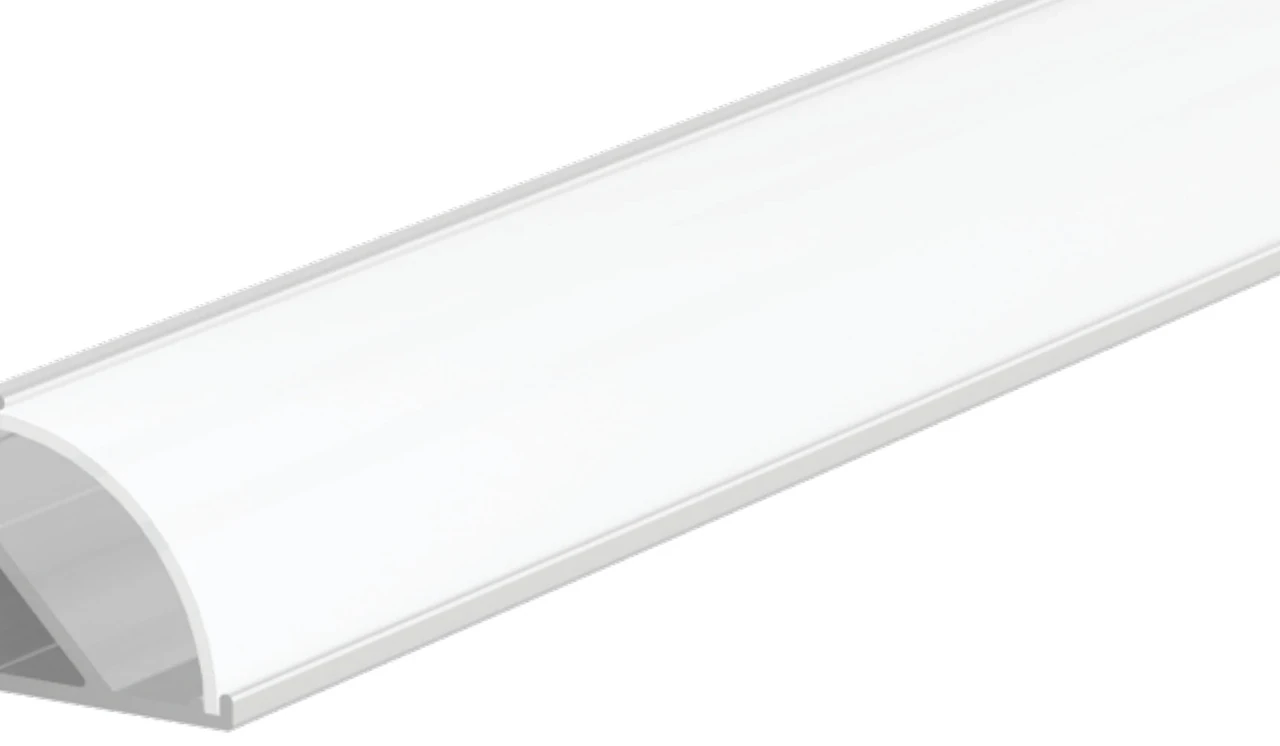

EN-PFL-ACC-S1616
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

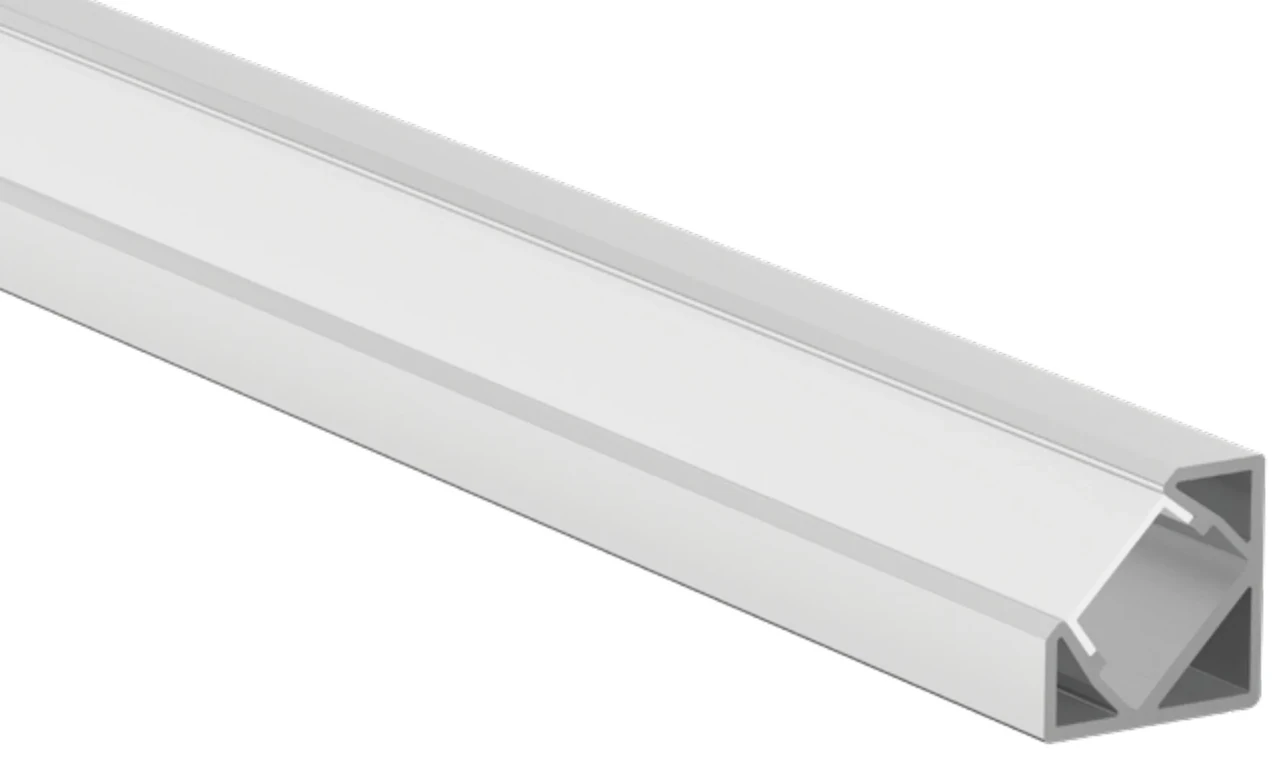

EN-PFL-ACC-S1818
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

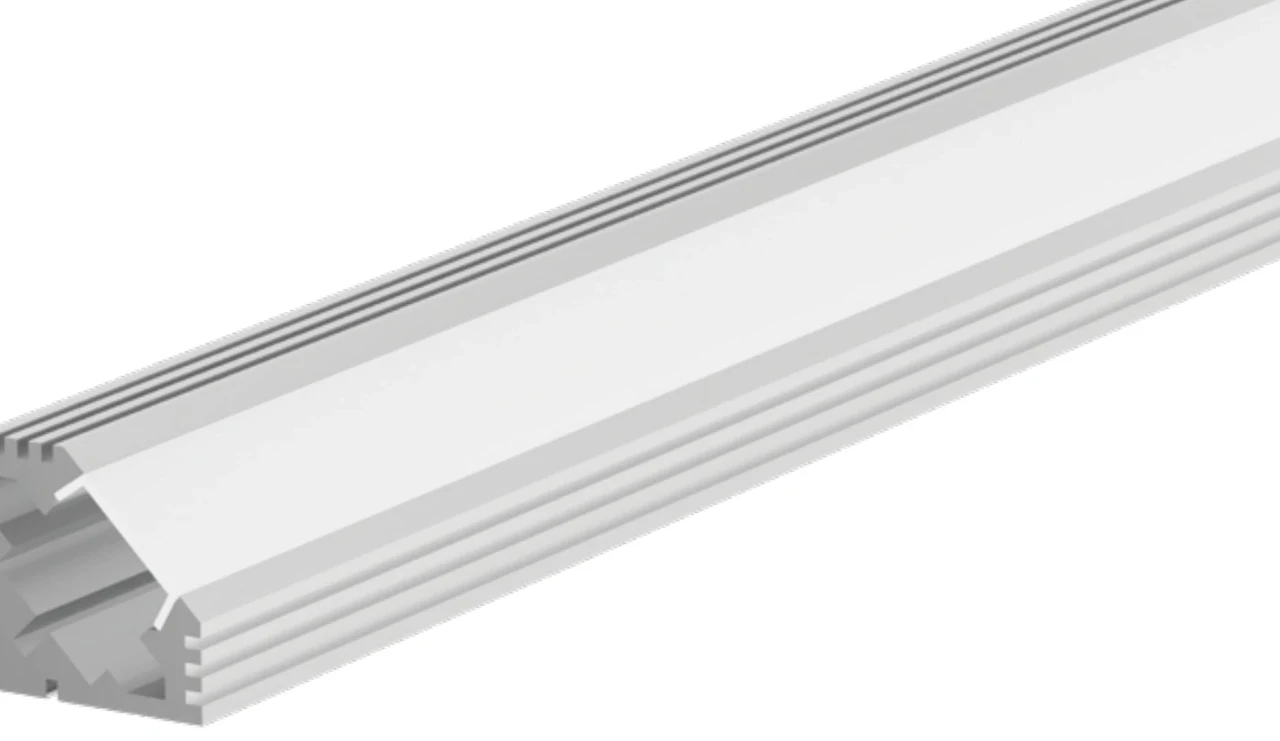

EN-PFL-ACC-S1919
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

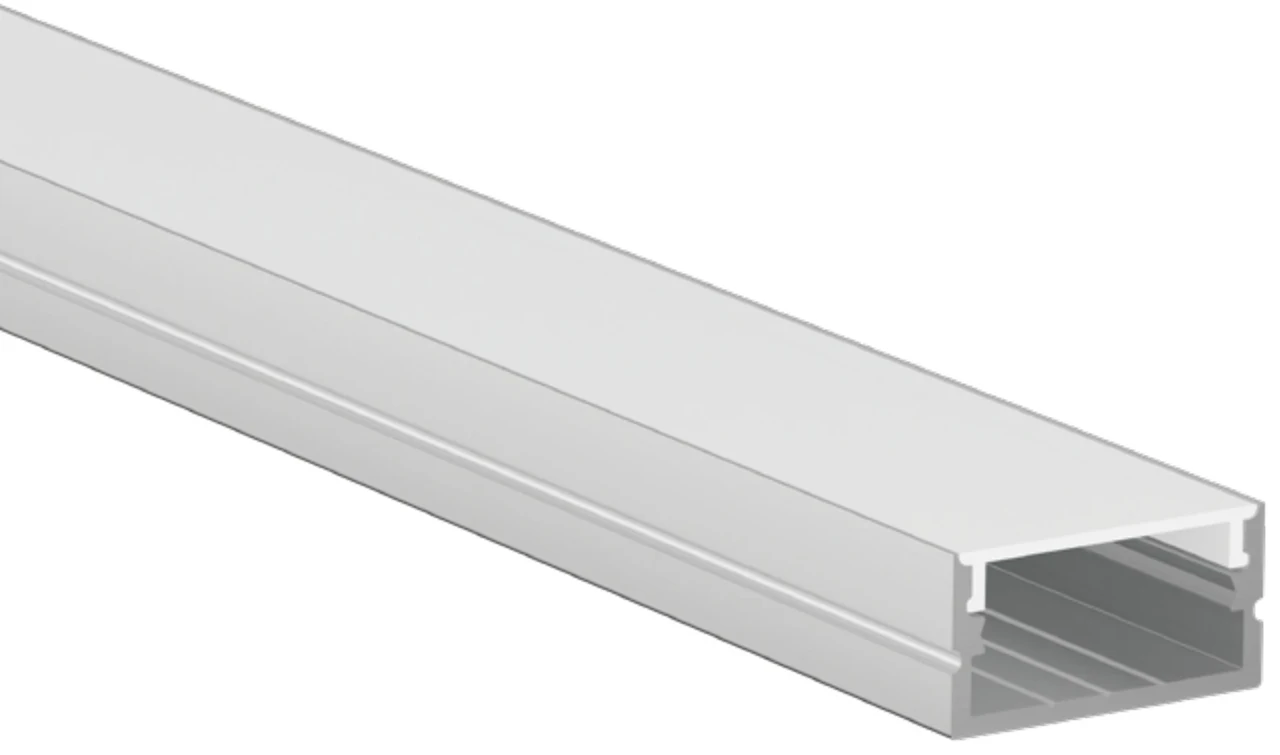

EN-PFL-ACC-S2512
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

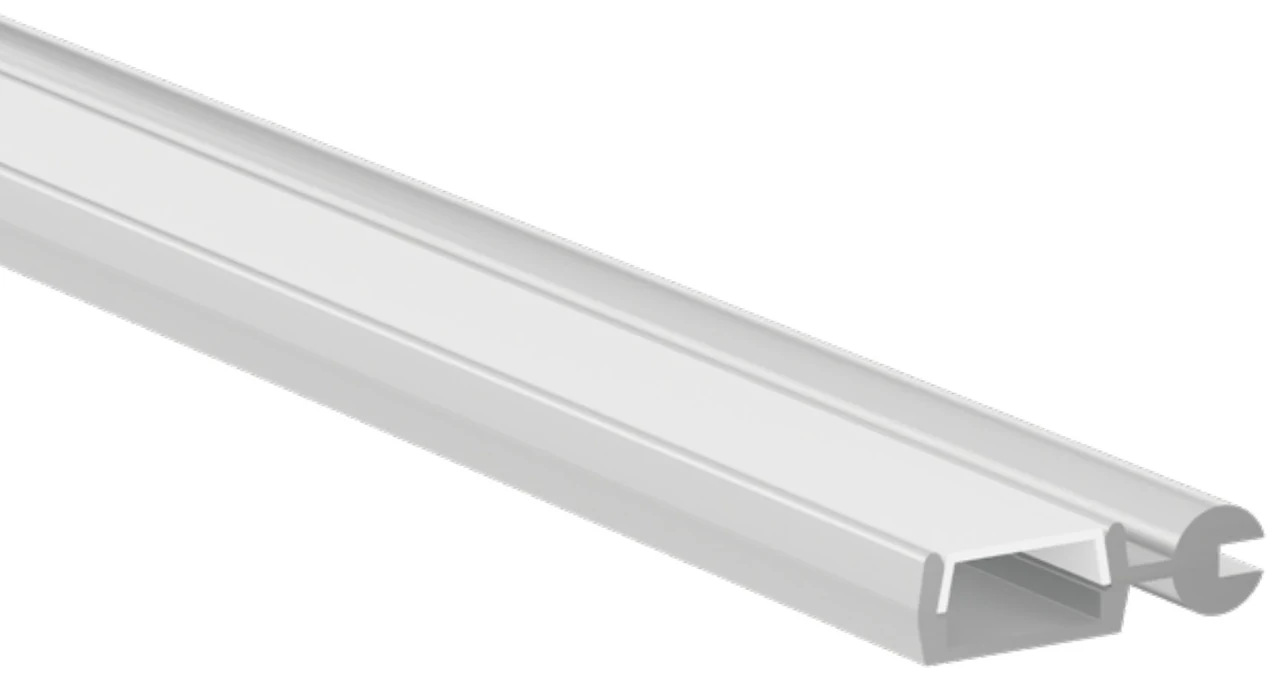

EN-PFL-ACC-S2607
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

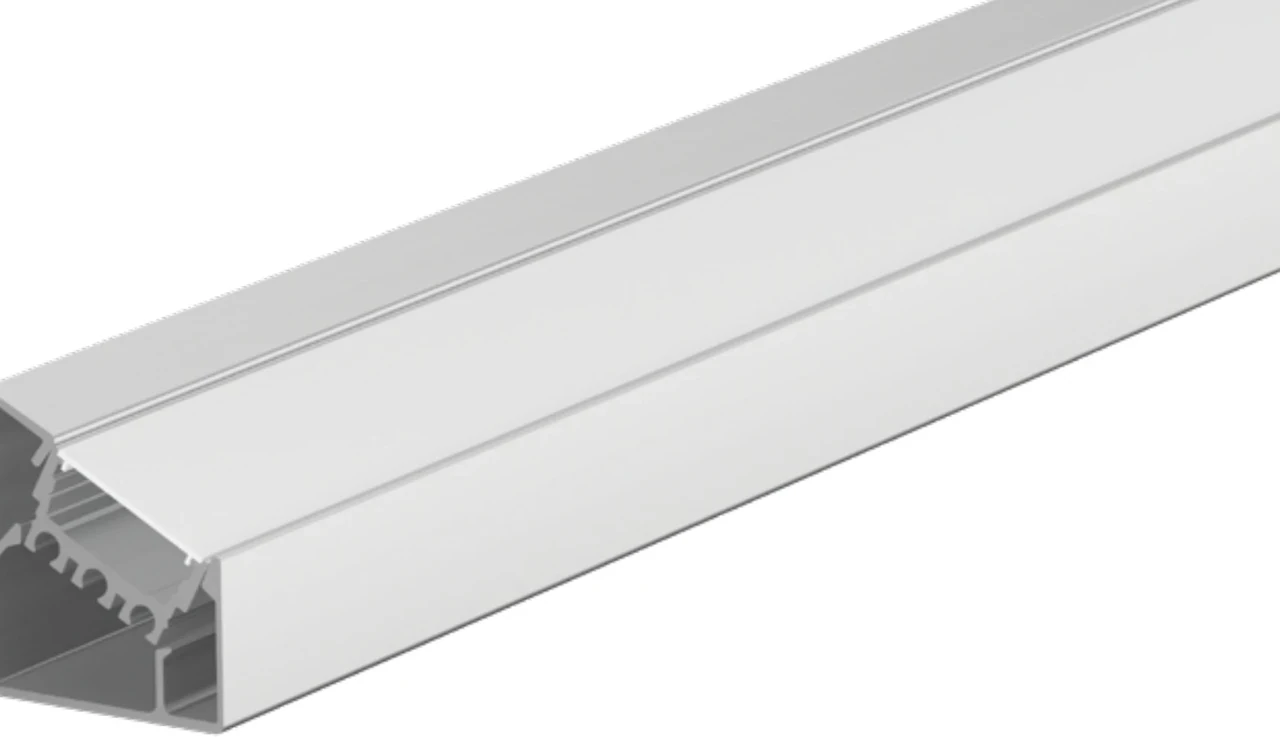

EN-PFL-ACC-S2629
- Std. length
- 3000 mm
- Diffuser
- Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

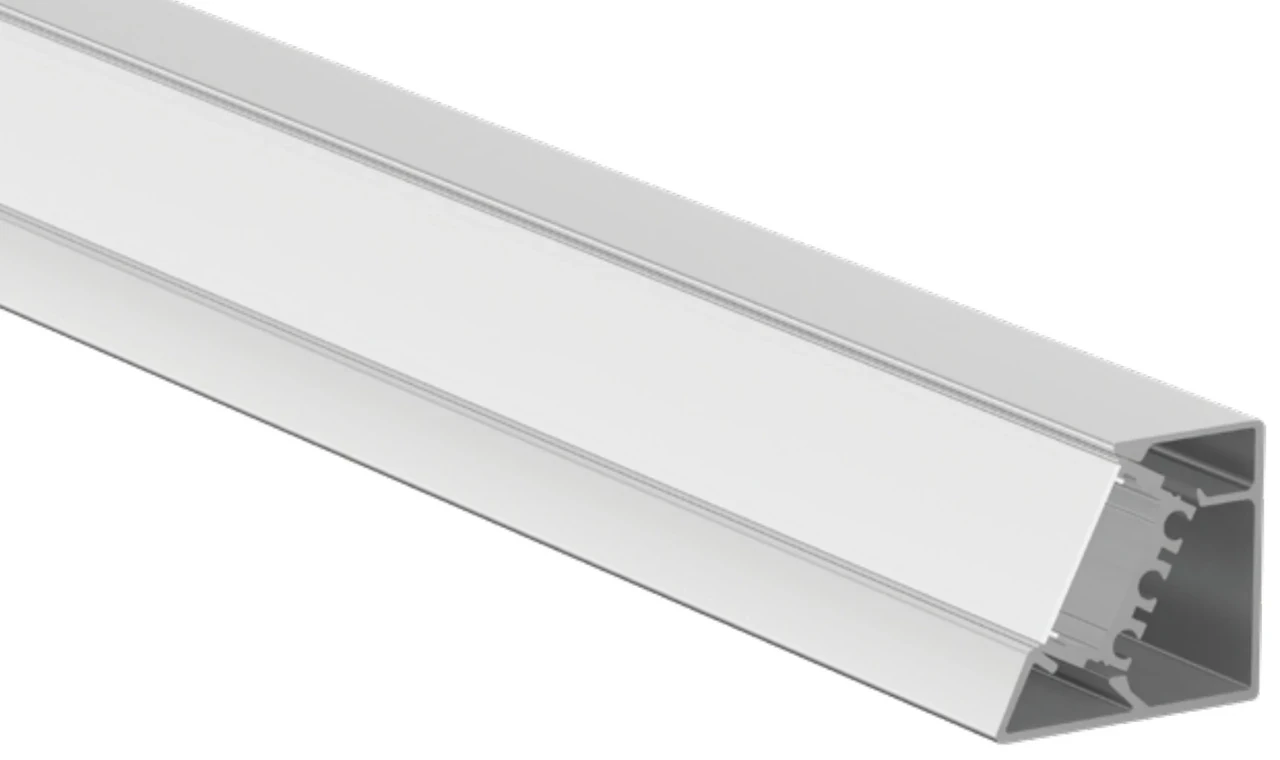

EN-PFL-ACC-S2926
- Std. length
- 3000 mm
- Diffuser
- Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

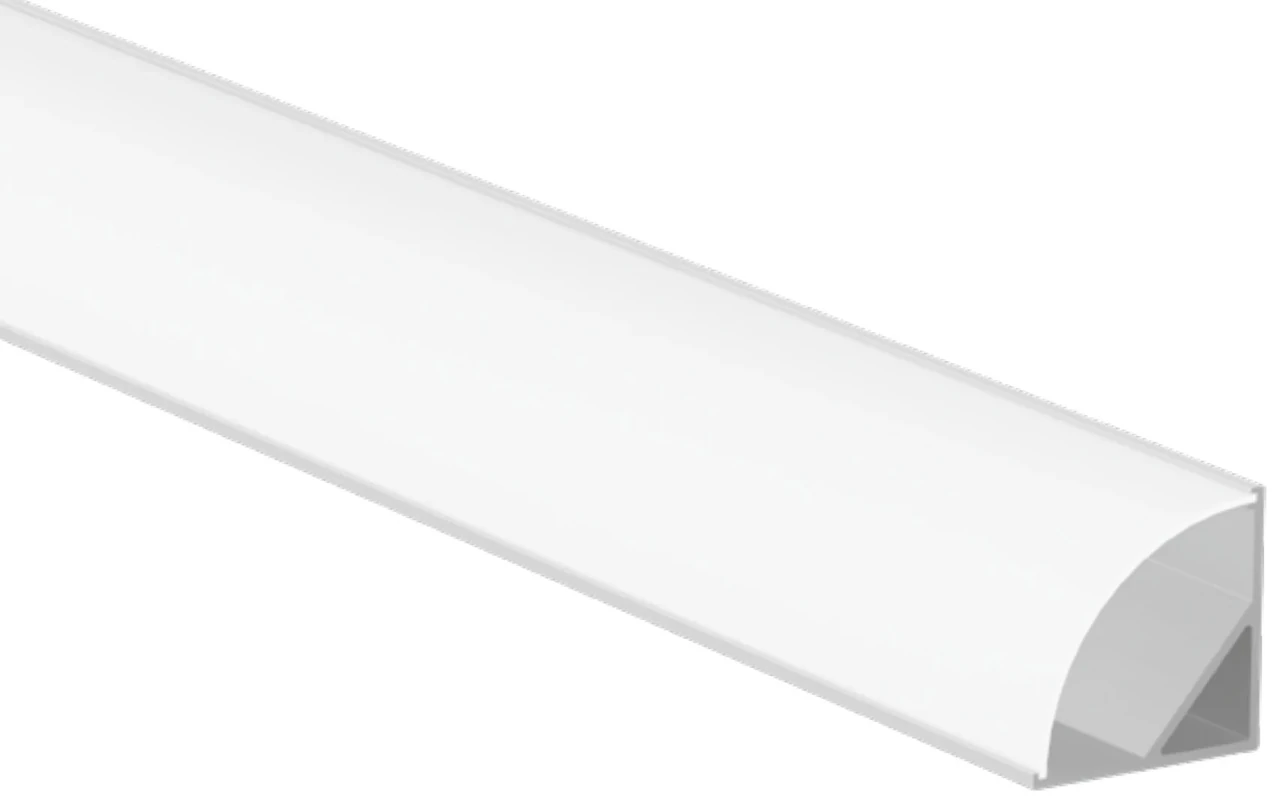

EN-PFL-ACC-S3030
- Std. length
- 3000 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

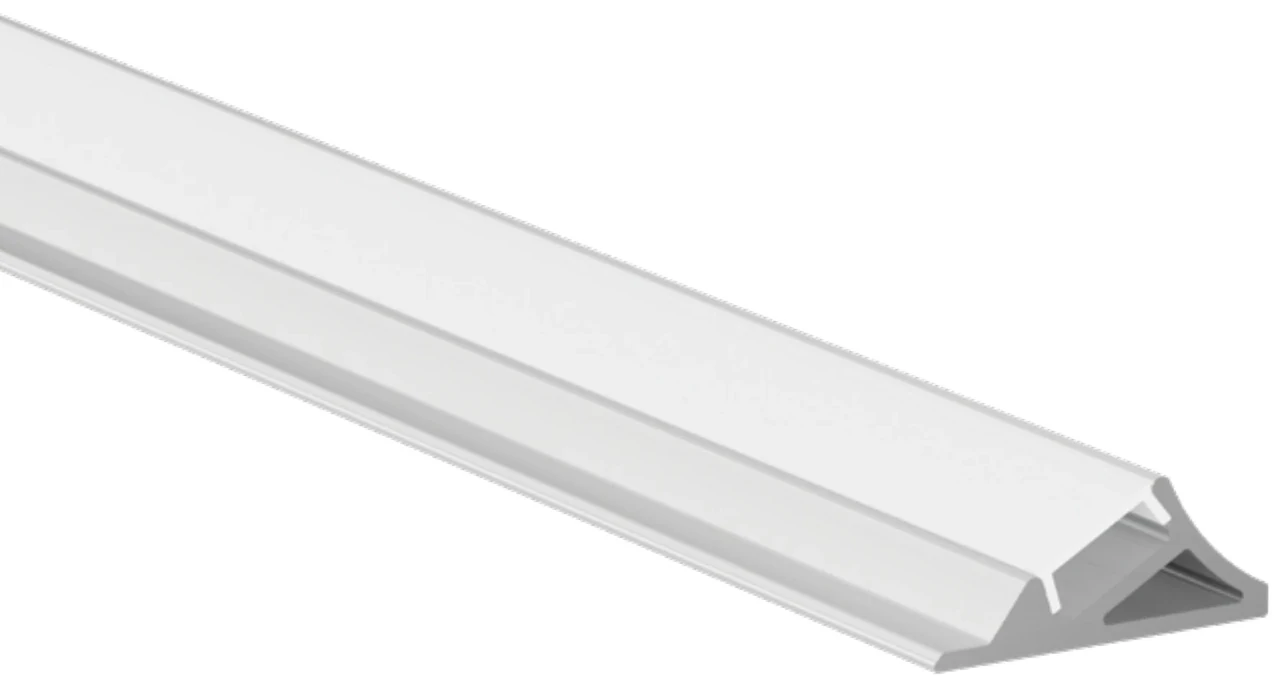

EN-PFL-ACC-S3213
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

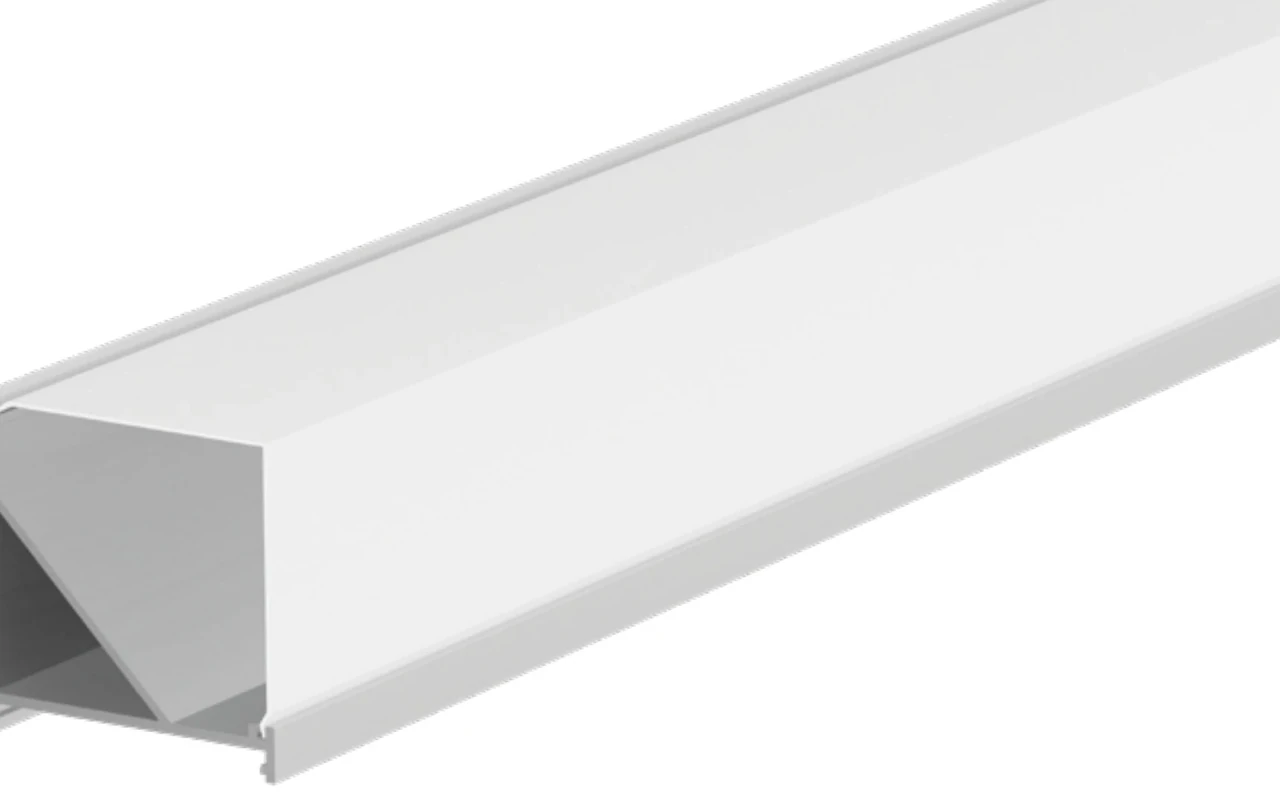

EN-PFL-ACC-S5151
- Std. length
- 3000 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

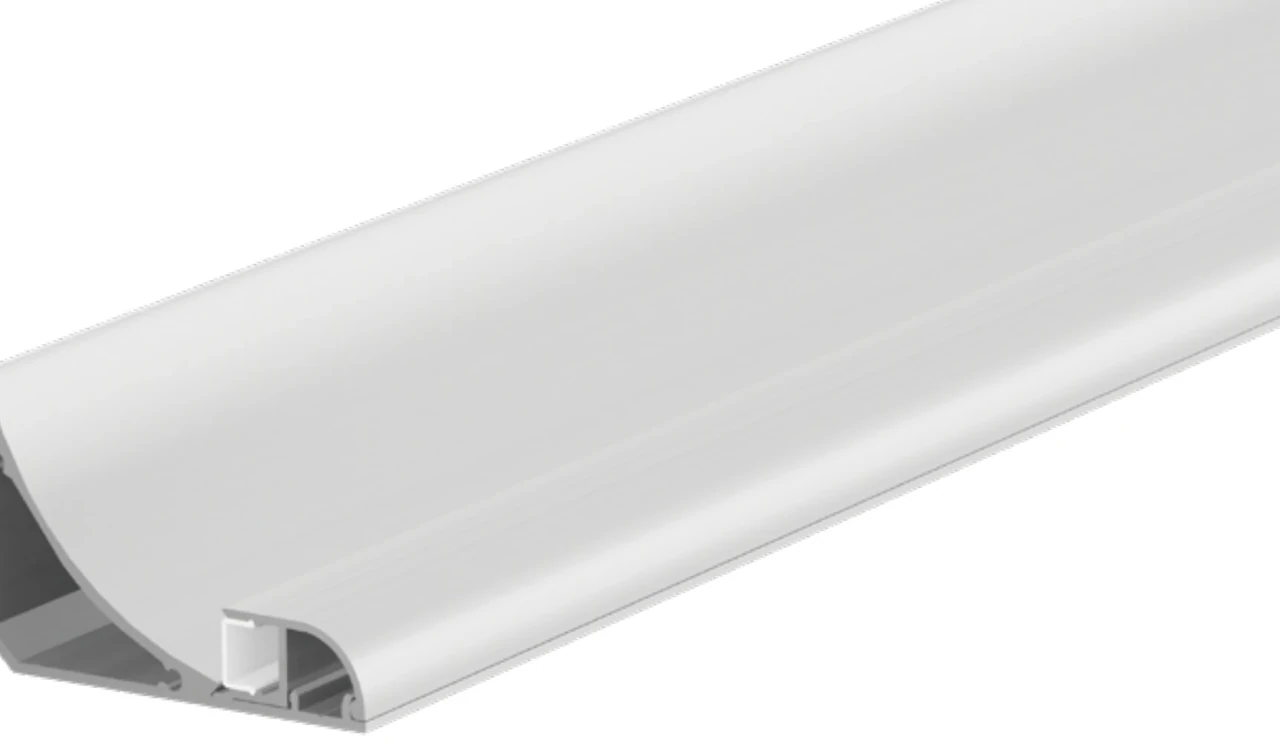

EN-PFL-ACC-S6040
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

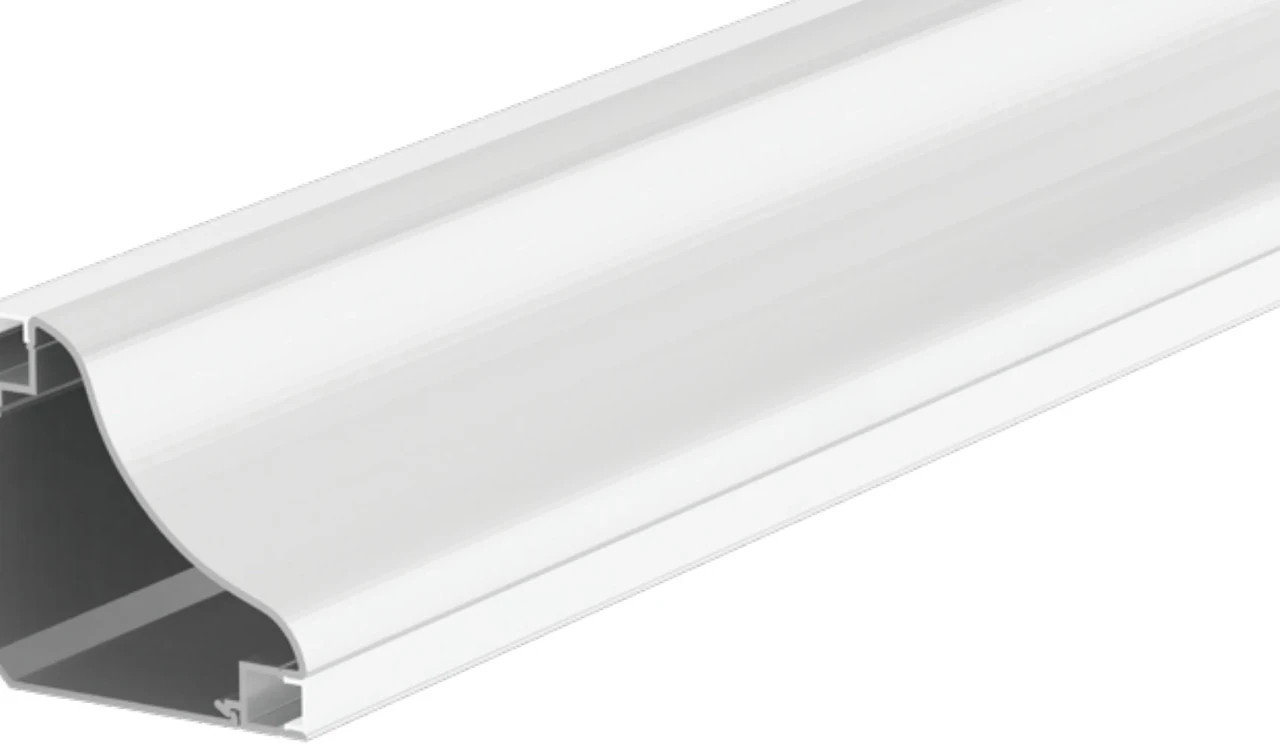

EN-PFL-ACC-S6969
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

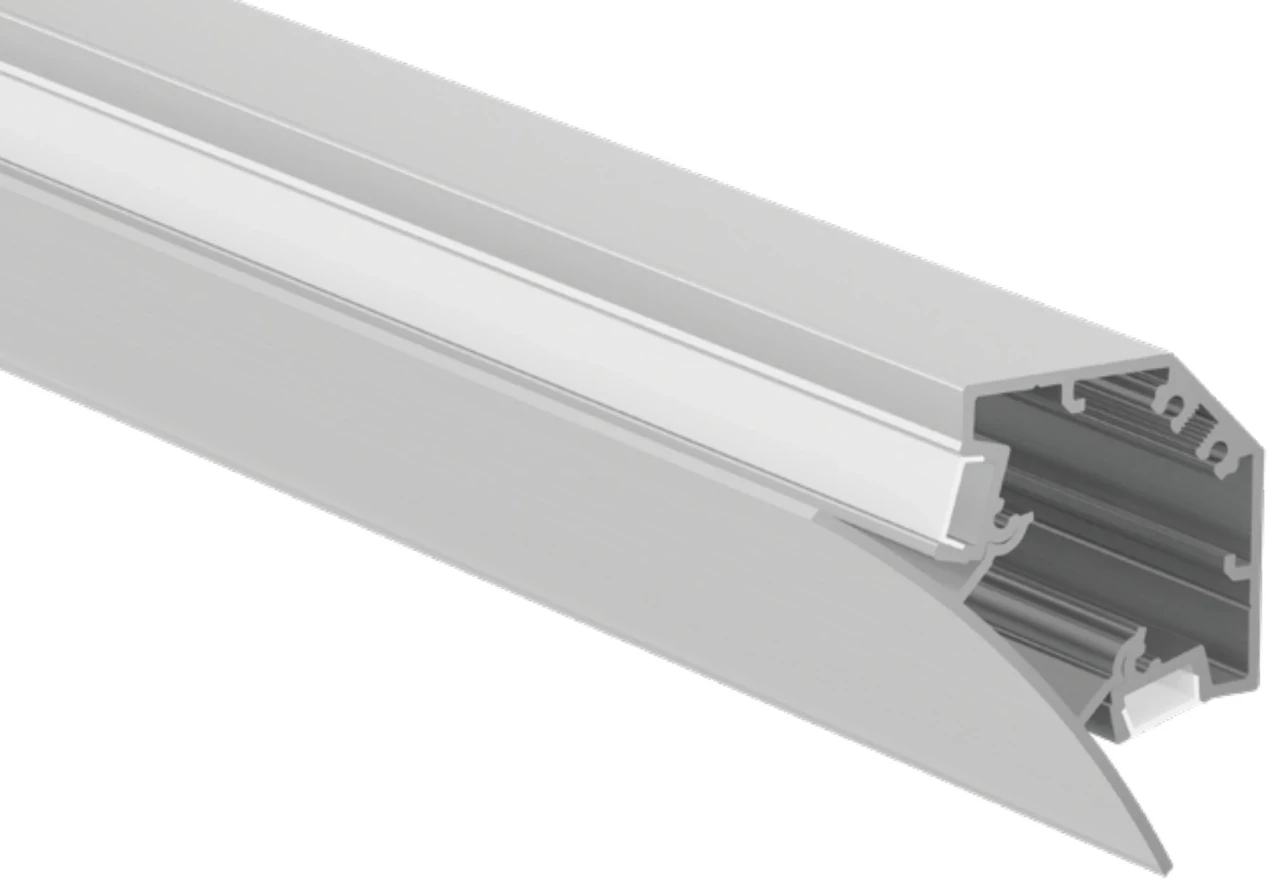

EN-PFL-ACC-S8042
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

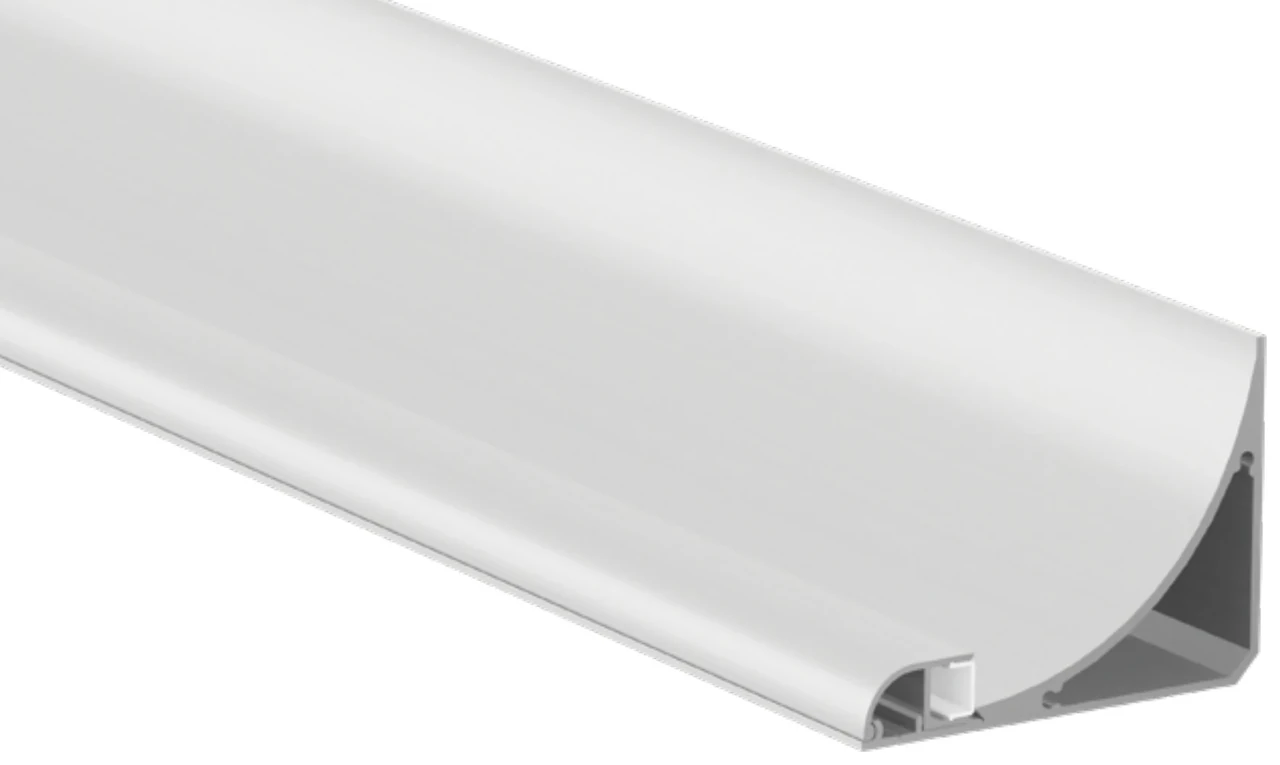

EN-PFL-ACC-S8060
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

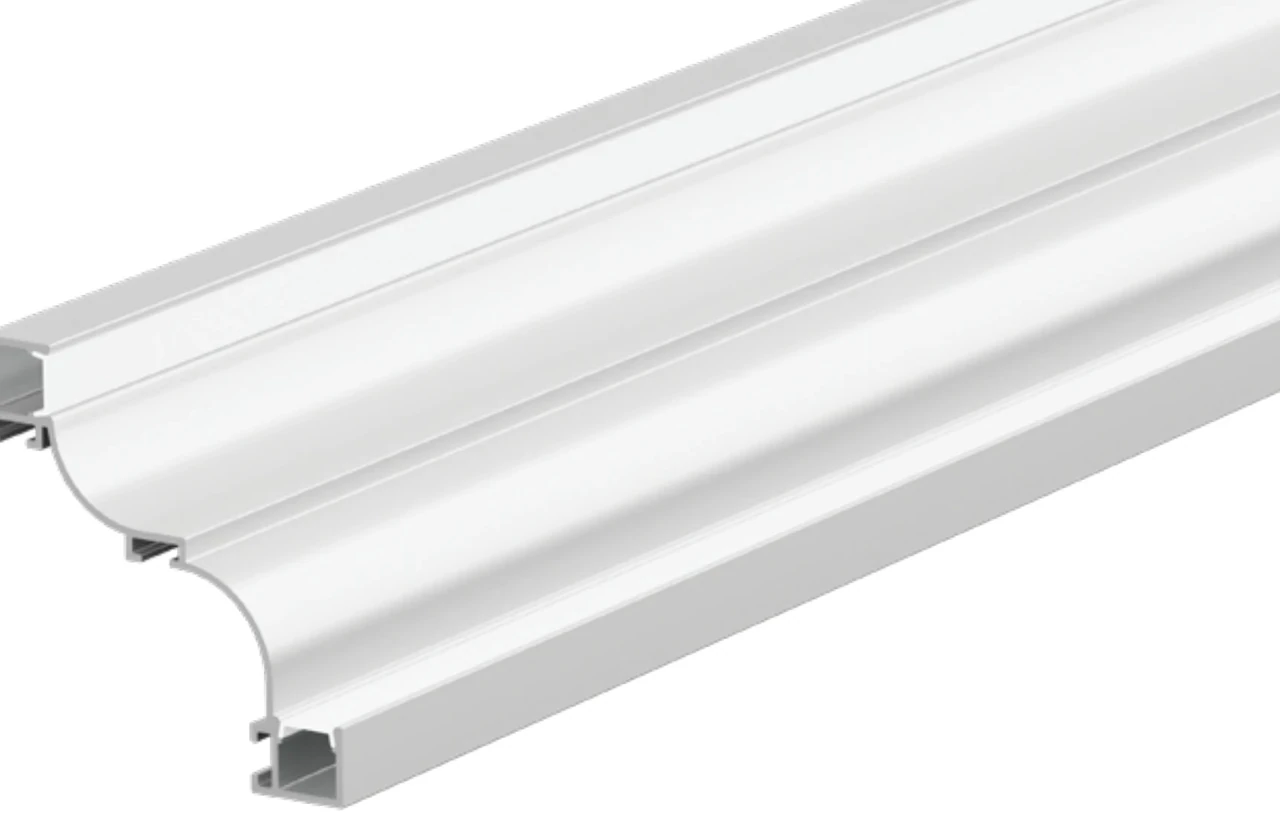

EN-PFL-ACC-S8080
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 10 mm
- Beam angle
- 120°
Applications
- Cove lighting
- Wall washing
- Corner details
- Ceiling perimeters
- Stair soffits
All profiles are AL6063 aluminium extrusion with a choice of diffuser; end caps and mounting clips are supplied as accessories. Cutout figures are the minimum opening in the substrate. Lengths can be cut to order — ask for a cutting list.
