Recessed Mounted Profiles
Model code EN-PFL-RMS-R2533
Flanged channels that recess into ceilings and joinery — 5 codes.
Each code shows its extrusion beside its own figures, with the dimensioned cross-section drawn to the right of them. Sorted by series, then ascending by size.

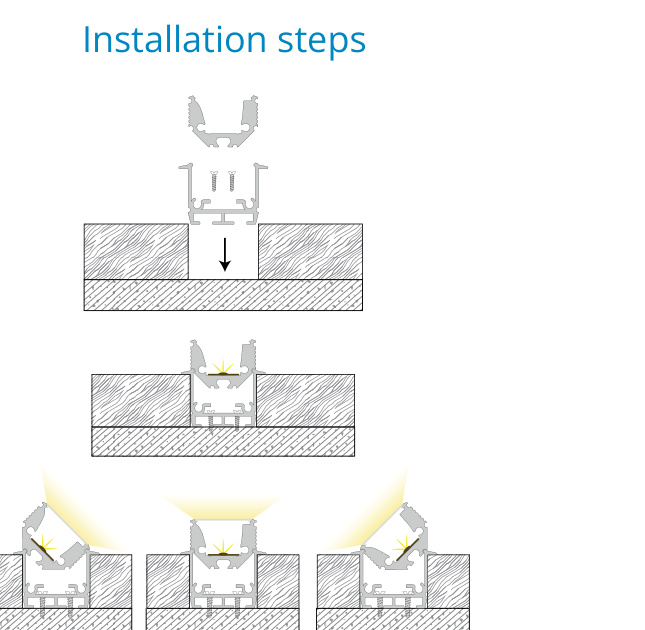

Recessed Mounted profiles set into a cutout with the flange closing onto the finished surface, so the diffuser sits flush and the extrusion disappears. Every code quotes its minimum cutout; all are AL6063 aluminium with a choice of diffuser.
The range 5 codes

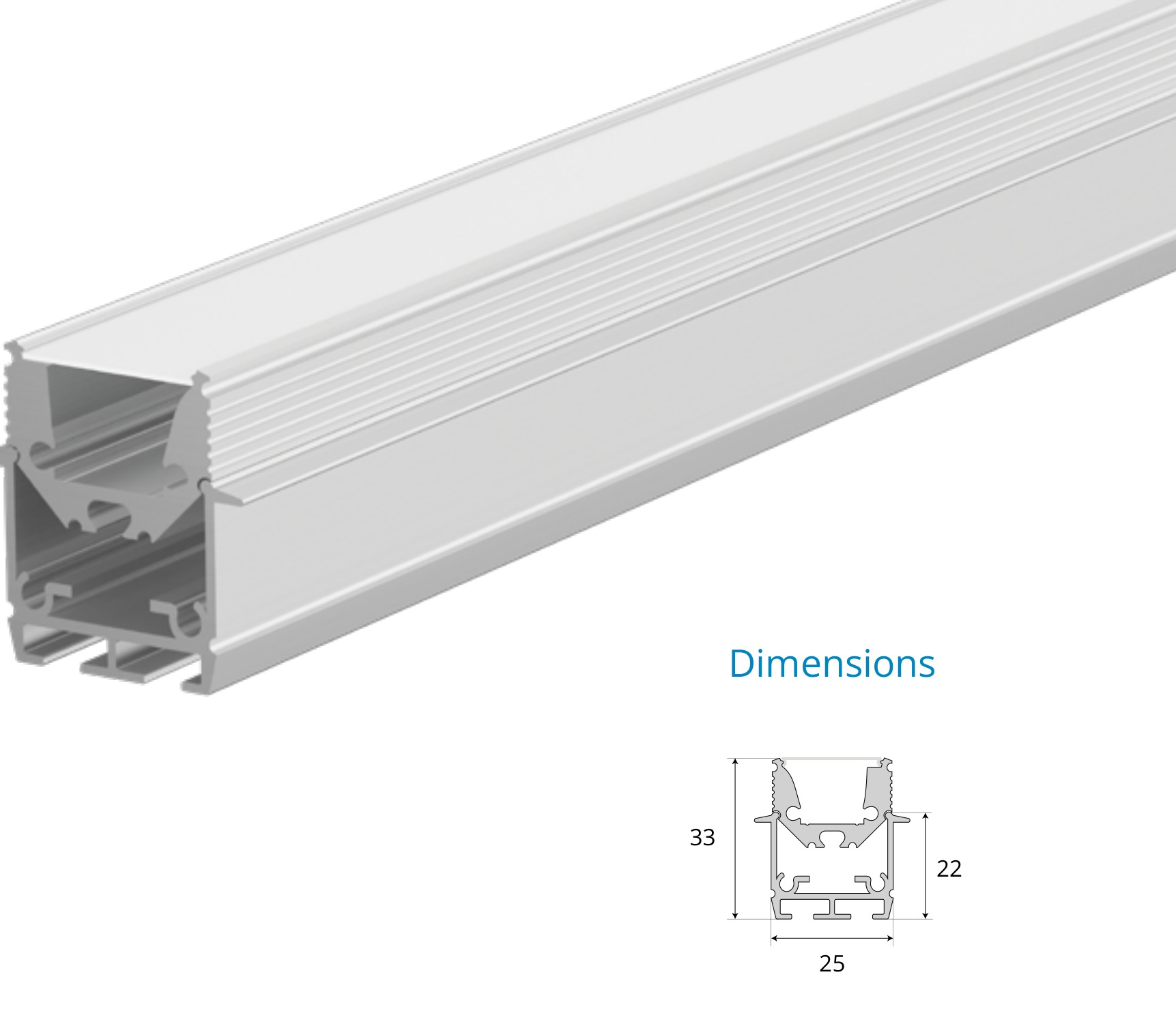

EN-PFL-RMS-R2533
- Cutout
- >25 mm
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

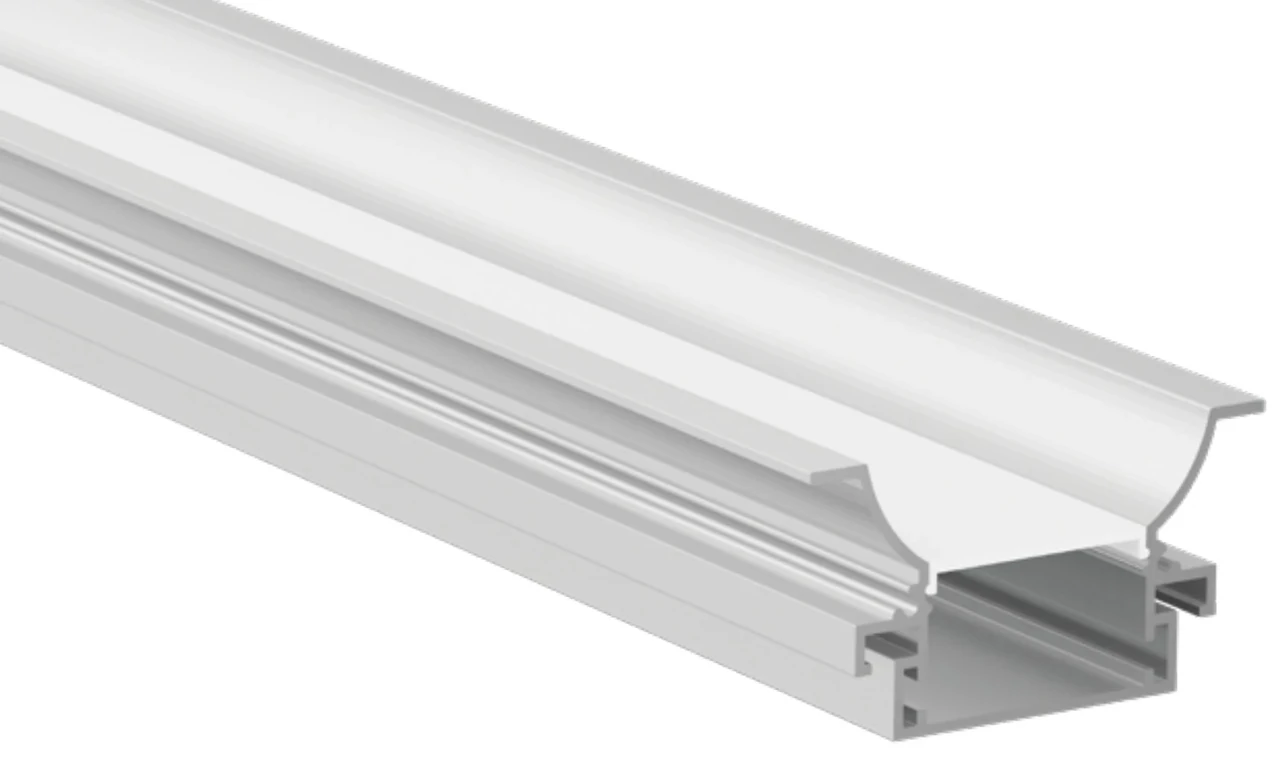

EN-PFL-RMS-R5235
- Cutout
- >52 mm
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

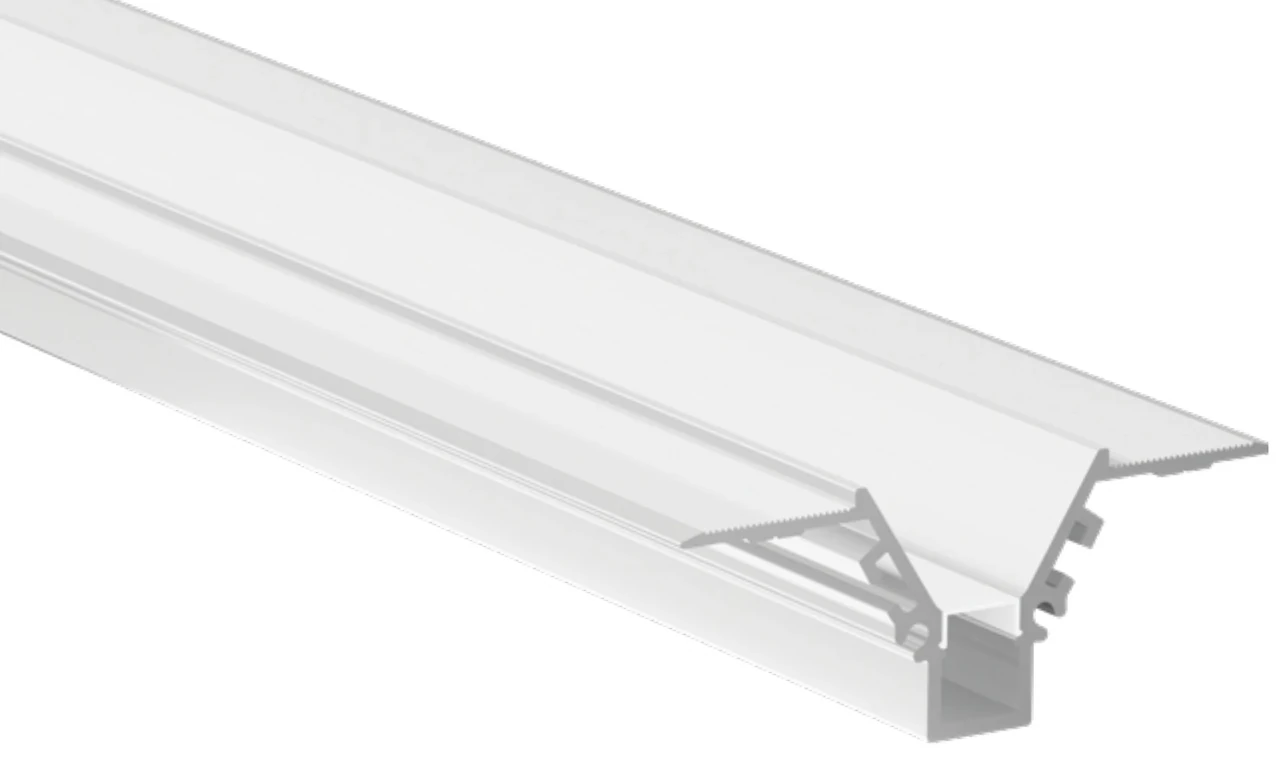

EN-PFL-RMS-R7127
- Cutout
- >29 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

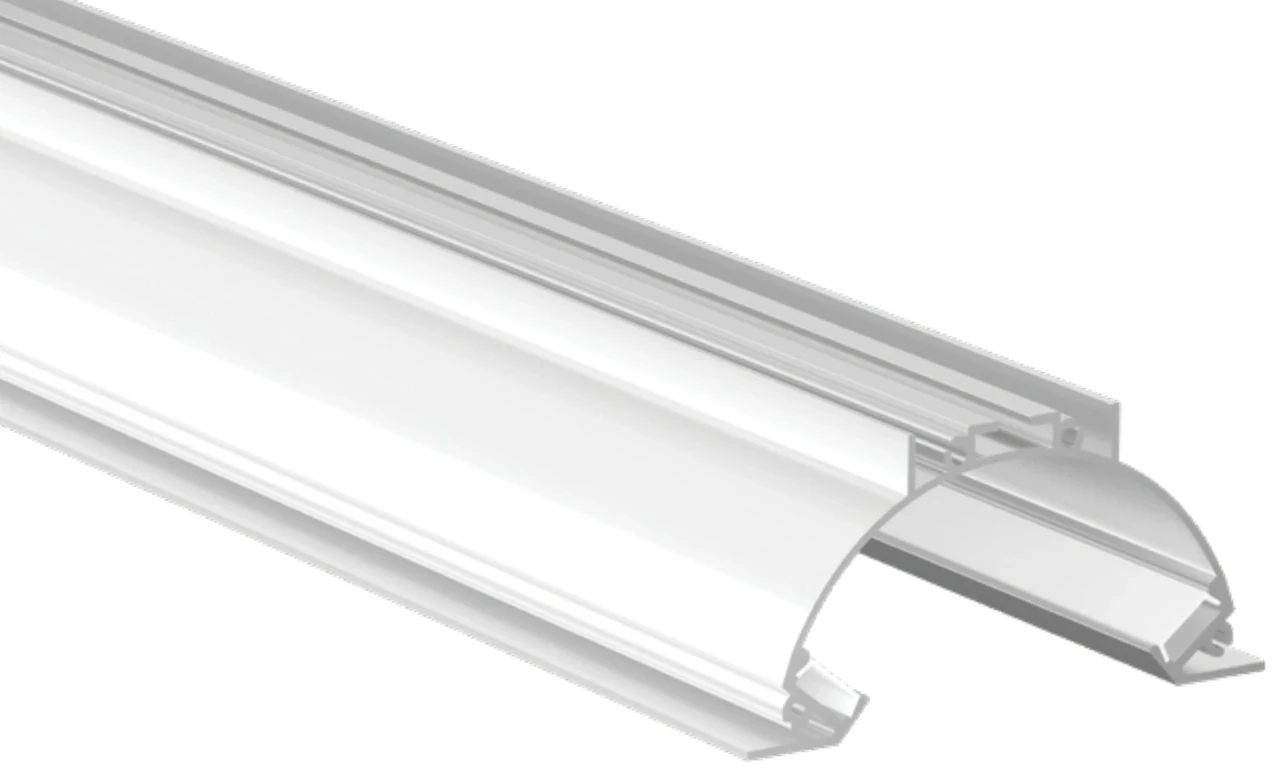

EN-PFL-RMS-R8248
- Cutout
- >82 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

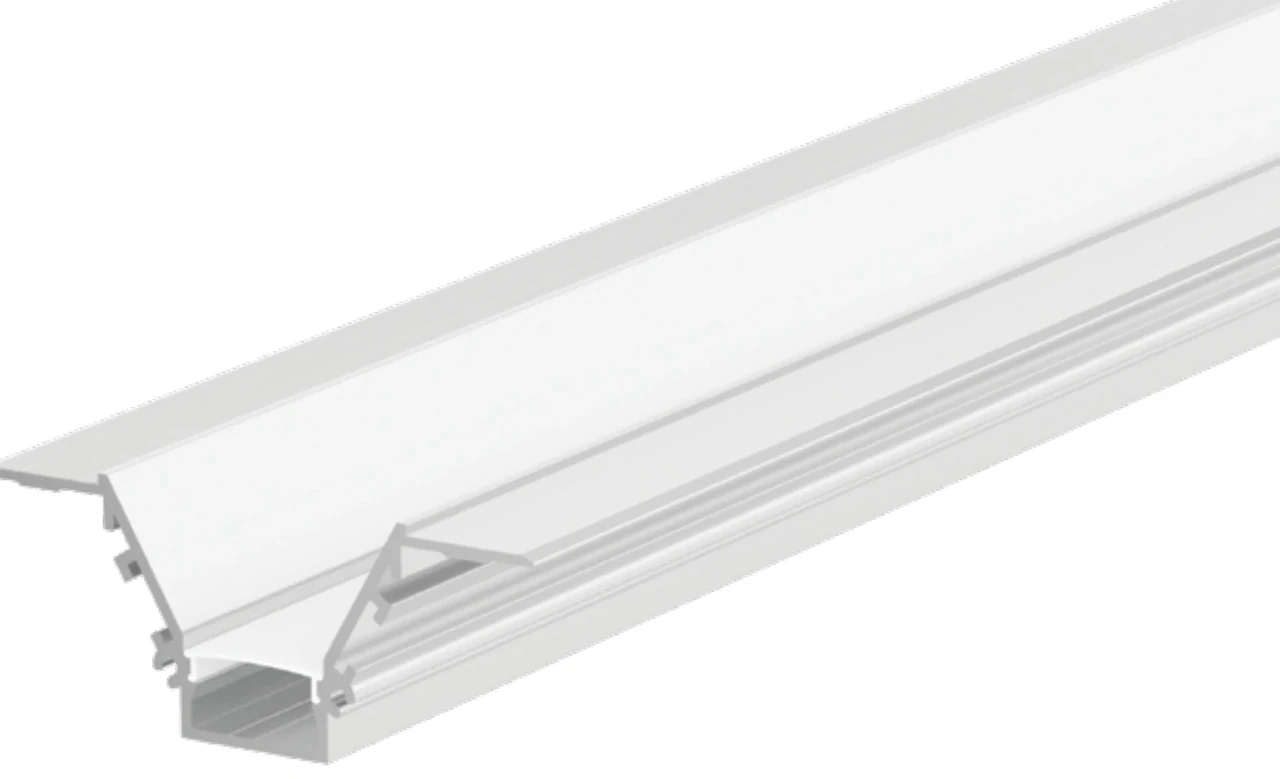

EN-PFL-RMS-R9035
- Cutout
- >48 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°
Applications
- Recessed ceilings
- Joinery
- Reveals
- Flush lines

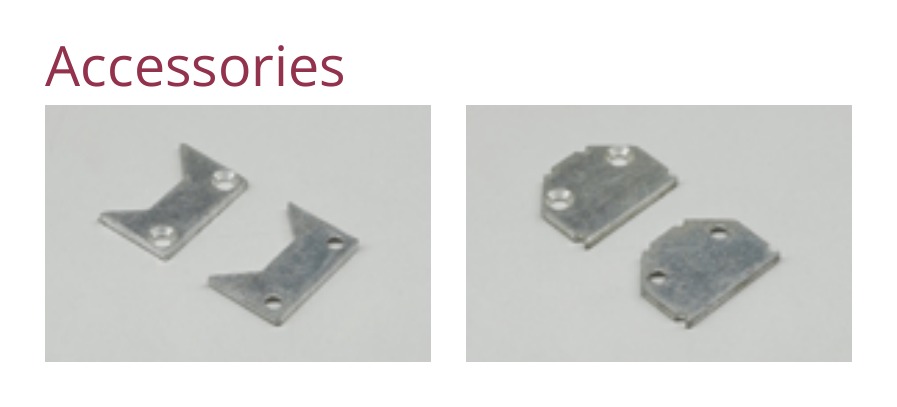

All profiles are AL6063 aluminium extrusion with a choice of diffuser; end caps and mounting clips are supplied as accessories. Cutout figures are the minimum opening in the substrate. Lengths can be cut to order — ask for a cutting list.
