Skirting, Step & Floor Profiles
Model code EN-PFL-SSF-R0809
Aluminium LED channels for skirtings, stair nosings and floor lines — 29 codes from an 11.8 mm recessed slot to a 90 mm cove.
Each code shows its extrusion beside its own figures, with the dimensioned cross-section drawn to the right of them. Recessed R-series first, then surface and skirting S-series, each ascending by width. Use the filter to jump straight to a code or a size.
The Skirting, Step & Floor range is Enlighten Pro's aluminium LED channel for the places light meets the floor: skirting lines, stair nosings, recessed floor slots and low cove details. Every code below is extruded AL6063, supplied in 3000 mm or 3600 mm lengths, and takes a 5, 8 or 10 mm LED strip behind a choice of diffuser. R-codes recess into the substrate and quote a cutout; S-codes surface-mount or form the skirting themselves. Each code's own dimensions and figures are listed with its own drawing in the range below.
The range 29 codes

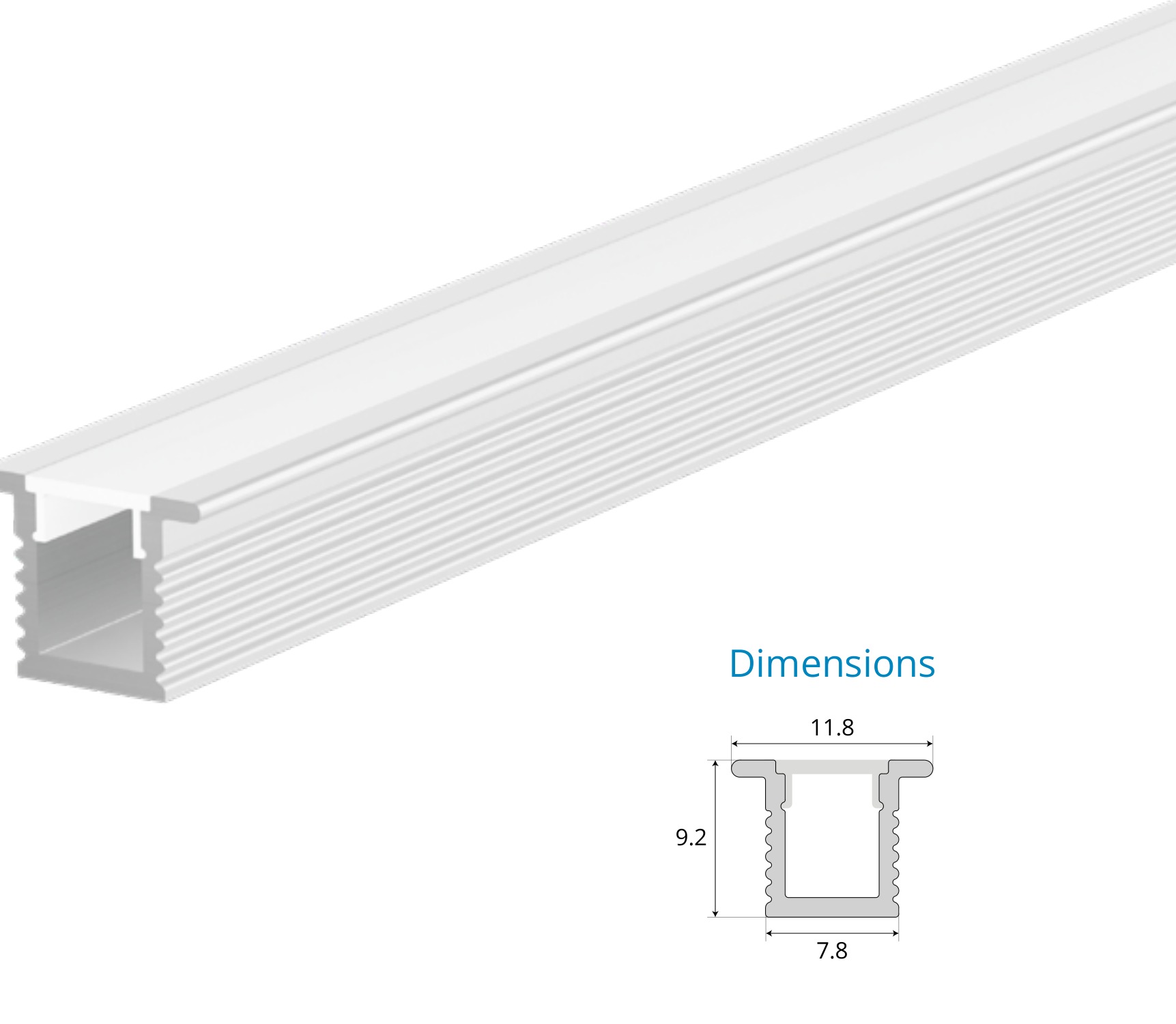

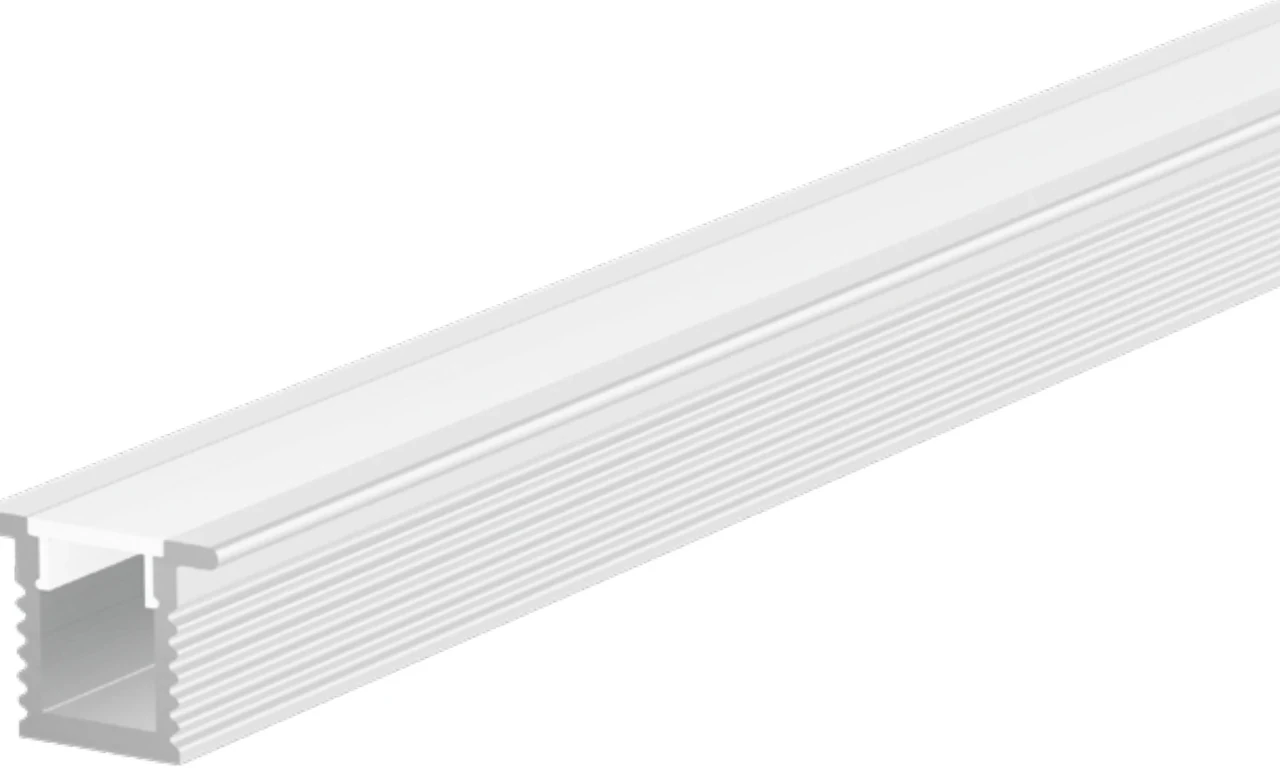

EN-PFL-SSF-R0809 · Recessed · 11.8 × 9.2 mm
- Dimensions
- 11.8 × 9.2 mm · 7.8 inner
- Cutout
- >08 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 05 mm
- Beam angle
- 120°
EN-PFL-SSF-R1013 · Recessed · 14 × 13 mm
- Dimensions
- 14 × 13 mm · 10 inner
- Cutout
- >10 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Frosted
- LED strip
- 05 mm
- Beam angle
- 120°

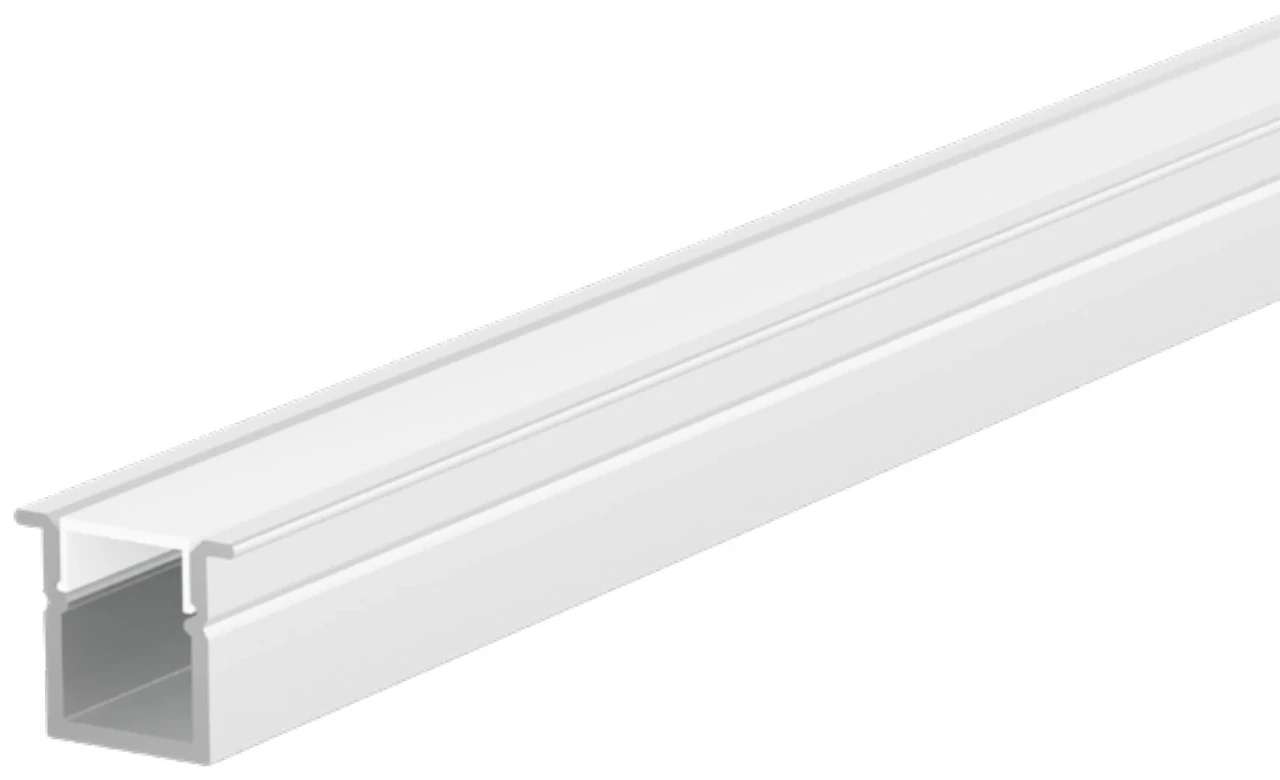

EN-PFL-SSF-R1214 · Recessed · 16 × 14 mm
- Dimensions
- 16 × 14 mm · 12 inner
- Cutout
- >12 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 08 mm
- Beam angle
- 120°
EN-PFL-SSF-R1525 · Recessed · 23 × 25 mm
- Dimensions
- 23 × 25 mm · 15 inner
- Cutout
- >15 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

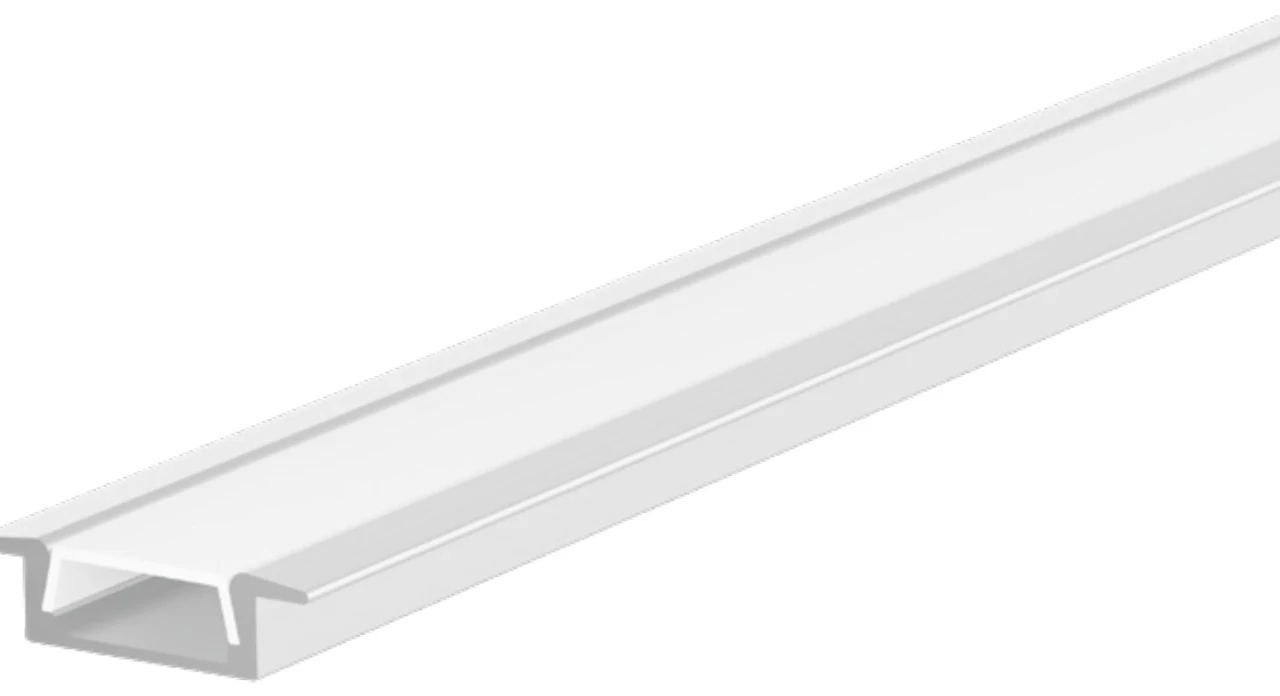

EN-PFL-SSF-R1606 · Recessed · 22 mm wide
- Dimensions
- 22 mm wide · 15.2 inner
- Cutout
- >16 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 10 mm
- Beam angle
- 120°

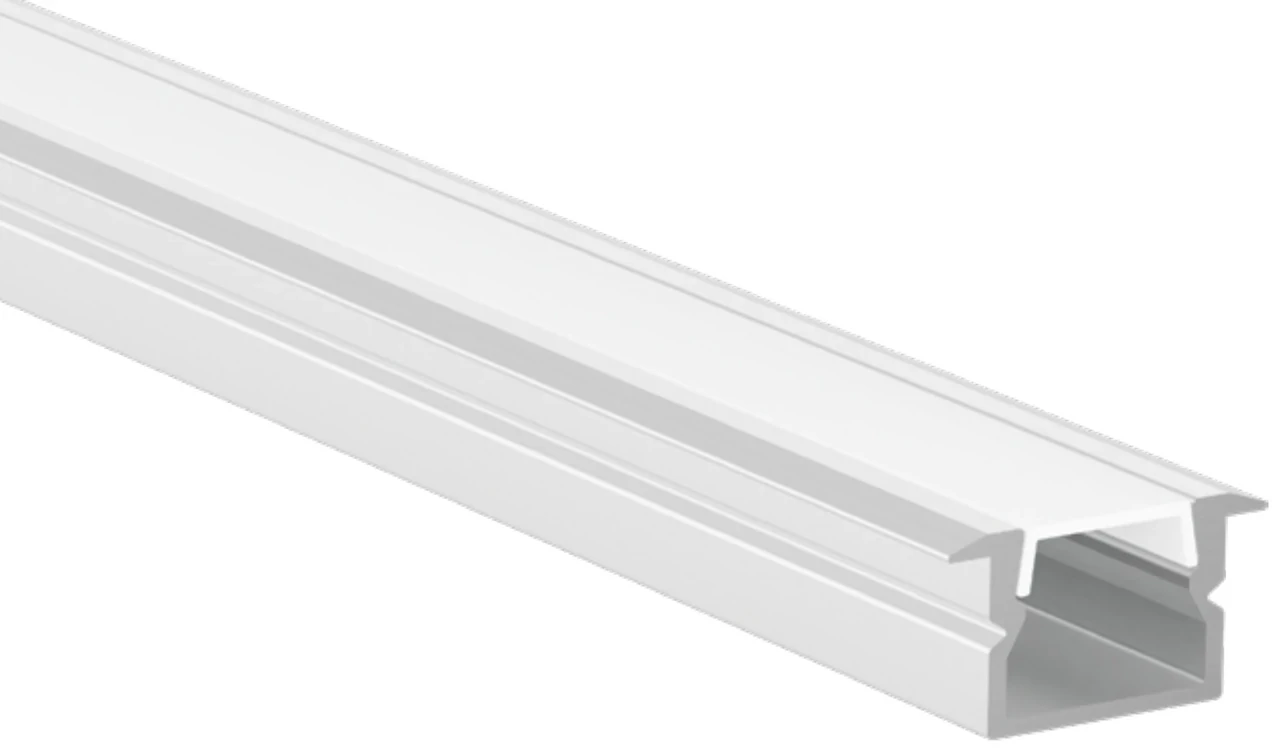

EN-PFL-SSF-R1612 · Recessed · 21.7 × 12 mm
- Dimensions
- 21.7 × 12 mm · 16 inner
- Cutout
- >16 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 10 mm
- Beam angle
- 120°

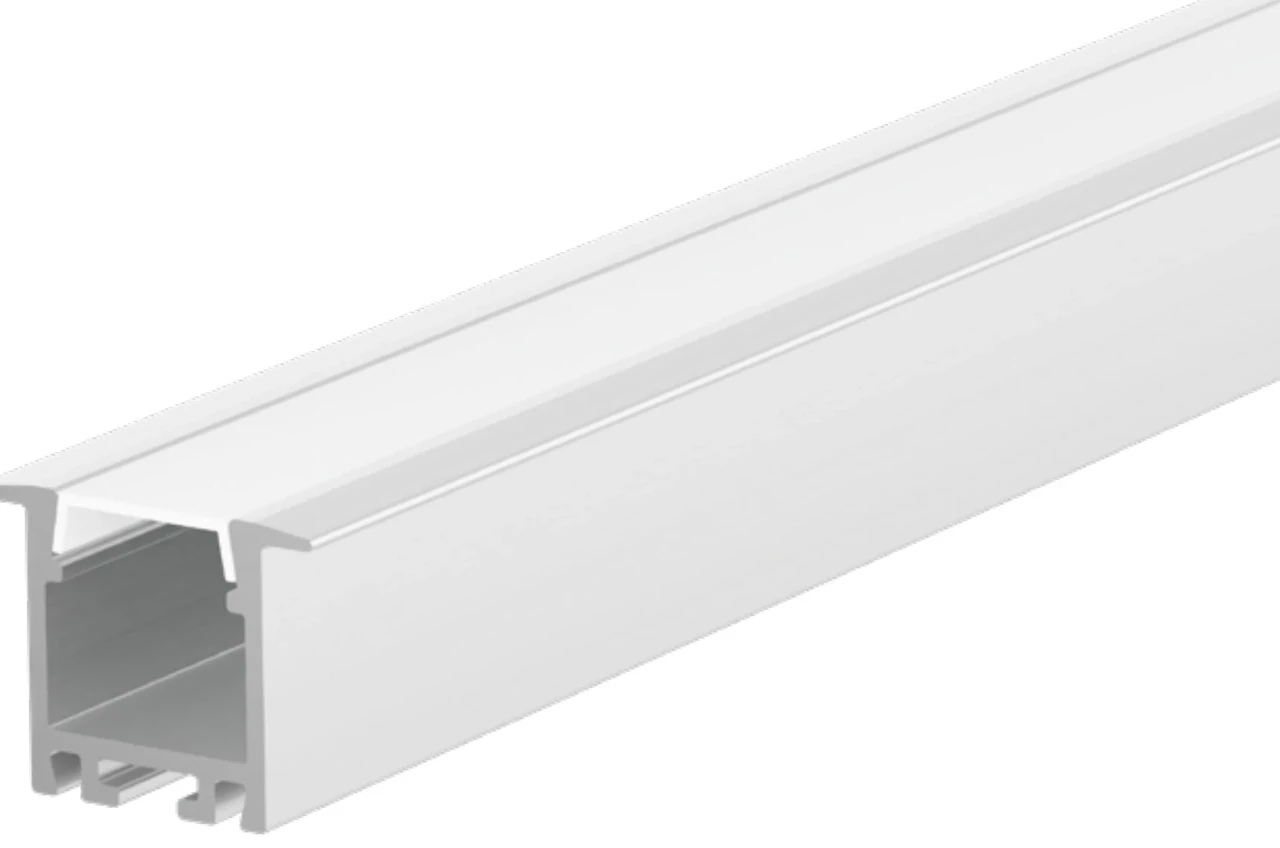

EN-PFL-SSF-R1618 · Recessed · 22.8 × 18 mm
- Dimensions
- 22.8 × 18 mm · 16 inner
- Cutout
- >16 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 10 mm
- Beam angle
- 120°

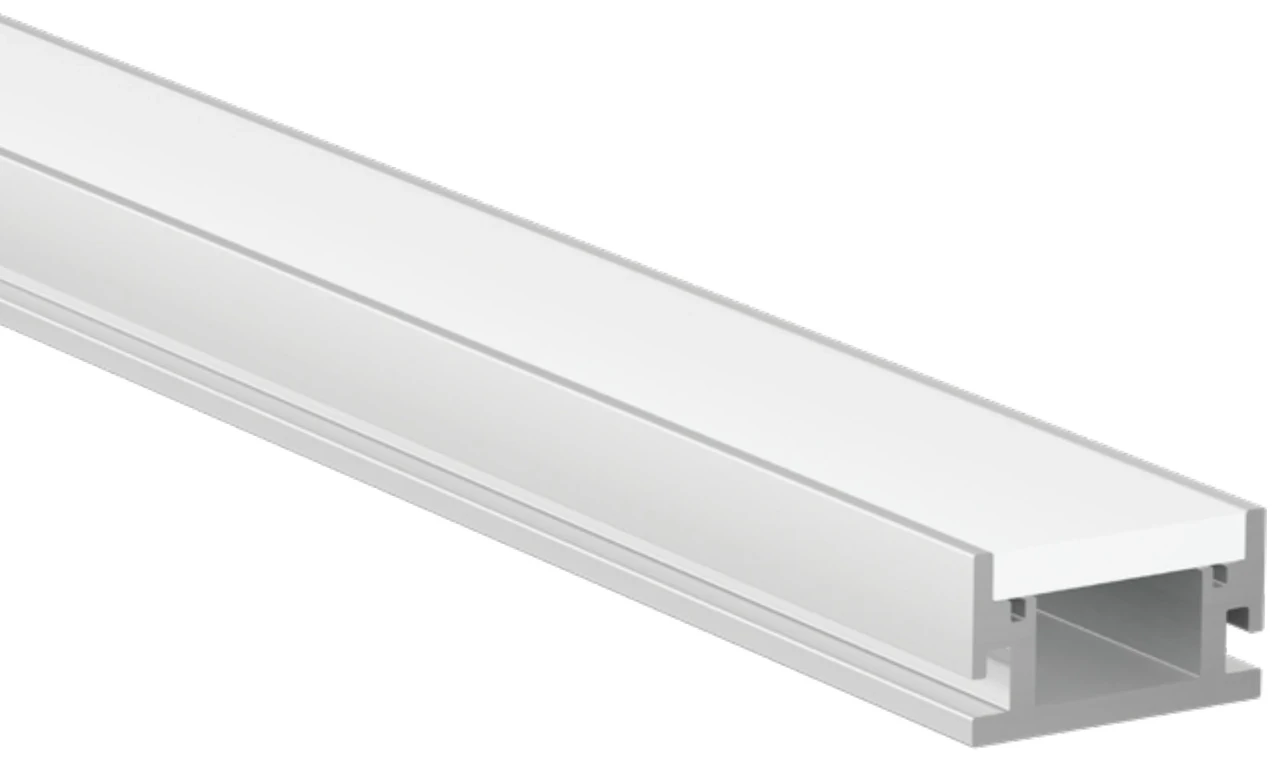

EN-PFL-SSF-R2112 · Recessed · 21 × 12 mm
- Dimensions
- 21 × 12 mm
- Cutout
- >21 mm
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

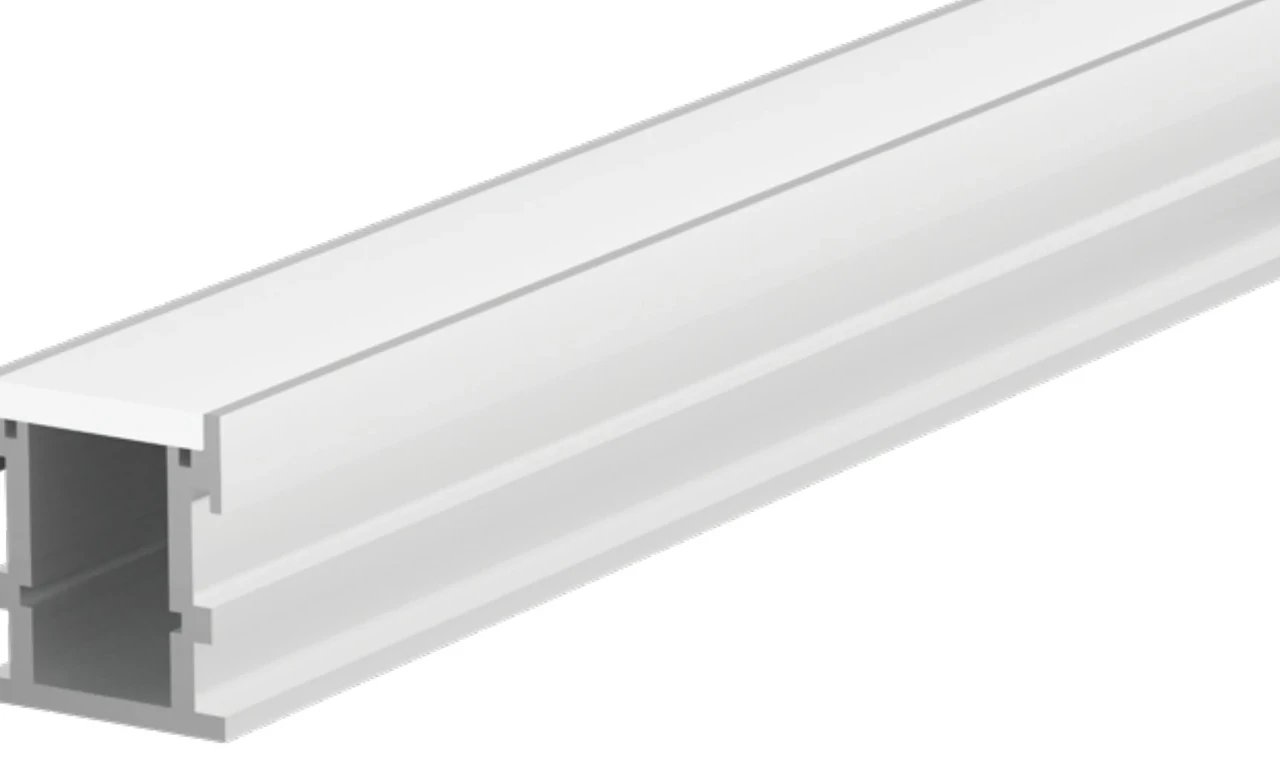

EN-PFL-SSF-R2126 · Recessed · 21.3 × 26.1 mm
- Dimensions
- 21.3 × 26.1 mm
- Cutout
- >21 mm
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 08 mm
- Beam angle
- 120°
EN-PFL-SSF-R2512 · Recessed · 29.6 × 12 mm
- Dimensions
- 29.6 × 12 mm · 23.6 inner
- Cutout
- >24 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

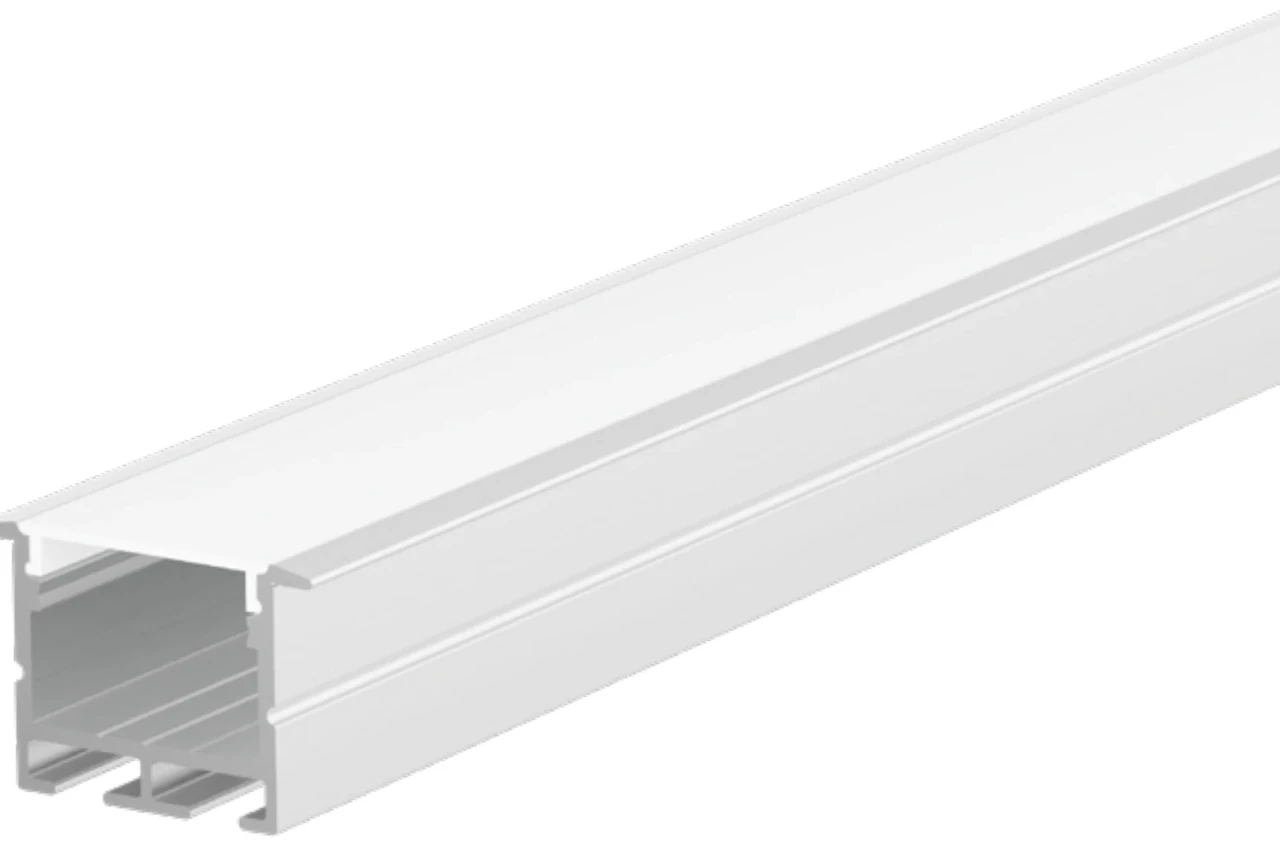

EN-PFL-SSF-R2520 · Recessed · 30.5 × 20.9 mm
- Dimensions
- 30.5 × 20.9 mm · 23.6 inner
- Cutout
- >24 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°
EN-PFL-SSF-R2525 · Recessed · 33 × 25 mm
- Dimensions
- 33 × 25 mm · 25 inner
- Cutout
- >25 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

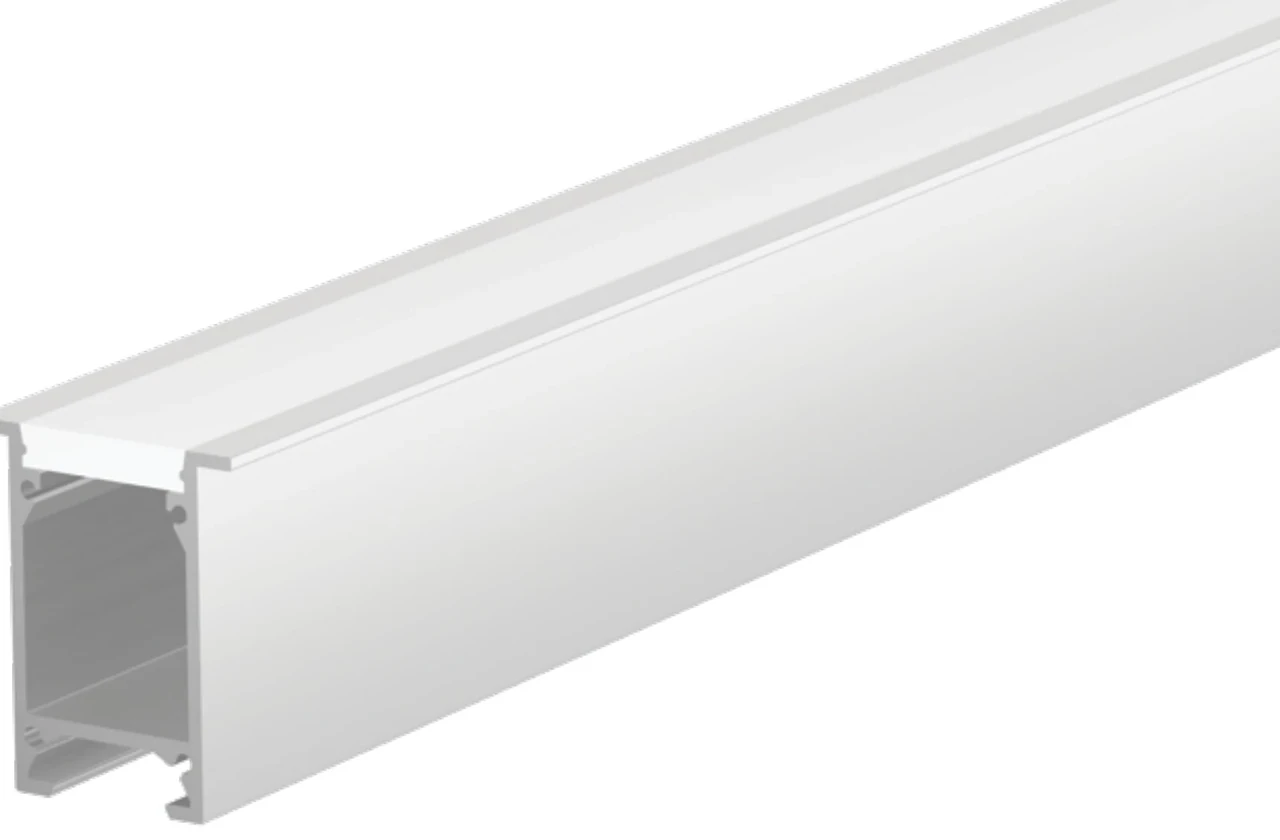

EN-PFL-SSF-R3050 · Recessed · 41 × 50.8 mm
- Dimensions
- 41 × 50.8 mm · 30 inner
- Cutout
- >30 mm
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

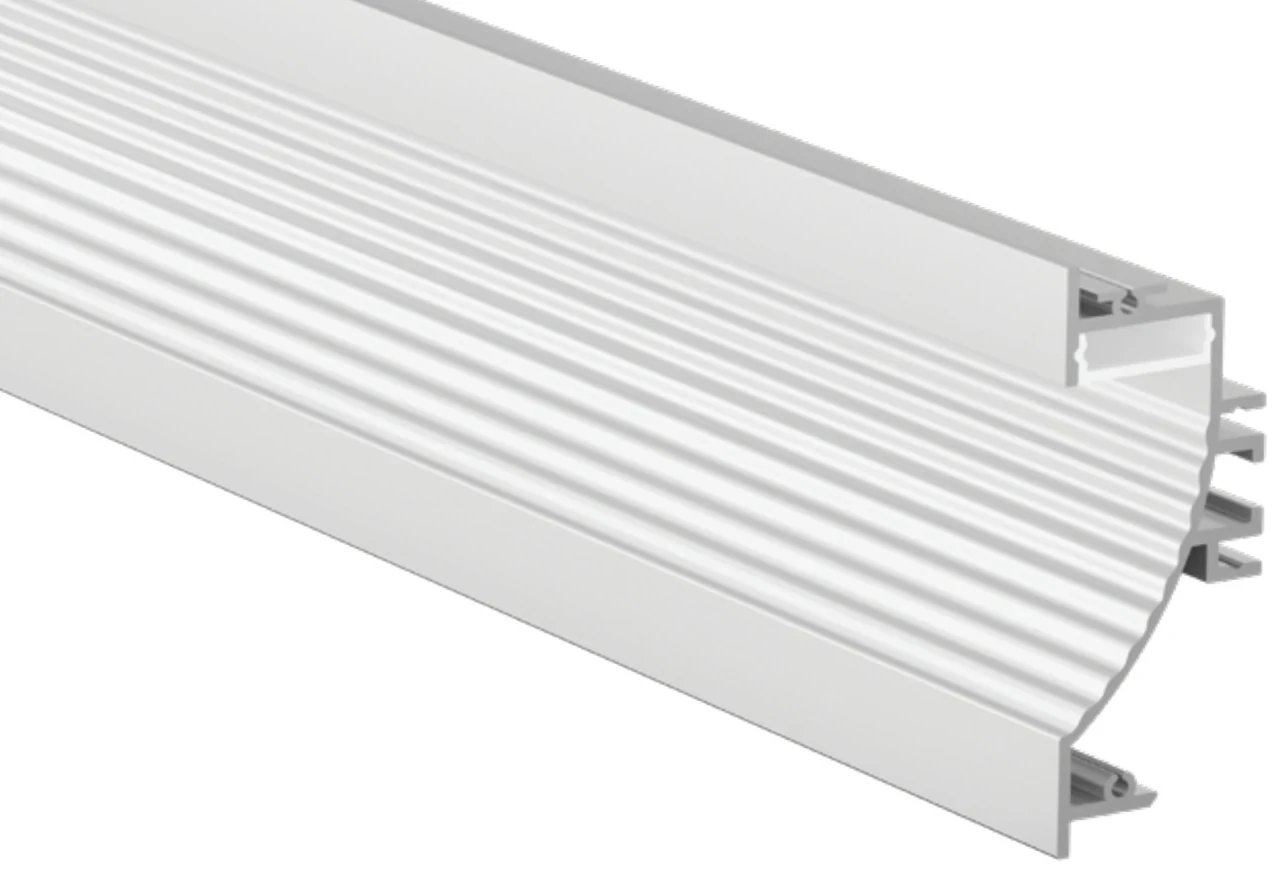

EN-PFL-SSF-R3280 · Recessed · 32 mm wide
- Dimensions
- 32 mm wide · 71 / 80.1 high
- Cutout
- >71 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

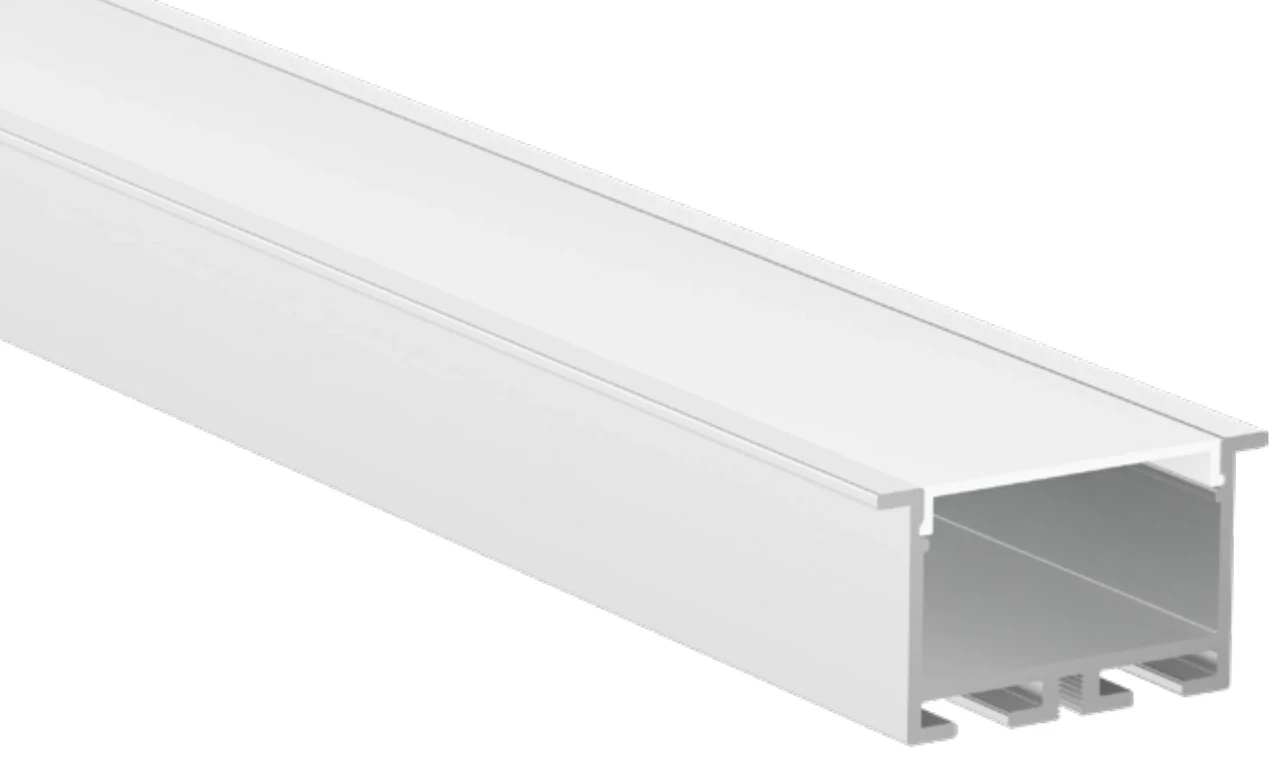

EN-PFL-SSF-R3524 · Recessed · 42.7 × 24 mm
- Dimensions
- 42.7 × 24 mm · 35.5 inner
- Cutout
- >35 mm
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

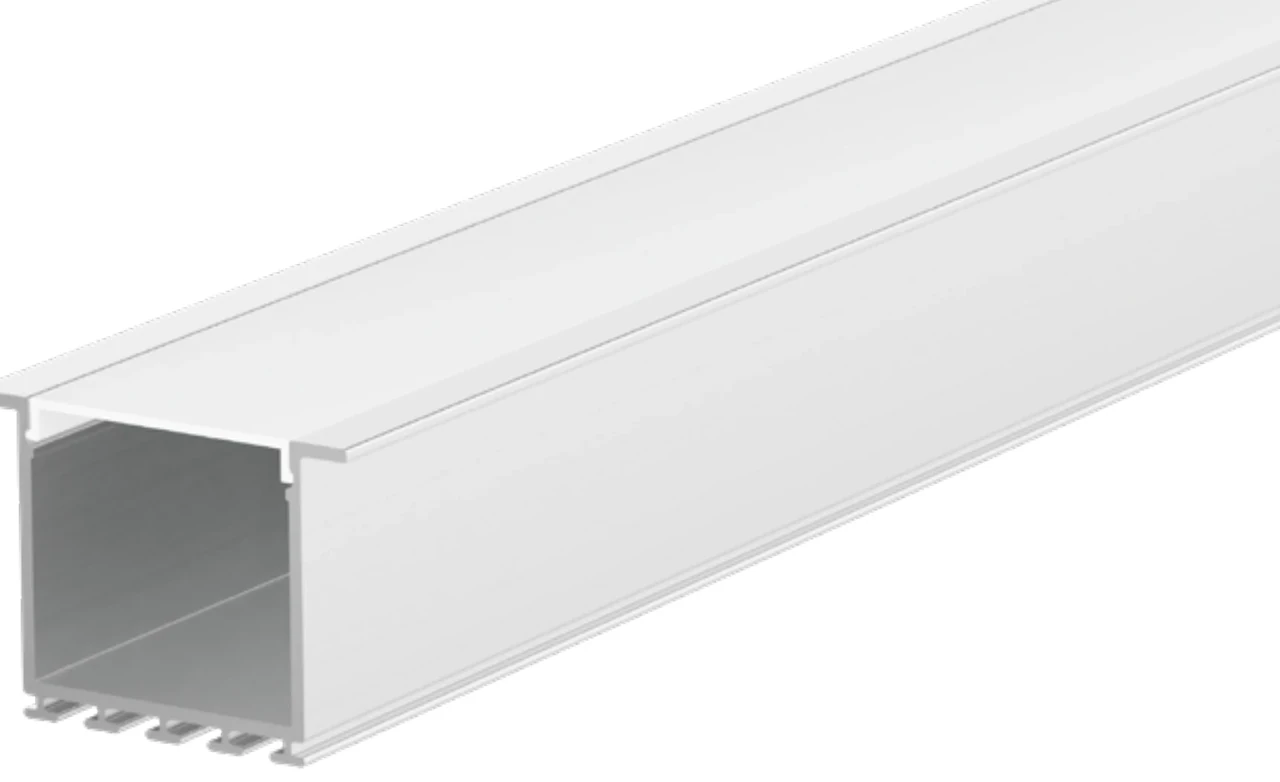

EN-PFL-SSF-R3535 · Recessed · 46 × 34.1 mm
- Dimensions
- 46 × 34.1 mm · 34.8 inner
- Cutout
- >35 mm
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°
EN-PFL-SSF-R5024 · Recessed · 57.5 × 24 mm
- Dimensions
- 57.5 × 24 mm · 50.3 inner
- Cutout
- >50 mm
- Std. length
- 3600 mm
- Diffuser
- Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

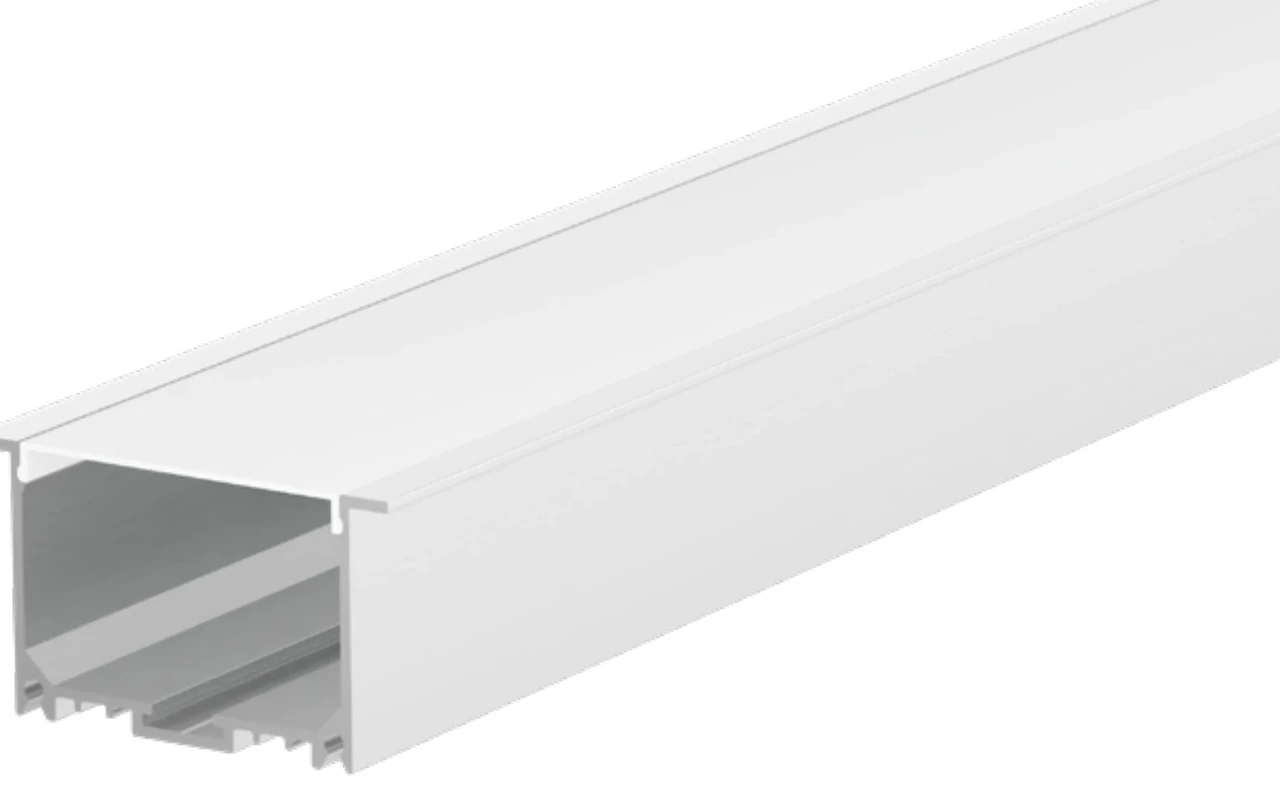

EN-PFL-SSF-R5035 · Recessed · 61 × 35 mm
- Dimensions
- 61 × 35 mm · 49.8 inner
- Cutout
- >50 mm
- Std. length
- 3600 mm
- Diffuser
- Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°
EN-PFL-SSF-R5050 · Recessed · 61.8 × 50.8 mm
- Dimensions
- 61.8 × 50.8 mm · 50 inner
- Cutout
- >50 mm
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

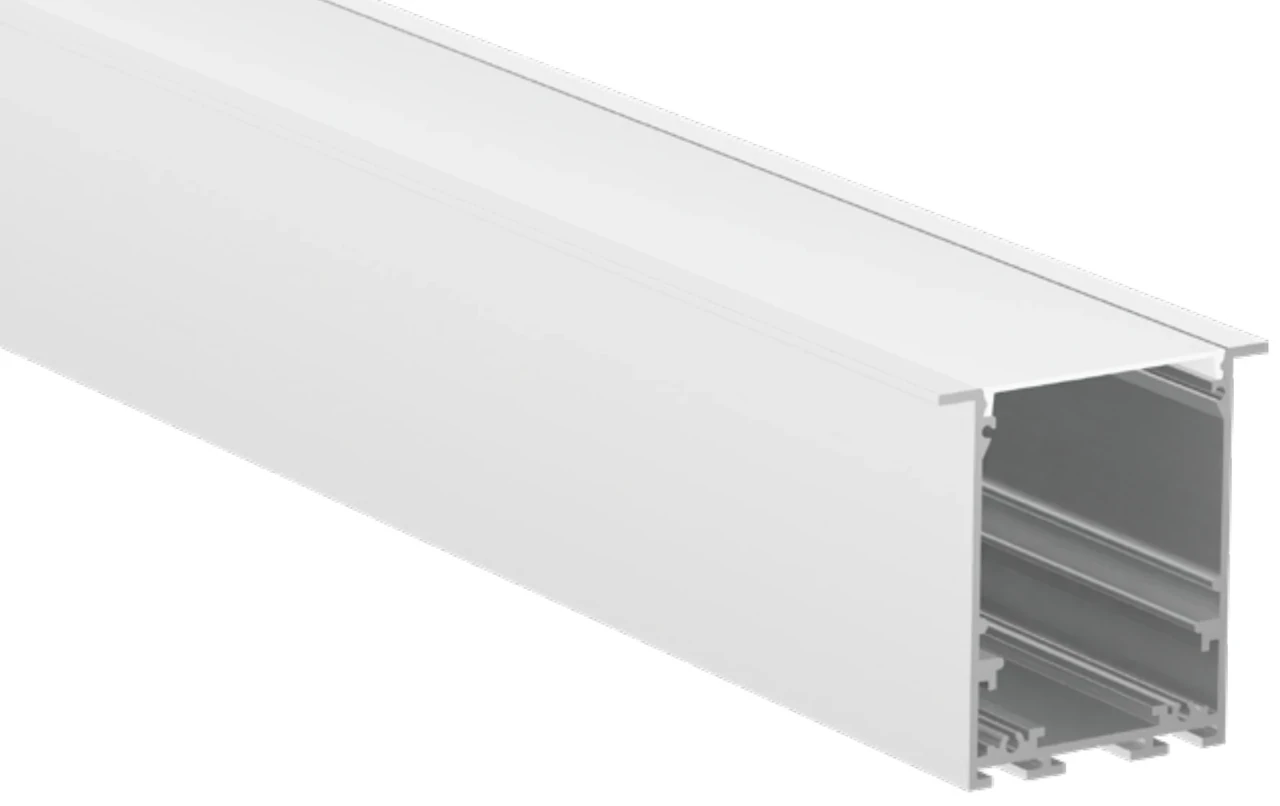

EN-PFL-SSF-R6080 · Recessed · 77 × 80 mm
- Dimensions
- 77 × 80 mm · 60 inner
- Cutout
- >60 mm
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

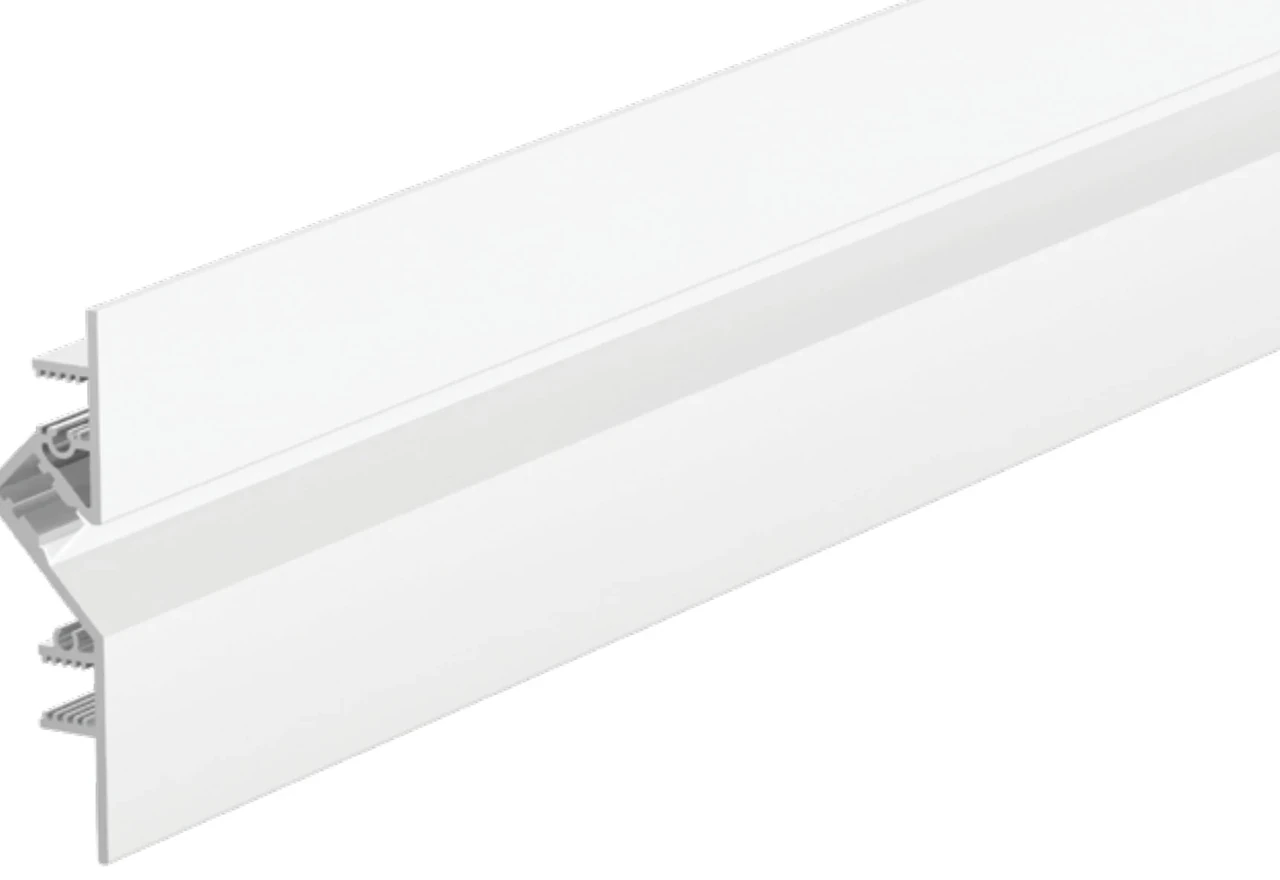

EN-PFL-SSF-R7018 · Recessed · 18 mm wide
- Dimensions
- 18 mm wide · 70 / 47 high
- Cutout
- >47 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Frosted
- LED strip
- 05 mm
- Beam angle
- 120°

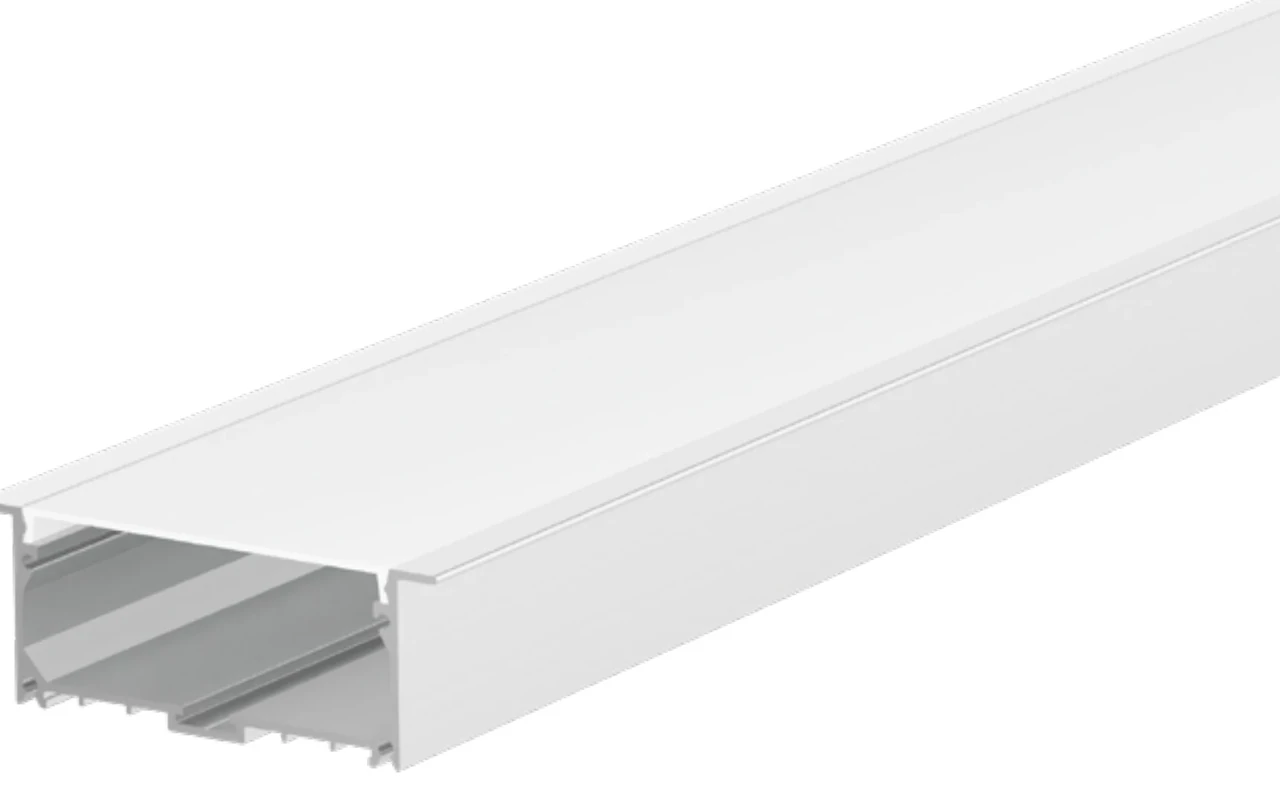

EN-PFL-SSF-R7535 · Recessed · 90 × 33.5 mm
- Dimensions
- 90 × 33.5 mm · 75 inner
- Cutout
- >75 mm
- Std. length
- 3600 mm
- Diffuser
- Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

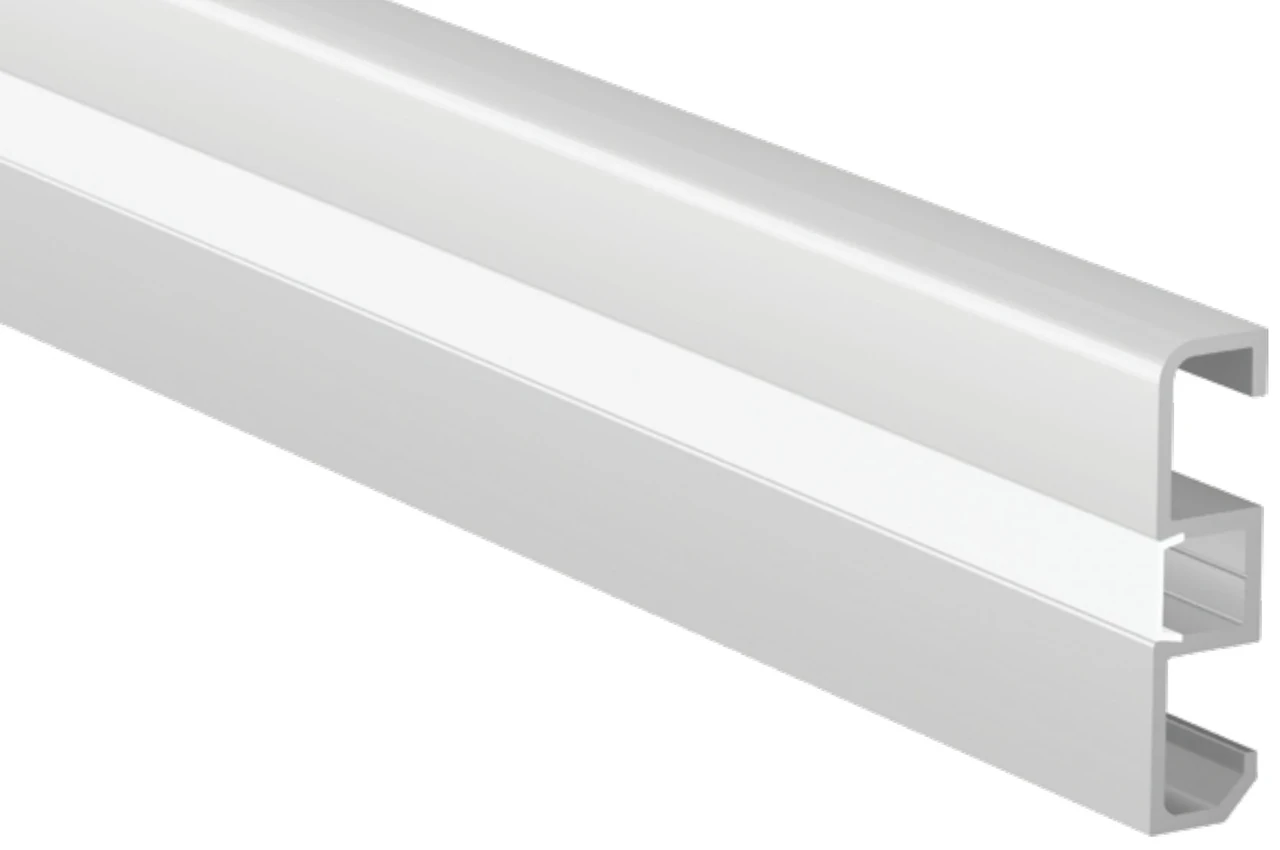

EN-PFL-SSF-S1558 · Surface / skirting · 15 × 58 mm
Surface
- Dimensions
- 15 × 58 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

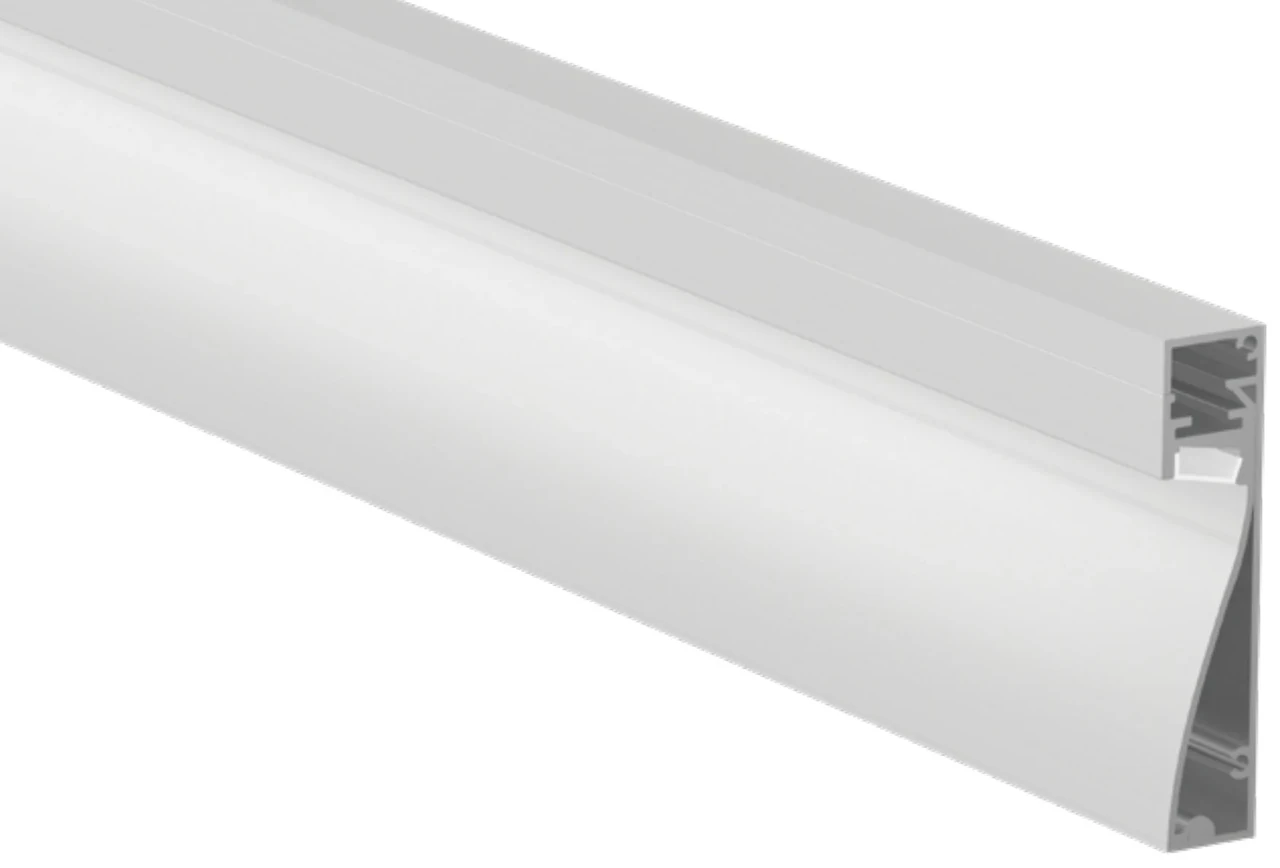

EN-PFL-SSF-S1880 · Surface / skirting · 18.5 × 80.5 mm
Surface
- Dimensions
- 18.5 × 80.5 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°
EN-PFL-SSF-S2609 · Surface / skirting · 26.4 × 9.5 mm
Surface
- Dimensions
- 26.4 × 9.5 mm
- Std. length
- 3000 mm
- Diffuser
- Silicone
- LED strip
- 05 mm
- Beam angle
- 120°

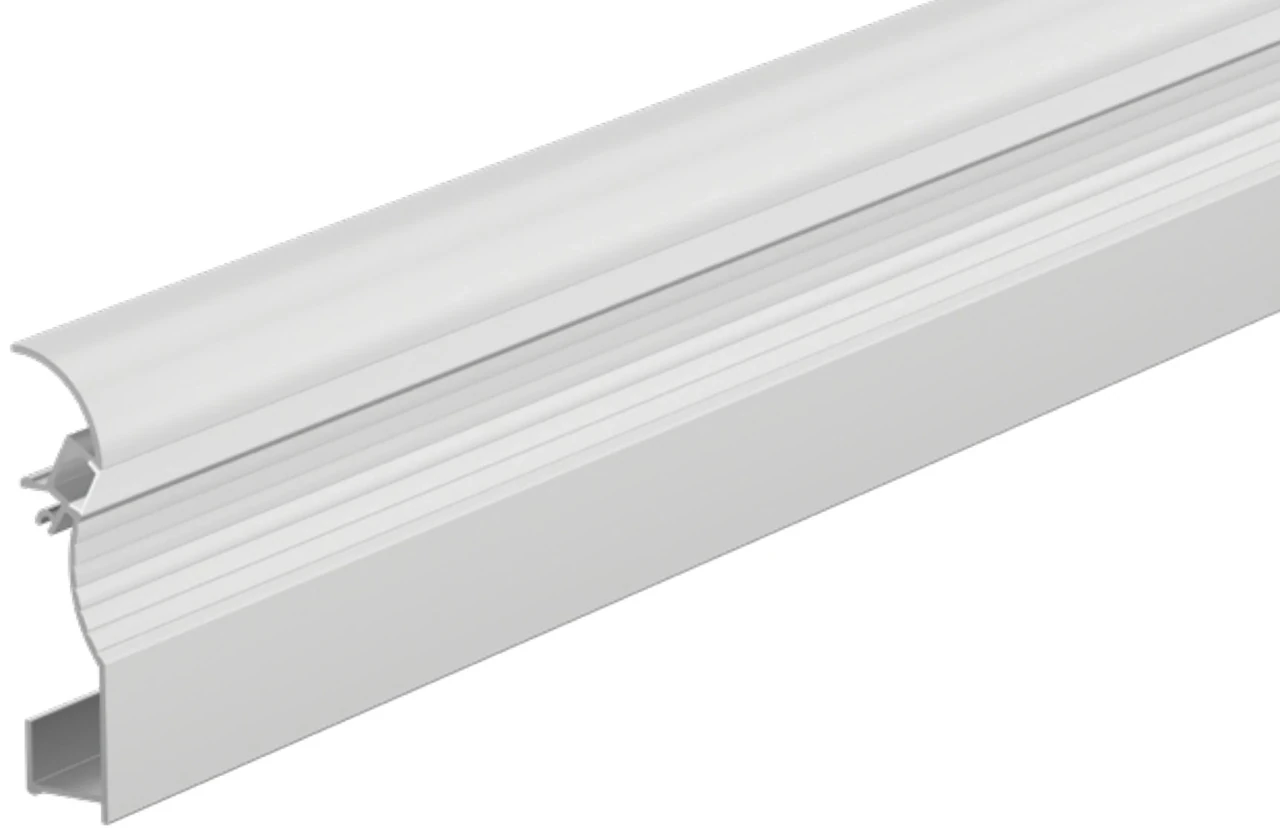

EN-PFL-SSF-S26106 · Surface / skirting · 26.3 × 106 mm
Surface
- Dimensions
- 26.3 × 106 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°
EN-PFL-SSF-S3212 · Surface / skirting · 32.5 × 12 mm
Surface
- Dimensions
- 32.5 × 12 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

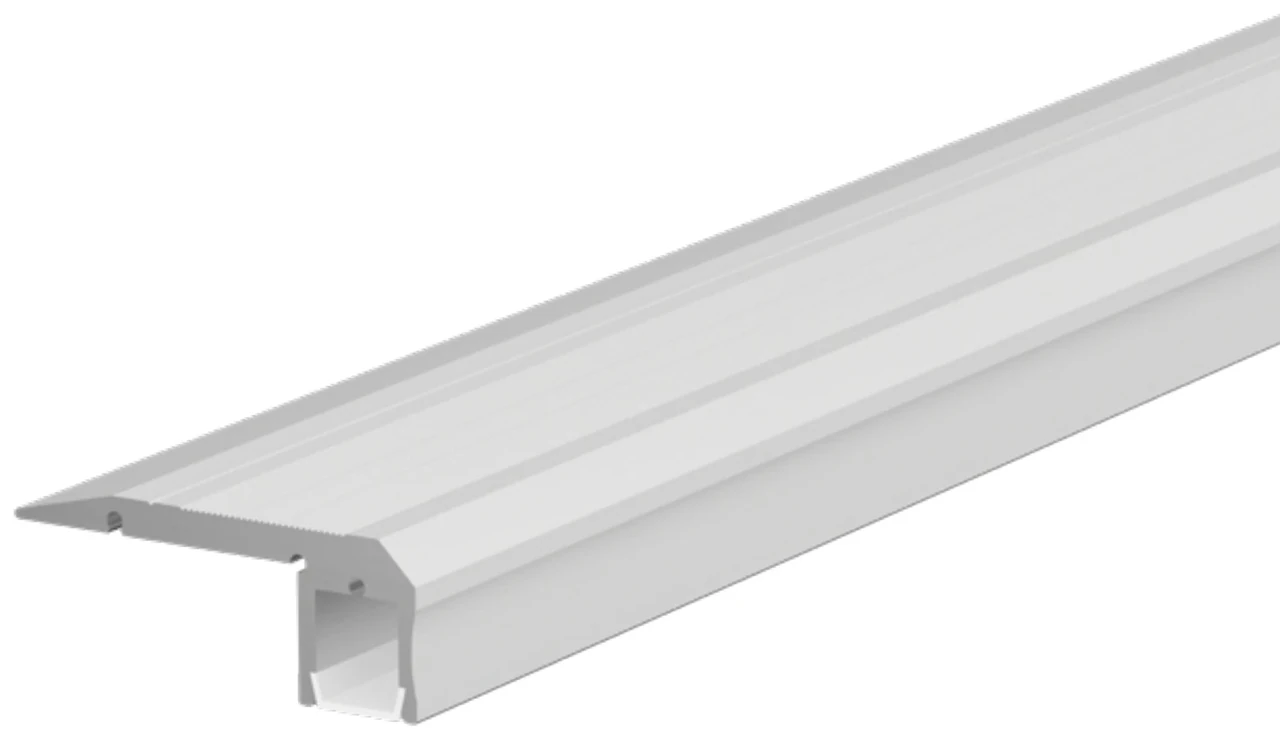

EN-PFL-SSF-S5521 · Surface / skirting · 55 × 21 mm
Surface
- Dimensions
- 55 × 21 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

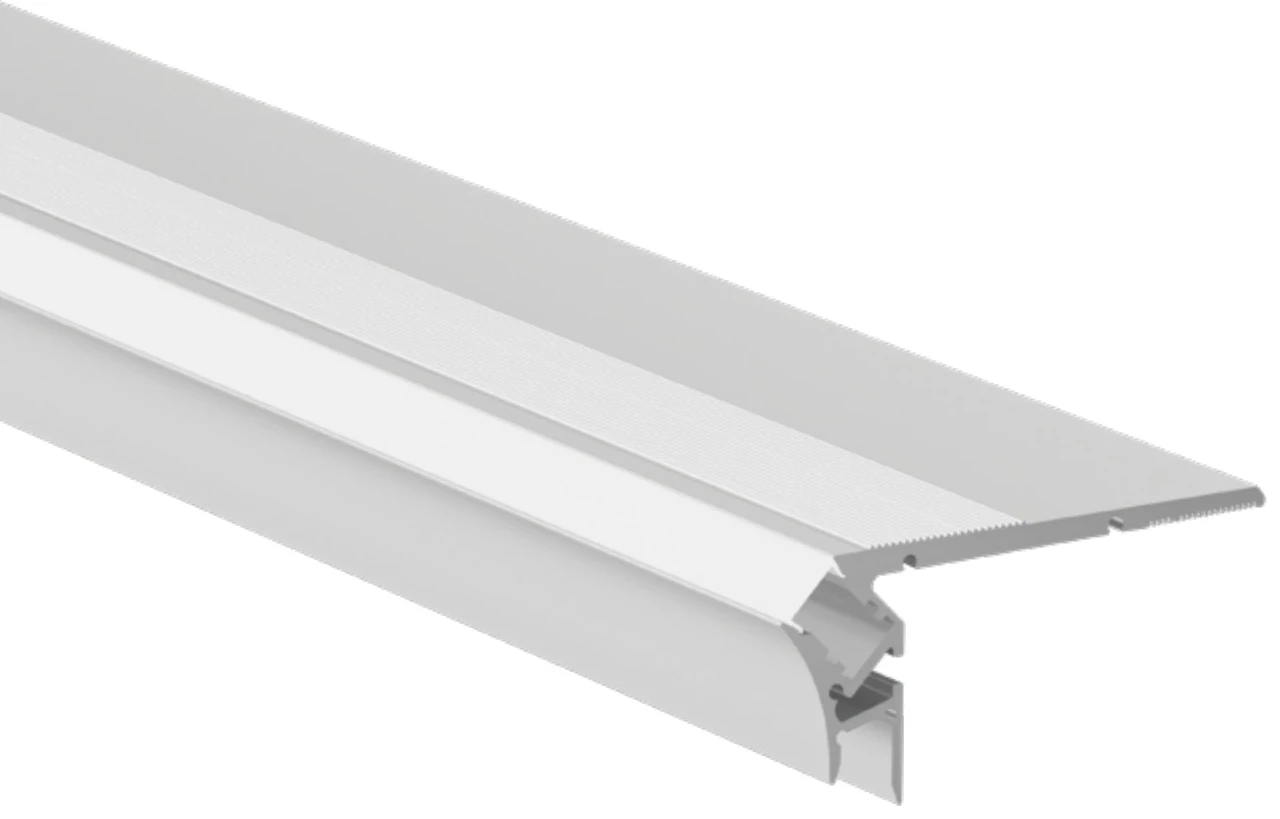

EN-PFL-SSF-S6430 · Surface / skirting · 63.9 × 29.7 mm
Surface
- Dimensions
- 63.9 × 29.7 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Frosted
- LED strip
- 05 mm
- Beam angle
- 120°
Applications
- Skirting lines
- Stair nosings
- Recessed floor slots
- Step risers
- Low coves
- Threshold detail

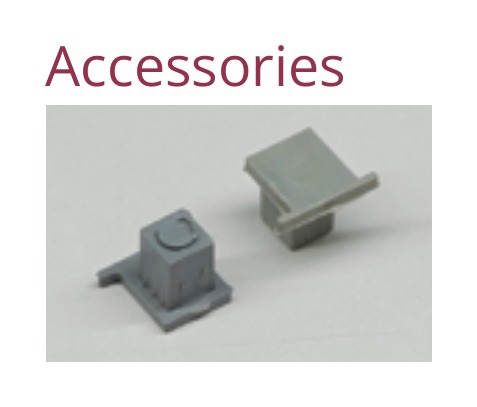

All profiles are AL6063 aluminium extrusion with a choice of diffuser; end caps and mounting clips are supplied as accessories. Cutout figures are the minimum opening in the substrate. Lengths can be cut to order — ask for a cutting list.
