Micro & Furniture Profiles
Model code EN-PFL-MFS-R0609
Slim aluminium channels for furniture, joinery and tight architectural reveals — 30 codes.
Each code shows its extrusion beside its own figures, with the dimensioned cross-section drawn to the right of them. Sorted by series, then ascending by size. Use the filter to jump straight to a code.
The Micro & Furniture range is the smallest section Enlighten Pro extrudes: channels sized to disappear into shelving, wardrobe carcasses, handrails and narrow reveals where a standard profile will not fit. Every code is AL6063 aluminium with a choice of diffuser, and takes a 5, 8 or 10 mm LED strip.
The range 30 codes

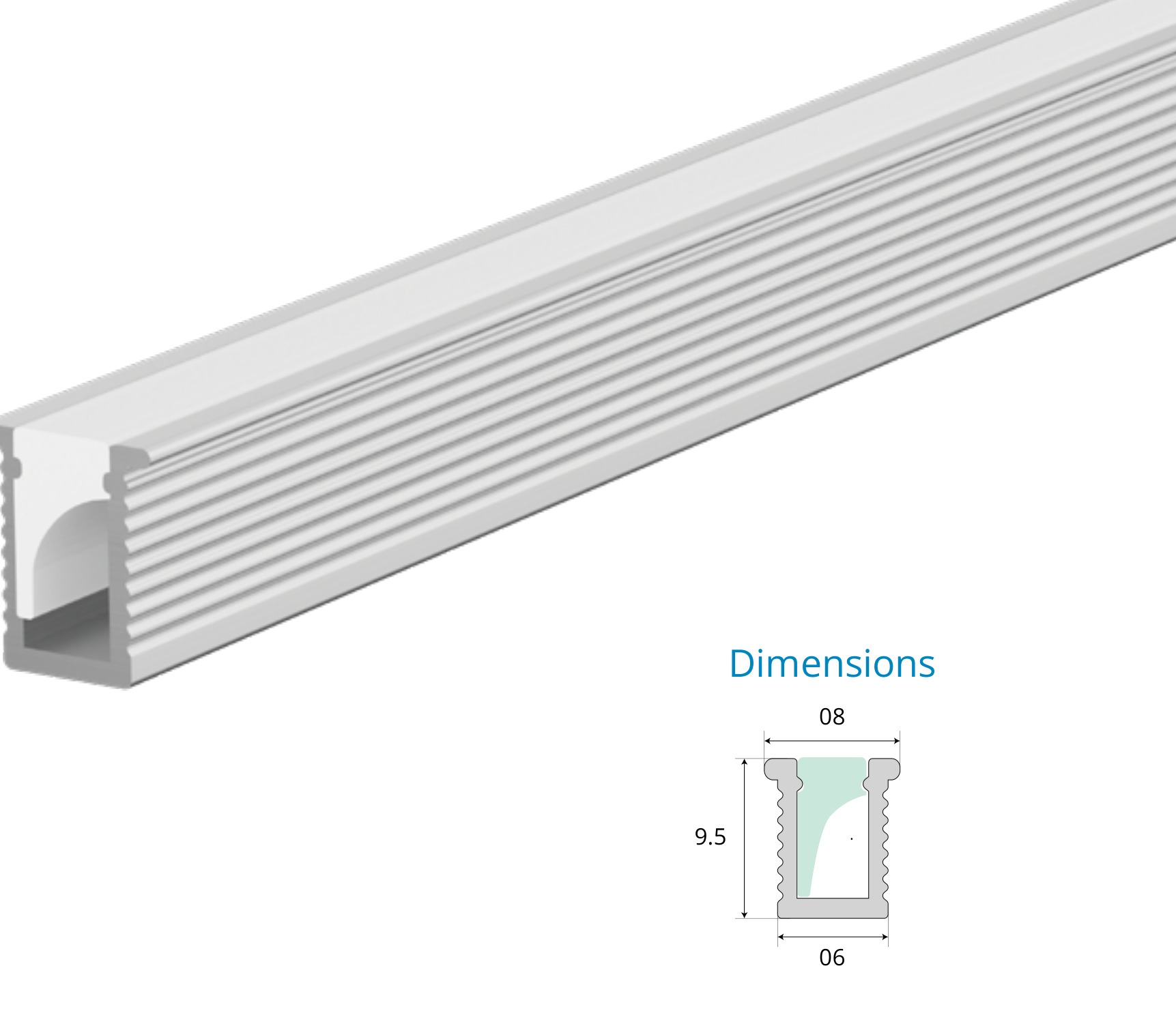

EN-PFL-MFS-R0609
- Cutout
- >06 mm
- Std. length
- 3000 mm
- Diffuser
- Silicone
- LED strip
- 05 mm
- Beam angle
- 120°

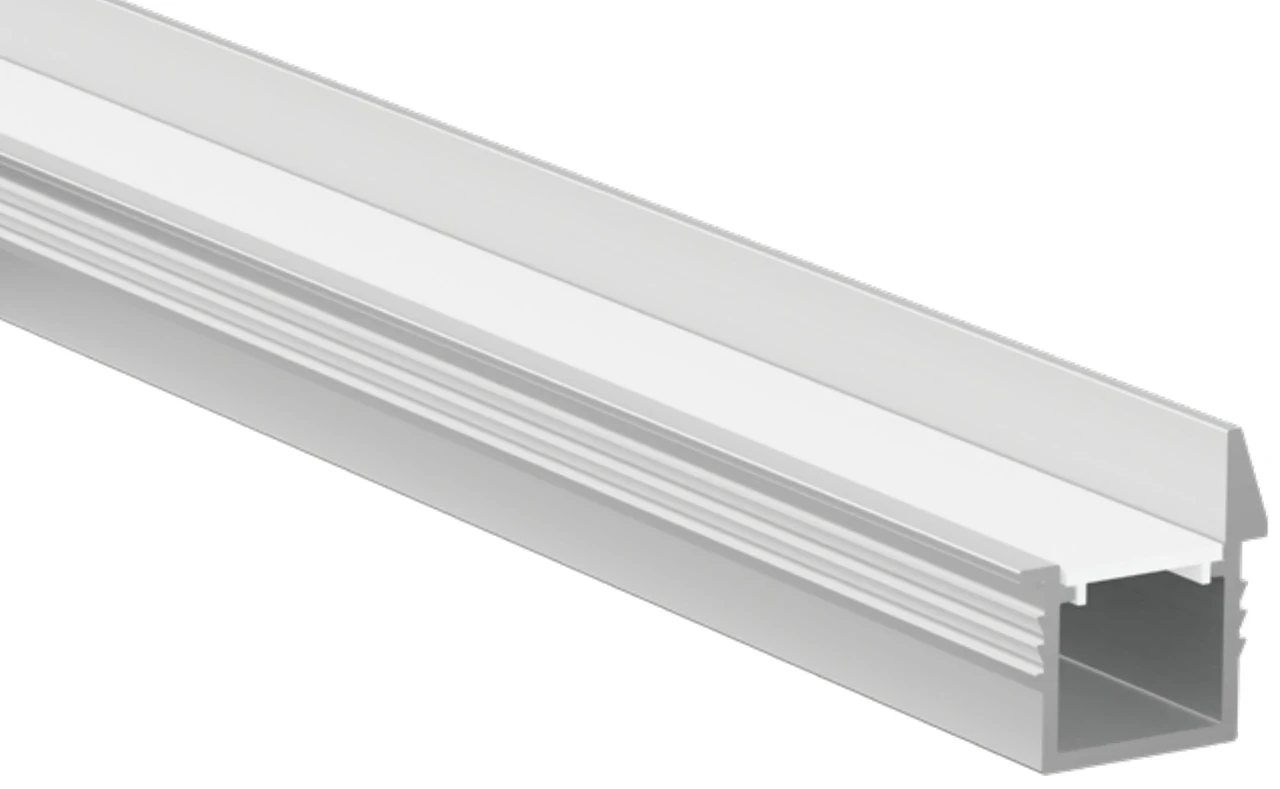

EN-PFL-MFS-R1318
- Cutout
- >13 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

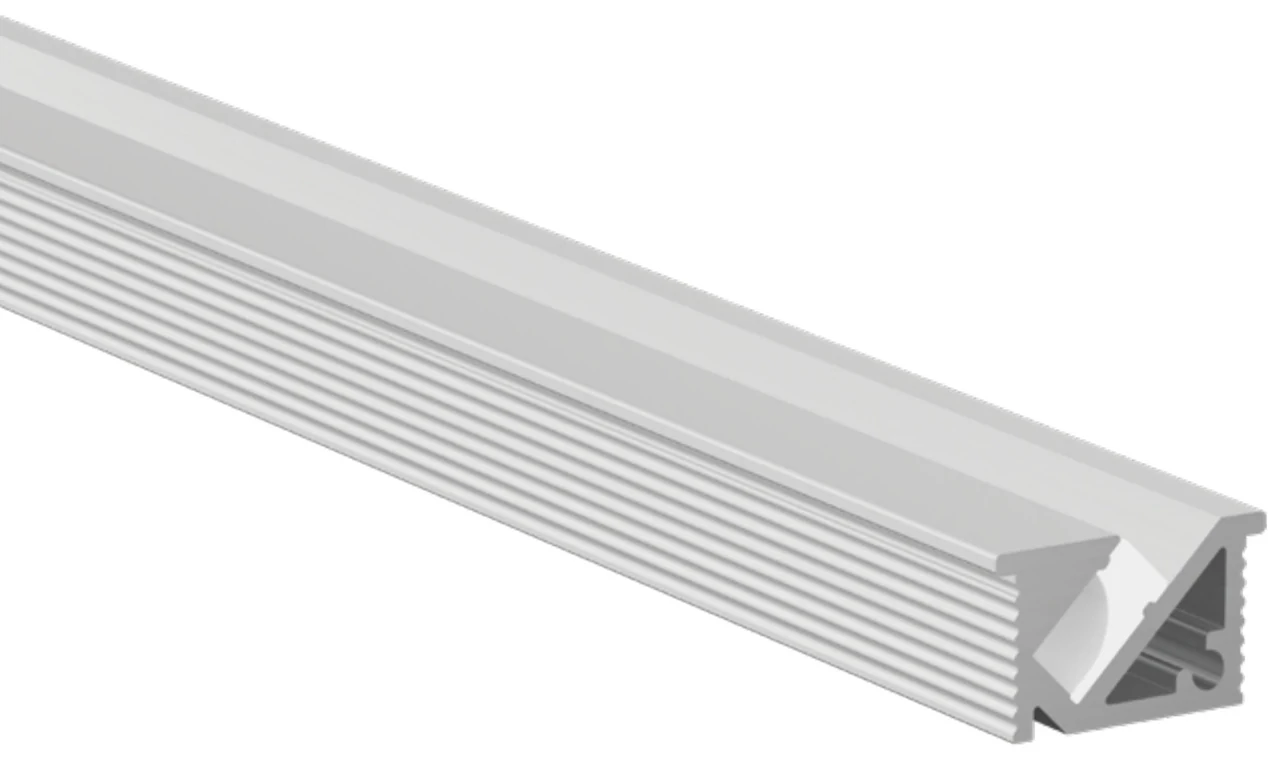

EN-PFL-MFS-R1410
- Cutout
- >14 mm
- Std. length
- 3000 mm
- Diffuser
- Silicone
- LED strip
- 05 mm
- Beam angle
- 120°

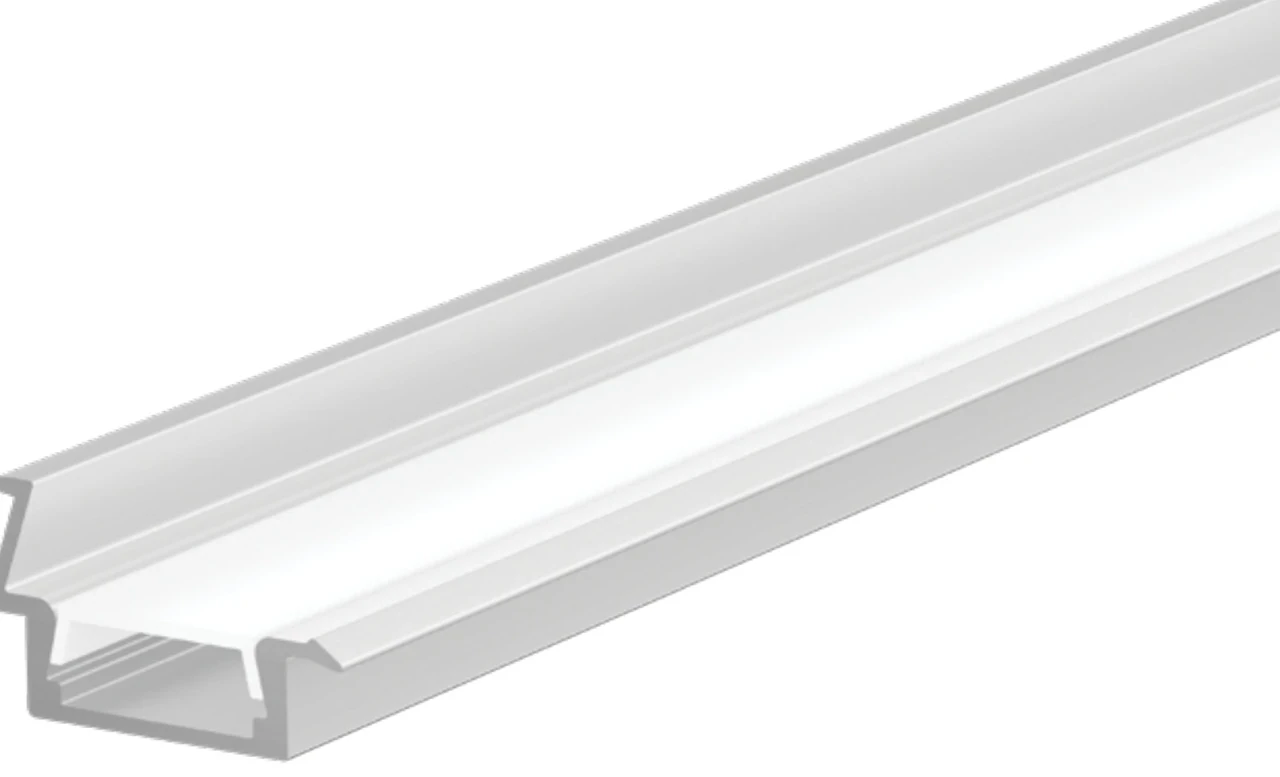

EN-PFL-MFS-R1512
- Cutout
- >18 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

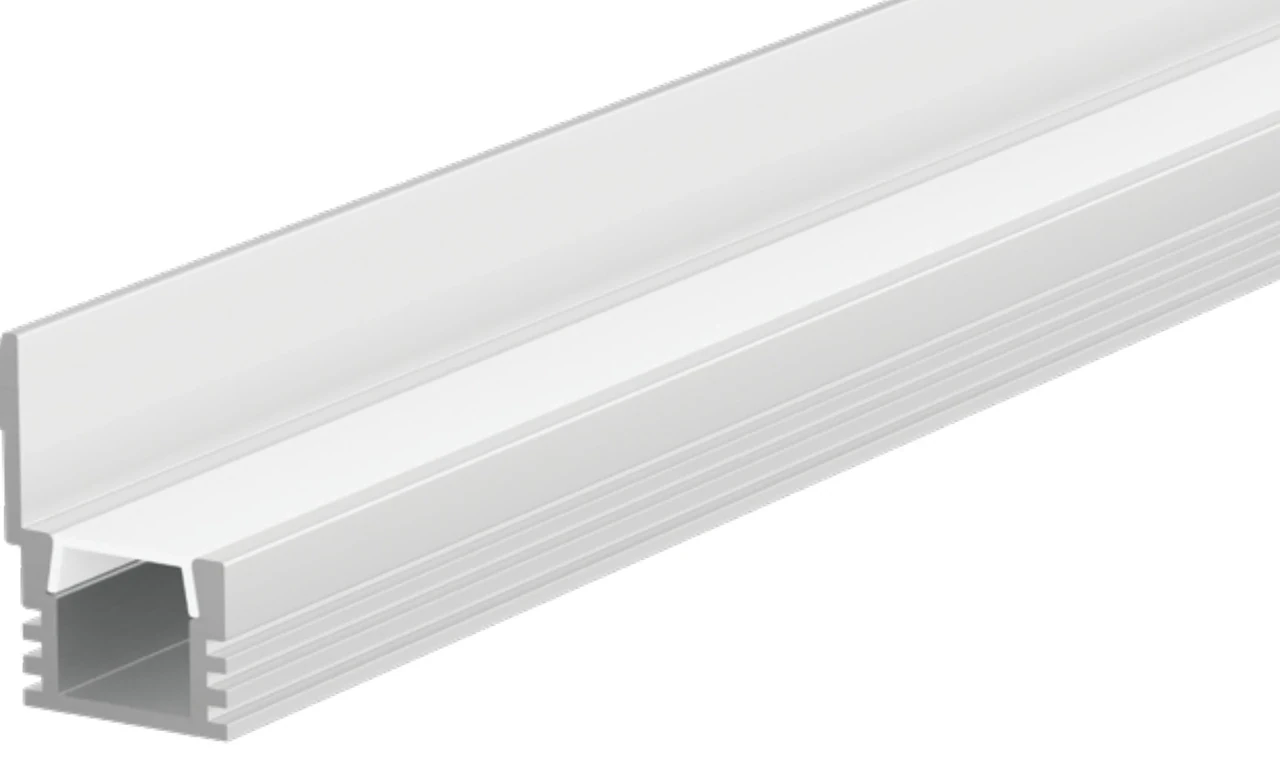

EN-PFL-MFS-R1625
- Cutout
- >16 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 10 mm
- Beam angle
- 120°

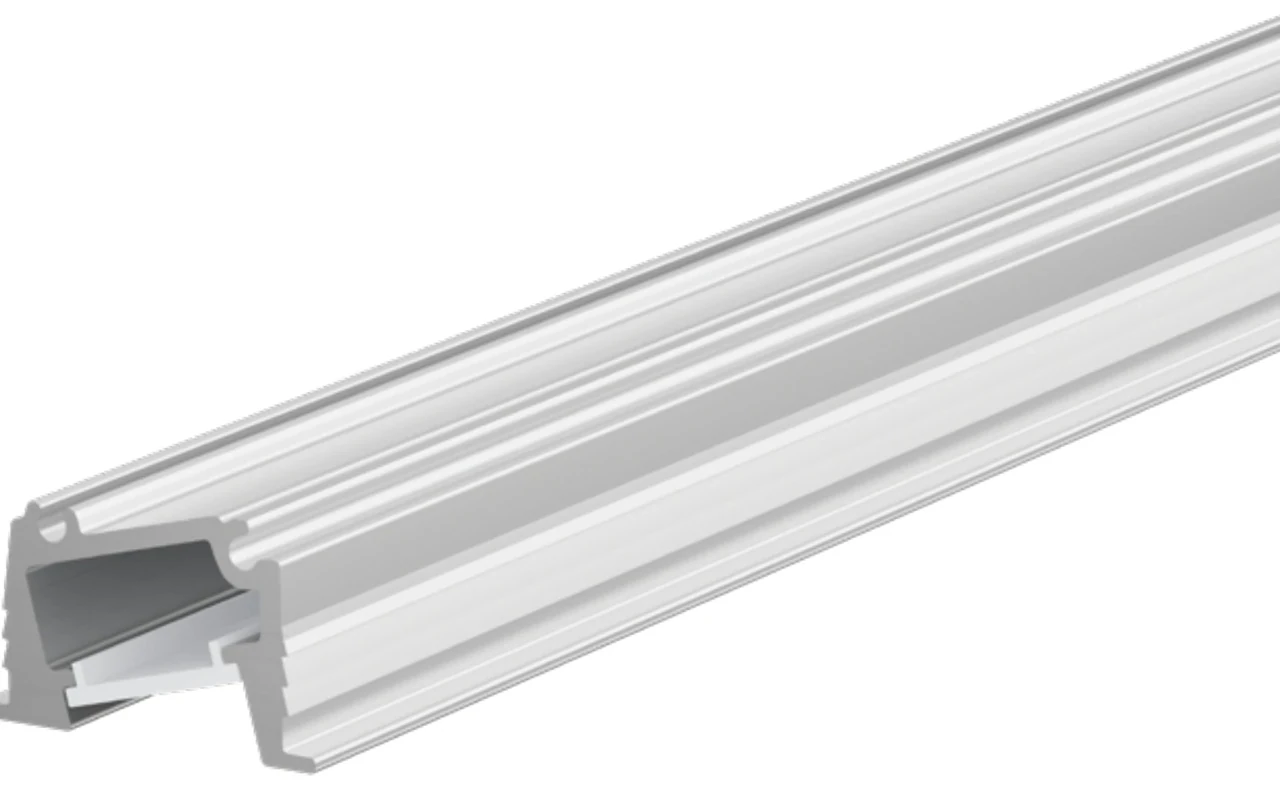

EN-PFL-MFS-R2012
- Cutout
- >16 mm
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 08 mm
- Beam angle
- 120°
EN-PFL-MFS-R2610-122 · Open LED shelf · 26.3 × 10 mm
- Cutout
- >23 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 05 mm
- Beam angle
- 120°

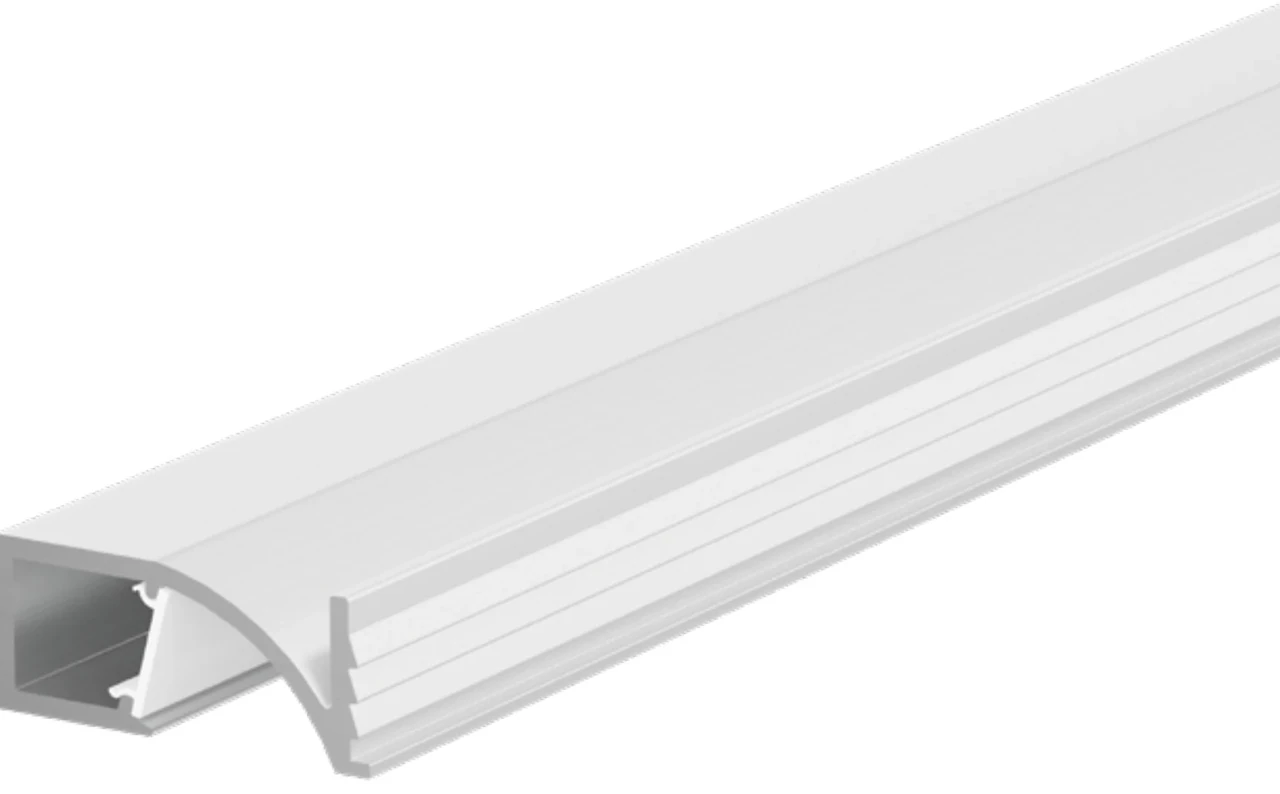

EN-PFL-MFS-R2610-206 · Enclosed LED chamber · 26.2 × 10.1 mm
- Cutout
- >23 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 05 mm
- Beam angle
- 120°

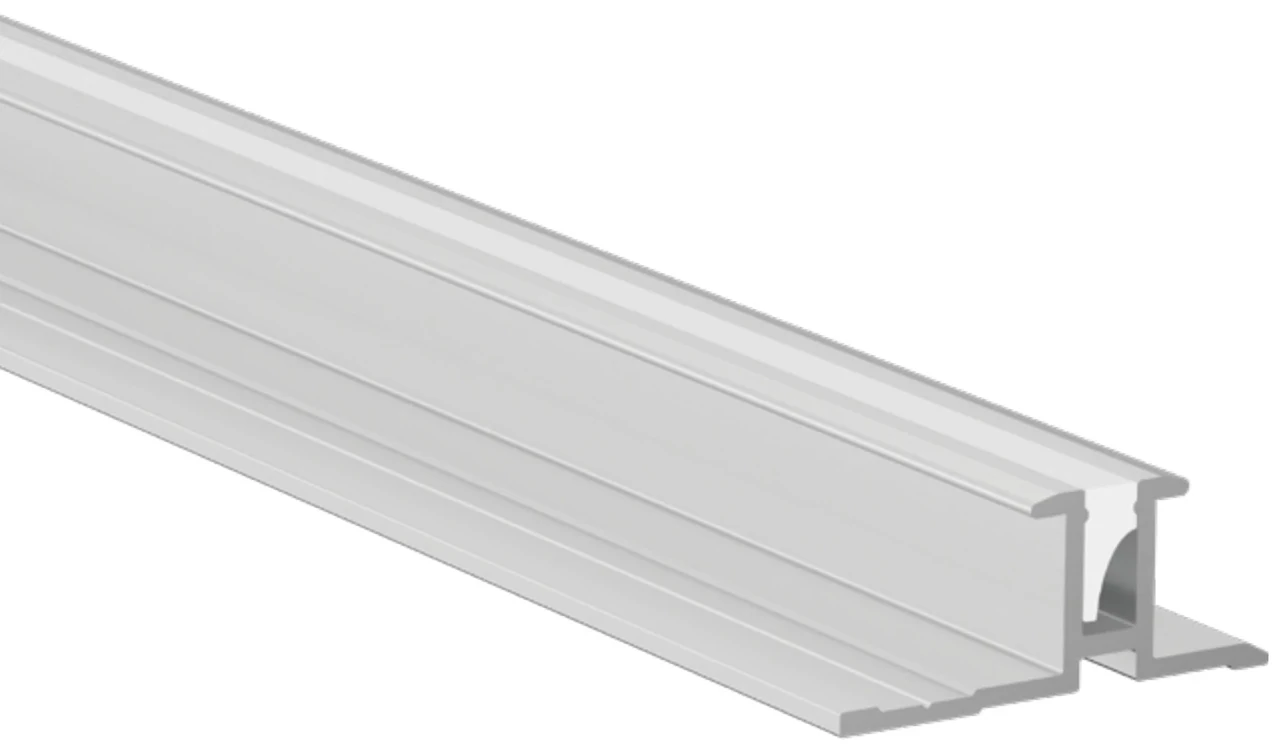

EN-PFL-MFS-R3012
- Std. length
- 3000 mm
- Diffuser
- Silicone
- LED strip
- 05 mm
- Beam angle
- 120°

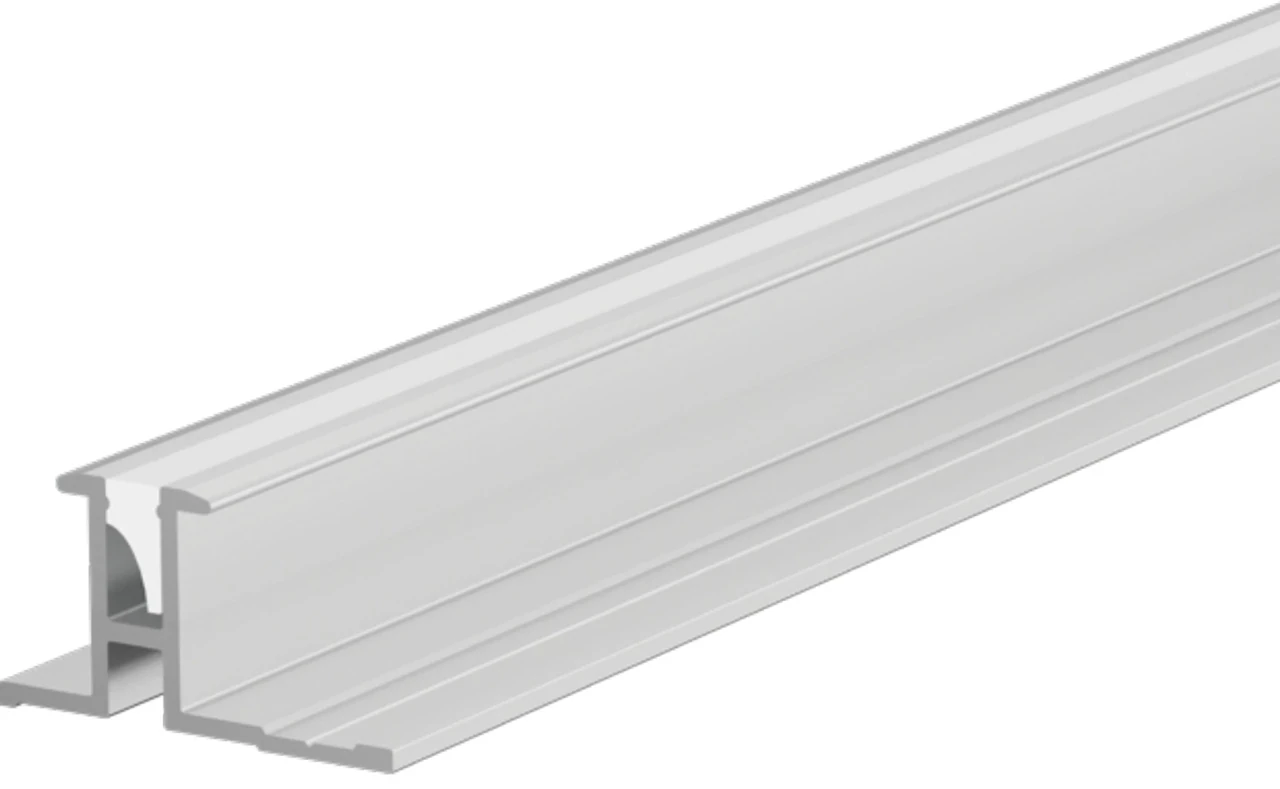

EN-PFL-MFS-R3015
- Std. length
- 3000 mm
- Diffuser
- Silicone
- LED strip
- 05 mm
- Beam angle
- 120°

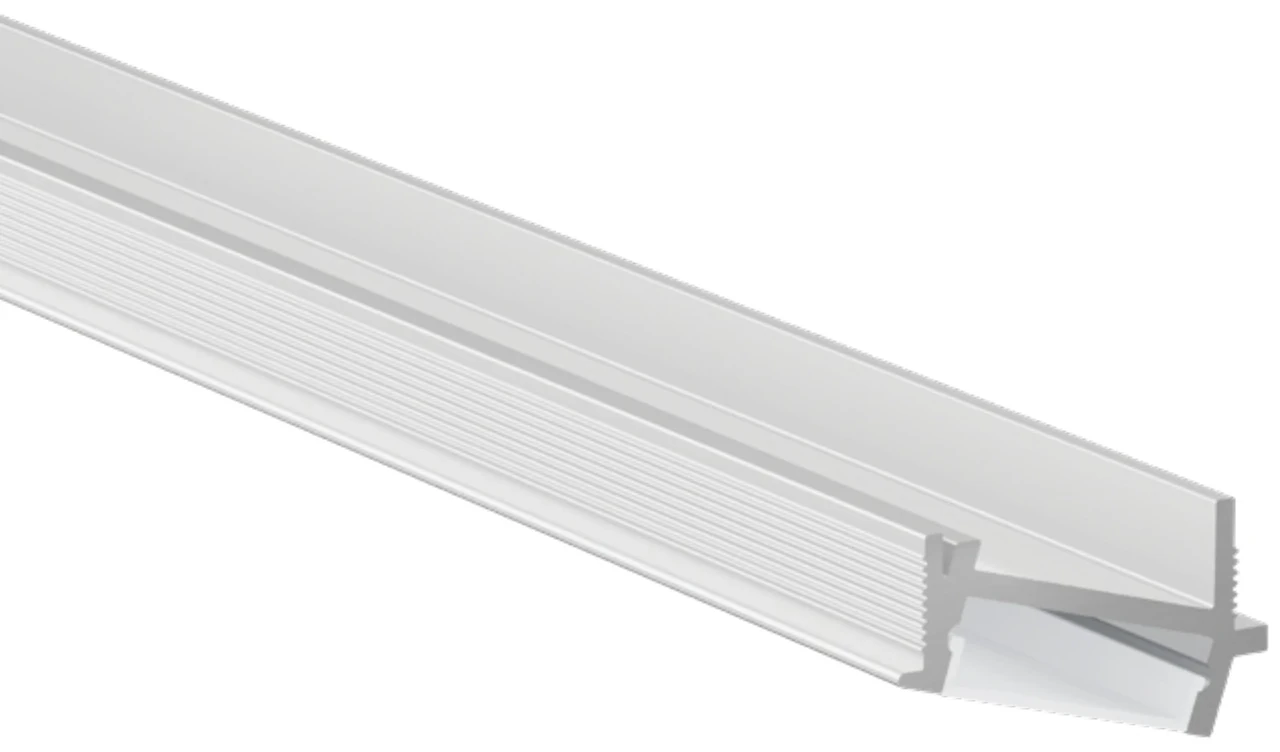

EN-PFL-MFS-R3017
- Cutout
- >25 mm
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

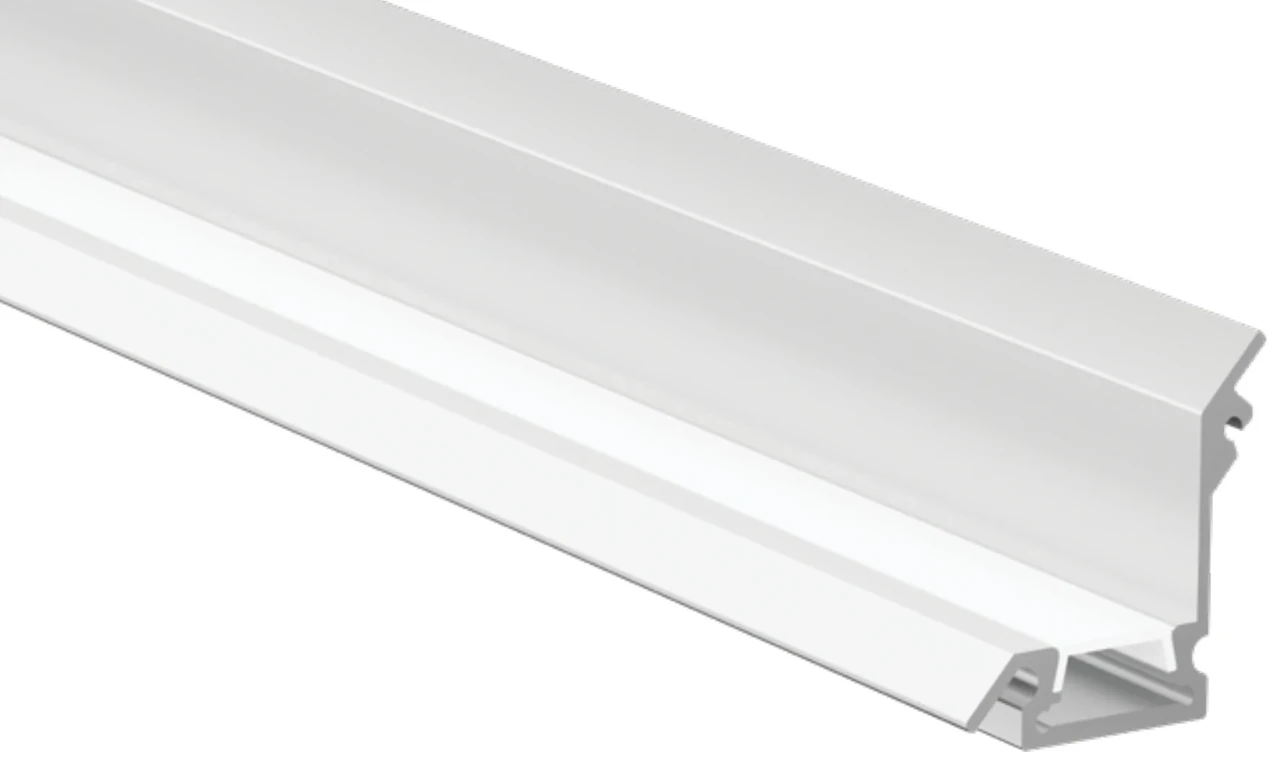

EN-PFL-MFS-R3134
- Cutout
- >36 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

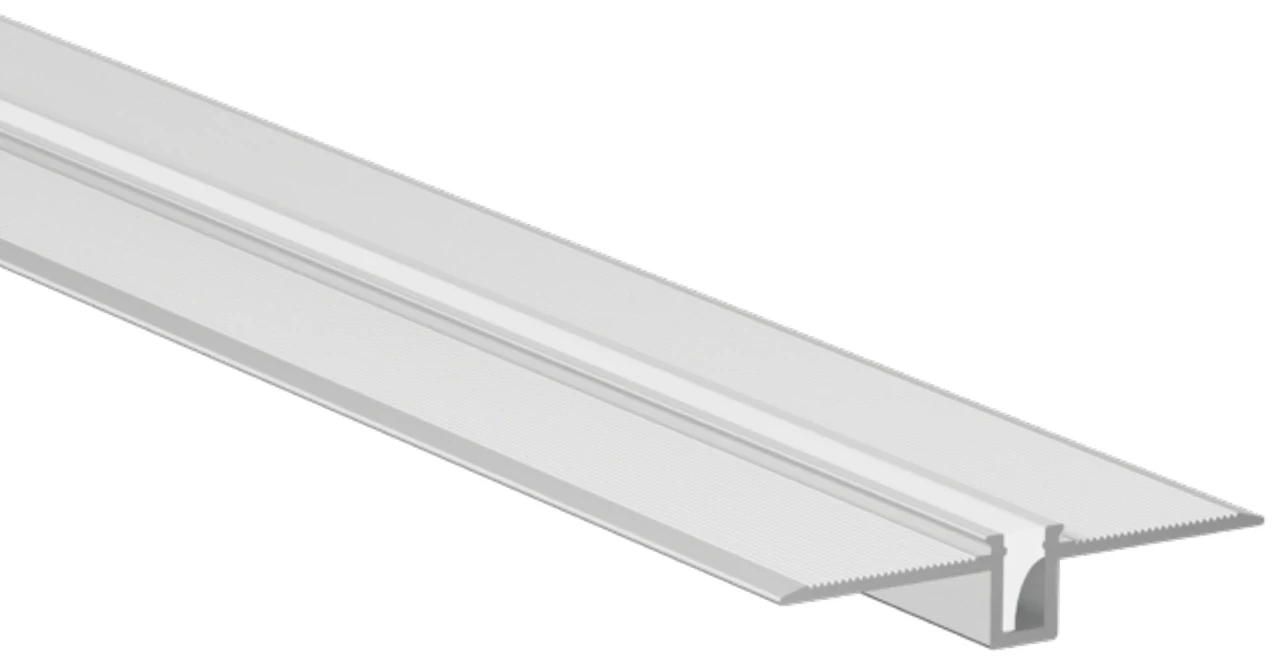

EN-PFL-MFS-R4609
- Cutout
- >07 mm
- Std. length
- 3000 mm
- Diffuser
- PC
- LED strip
- 05 mm
- Beam angle
- 120°

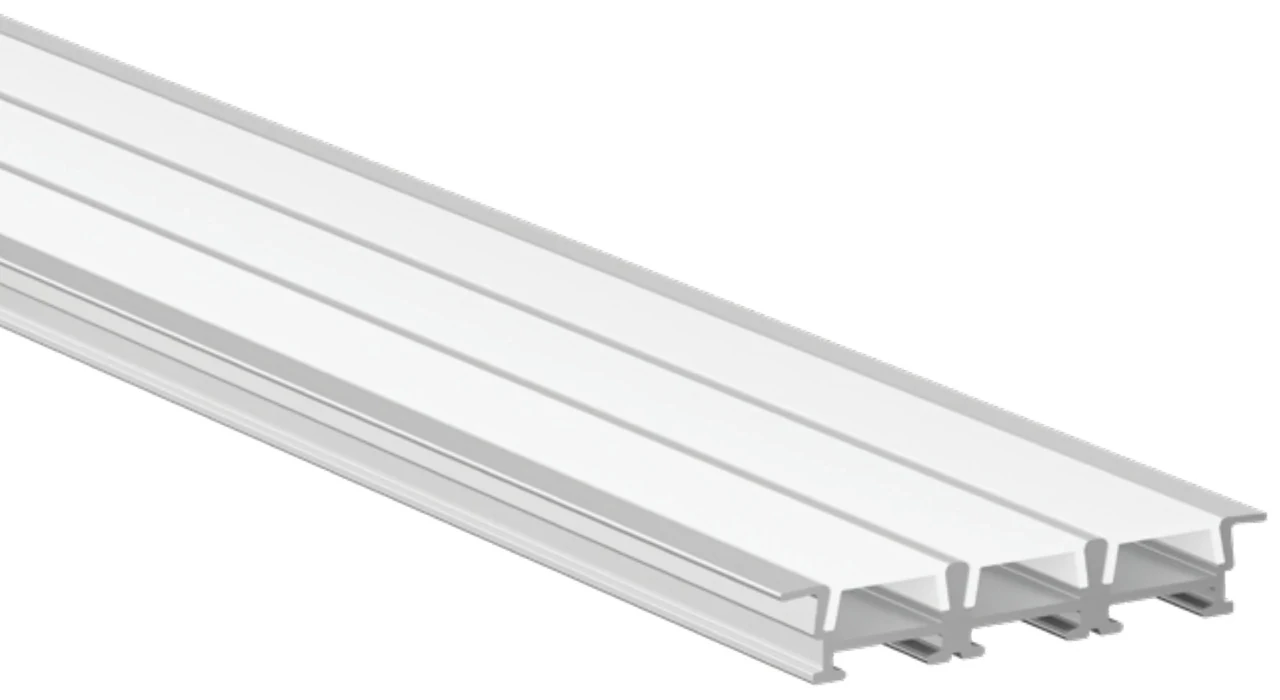

EN-PFL-MFS-R5109
- Cutout
- >44 mm
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

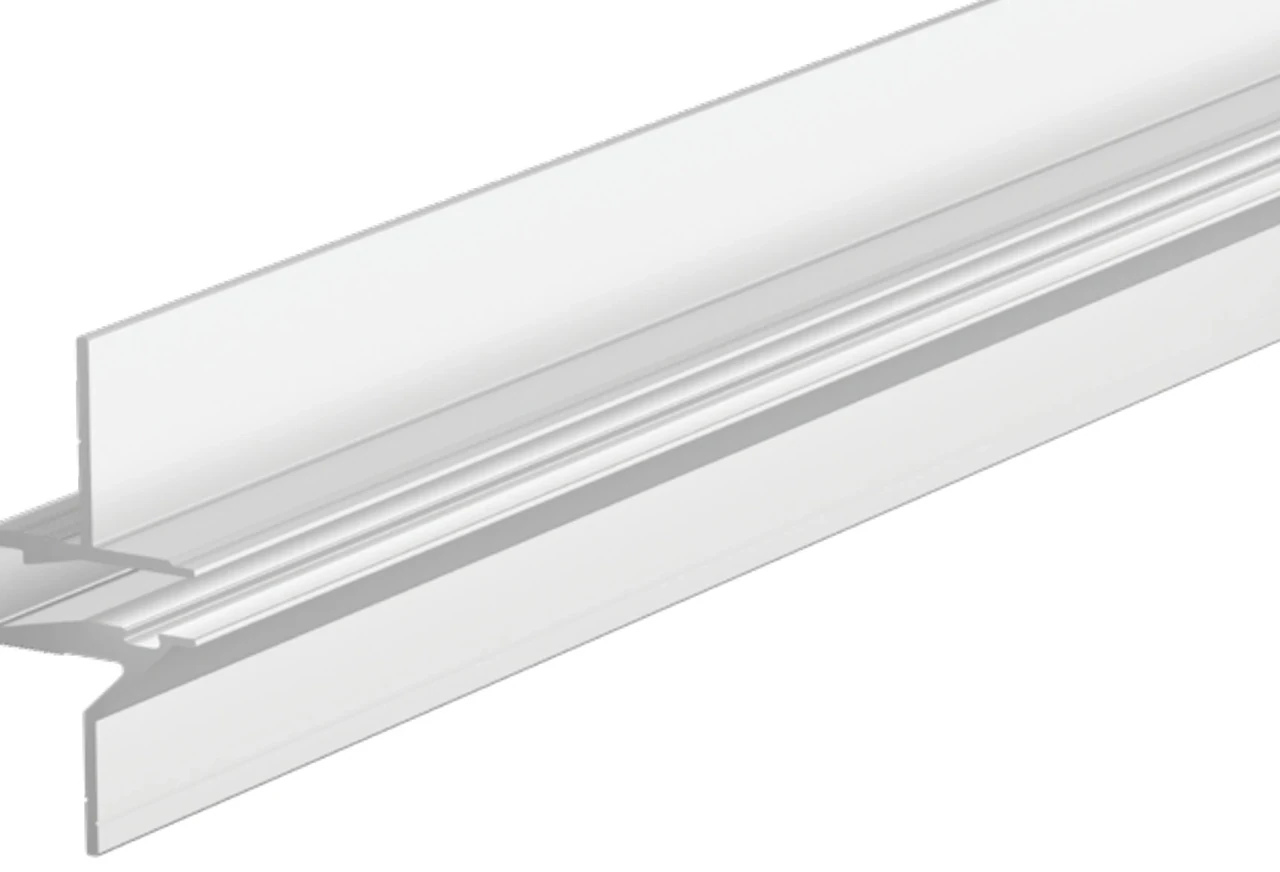

EN-PFL-MFS-R7034
- Cutout
- >15 mm
- Std. length
- 3600 mm
- LED strip
- 05 mm
- Beam angle
- 120°

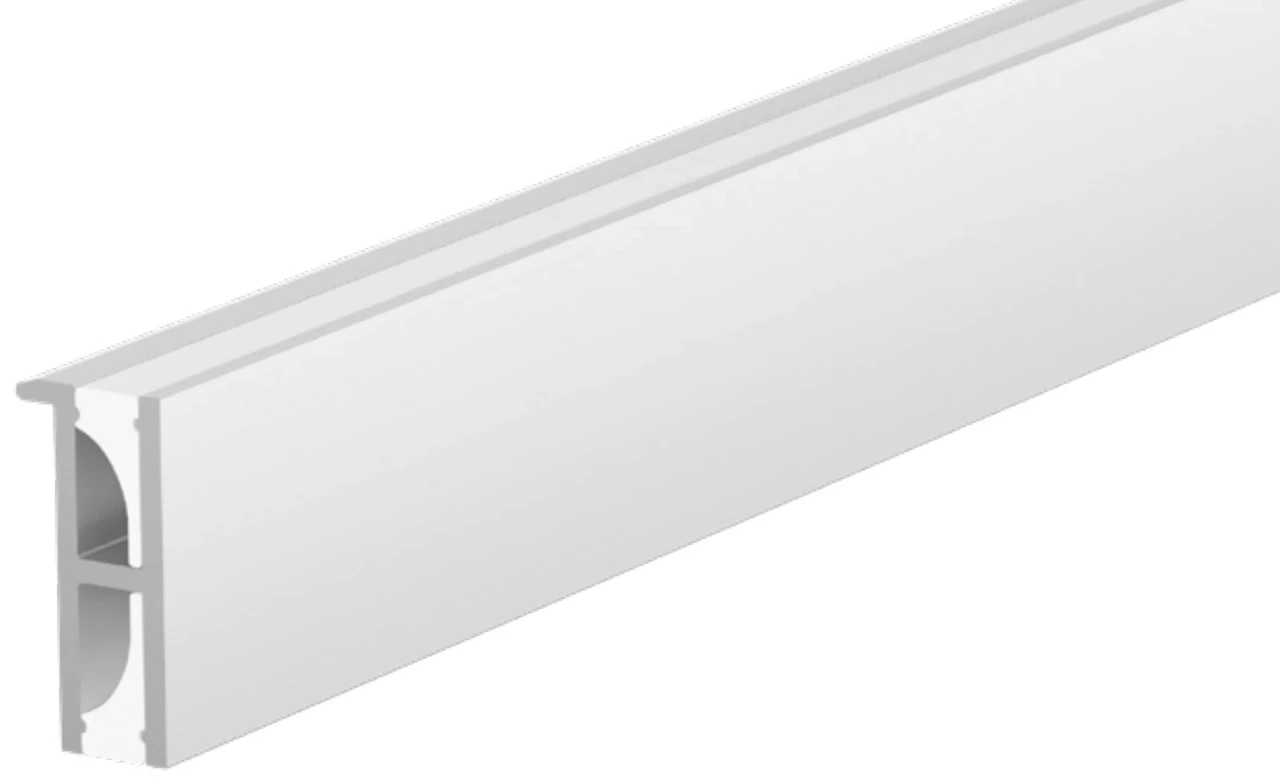

EN-PFL-MFS-S0619
- Std. length
- 3000 mm
- Diffuser
- Silicone
- LED strip
- 05 mm
- Beam angle
- 120°

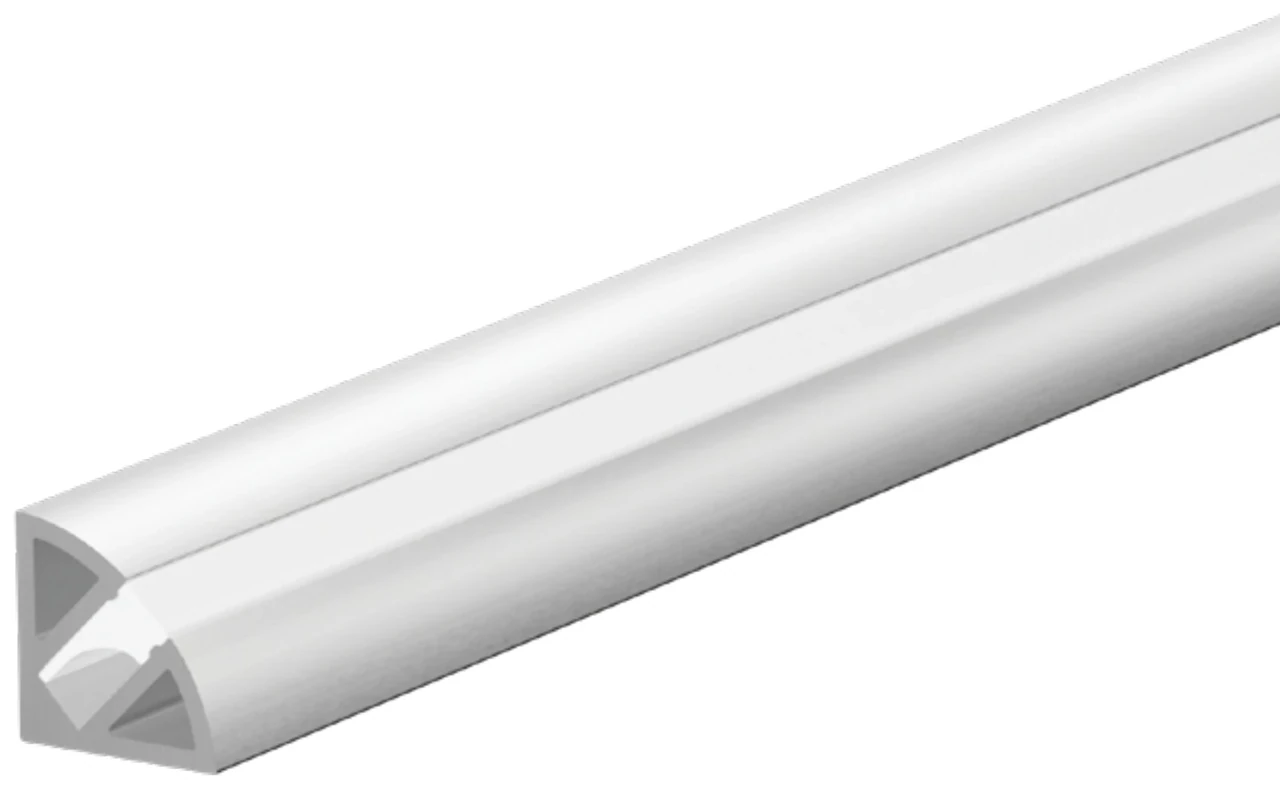

EN-PFL-MFS-S1313
- Std. length
- 3000 mm
- Diffuser
- Silicone
- LED strip
- 05 mm
- Beam angle
- 120°

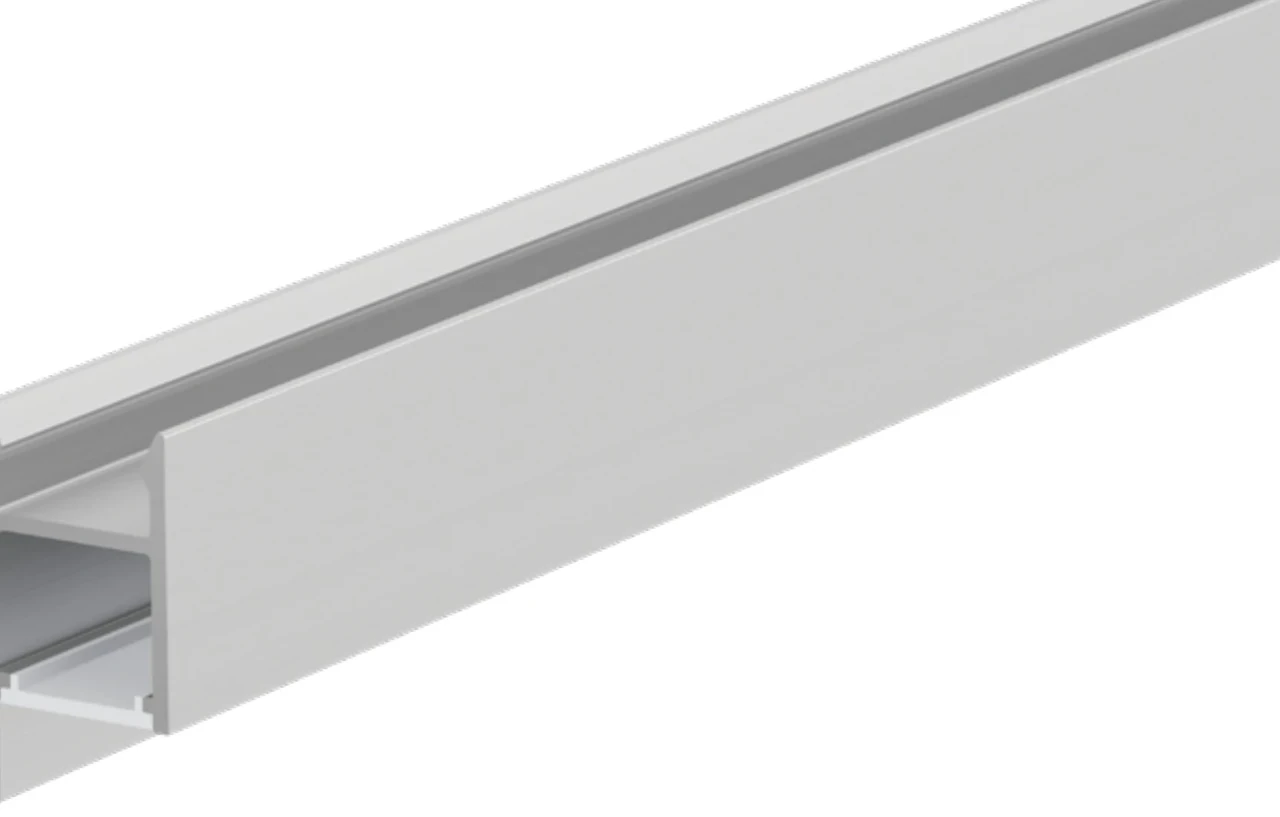

EN-PFL-MFS-S1324
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

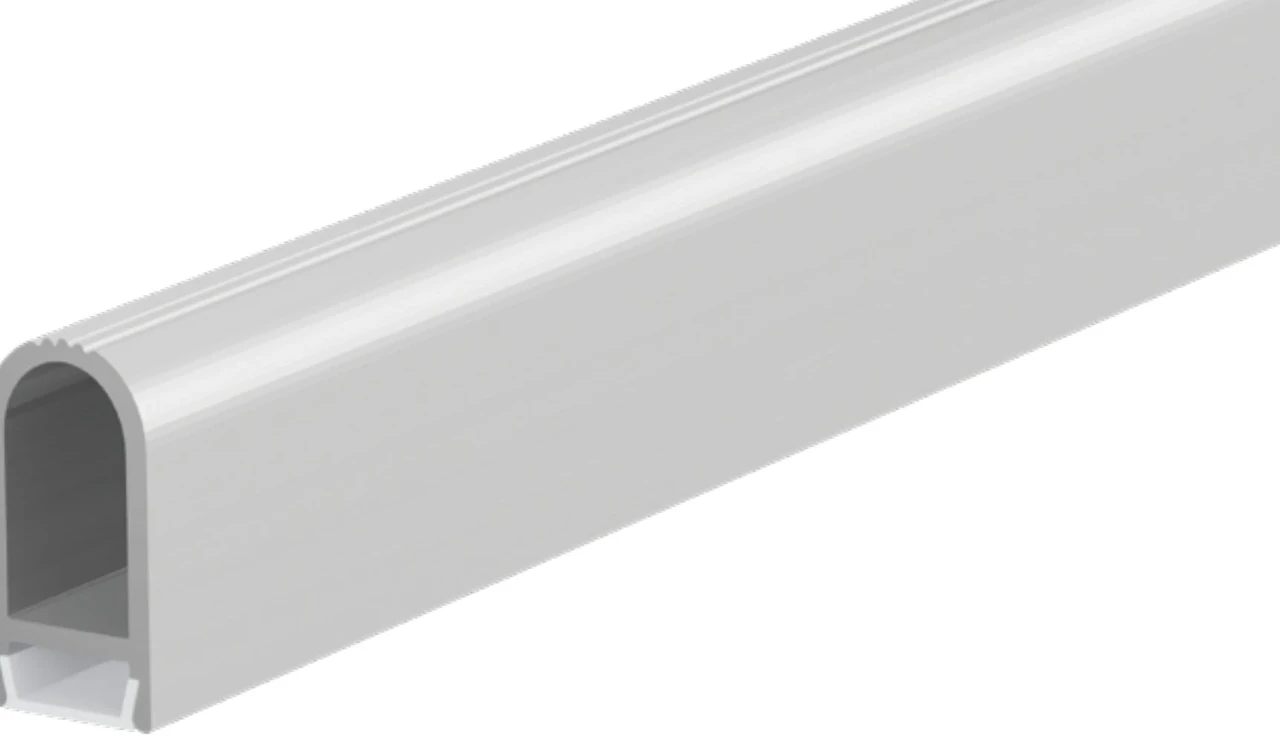

EN-PFL-MFS-S1530
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

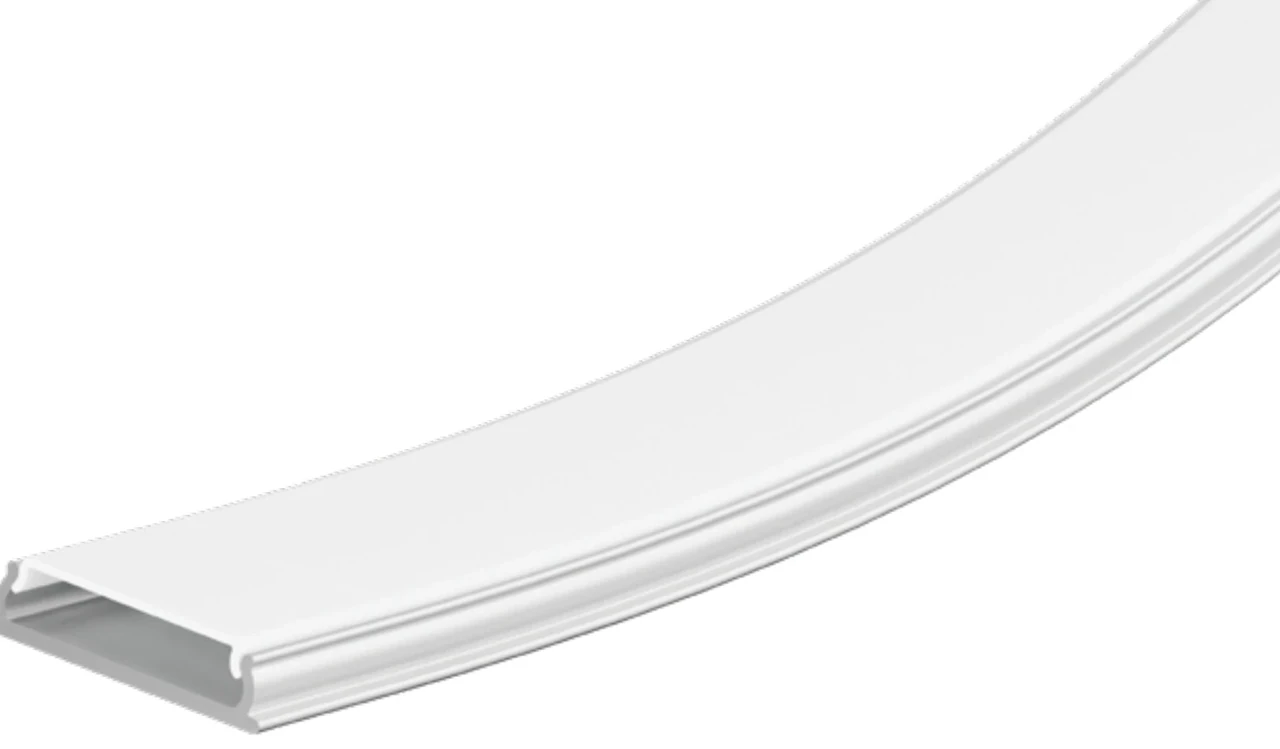

EN-PFL-MFS-S1806
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

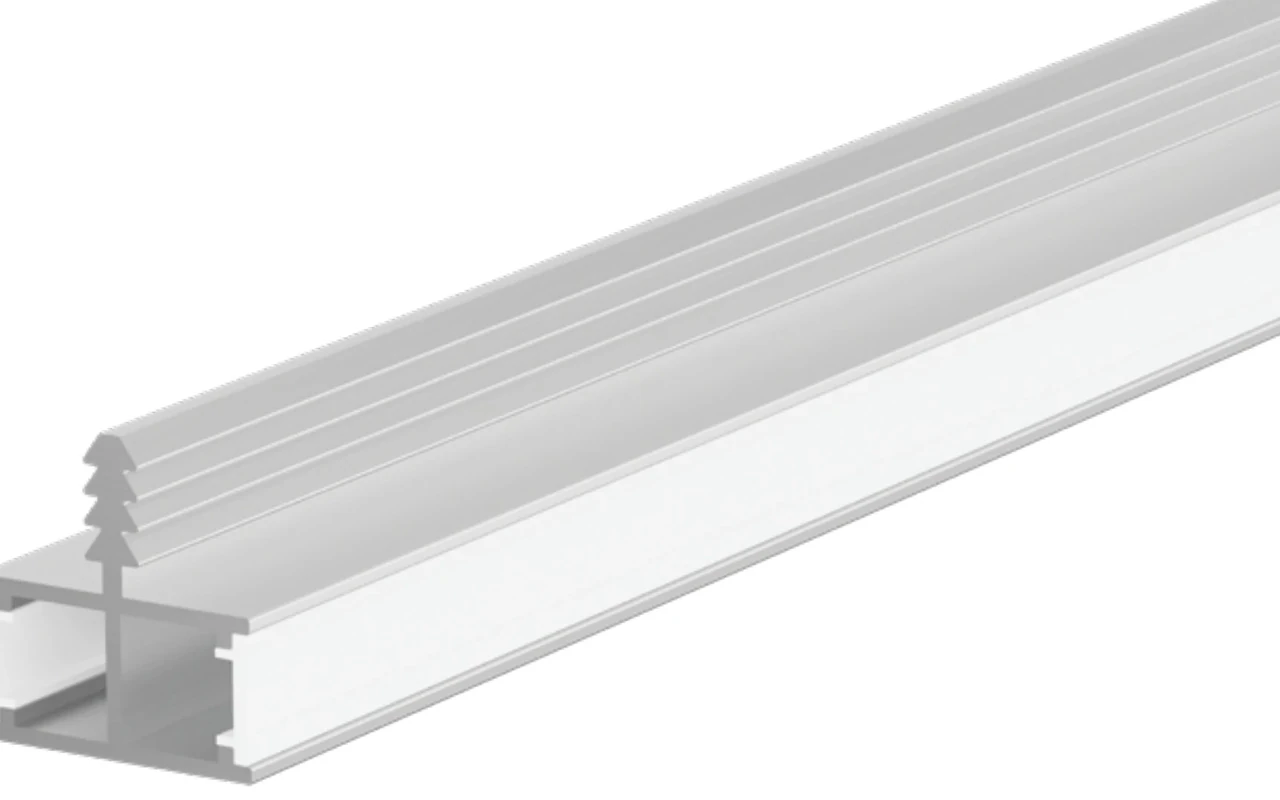

EN-PFL-MFS-S1920
- Std. length
- 3000 mm
- Diffuser
- Frosted
- LED strip
- 05 mm
- Beam angle
- 120°

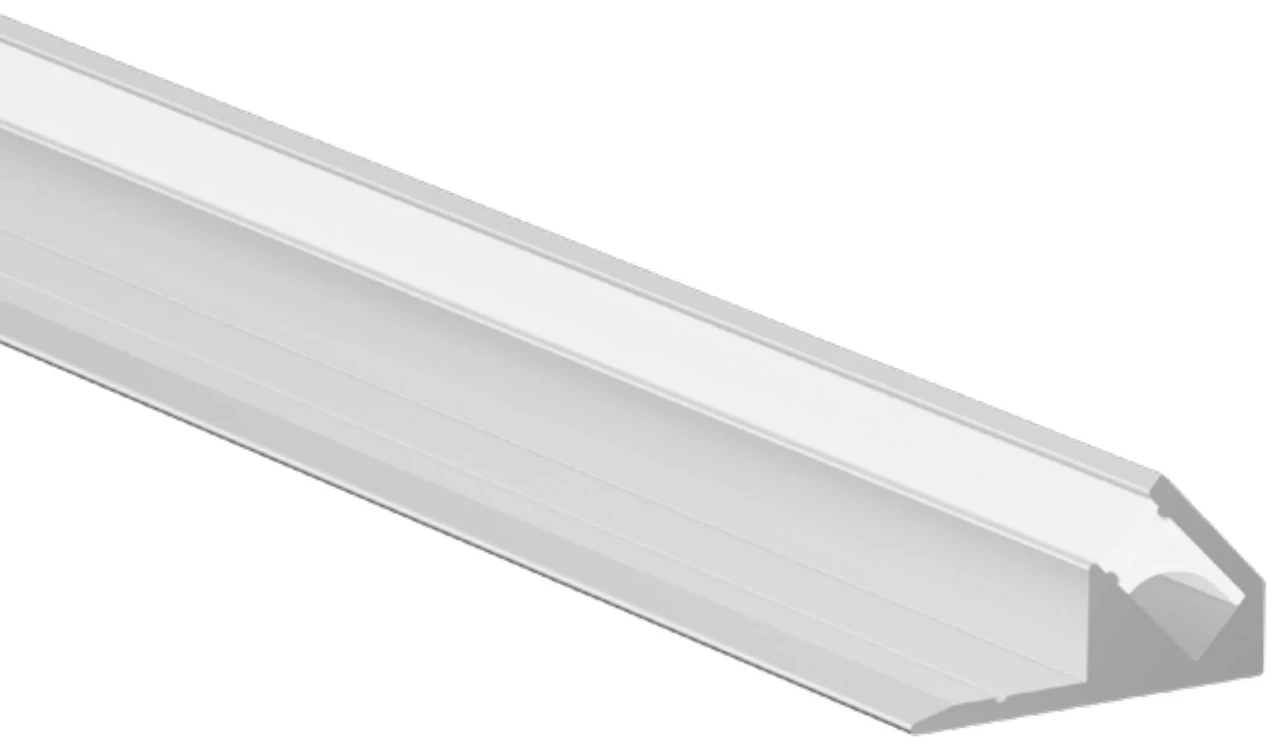

EN-PFL-MFS-S2010
- Std. length
- 3000 mm
- Diffuser
- Silicone
- LED strip
- 05 mm
- Beam angle
- 120°

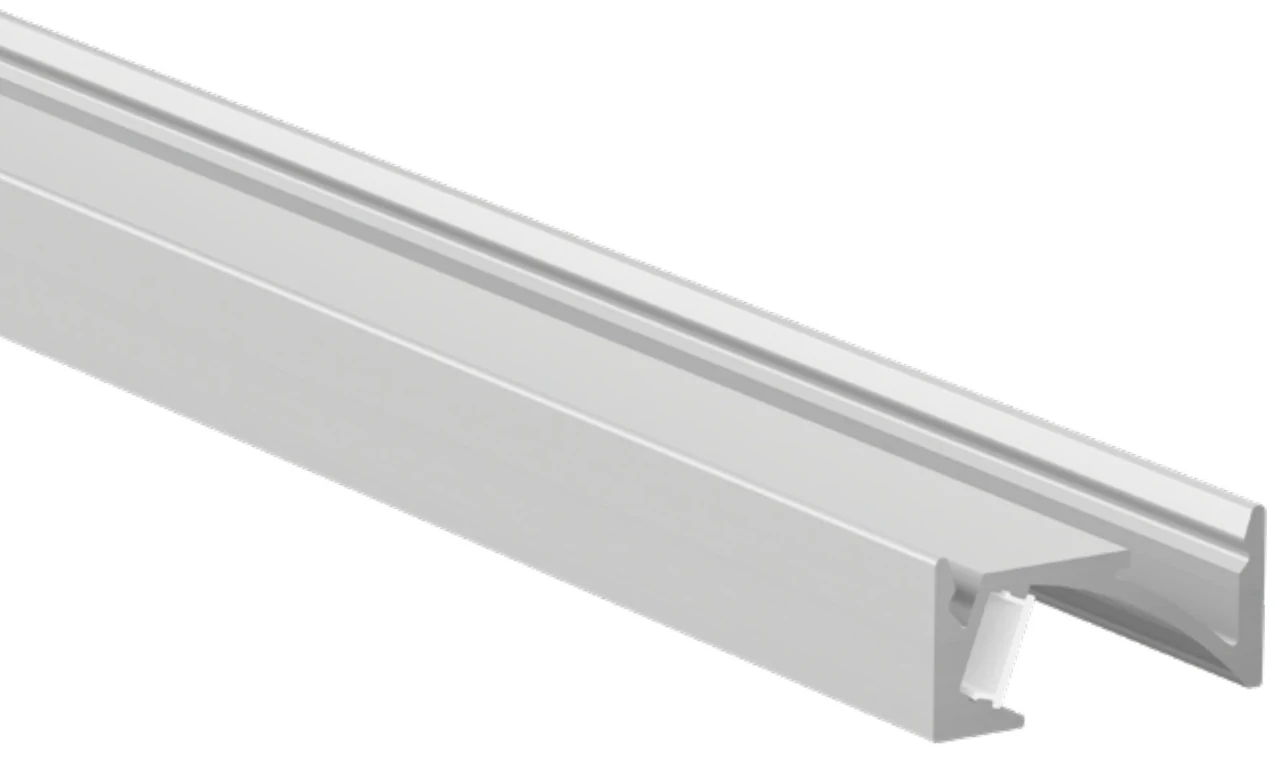

EN-PFL-MFS-S2110
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 05 mm
- Beam angle
- Asymmetric

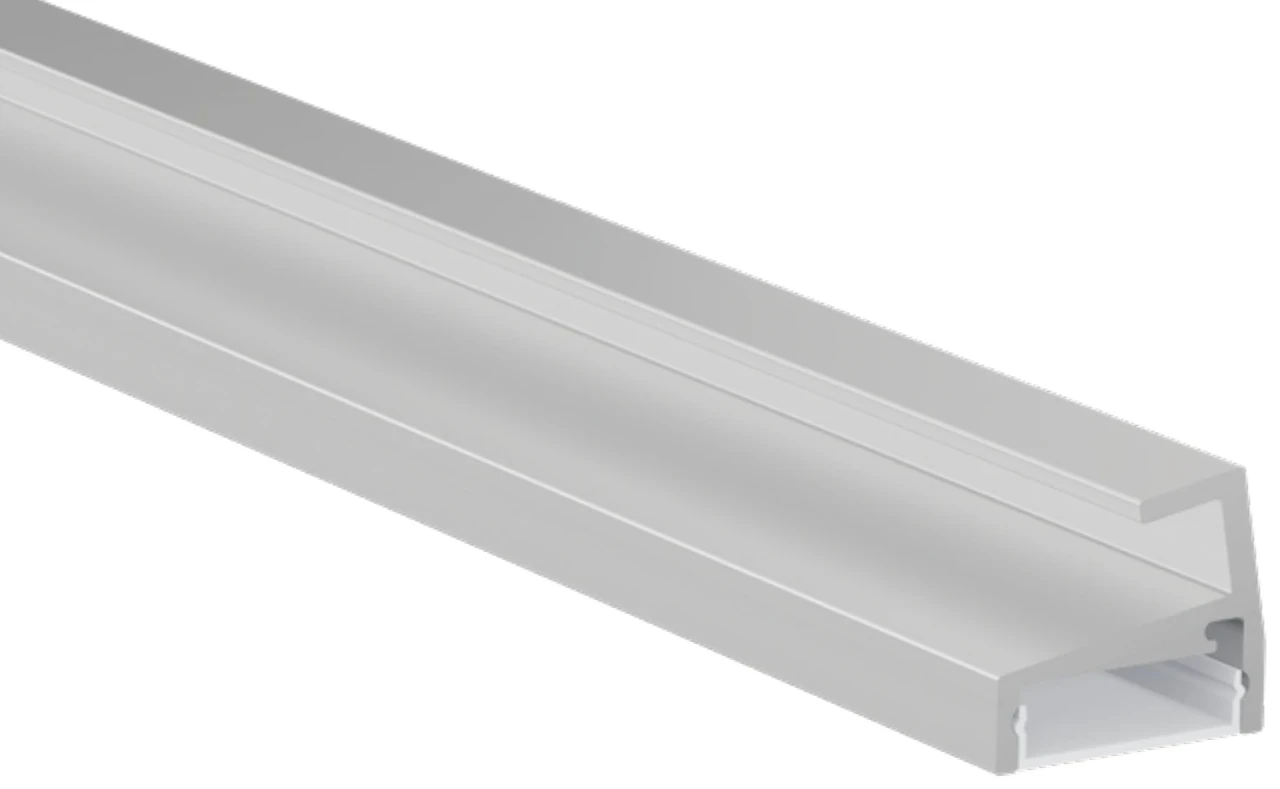

EN-PFL-MFS-S2622
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

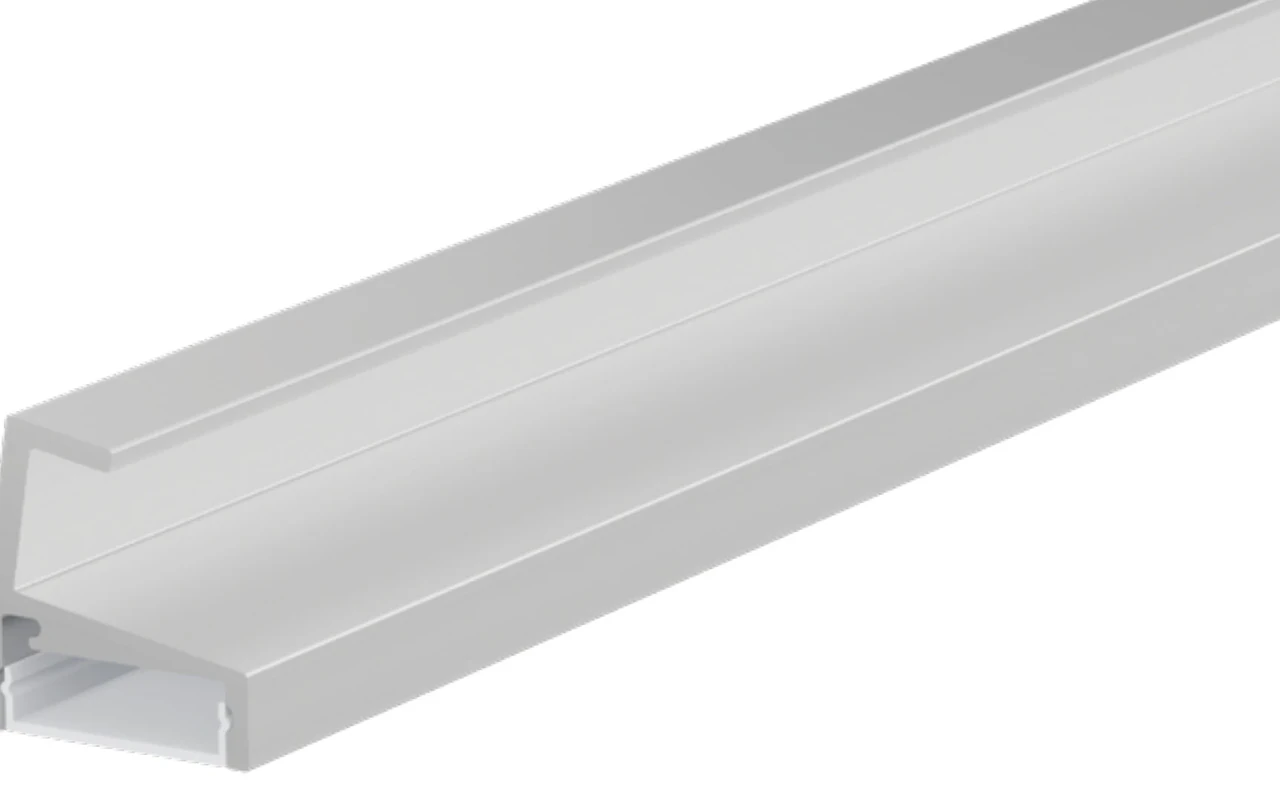

EN-PFL-MFS-S2626
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

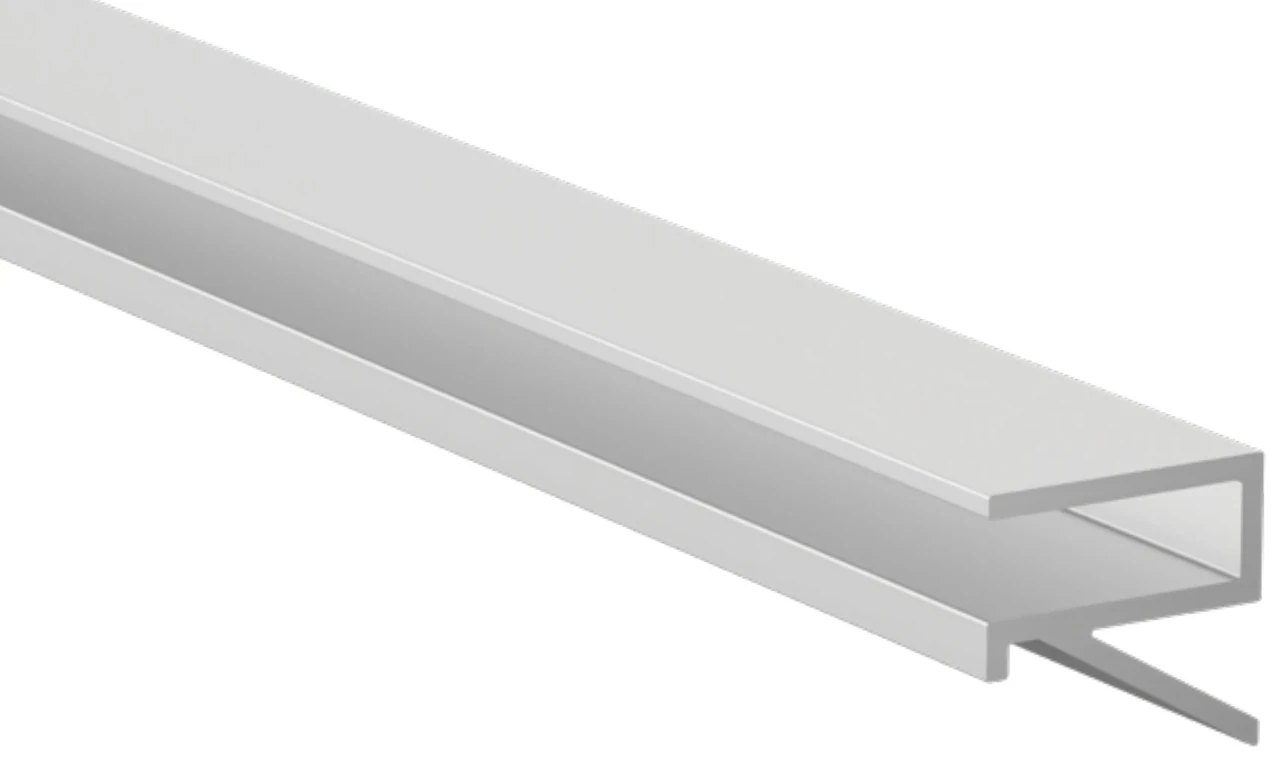

EN-PFL-MFS-S3230
- Std. length
- 3600 mm
- LED strip
- 05 mm
- Beam angle
- 120°

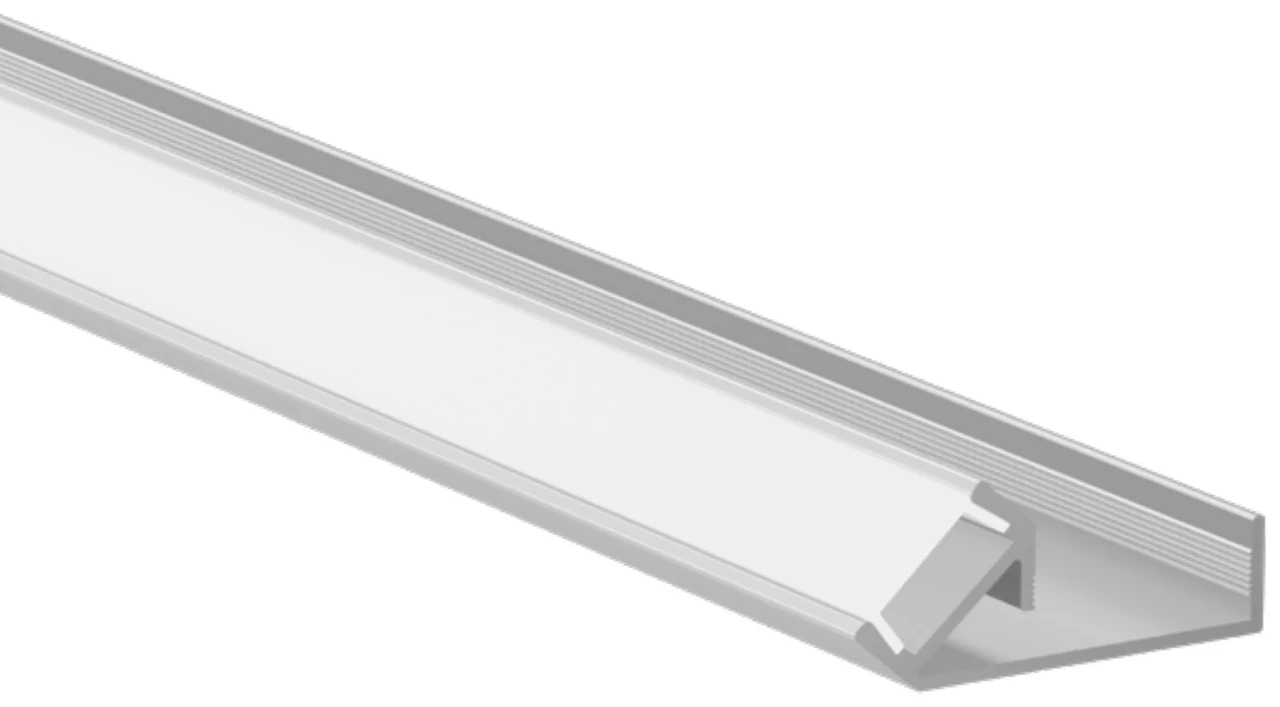

EN-PFL-MFS-S3416-043
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

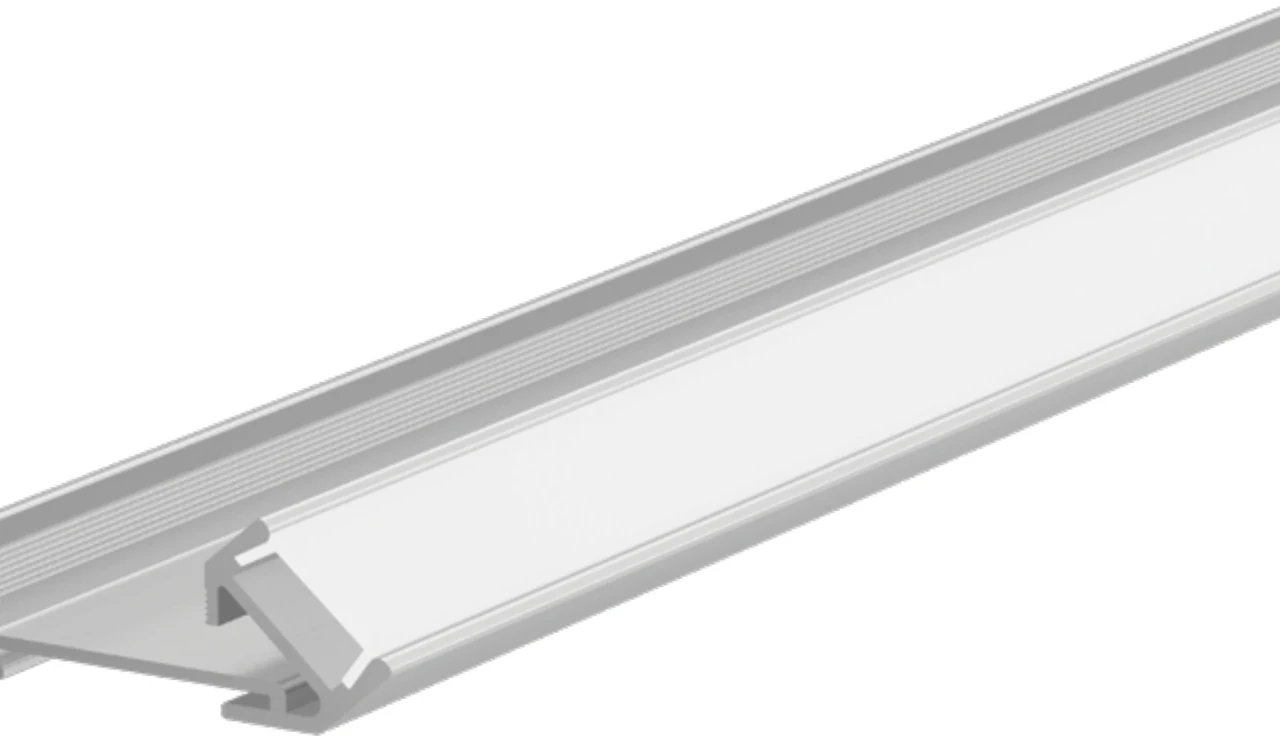

EN-PFL-MFS-S3416-044
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

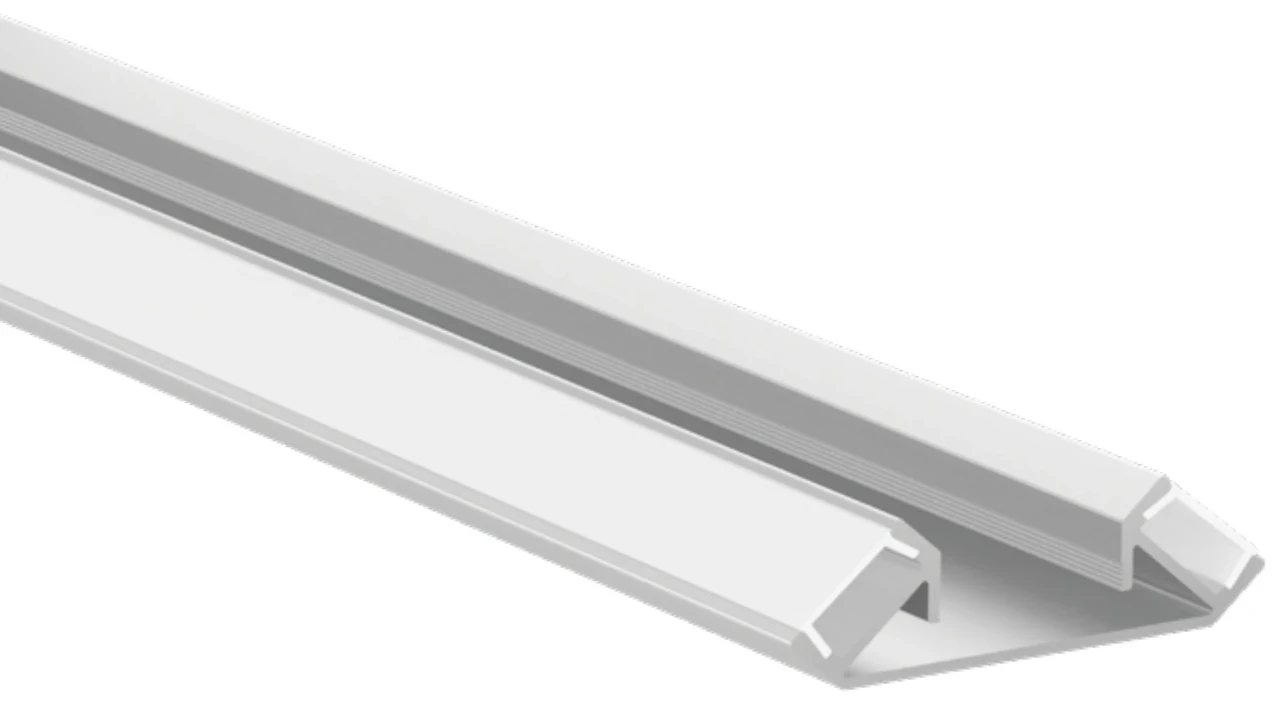

EN-PFL-MFS-S4716-045
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

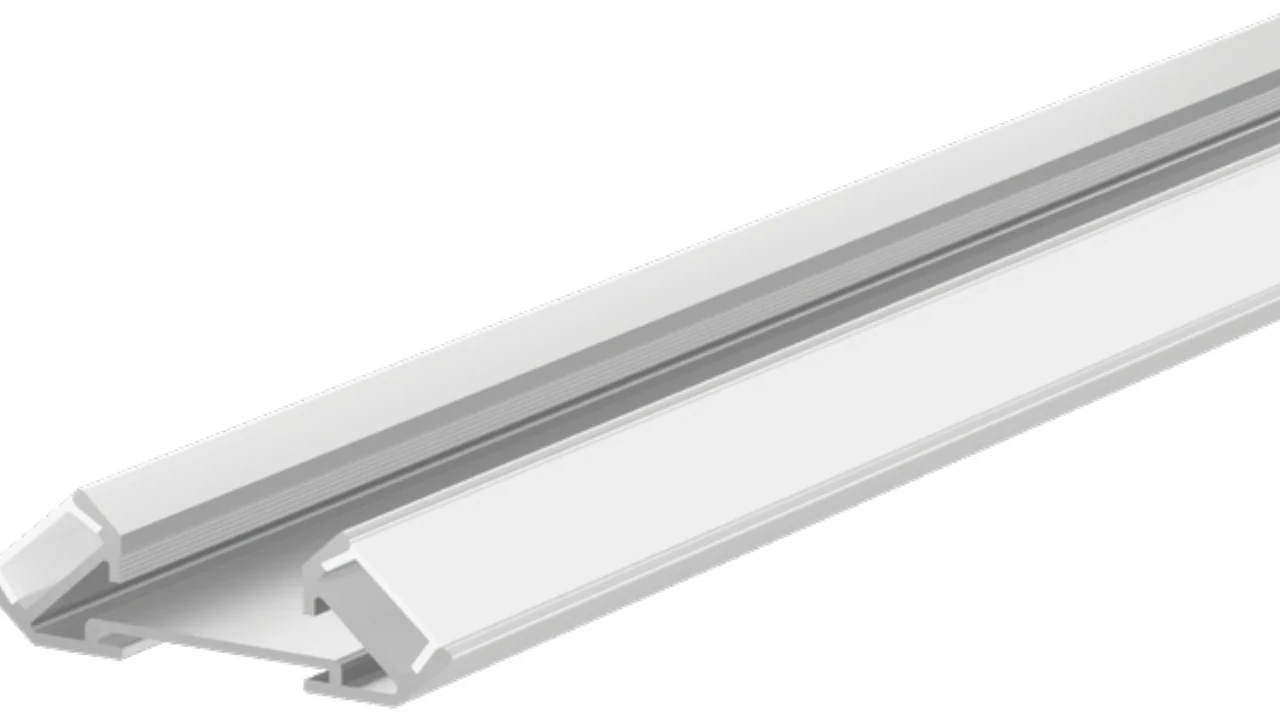

EN-PFL-MFS-S4716-046
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°
Applications
- Shelving and display
- Wardrobe interiors
- Joinery reveals
- Handrails
- Mirror surrounds

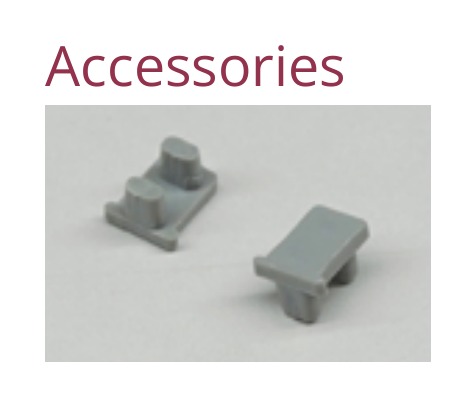

All profiles are AL6063 aluminium extrusion with a choice of diffuser; end caps and mounting clips are supplied as accessories. Cutout figures are the minimum opening in the substrate. Lengths can be cut to order — ask for a cutting list.
