Surface Mounted Profiles
Model code EN-PFL-SMS-S0809
Surface-fixed aluminium channels for ceilings, walls and joinery — 25 codes.
Each code shows its extrusion beside its own figures, with the dimensioned cross-section drawn to the right of them. Sorted by series, then ascending by size. Use the filter to jump straight to a code.

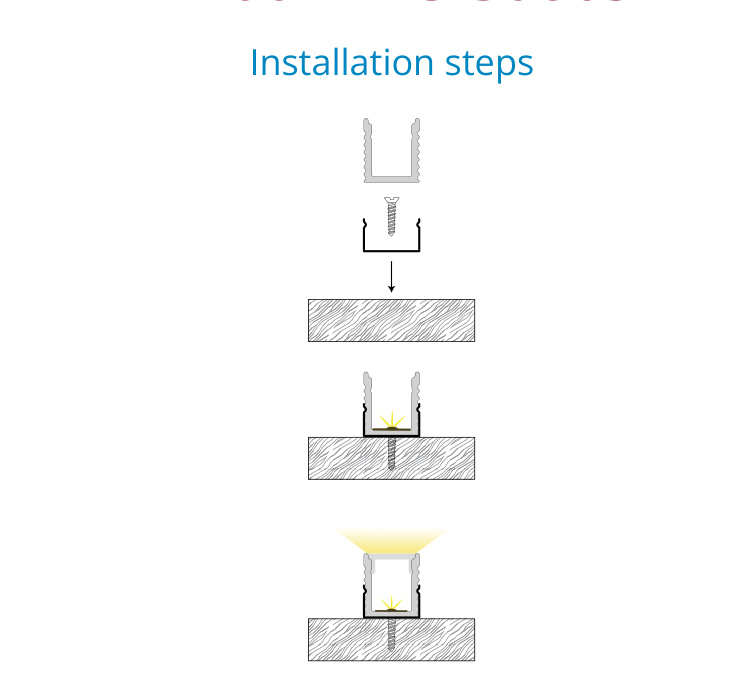

Surface Mounted profiles fix directly to the substrate with no cutout, which makes them the fallback wherever the ceiling or wall cannot be opened up — retrofit, concrete soffits, and rented premises. Every code is AL6063 aluminium with a choice of diffuser.
The range 25 codes
EN-PFL-SMS-S0809
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 05 mm
- Beam angle
- 120°

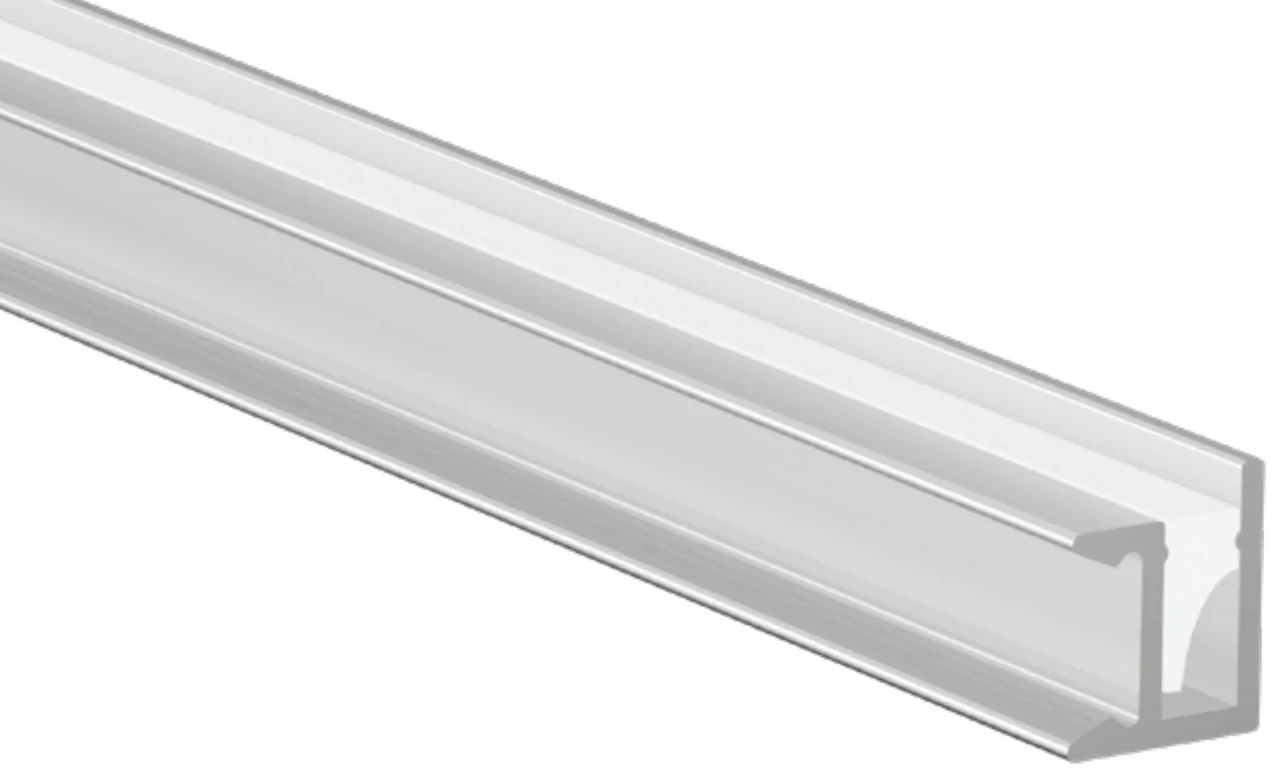

EN-PFL-SMS-S1012
- Std. length
- 3000 mm
- Diffuser
- Silicone
- LED strip
- 05 mm
- Beam angle
- 120°

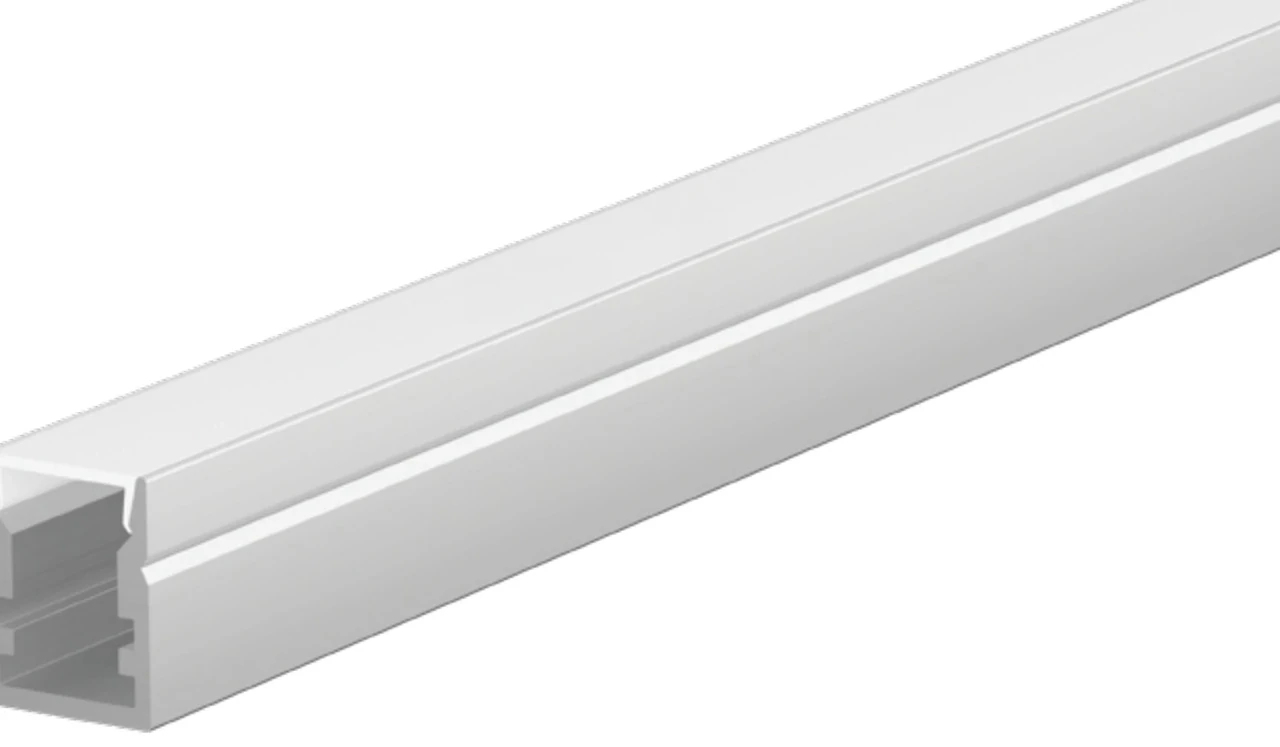

EN-PFL-SMS-S1013
- Std. length
- 3000 mm
- Diffuser
- Black, Frosted
- LED strip
- 05 mm
- Beam angle
- 120°

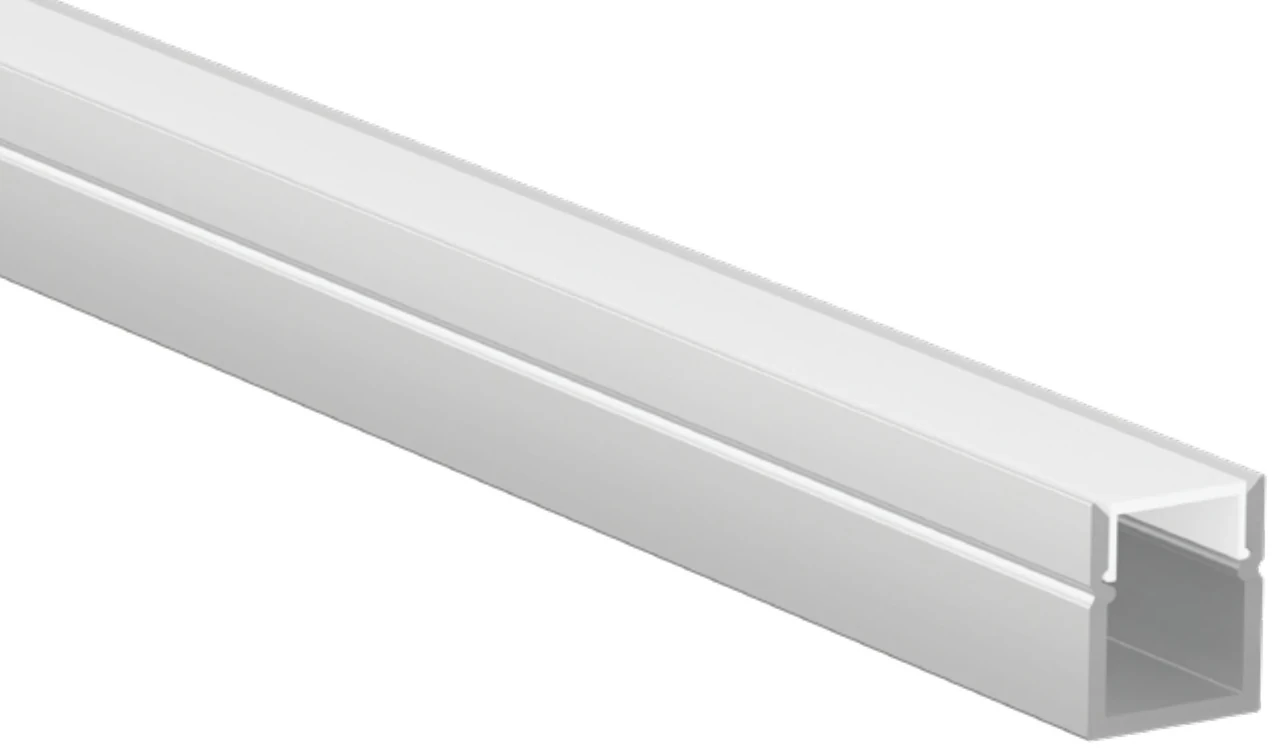

EN-PFL-SMS-S1214
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 08 mm
- Beam angle
- 120°

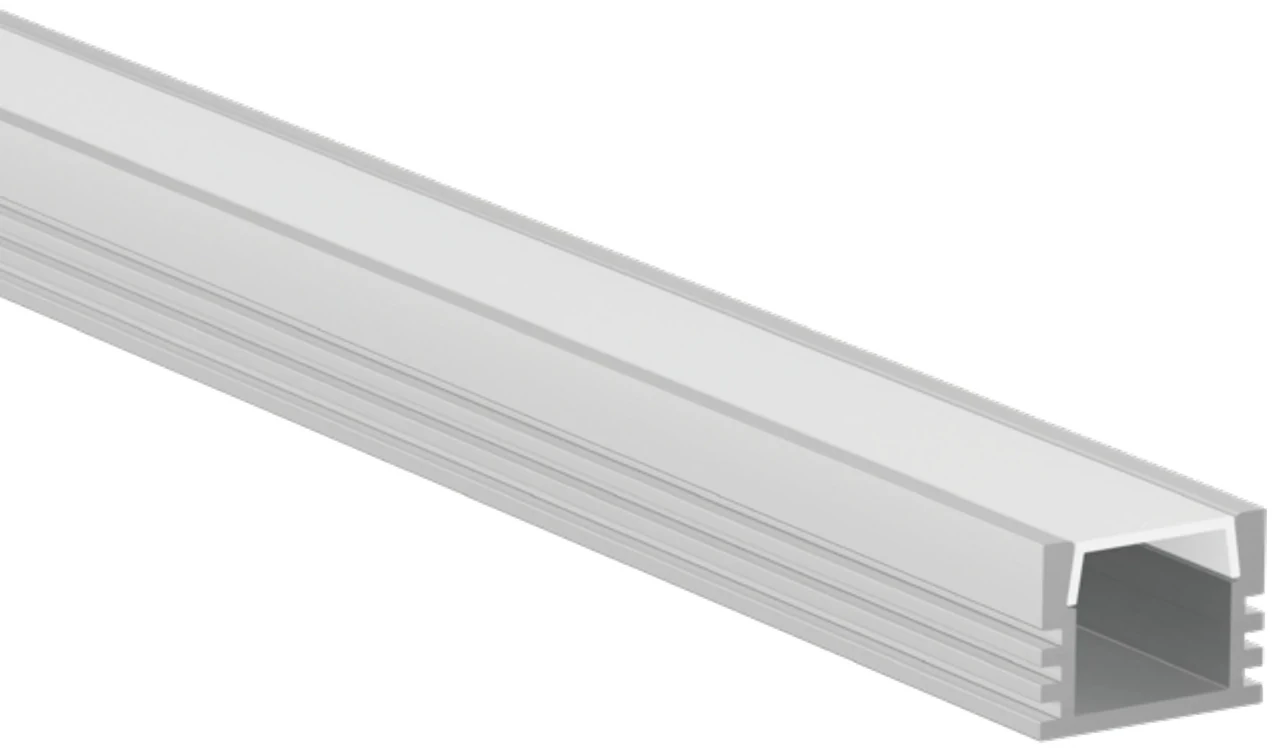

EN-PFL-SMS-S1612
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 10 mm
- Beam angle
- 120°

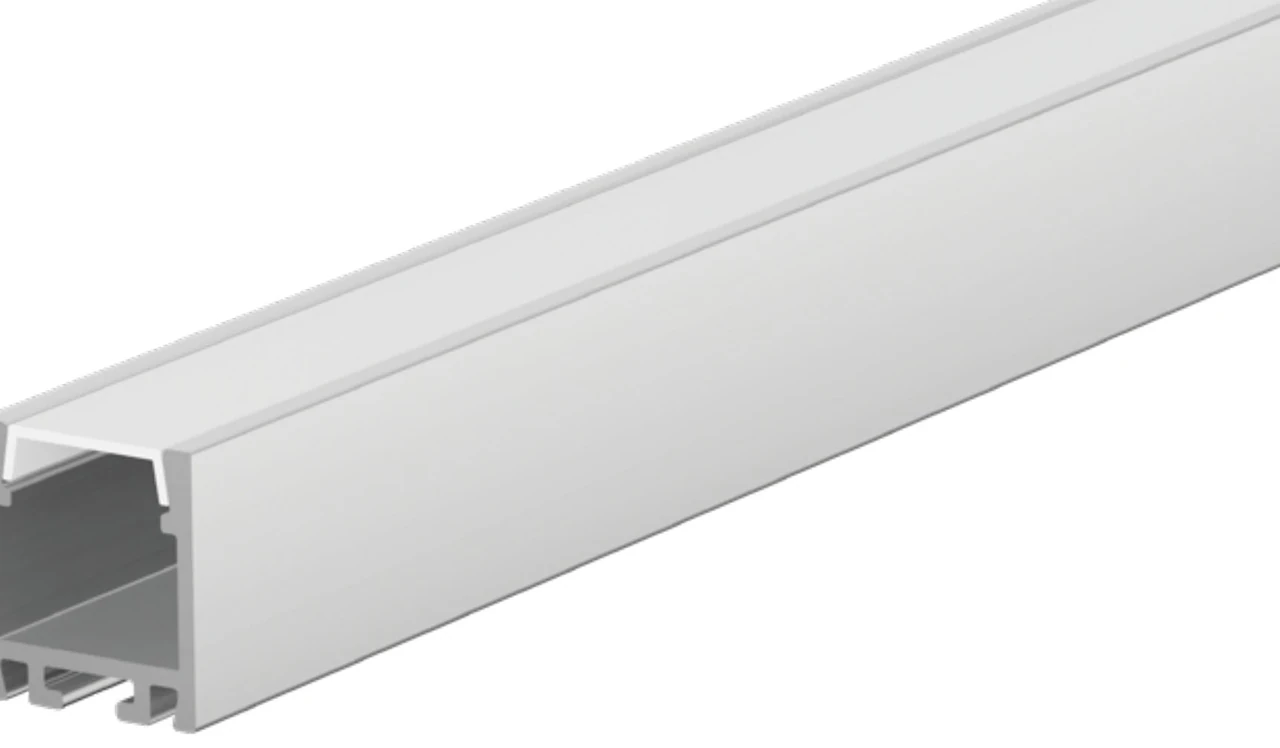

EN-PFL-SMS-S1618
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 10 mm
- Beam angle
- 120°

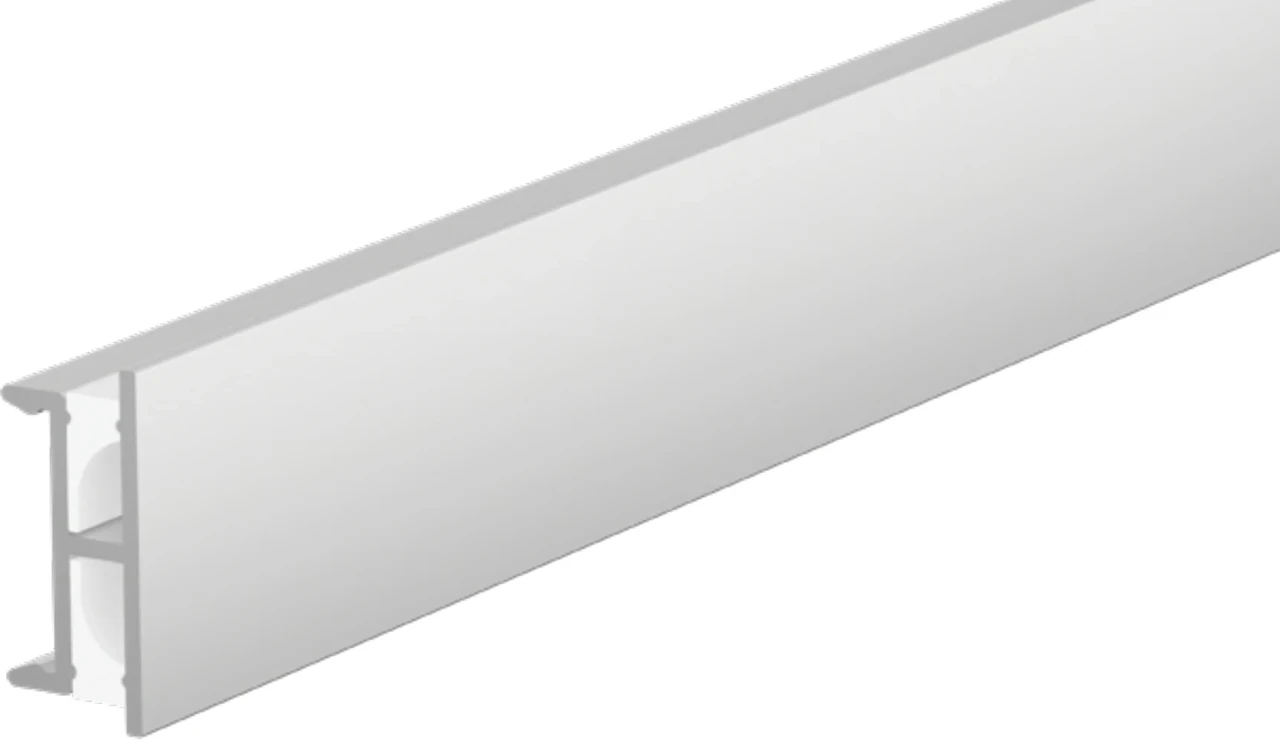

EN-PFL-SMS-S2310
- Std. length
- 3000 mm
- Diffuser
- Silicone
- LED strip
- 05 mm
- Beam angle
- 120°

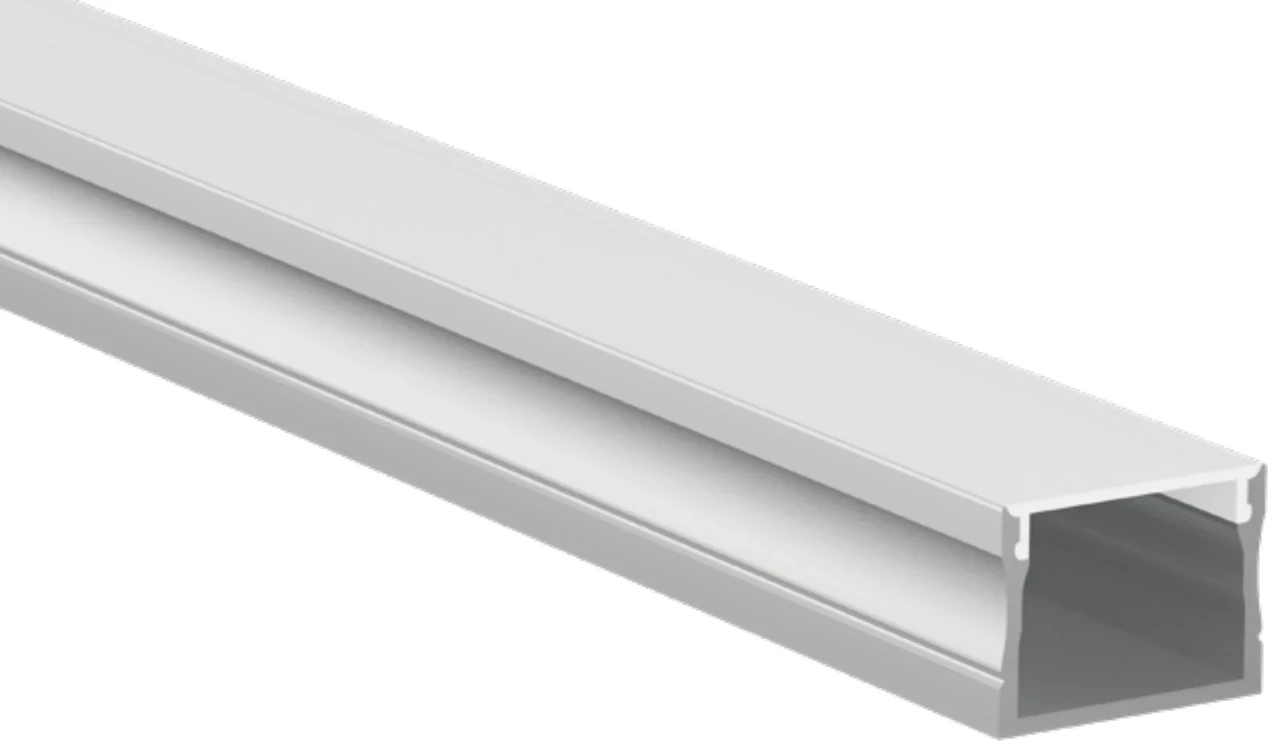

EN-PFL-SMS-S2418
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

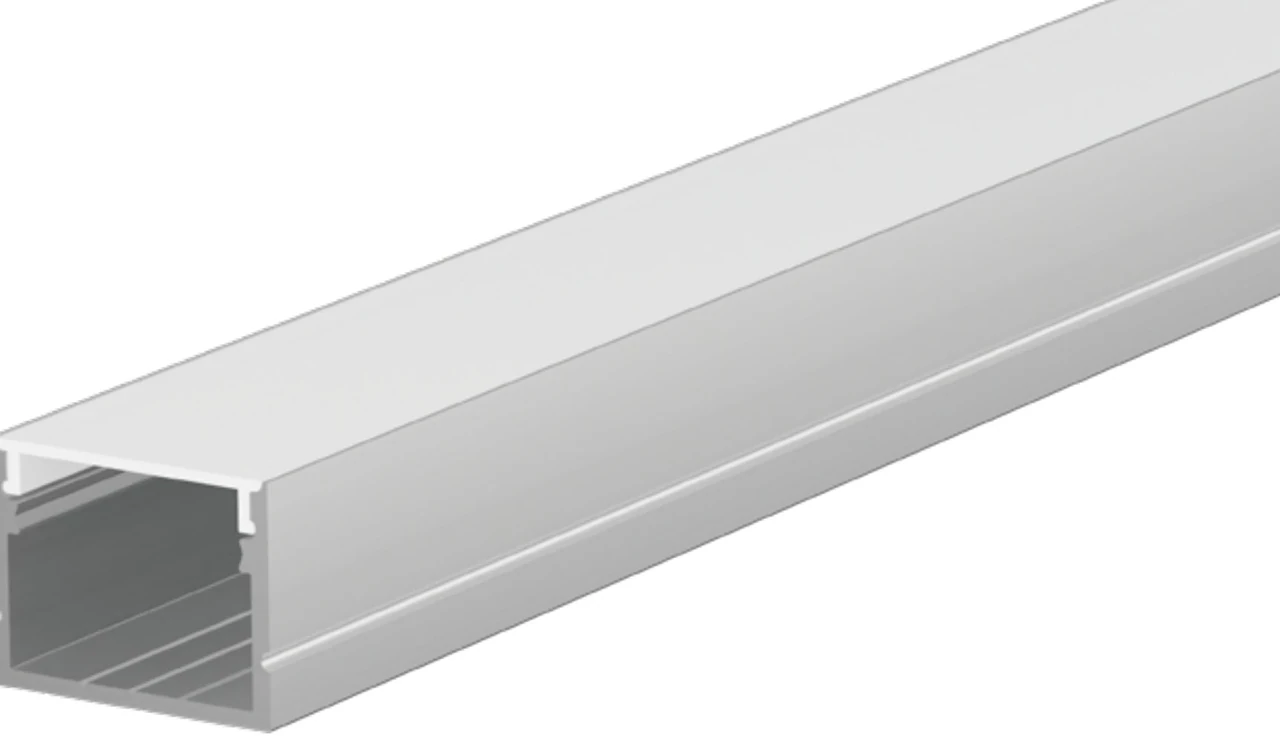

EN-PFL-SMS-S2518
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

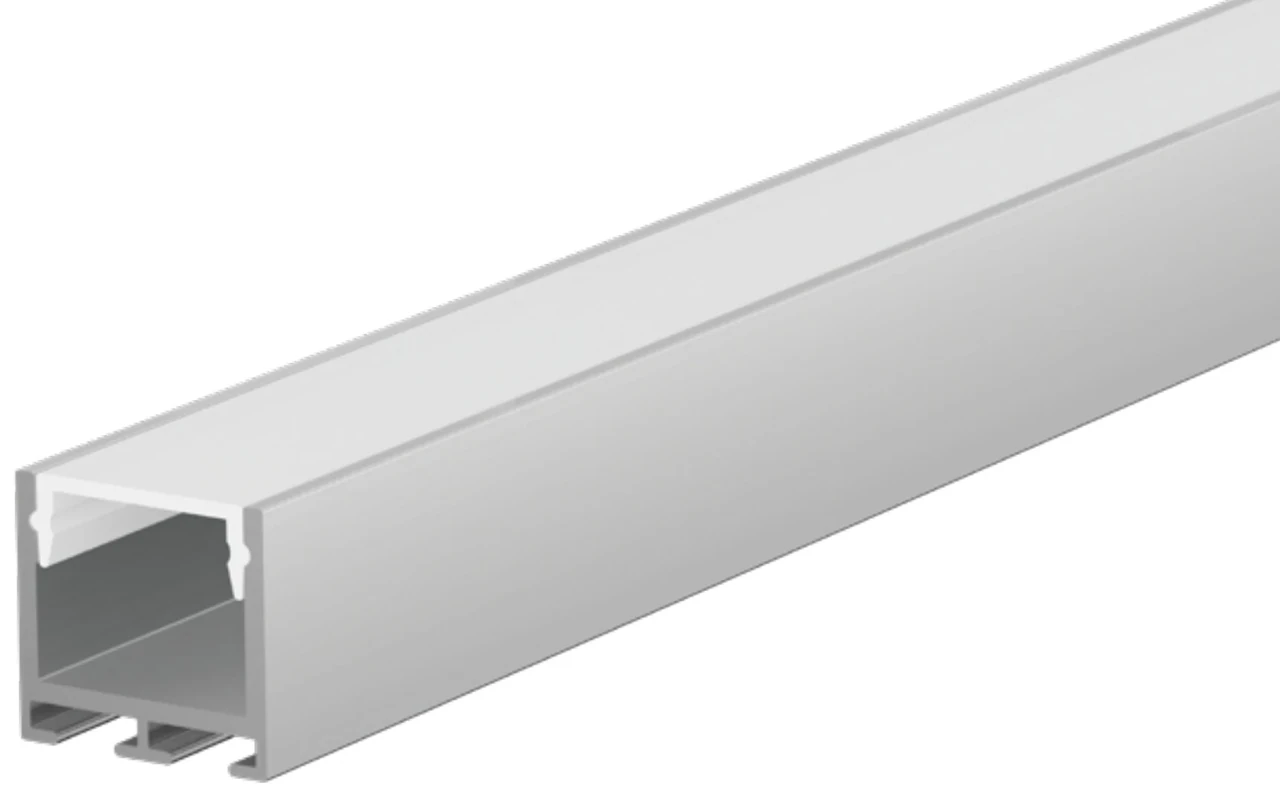

EN-PFL-SMS-S2525-016
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

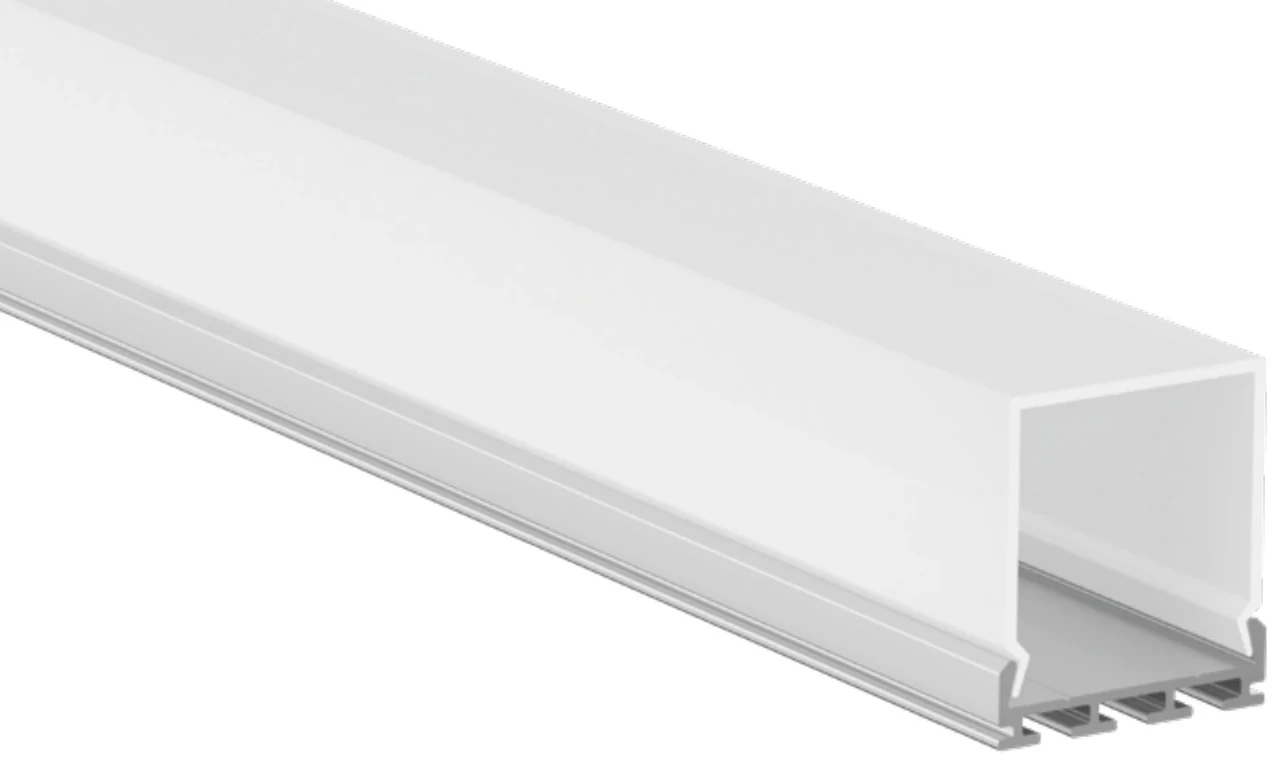

EN-PFL-SMS-S2525-026
- Std. length
- 3000 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

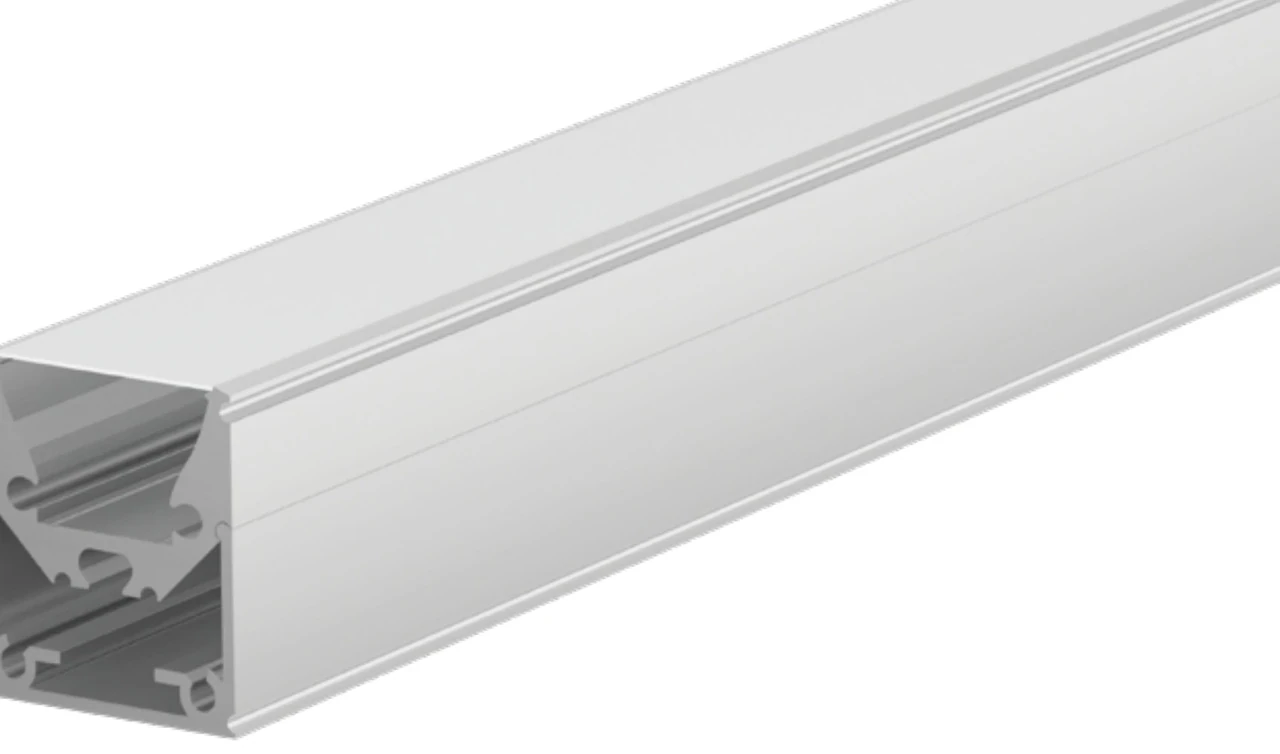

EN-PFL-SMS-S2530
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

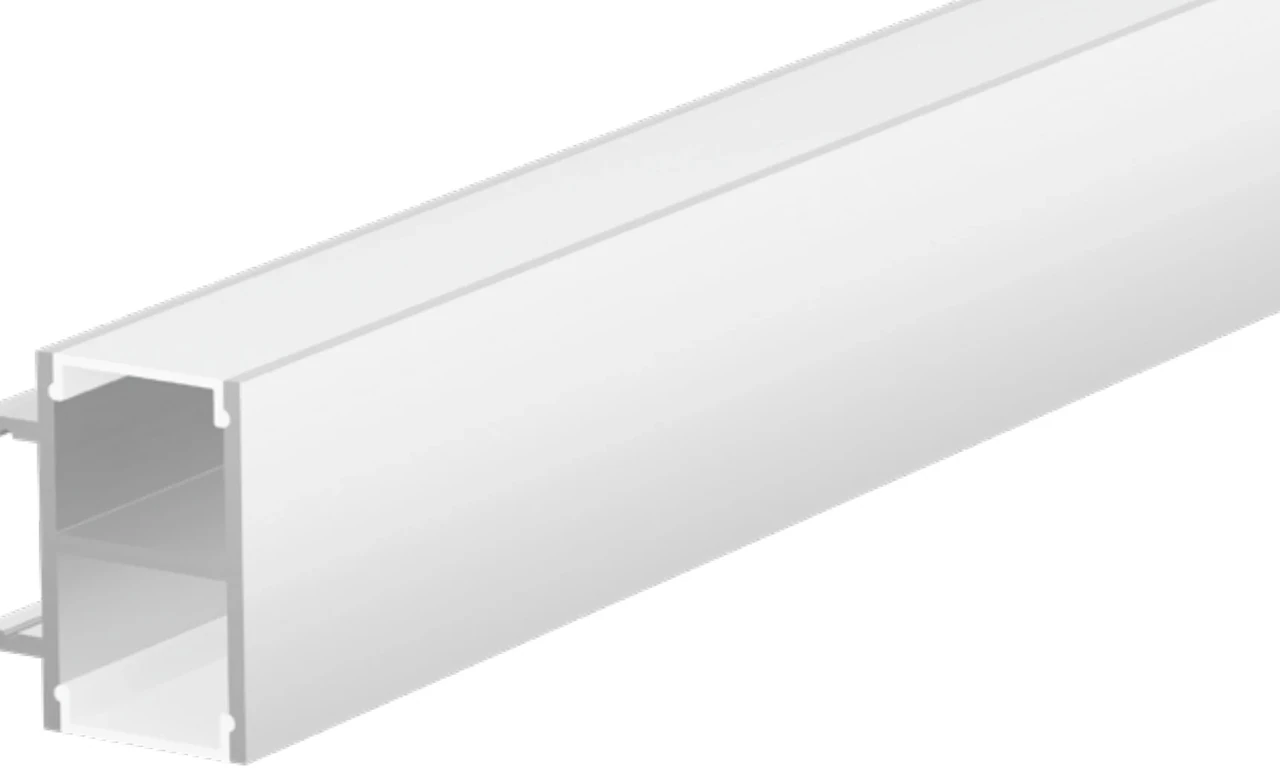

EN-PFL-SMS-S3040
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

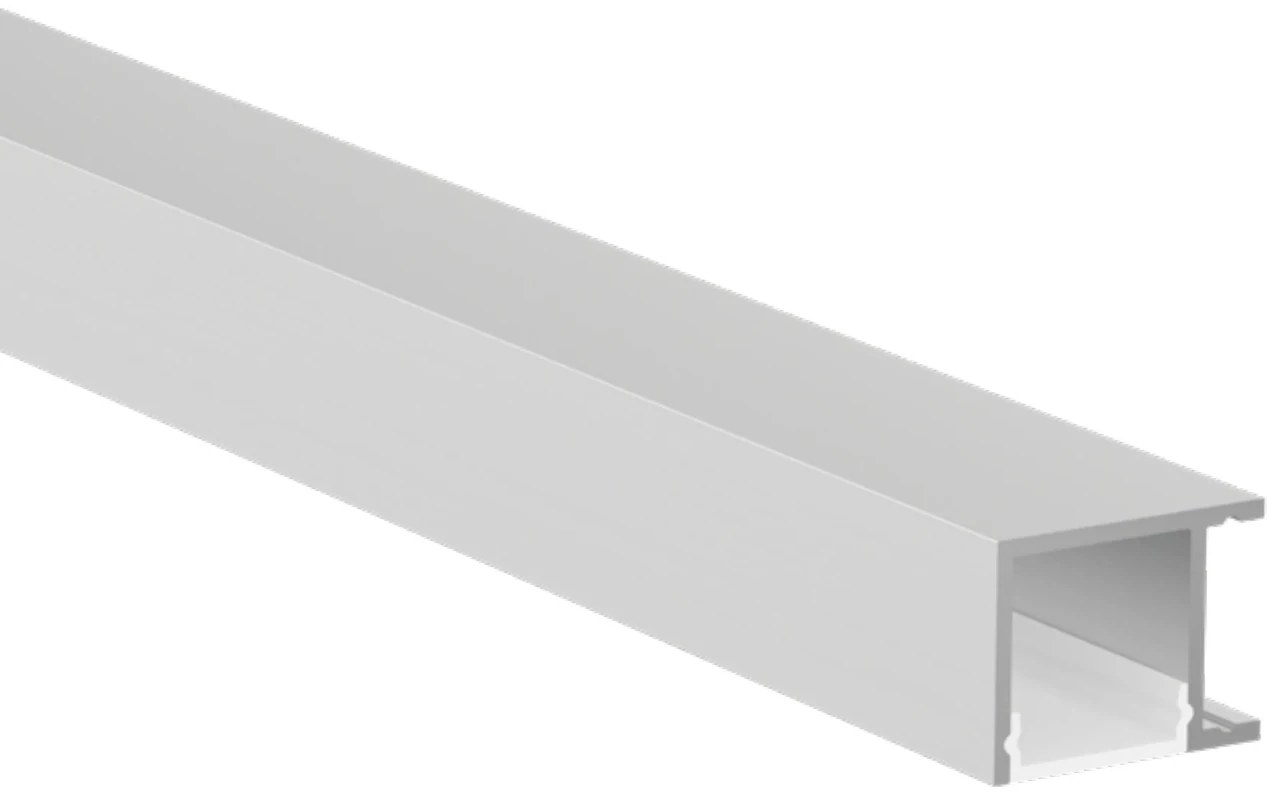

EN-PFL-SMS-S3225
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

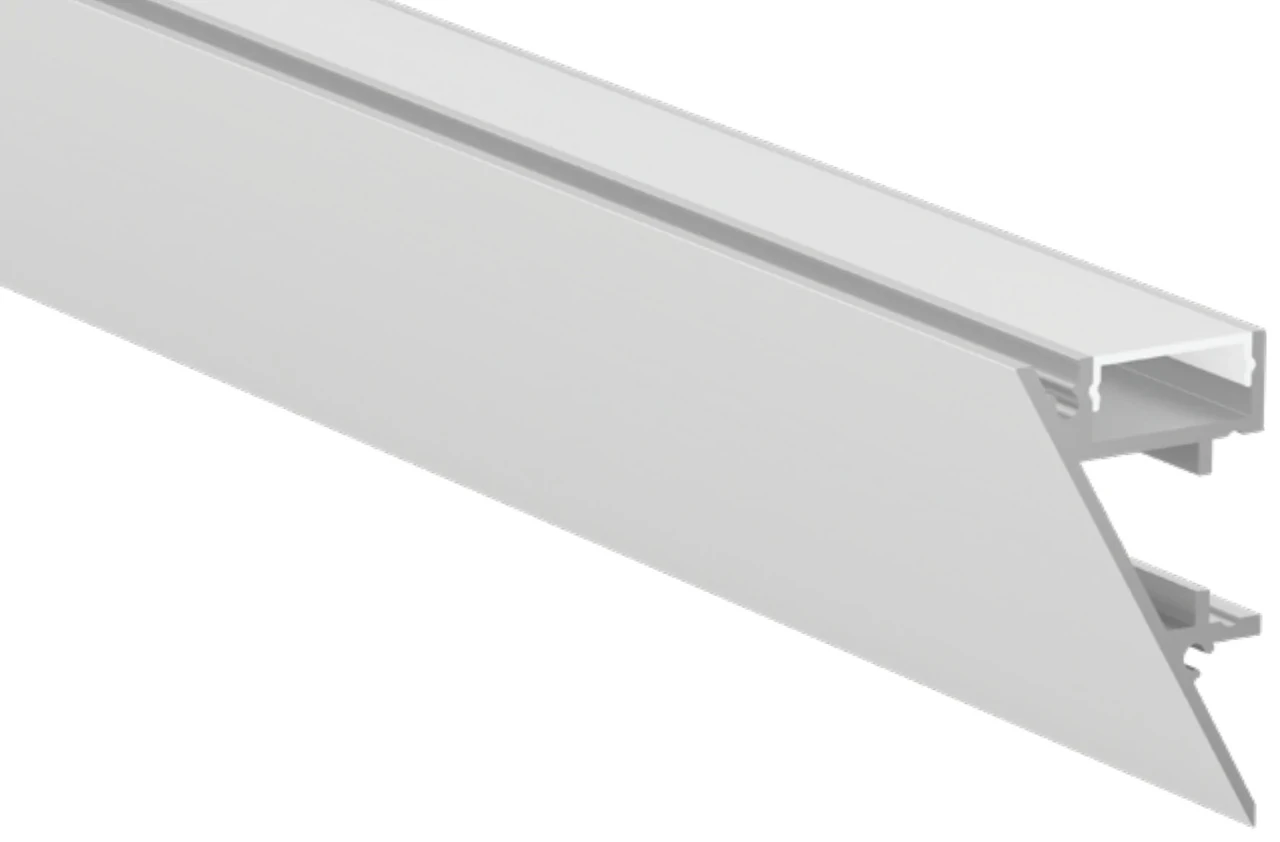

EN-PFL-SMS-S3357
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

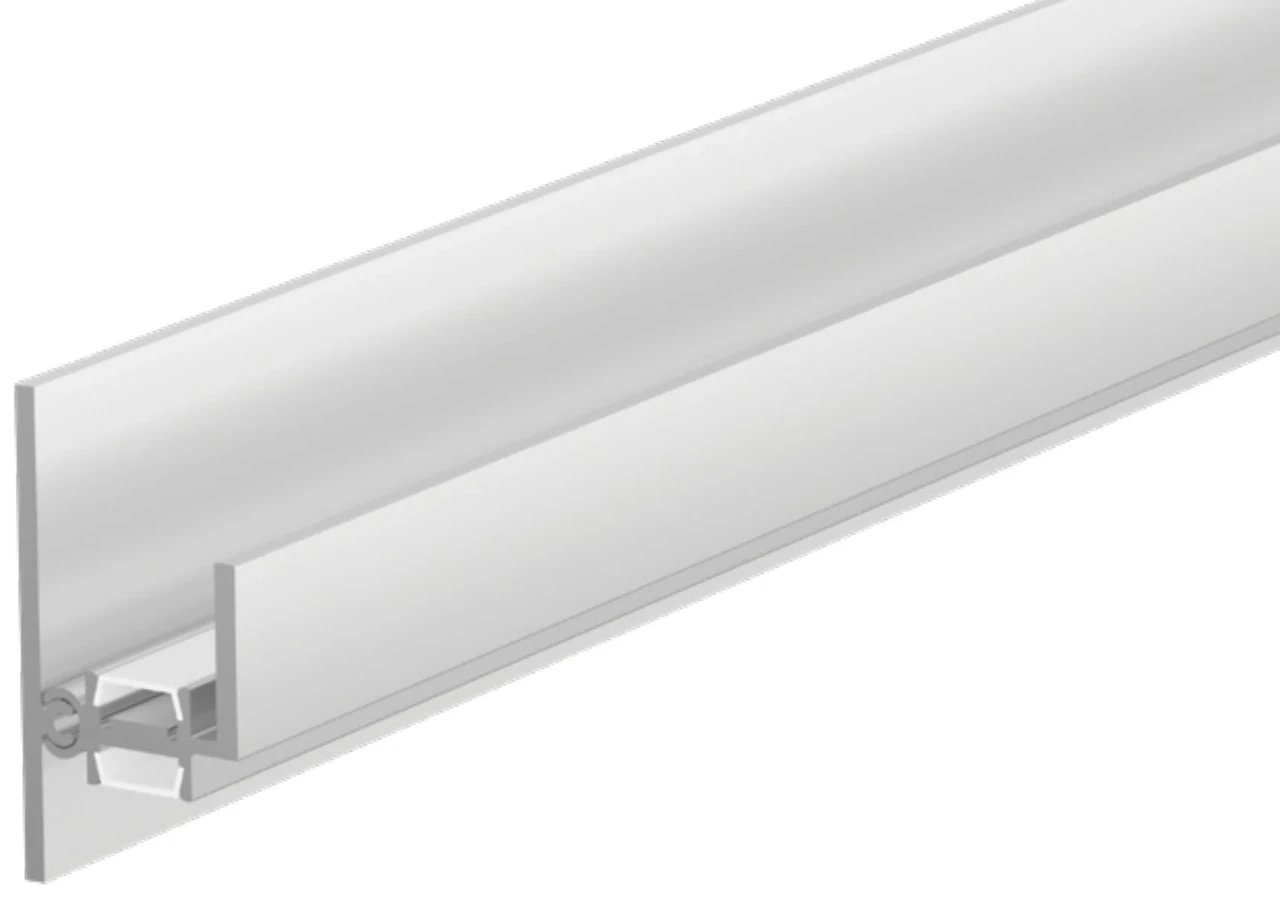

EN-PFL-SMS-S3461
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

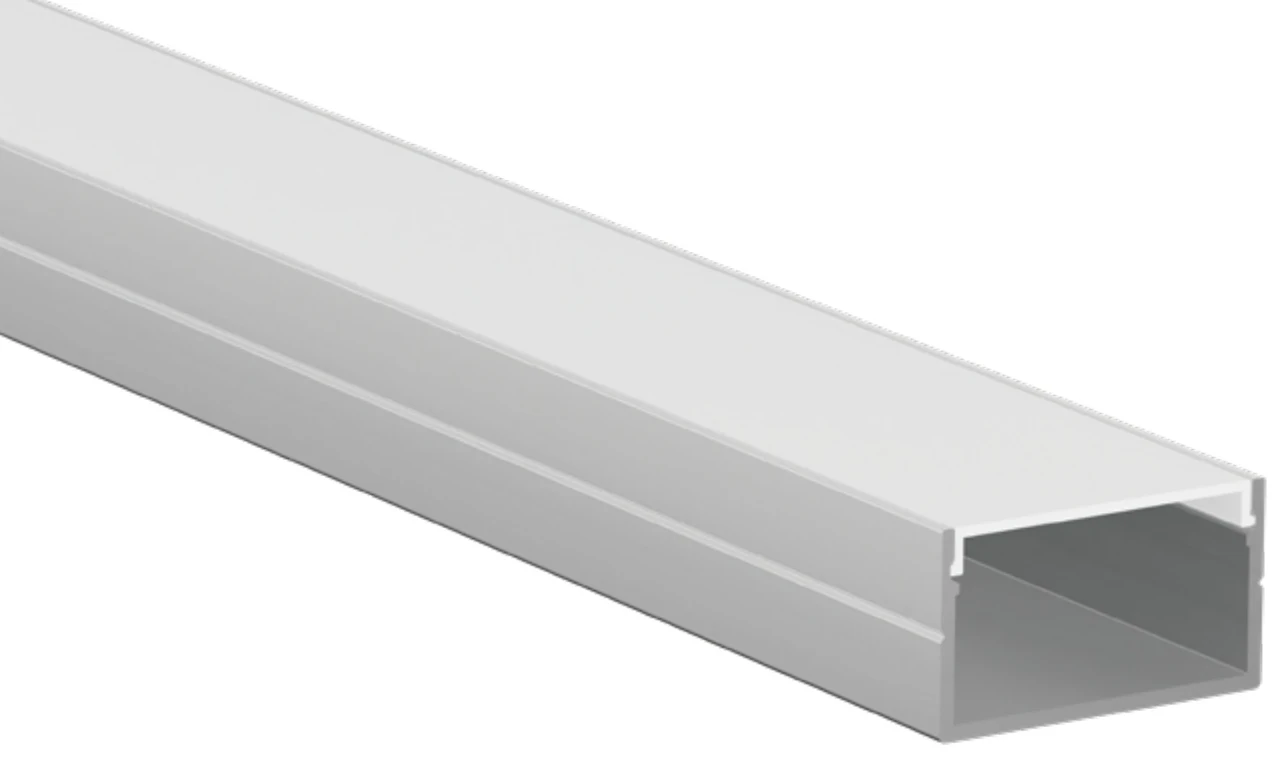

EN-PFL-SMS-S3520
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

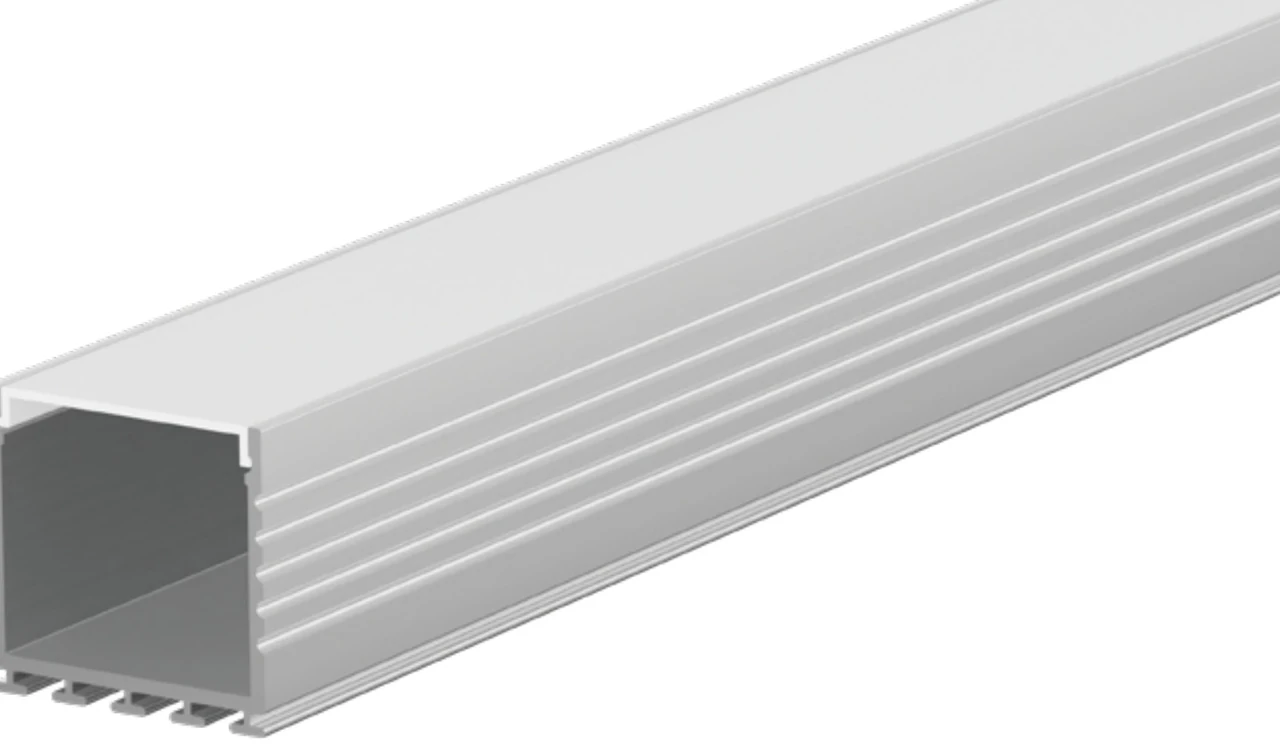

EN-PFL-SMS-S3535
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

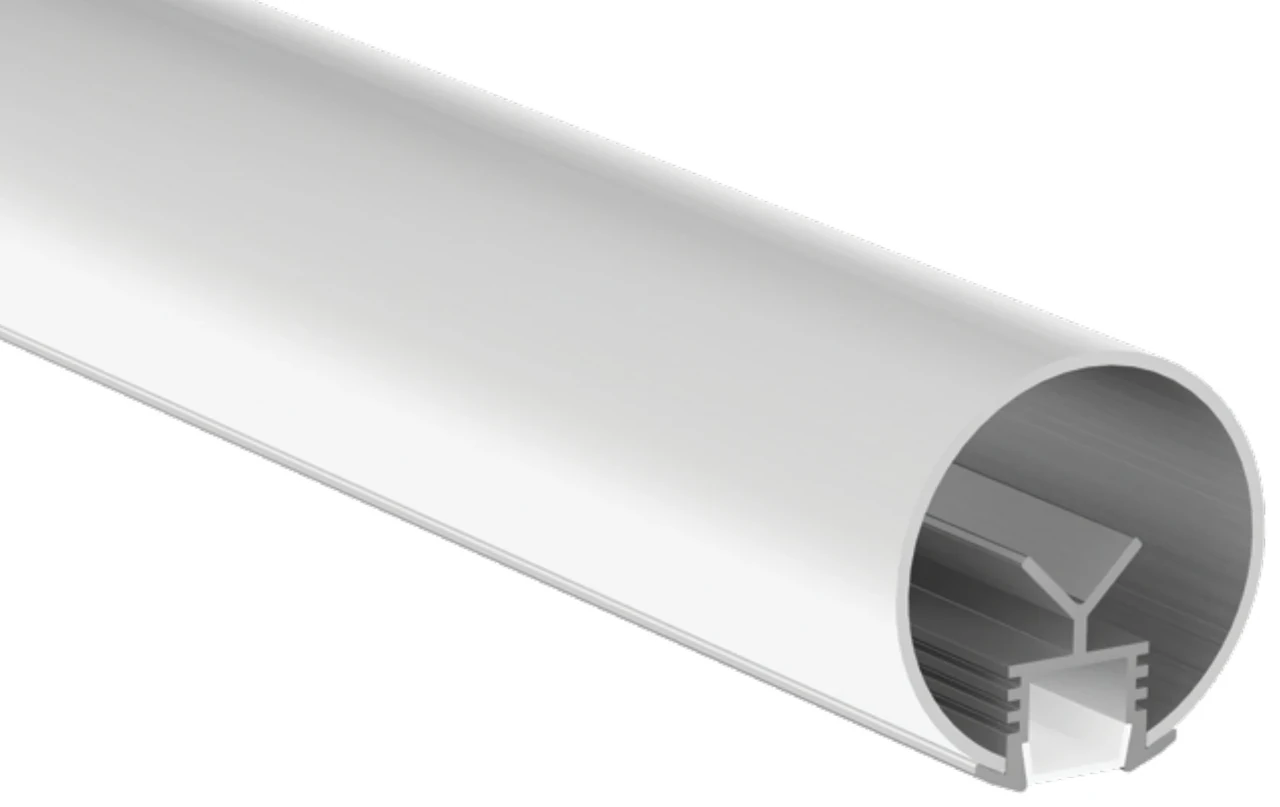

EN-PFL-SMS-S4142
- Std. length
- 3000 mm
- Diffuser
- Black, Clear, Frosted, Milky
- LED strip
- 08 mm
- Beam angle
- 120°

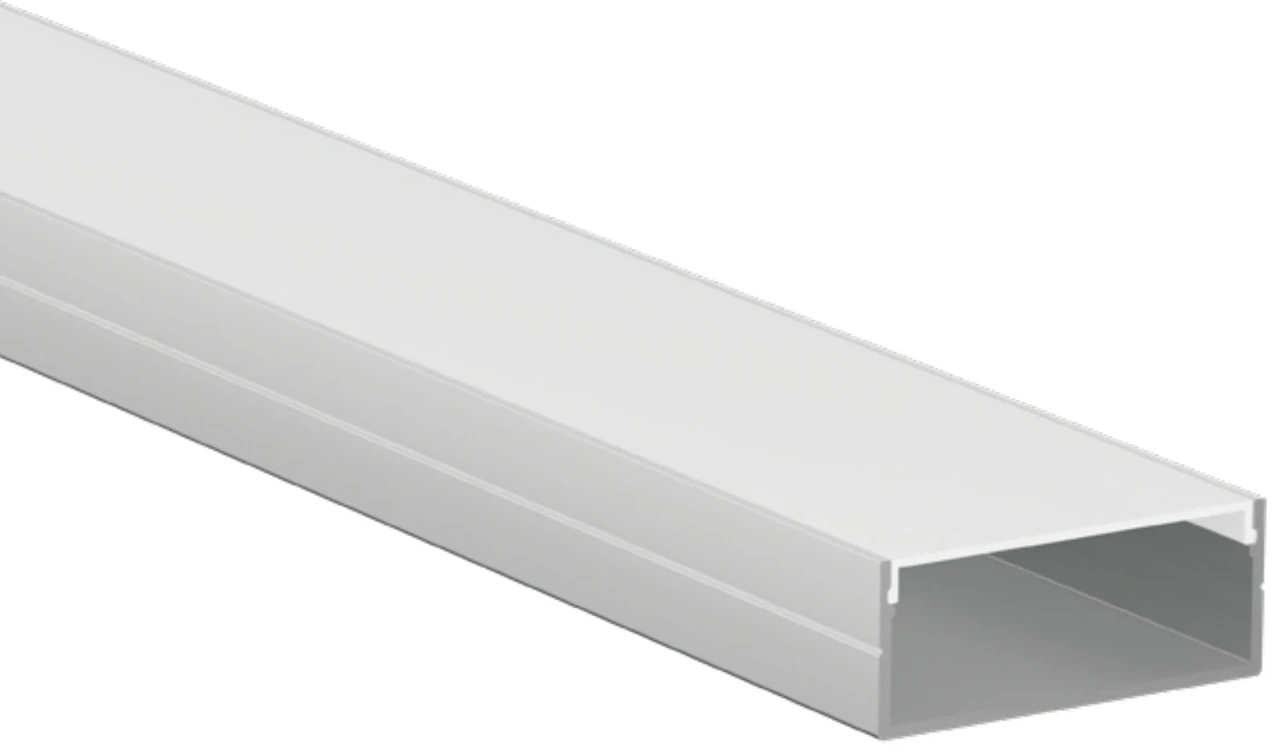

EN-PFL-SMS-S5020
- Std. length
- 3600 mm
- Diffuser
- Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

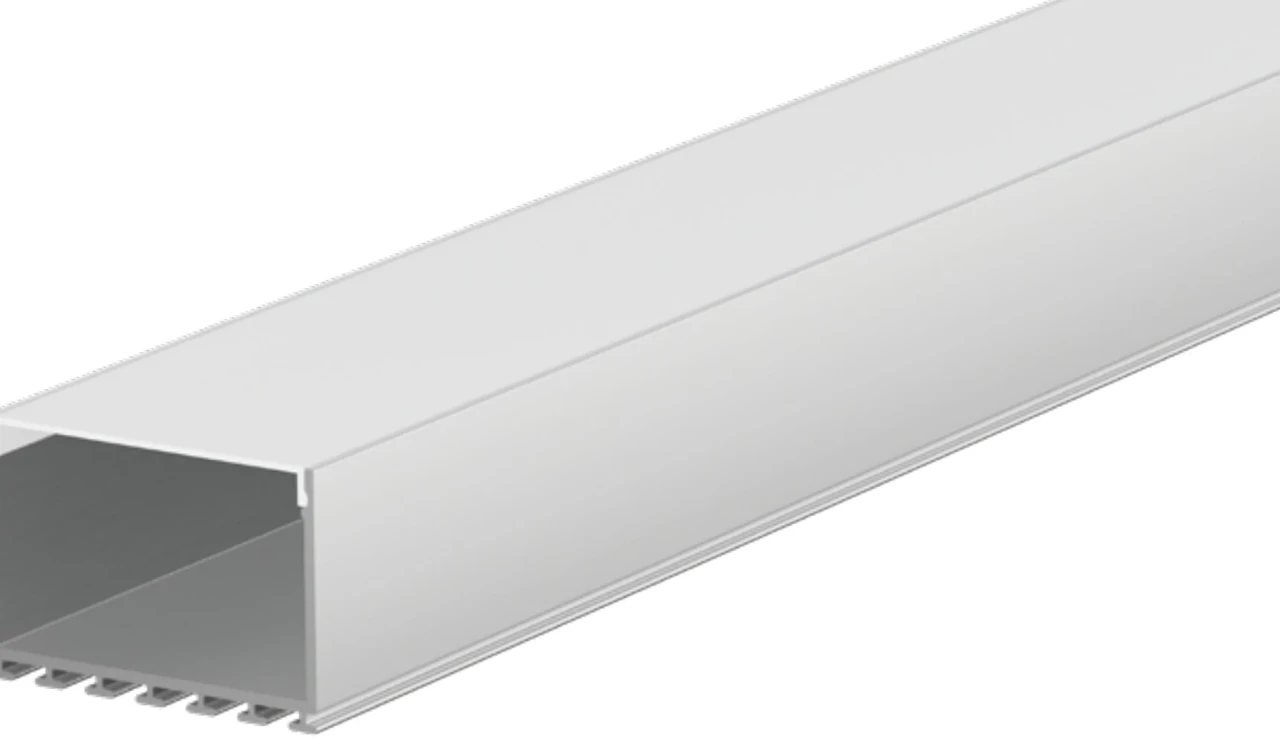

EN-PFL-SMS-S5035
- Std. length
- 3600 mm
- Diffuser
- Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

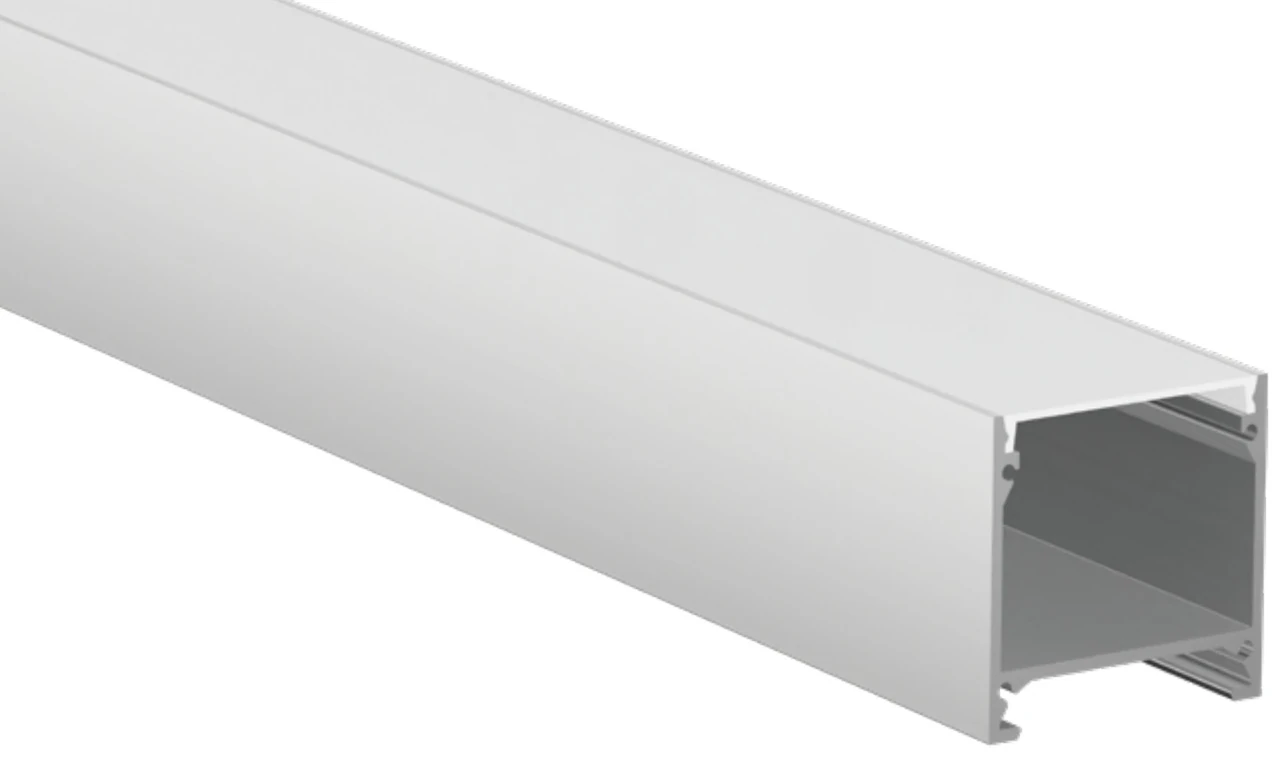

EN-PFL-SMS-S5050
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

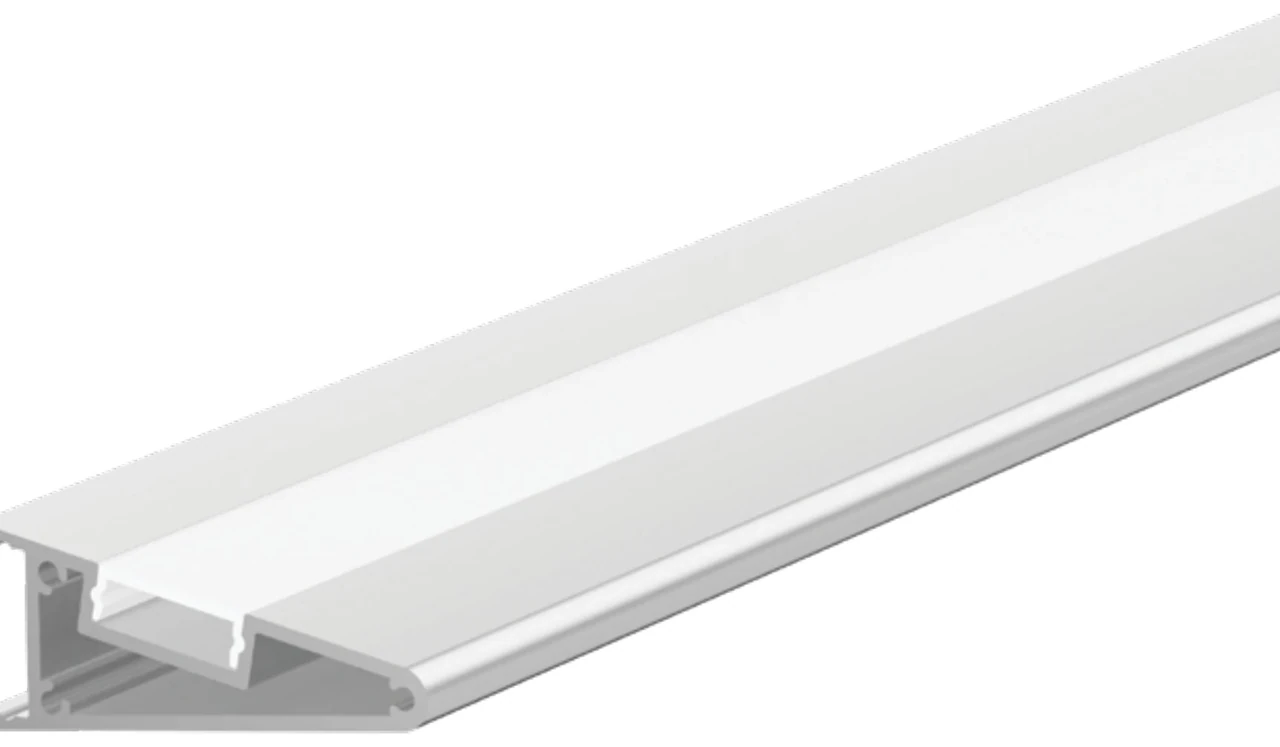

EN-PFL-SMS-S6526
- Std. length
- 3600 mm
- Diffuser
- Black, Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

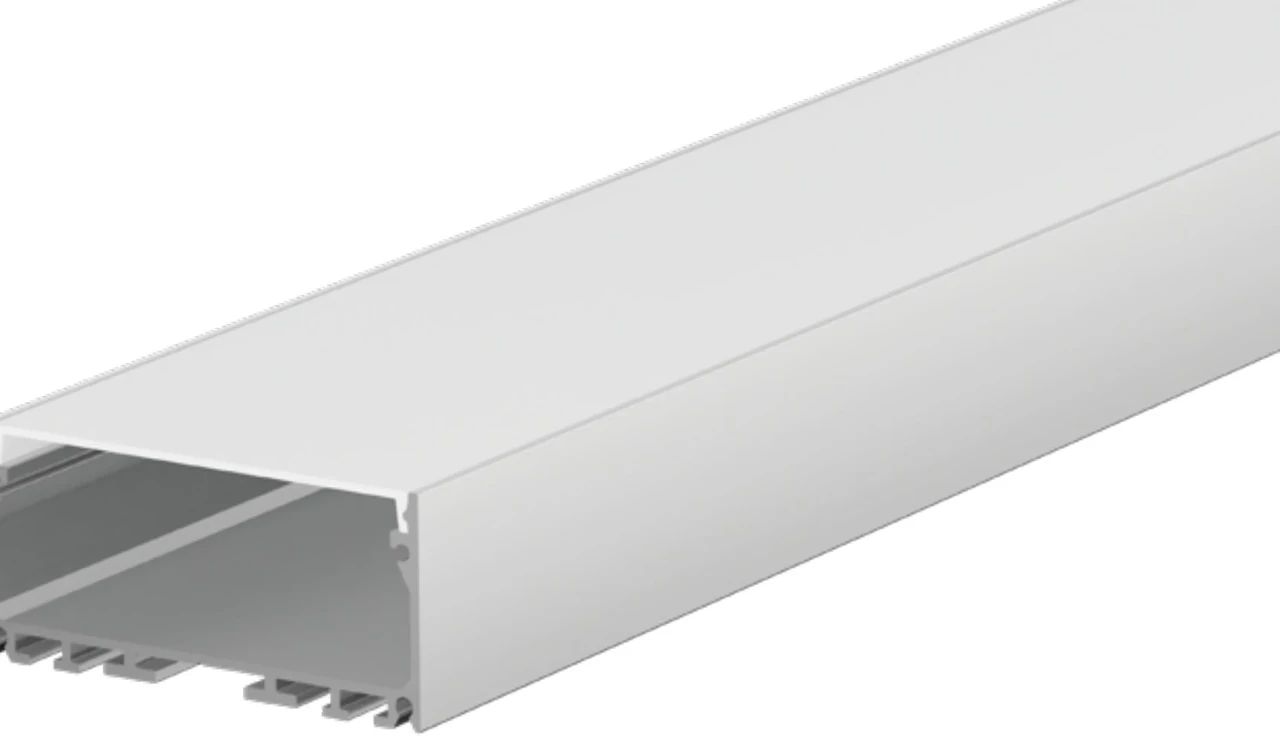

EN-PFL-SMS-S7535
- Std. length
- 3600 mm
- Diffuser
- Clear, Frosted
- LED strip
- 10 mm
- Beam angle
- 120°

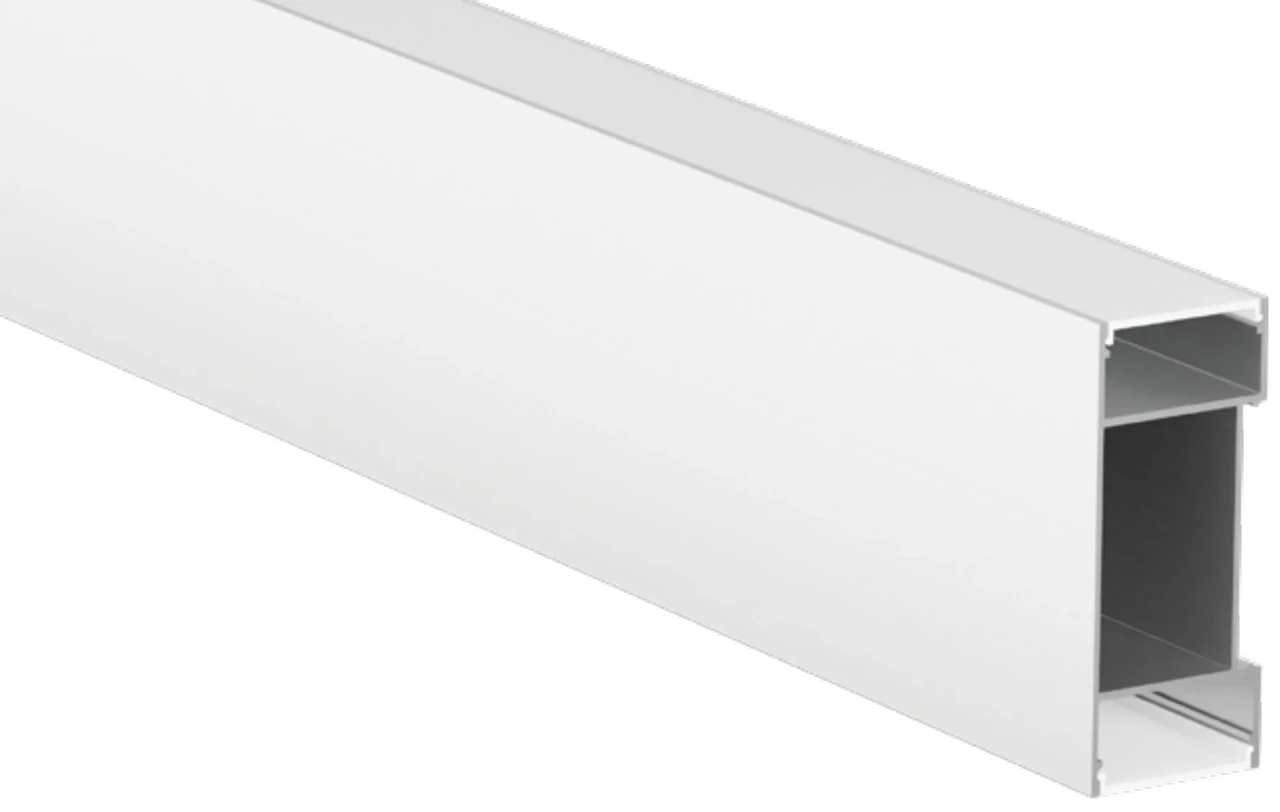

EN-PFL-SMS-S8536
- Std. length
- 3600 mm
- Diffuser
- Frosted
- LED strip
- 10 mm
- Beam angle
- 120°
Applications
- Retrofit ceilings
- Concrete soffits
- Wall lines
- Joinery
- Workshops

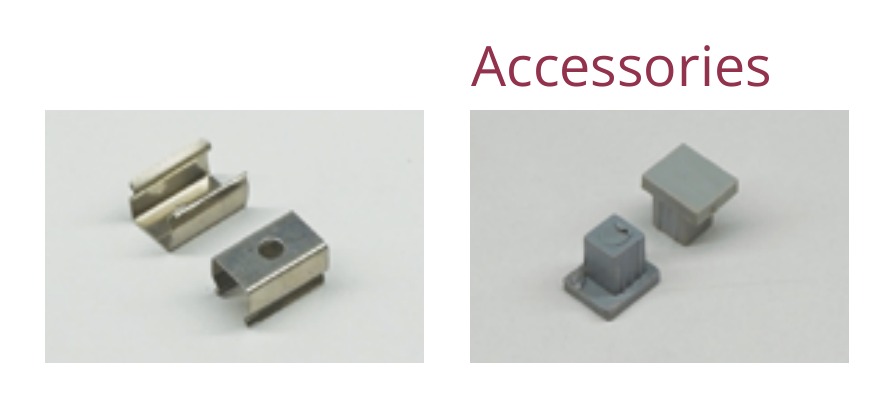

All profiles are AL6063 aluminium extrusion with a choice of diffuser; end caps and mounting clips are supplied as accessories. Cutout figures are the minimum opening in the substrate. Lengths can be cut to order — ask for a cutting list.
